Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

48 part groups · 11 illustrations

Illustrations

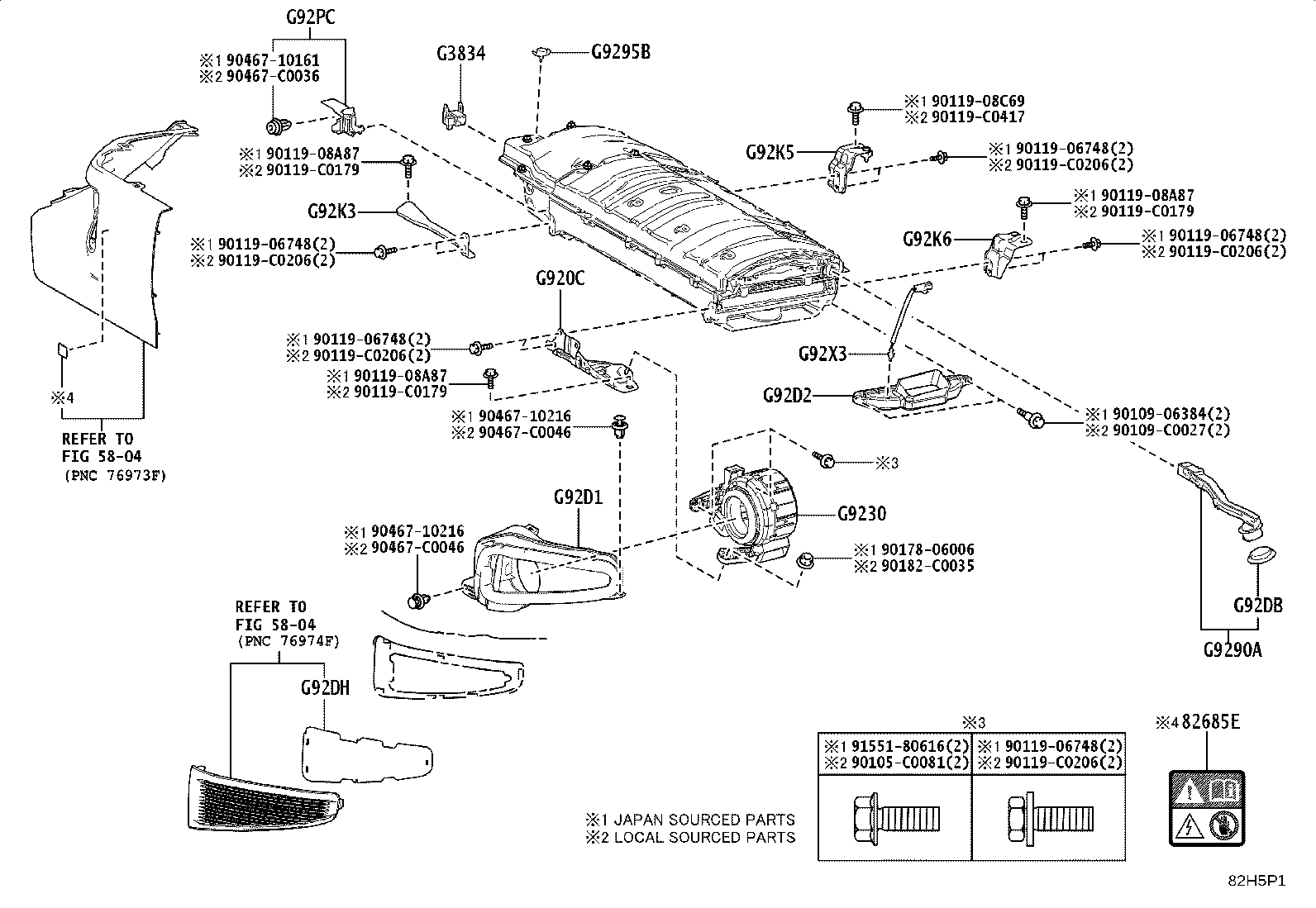

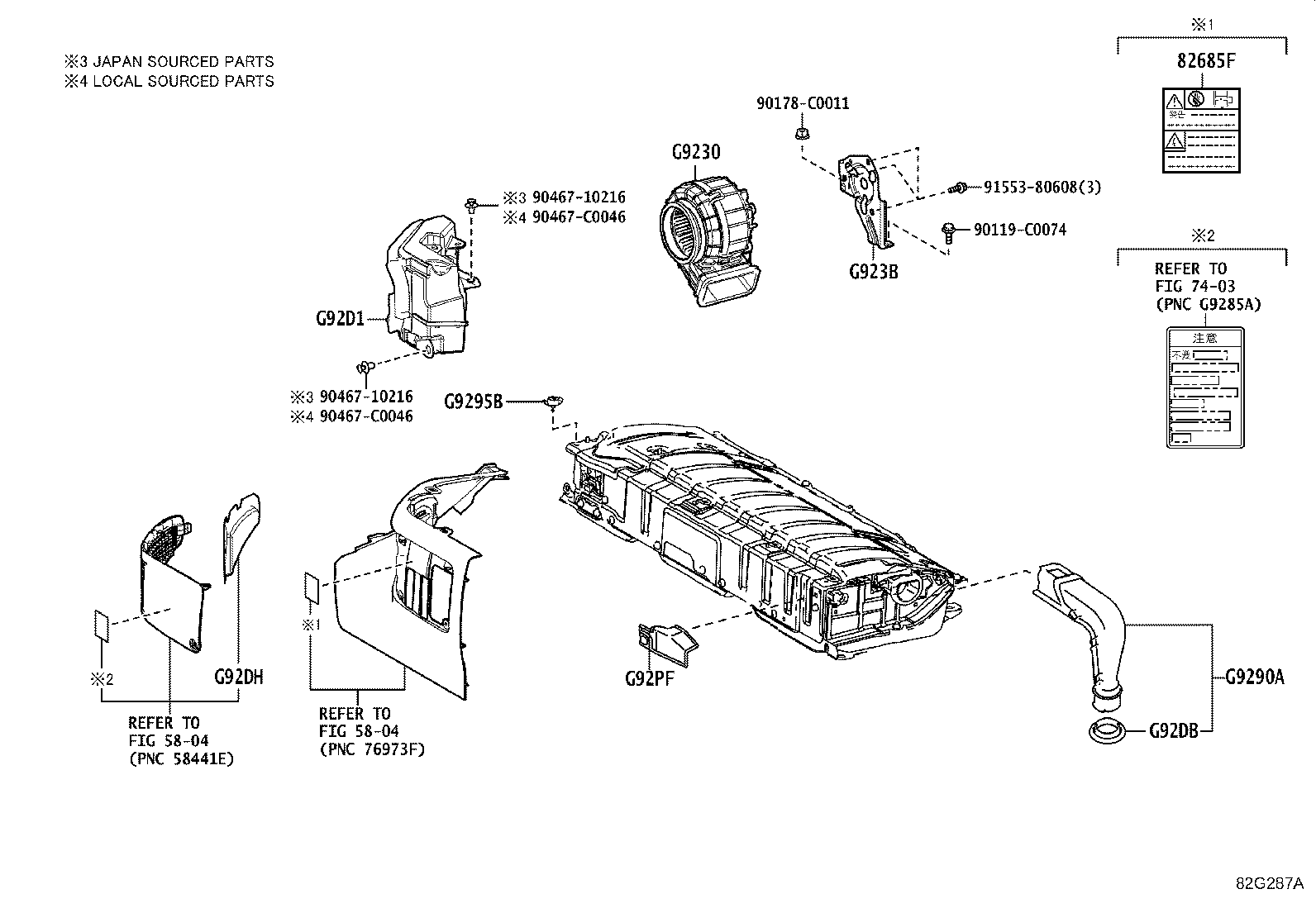

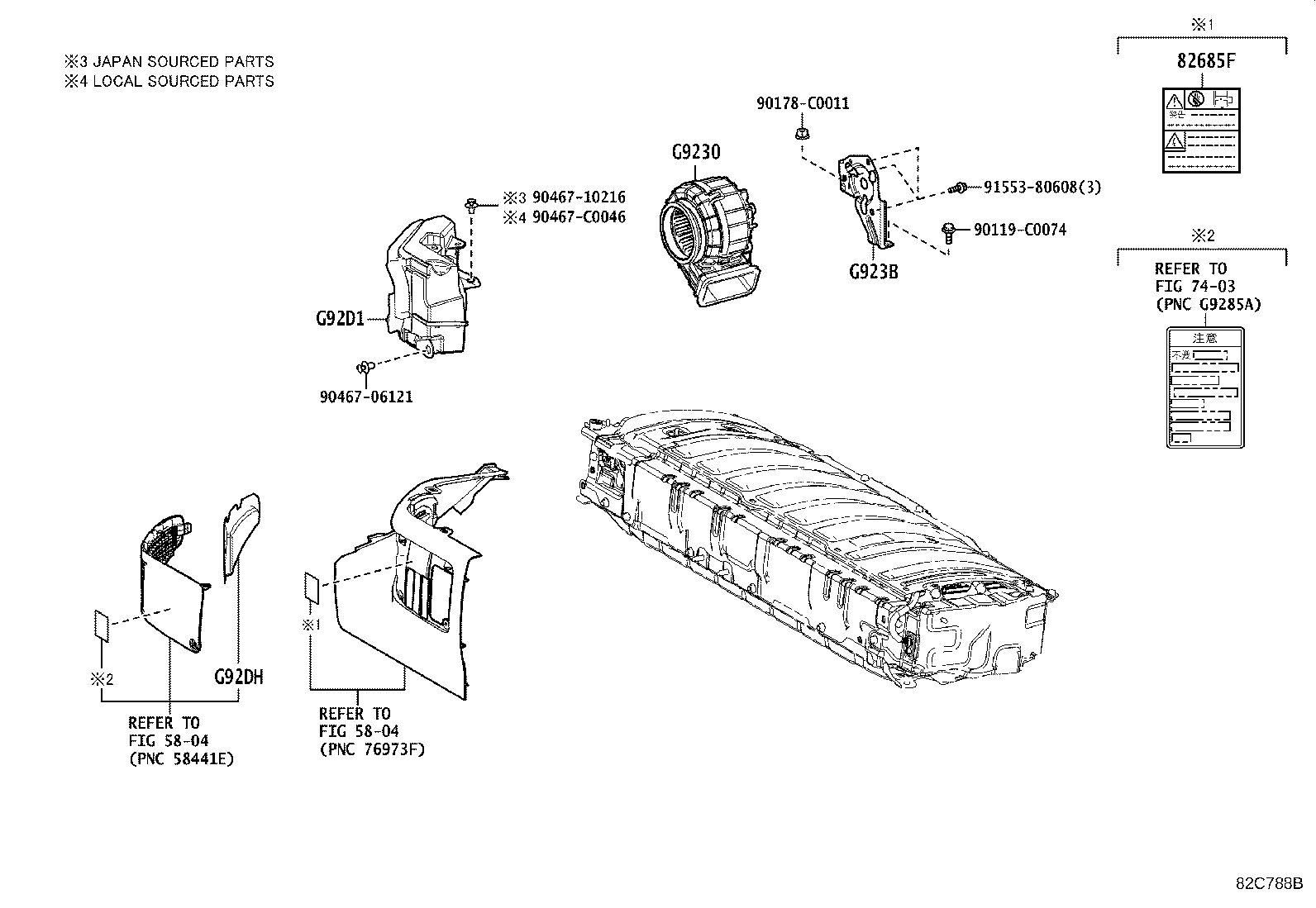

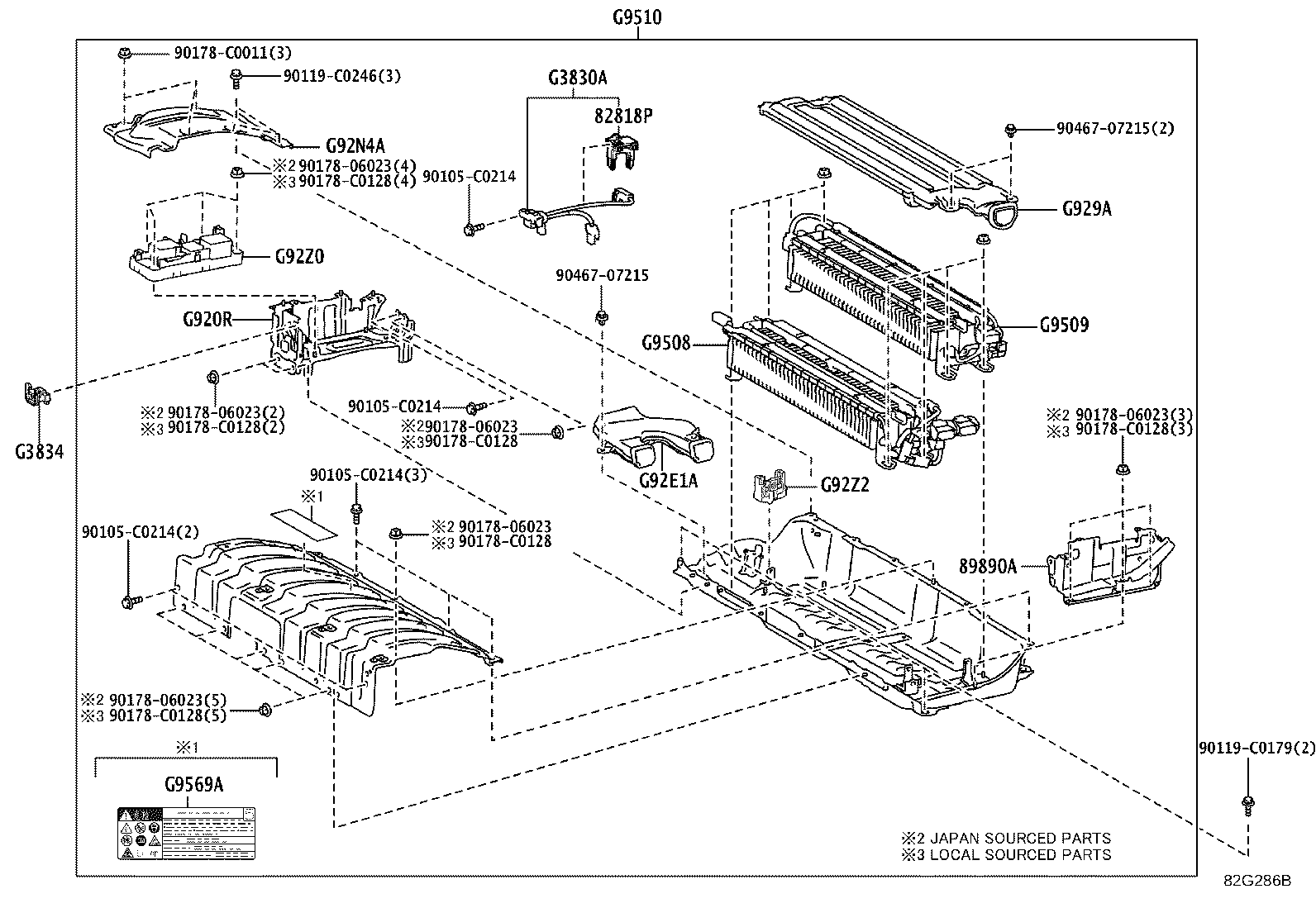

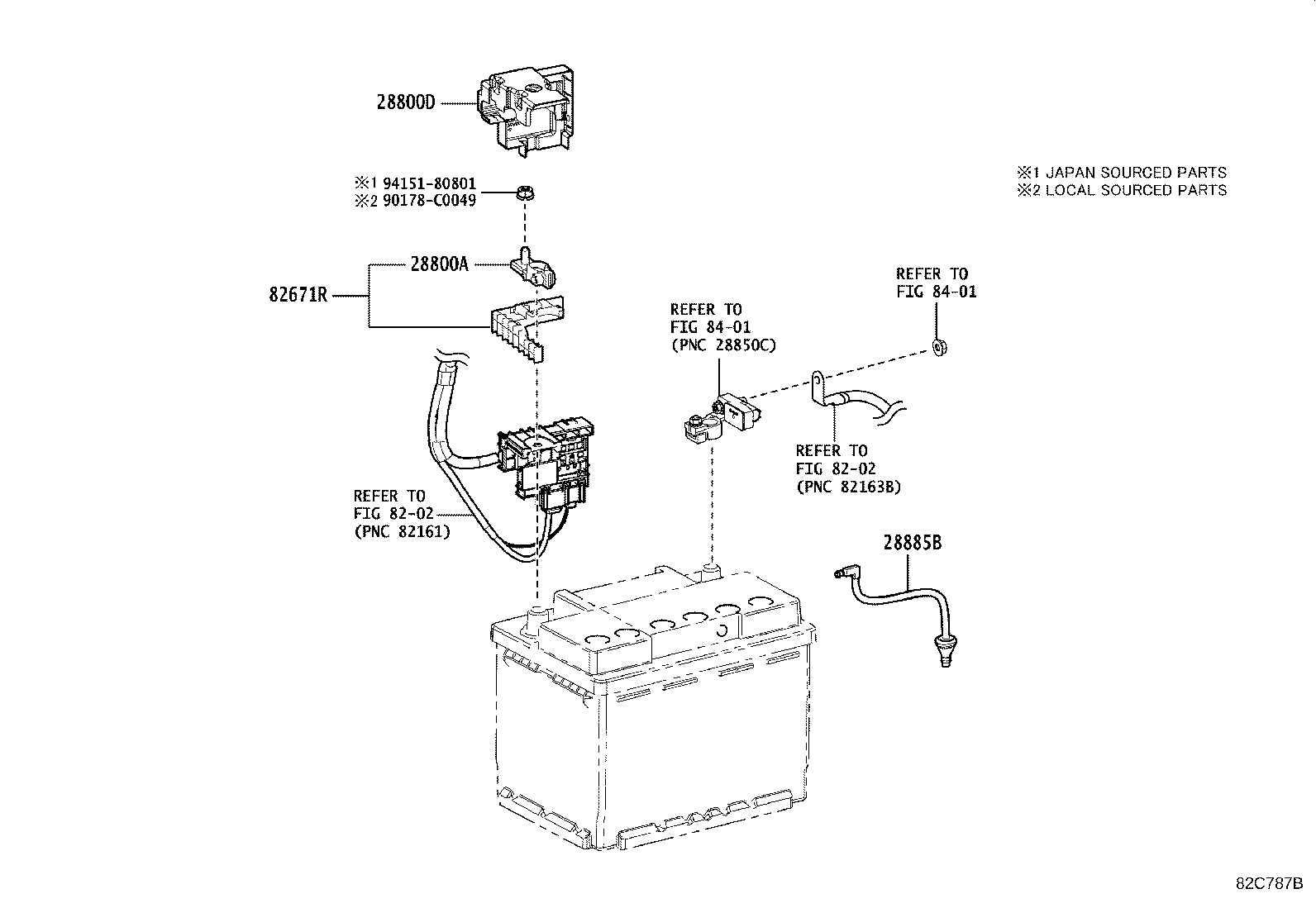

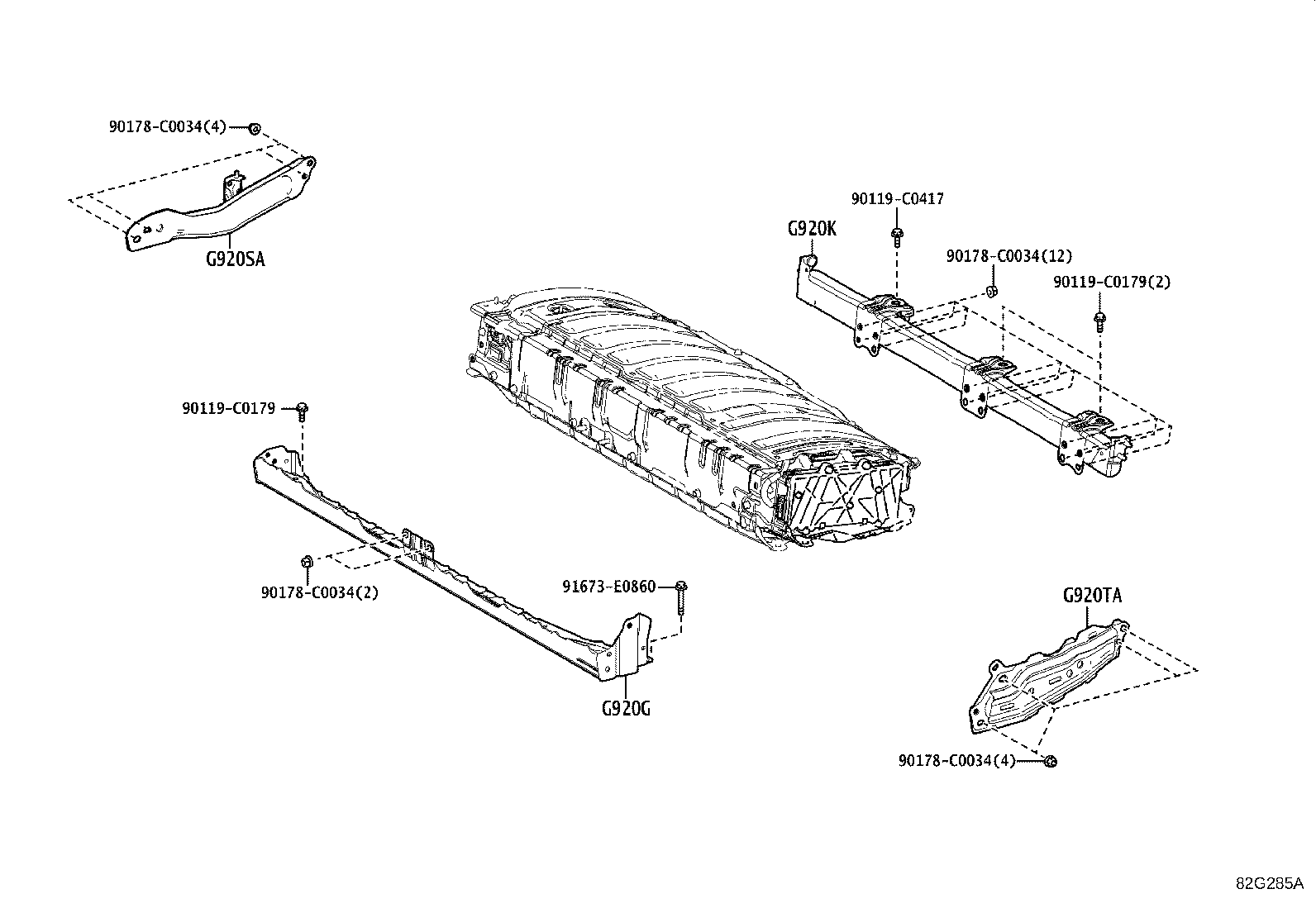

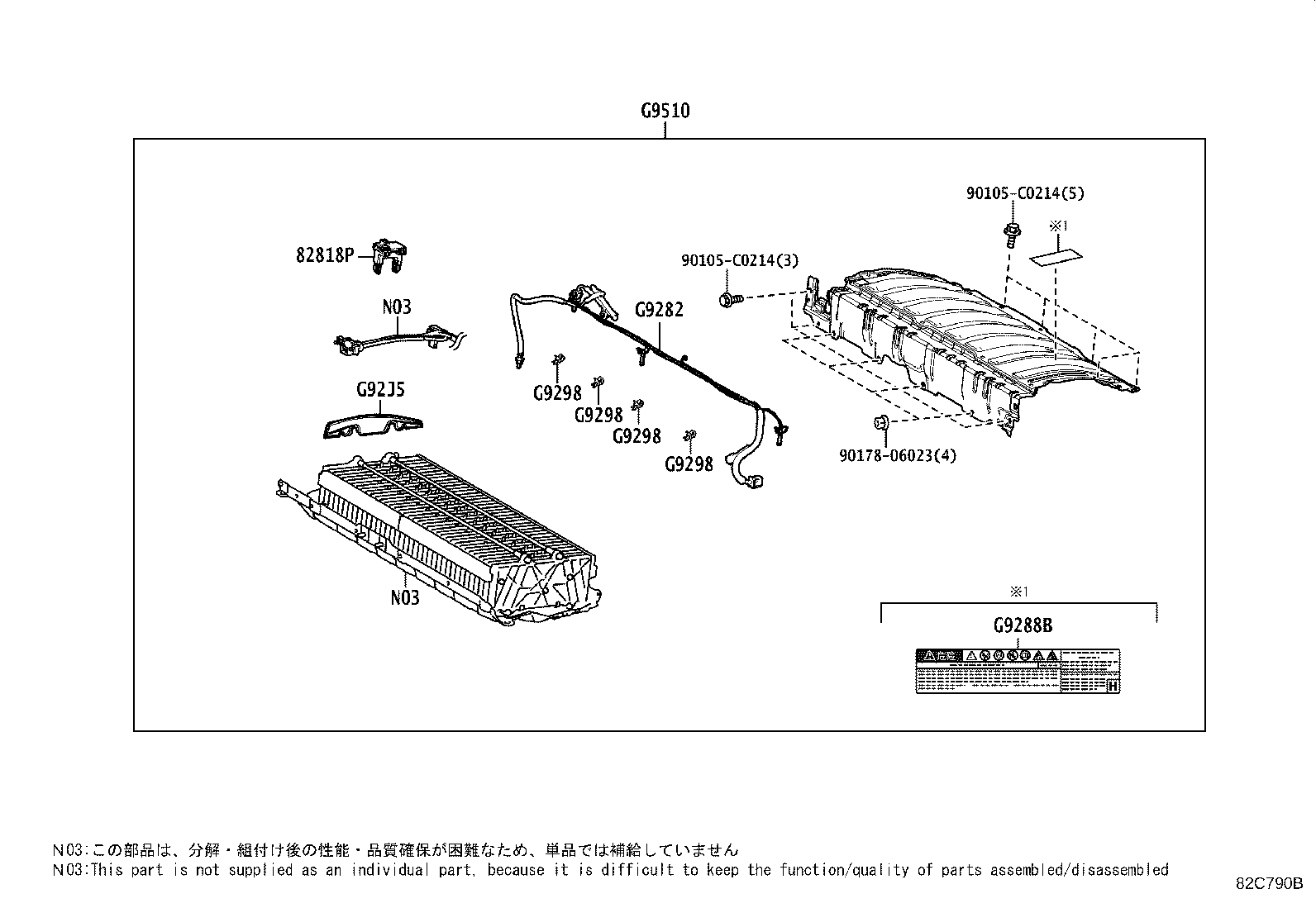

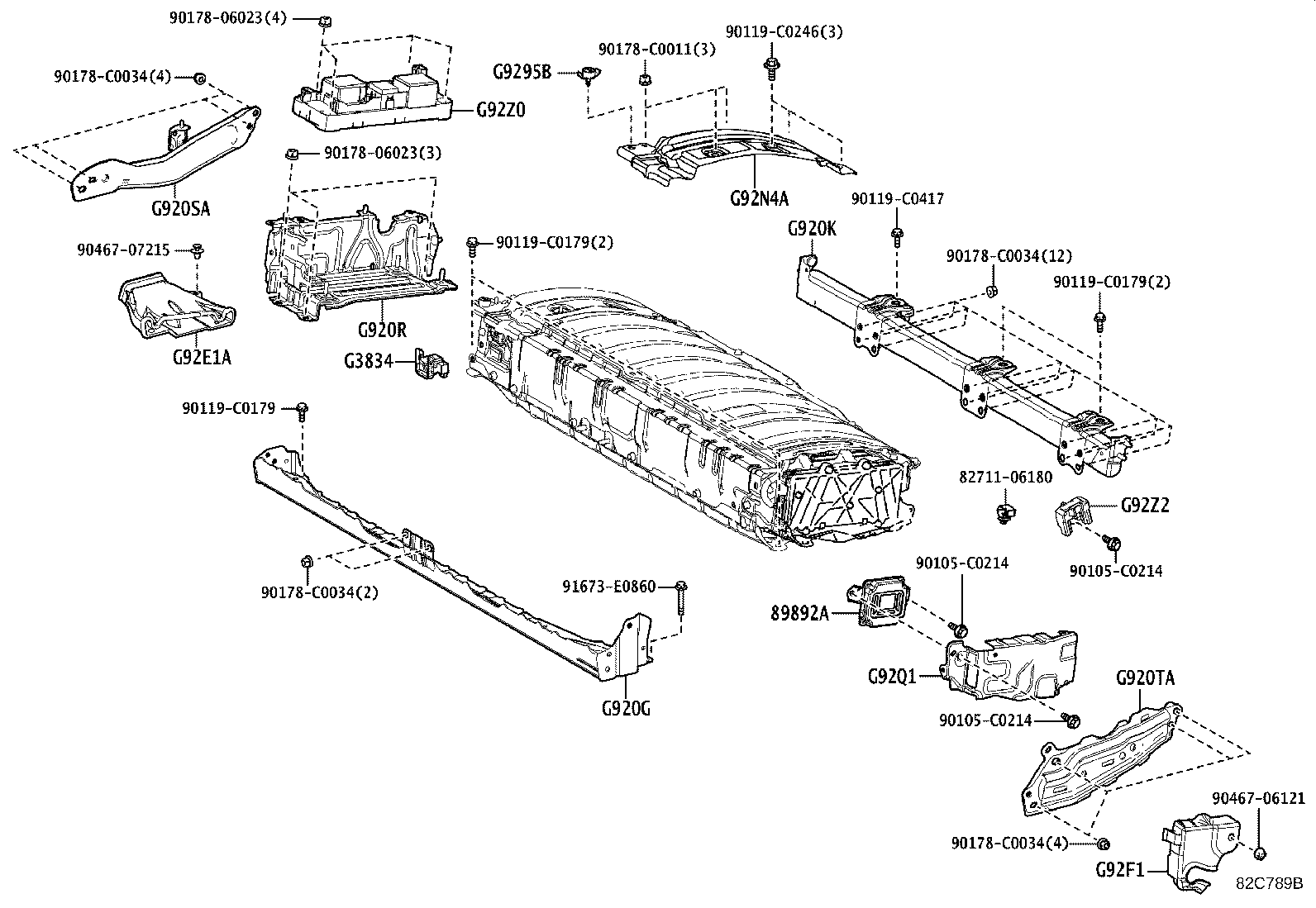

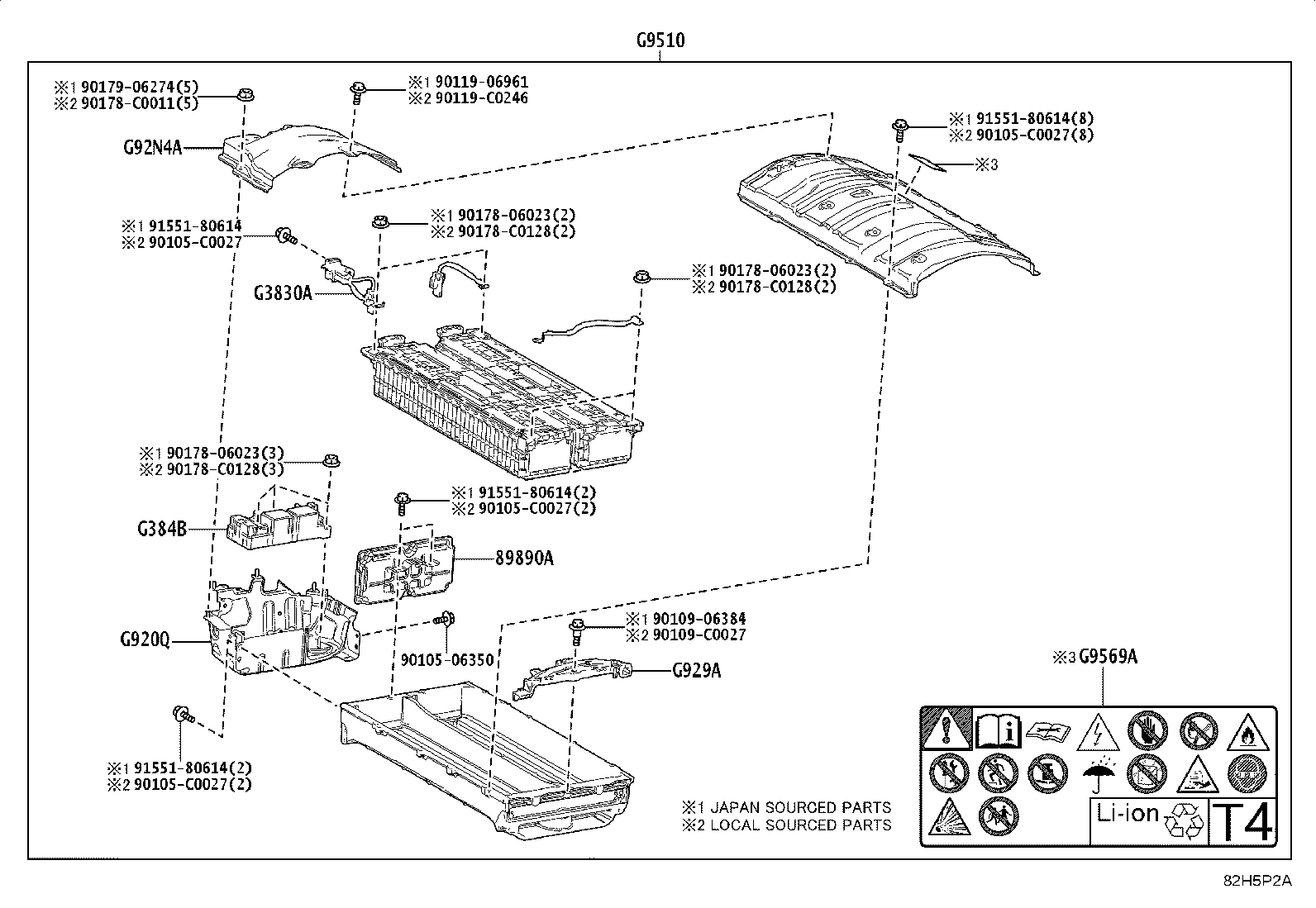

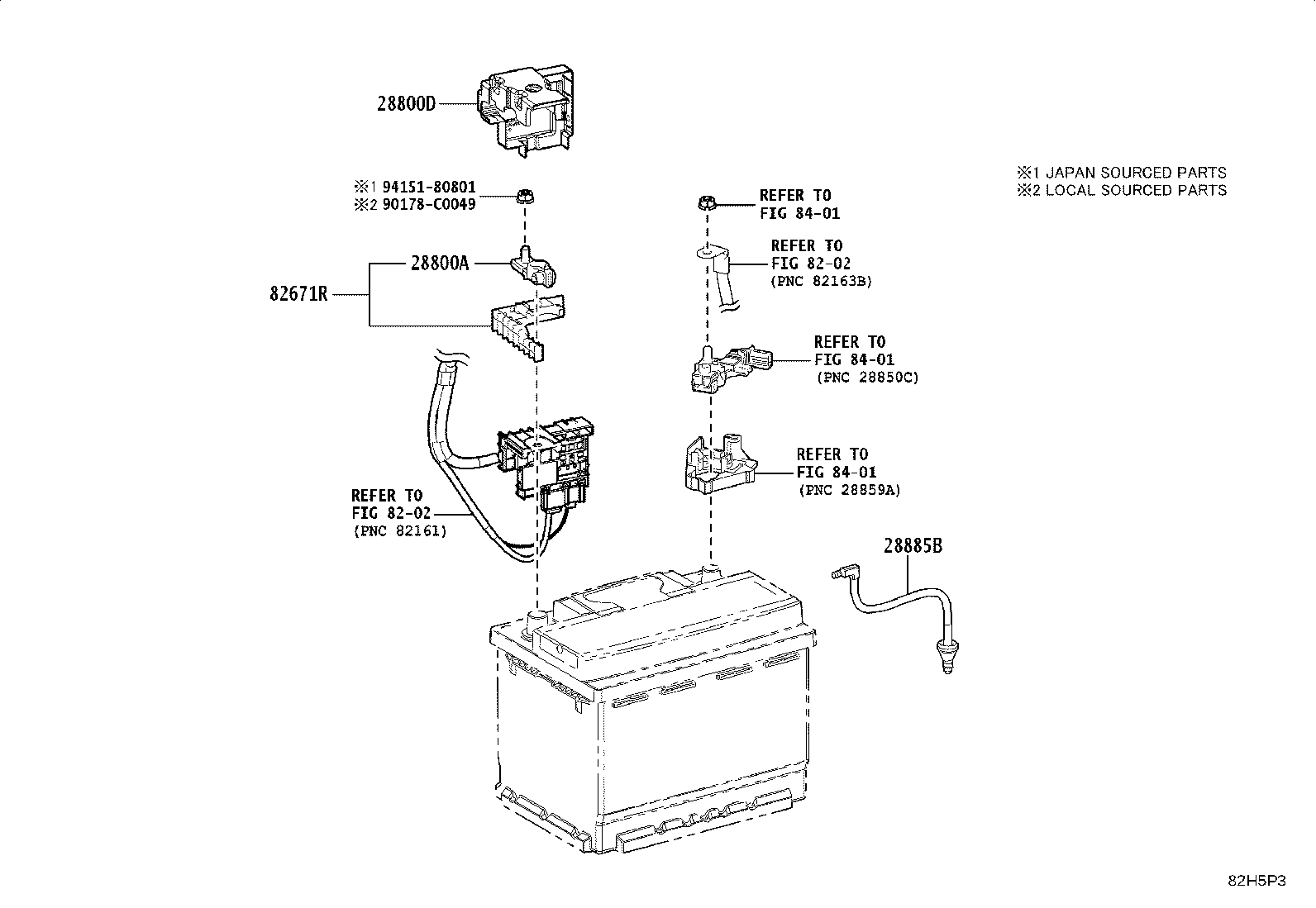

Figure 82C786B 82C786B 2019-03 → — Figure 82C787B 82C787B 2019-03 → — Figure 82C788B 82C788B 2019-03 → 2022-03 Figure 82G287A 82G287A 2022-03 → — Figure 82C789B 82C789B 2019-03 → 2022-03 Figure 82G285A 82G285A 2022-03 → — Figure 82C790B 82C790B 2019-03 → 2022-03 Figure 82G286B 82G286B 2022-03 → — Figure 82H5P3 82H5P3 2024-07 → — Figure 82H5P1 82H5P1 2024-07 → — Figure 82H5P2A 82H5P2A 2024-07 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28885B Hose, Battery
82671R Stopper, Battery Terminal
82685E Plate, Service Plug Caution
82685F Main Battery Caution Plate, NO.1
82818P Protector, Wiring Harness
89890A Computer Assy, Battery
89892A Sensor, Battery Voltage
G3830A Plug Assy, Electric Vehicle Battery
G3834 Grip, Service Plug
G384B Box, Traction Battery Device, NO.1
G920C Bracket Sub-assy, HV Battery Carrier, NO.2
G920G Plate Sub-assy, HV Battery End, NO.4
G920K Plate Sub-assy, HV Battery End, NO.5
G920Q Shield Sub-assy, Hybrid Battery, NO.1
G920R Shield Sub-assy, Hybrid Battery, NO.2
G920SA Shield Sub-assy, HV Battery, NO.3
G920TA Shield Sub-assy, HV Battery, NO.4
G9230 Blower Assy, Battery Cooling
G923B Bracket, Battery Cooling Blower
G9282 Thermistor, Hybrid Battery
G9288B Label, Battery Caution
G9290A Hose Assy, Hybrid Battery
G9295B Striker, Battery Cover Lock
G9298 Clamp, HV Battery
G929A Hose, HV Battery, NO.1
G92D1 Duct, Hybrid Battery Intake, NO.1
G92D2 Duct, Hybrid Battery Intake, NO.2
G92DB Seal, Hybrid Battery, NO.1
G92DH Filter, HV Battery Intake, NO.1
G92E1A Duct, HV Battery Intake, NO.1 LH
G92F1 Duct, Hybrid Battery Exhaust, NO.1
G92J5 Packing, Hybrid Battery, NO.1
G92K3 Bracket, Hybrid Battery Carrier, NO.1
G92K5 Bracket, HV Battery Carrier, NO.3
G92K6 Bracket, HV Battery Carrier, NO.4
G92N4A Panel, HV Battery RH Cover, NO.1
G92PC Protector, HV Battery, NO.1
G92PF Protector, HV Battery, NO.4
G92Q1 Panel, HV Battery Shield, NO.1
G92X3 Wire, HV Battery Pack, NO.3
G92Z0 Block Assy, HV Battery Junction
G92Z2 Block, Hybrid Battery Terminal
G9508 Stack Sub-assy, HV Supply, NO.1
G9509 Stack Sub-assy, HV Supply, NO.2
G9510 Battery Assy, HV Supply
G9569A Label, Lithium Ion Battery Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
