Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06
Meter

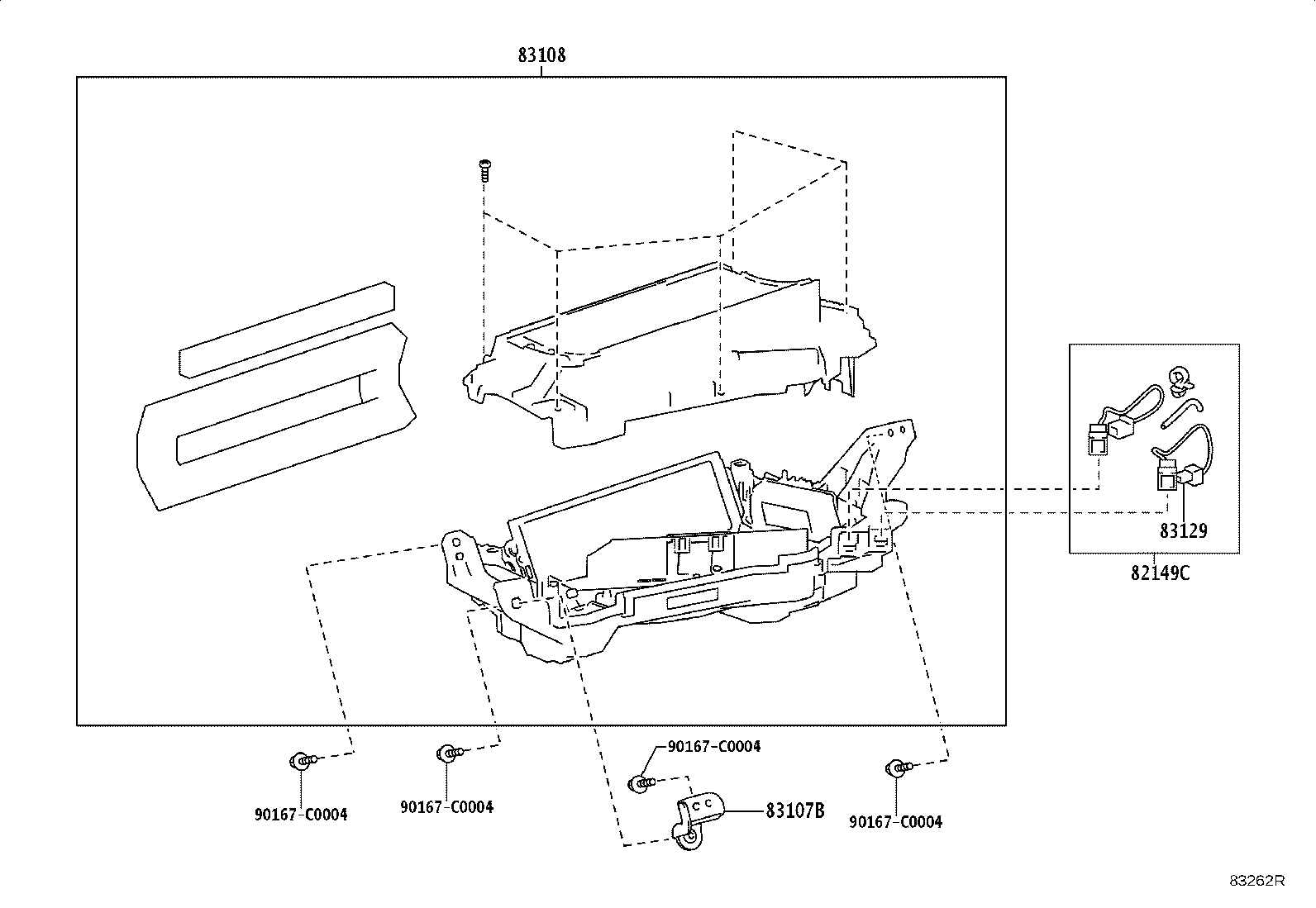

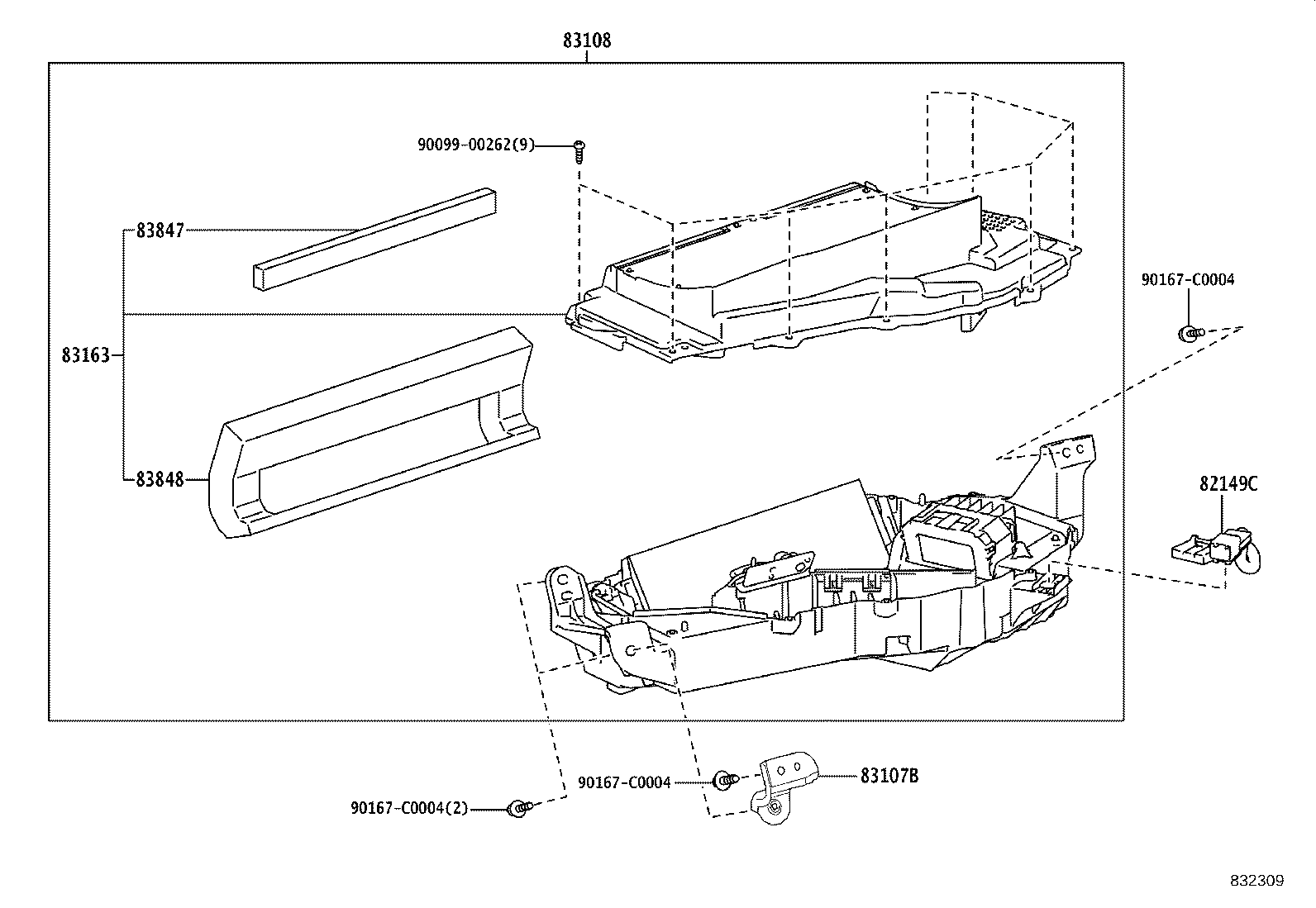

10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82149C | Wire, Meter Mirror |
| 83100 | Meter Assy, Combination |
| 83107A | Bracket Sub-assy, Meter, NO.1 |
| 83107B | Bracket Sub-assy, Meter, NO.2 |
| 83108 | Mirror Sub-assy, Meter |
| 83129 | Wire, Meter |
| 83138G | Glass, Combination Meter |
| 83163 | Plate, Combination Meter Mirror, NO.1 |
| 83847 | Cushion, Combination Speedometer, NO.1 |
| 83848 | Cushion, Combination Speedometer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
