Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

2 part groups · 3 illustrations

Illustrations

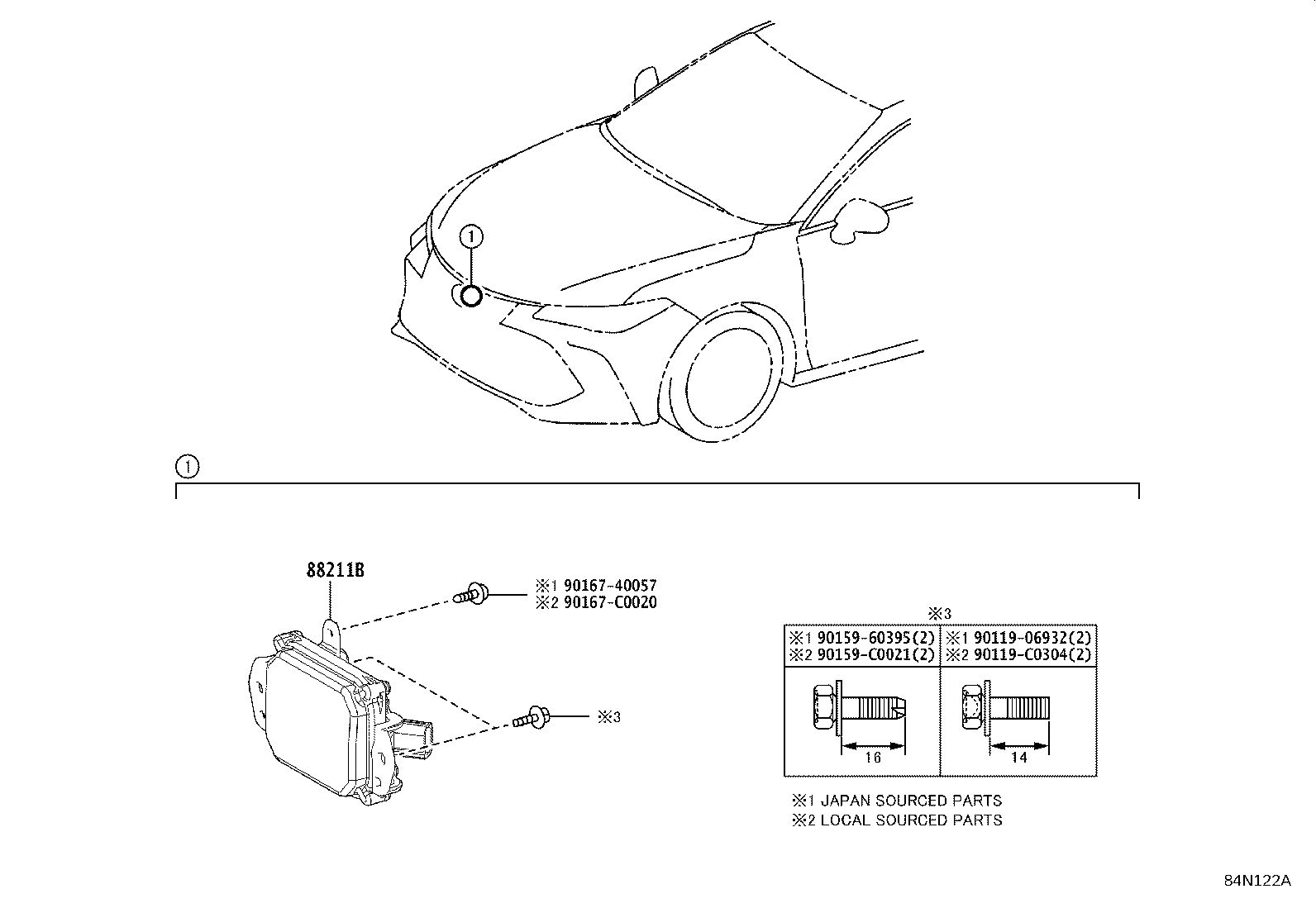

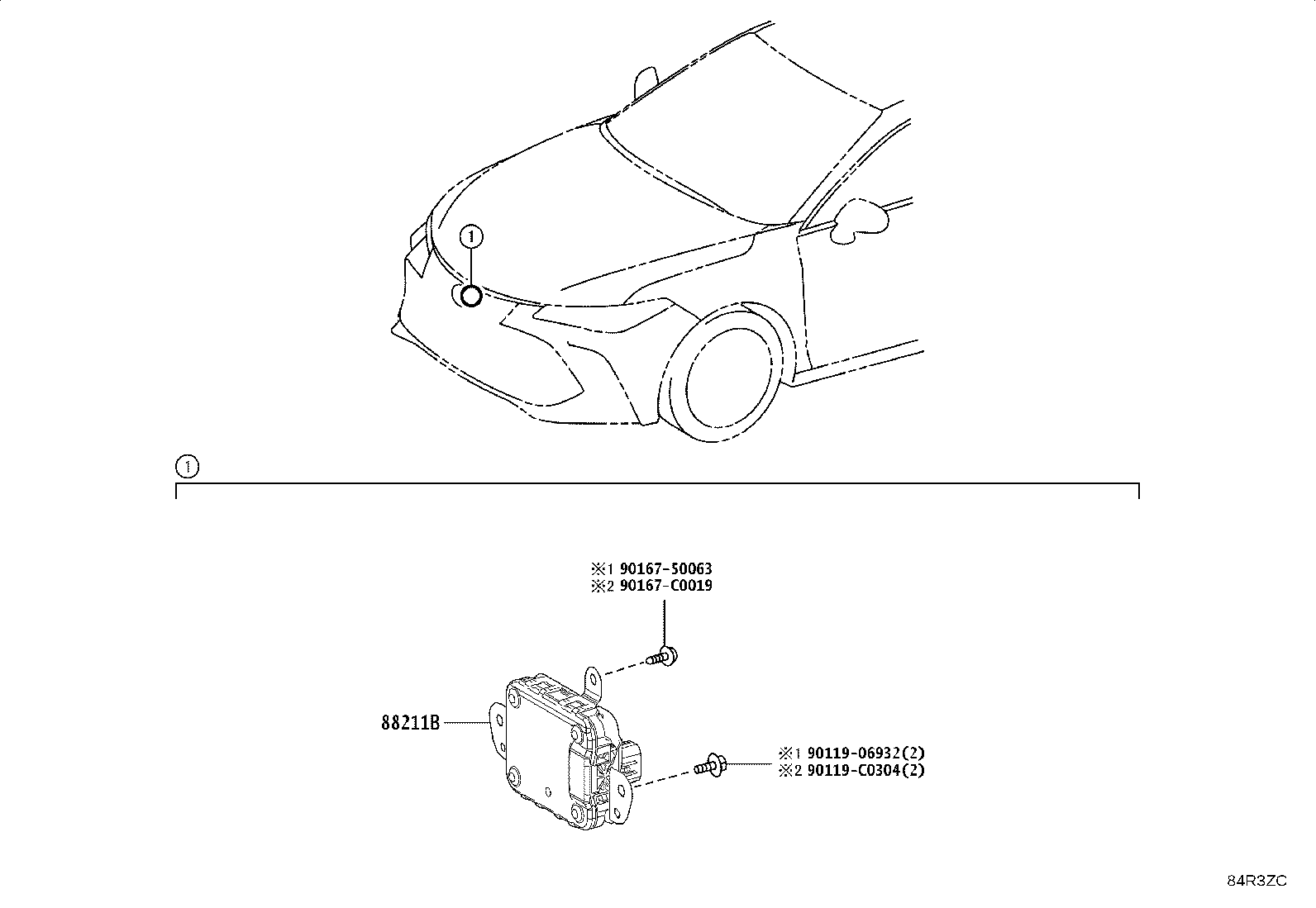

Figure 84J929A 84J929A 2019-03 → 2022-03 Figure 84N122A 84N122A 2022-03 → 2024-07 Figure 84R3ZC 84R3ZC 2024-07 → —

Part groups

PNCDescription
88211B Sensor Assy, Millimeter Wave Radar
88215 Bracket, Millimeter Wave Radar Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
