Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06
Inverter Cooling
12 part groups · 2 illustrations

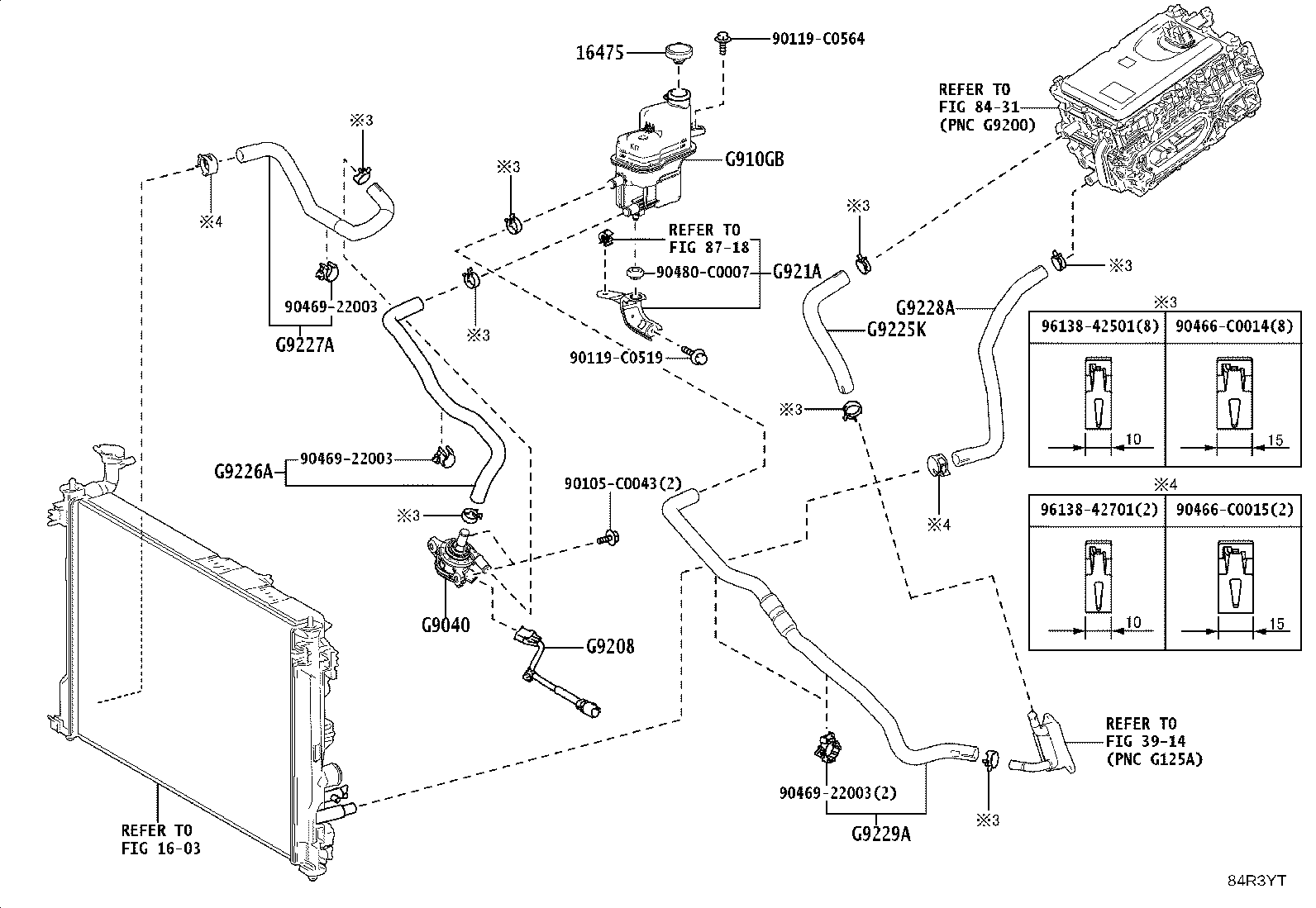

Part groups
| PNC | Description |
|---|---|
| 16475 | Cap, Reserve Tank |
| G9040 | Inverter Water Pump Assy(W/MOTOR) |
| G910GB | Tank Sub-assy, Inverter Reserve W/O Cap |
| G9208 | Wire Sub-assy, Inverter |
| G921A | Bracket, Inverter Reserve Tank, NO.1 |
| G9225K | Hose, Inverter Cooling, NO.1 |
| G9226A | Hose, Inverter Cooling, NO.2 |
| G9227A | Hose, Inverter Cooling, NO.3 |
| G9228A | Hose, Inverter Cooling, NO.4 |
| G9229A | Hose, Inverter Cooling, NO.5 |
| G92A0A | Tank Assy, Inverter Reserve |
| G92A1A | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
