Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06

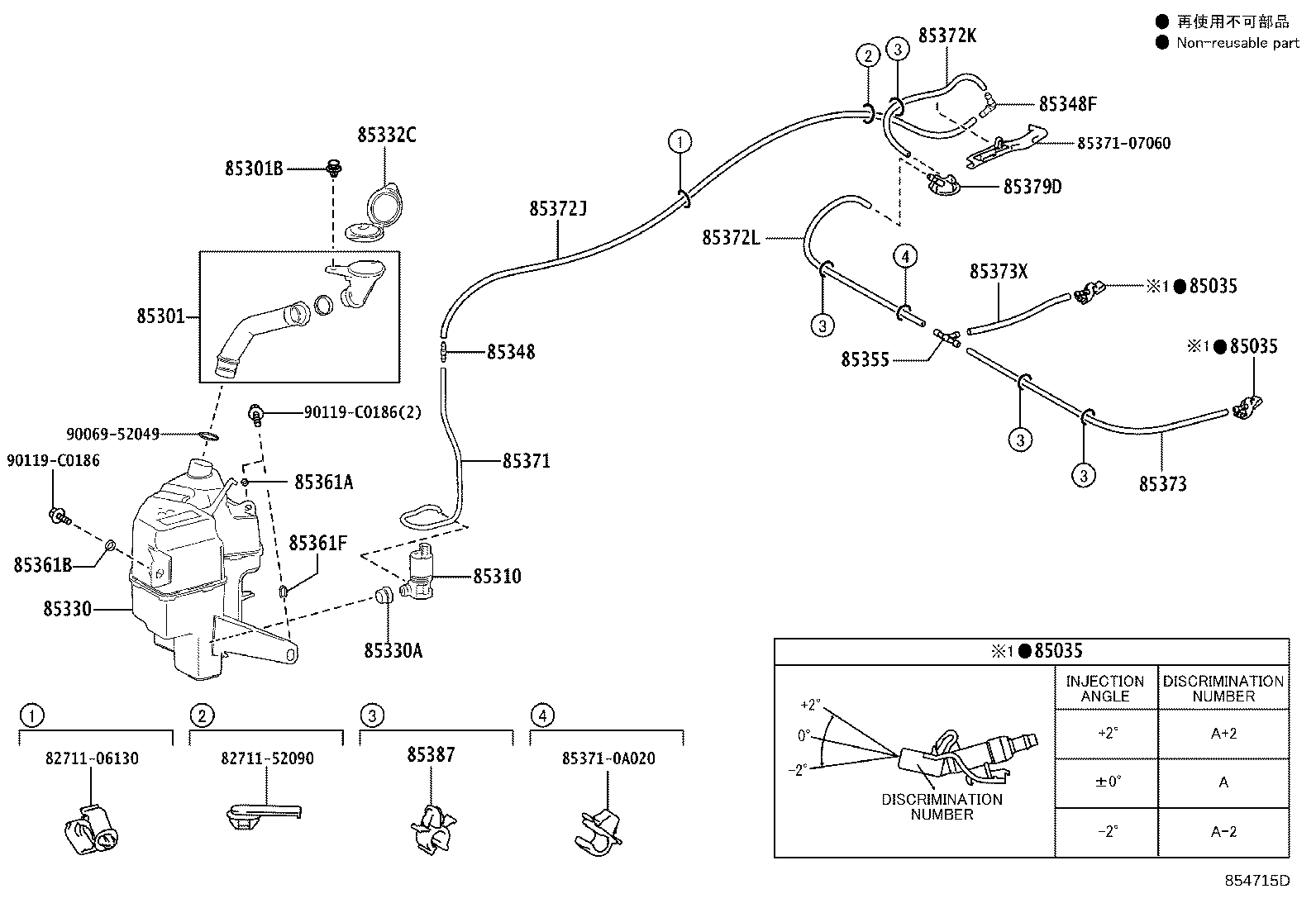

Windshield Washer
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035 | Nozzle Sub-assy, Washer |
| 85301 | Inlet Sub-assy, Washer |
| 85301B | Clip, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332C | Cap, Front Washer Tank |
| 85336D | Packing, Windshield Washer Jar |
| 85336E | Packing, Windshield Washer Inlet Hose |
| 85336G | Gage, Water Level |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348D | Joint, Windshield Washer Elbow, NO.1 |
| 85348E | Joint, Windshield Washer Elbow, NO.2 |
| 85348F | Joint, Windshield Washer Elbow, NO.3 |
| 85355 | Valve, Windshield Washer Hose |
| 85361A | Bracket, Windshield Washer, NO.1 |
| 85361B | Bracket, Windshield Washer, NO.2 |
| 85361F | Bracket, Windshield Washer, NO.3 |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372H | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 |
| 85372J | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4 |
| 85372K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5 |
| 85372L | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6 |
| 85373 | Hose, Windshield Washer (FROM JOINT TO NOZZLE) |
| 85373X | Hose, Windshield Washer (FROM JOINT TO NOZZLE), NO.2 |
| 85379D | Grommet, Washer, A |
| 85387 | Clamp NO.1 (FOR WINDSEIELD WASHER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
