Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 2 illustrations

Illustrations

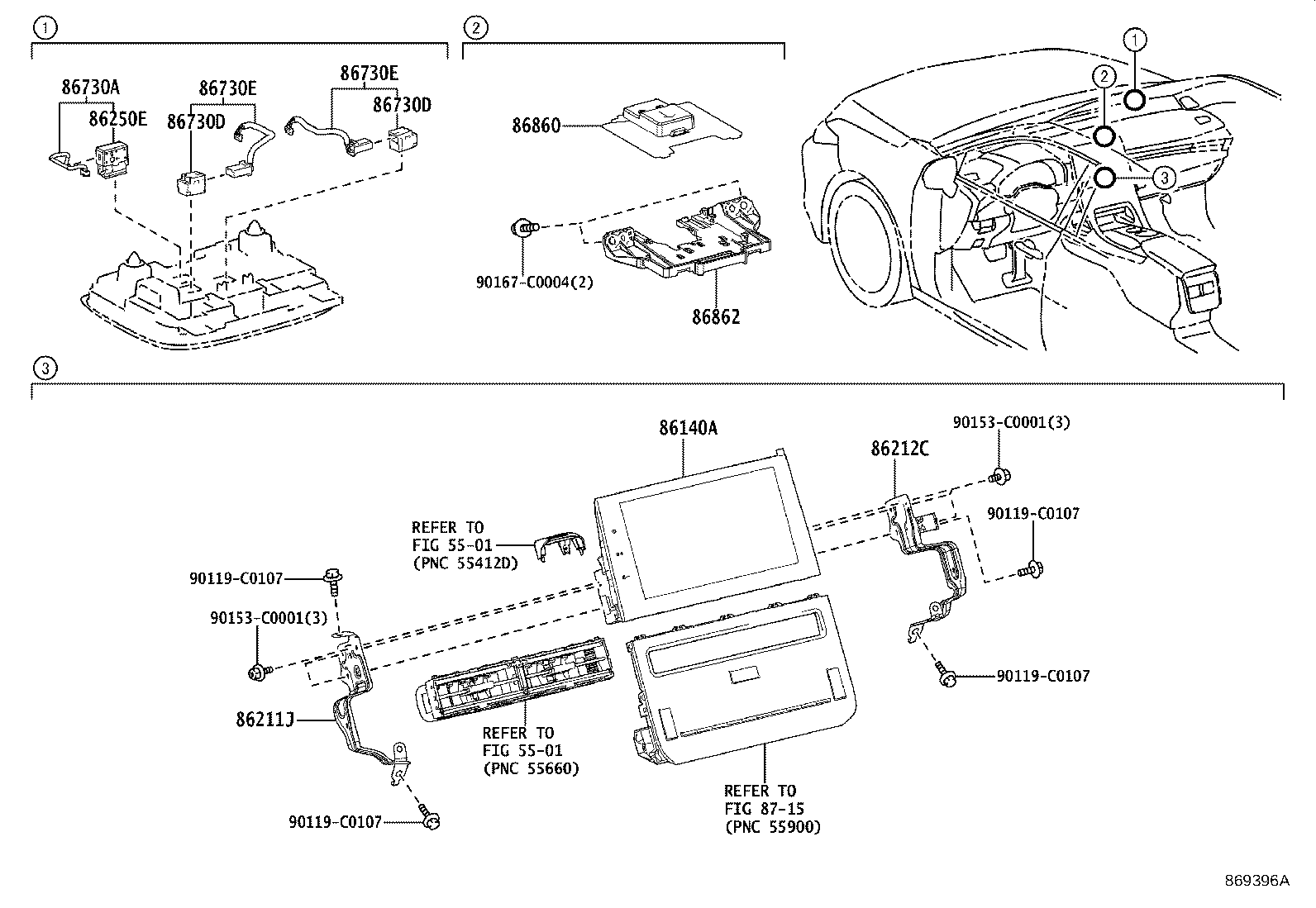

Figure 867547B 867547B 2019-03 → 2022-03 Figure 869396A 869396A 2022-03 → —

Part groups

PNCDescription
55412H Panel, Instrument Cluster Finish, Center
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86730A Microphone Assy, Telephone
86730D Microphone Assy, Telephone, NO.2
86730E Microphone Assy
86841 Computer, Navigation
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
