Toyota Avalon (CHINA)
2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General
Supported model
Data version 2024-06
Telephone & Mayday

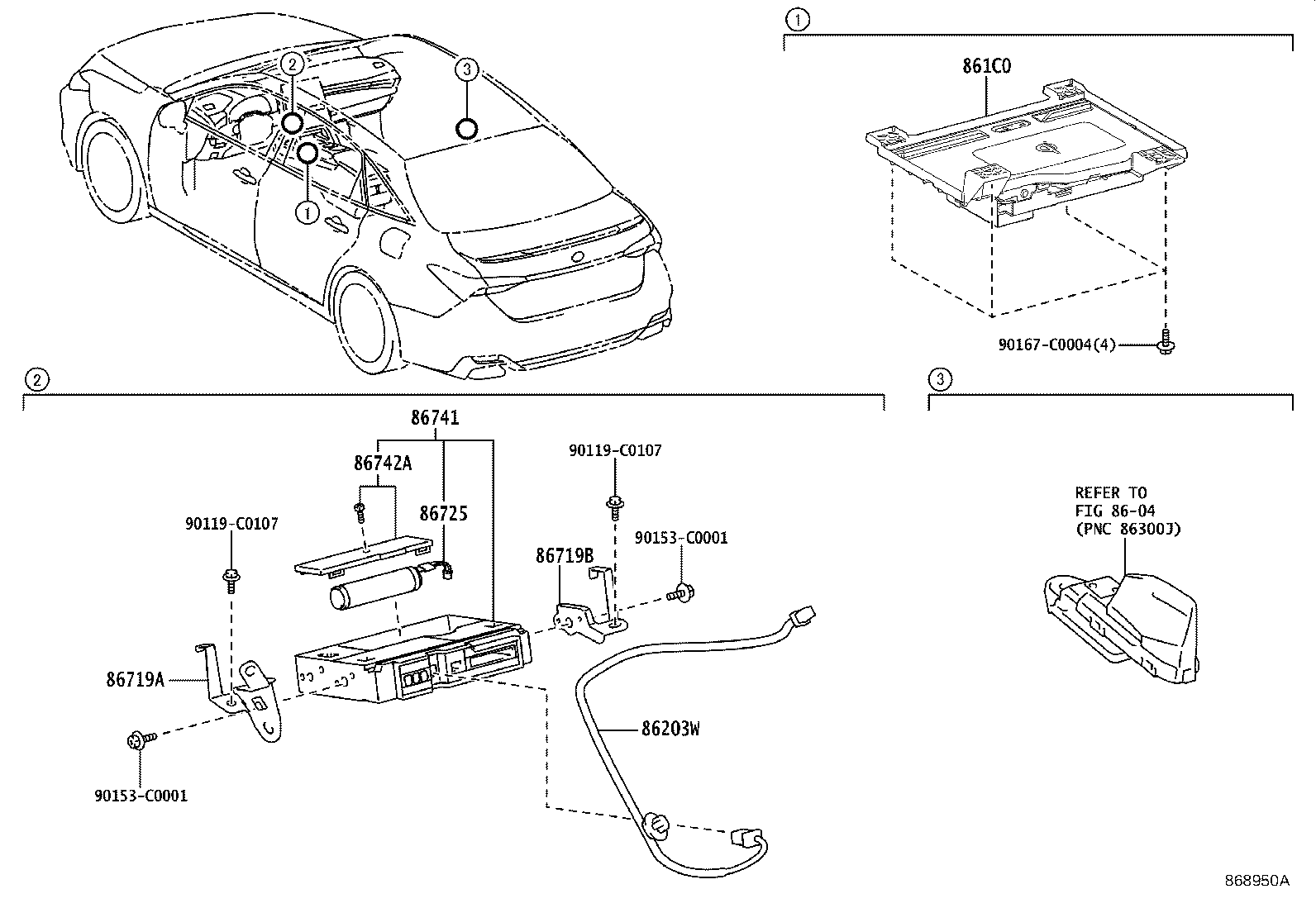

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86203W | Wiring Sub-assy, Radio |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86719C | Bracket, Telephone NO.3 |
| 86719F | Bracket, Telephone NO.4 |
| 86725 | Battery, Mobilephone |
| 86741 | Transceiver, Telephone |
| 86741A | Transceiver, Telematics |
| 86742A | Cover, Transceiver |
| 86777 | Battery, Mayday |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
