Toyota Avalon

1995-08 → 1999-08 · chassis MCX10 · catalogue 361210 · General

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 3 illustrations

Illustrations

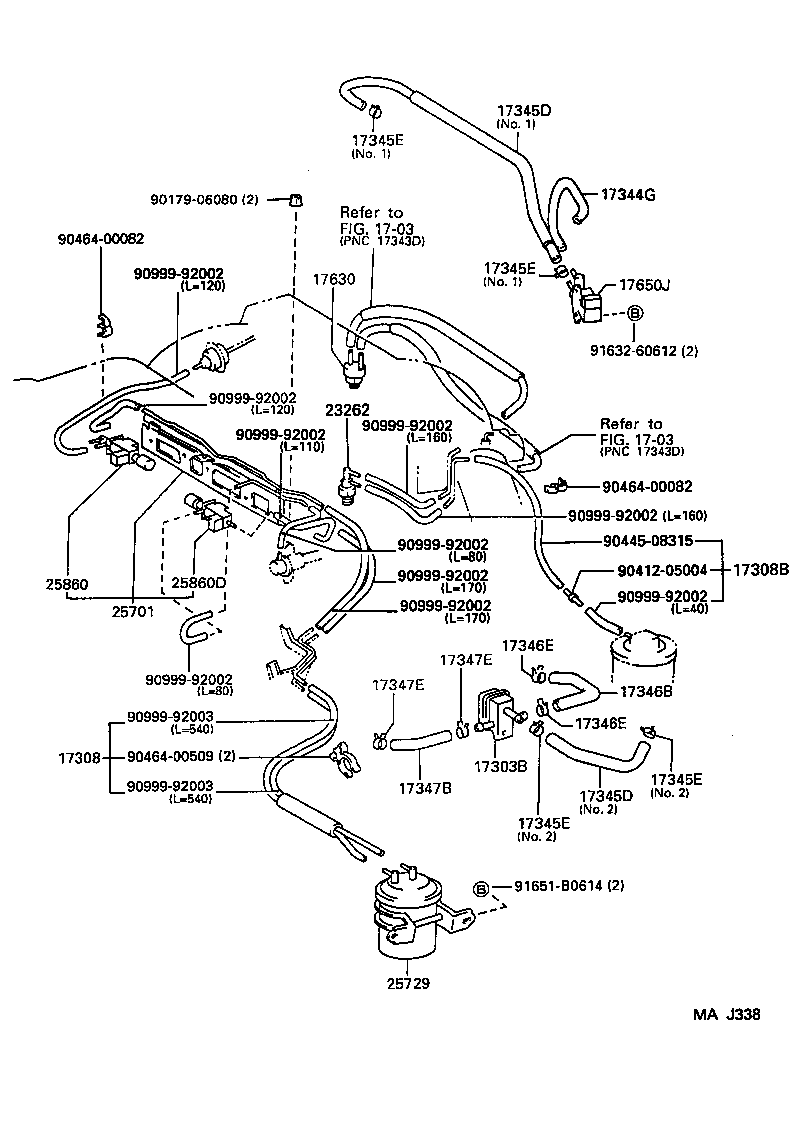

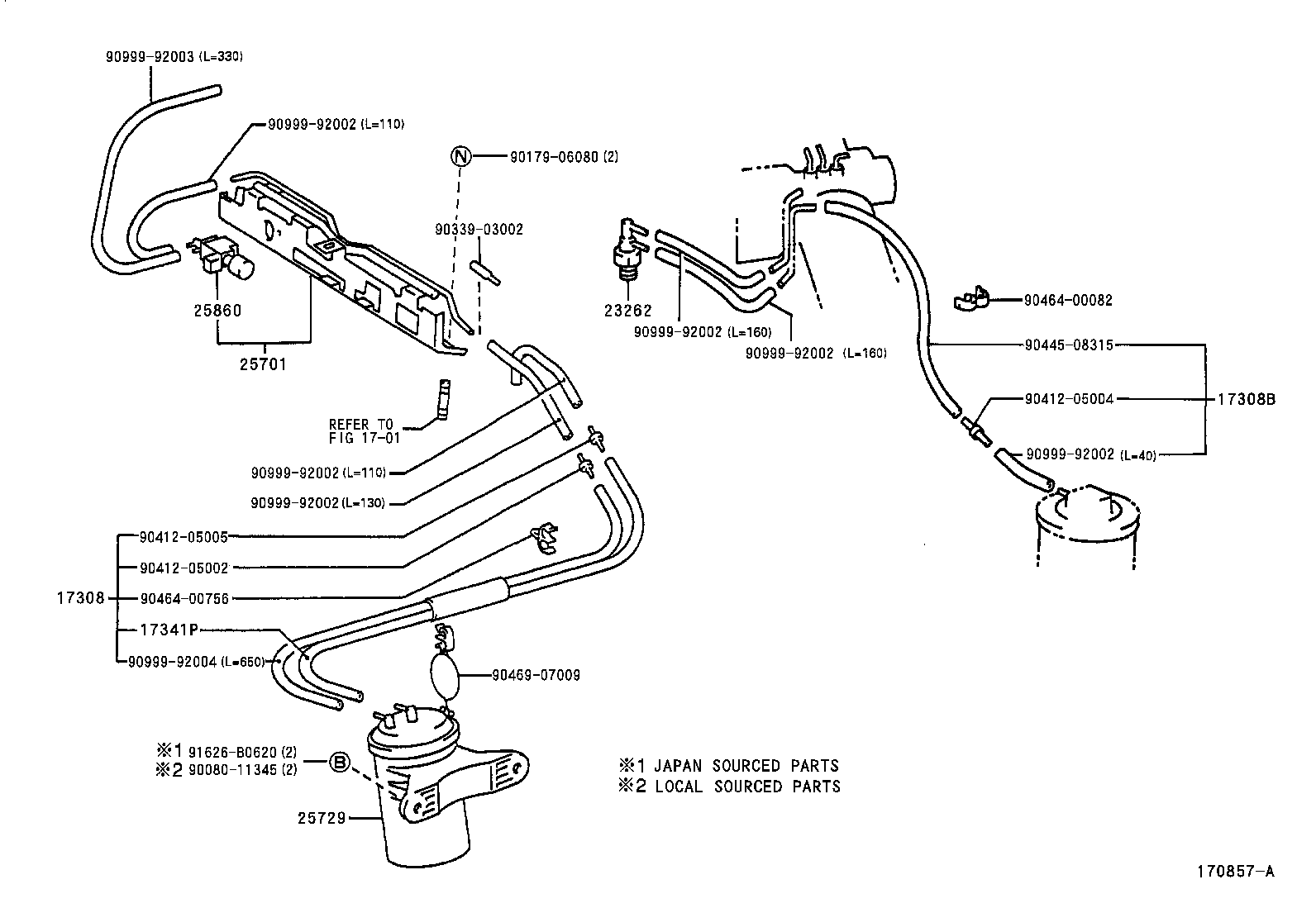

Figure 170021 170021 1995-08 → — Figure MAJ338 MAJ338 1995-08 → 1996-08 Figure 170857A 170857A 1996-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17341P Hose, Air
17344G Hose, Air, NO.4
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347B Hose, Air, NO.7
17347E Clip(FOR AIR HOSE NO.7)
17630 Valve Assy, Air Control
17650J Valve, Solenoid W/Adjust Screw
23262 Valve, Bimetal Vacuum Switching, NO.1
25701 Valve Set, Emission Control
25729 Tank, Vacuum Surge W/Bracket
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
