Toyota Avalon

1995-08 → 1999-08 · chassis MCX10 · catalogue 361210 · General

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

9 part groups · 2 illustrations

Illustrations

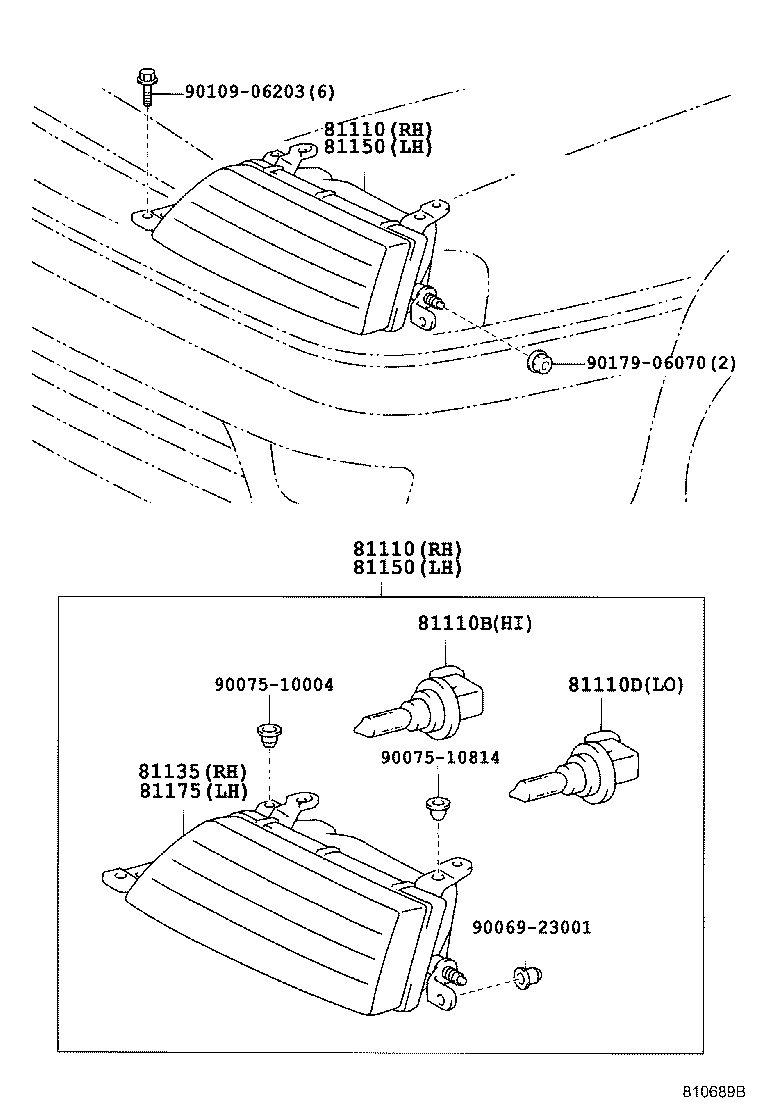

Figure 810299A 810299A 1995-08 → 1997-09 Figure 810689B 810689B 1997-09 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81117 Packing, Headlamp Housing
81118A Bracket, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81150 Headlamp Assy, LH
81158 Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
