Toyota Avalon
1995-08 → 1999-08 · chassis MCX10 · catalogue 361210 · General
Discontinued model
Data version 2000-02

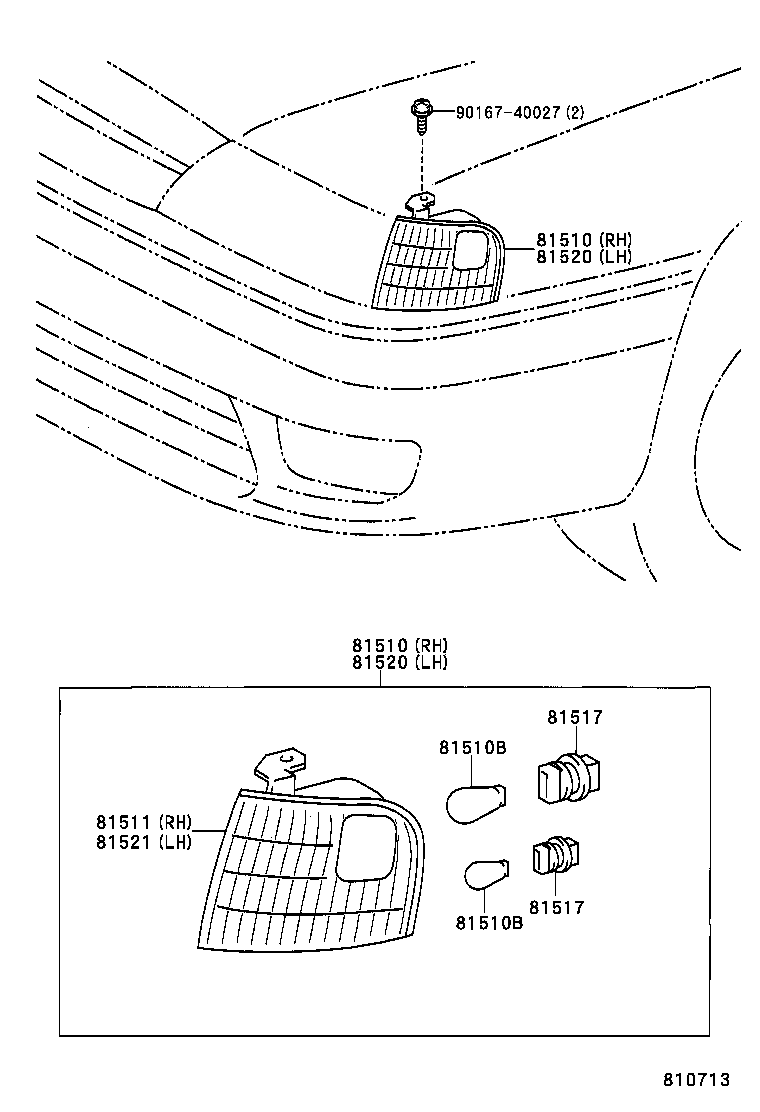

Front Turn Signal Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81510 | Lamp Assy, Front Turn Signal, RH |
| 81510B | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81511 | Lens, Front Turn Signal Lamp, RH |
| 81517 | Socket, Front Turn Signal Lamp |
| 81518 | Shade, Front Turn Signal Lamp, RH |
| 81520 | Lamp Assy, Front Turn Signal, LH |
| 81521 | Lens, Front Turn Signal Lamp, LH |
| 81528 | Shade, Front Turn Signal Lamp, LH |
| 81945A | Socket, Bulb |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
