Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361220 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

19 part groups · 2 illustrations

Illustrations

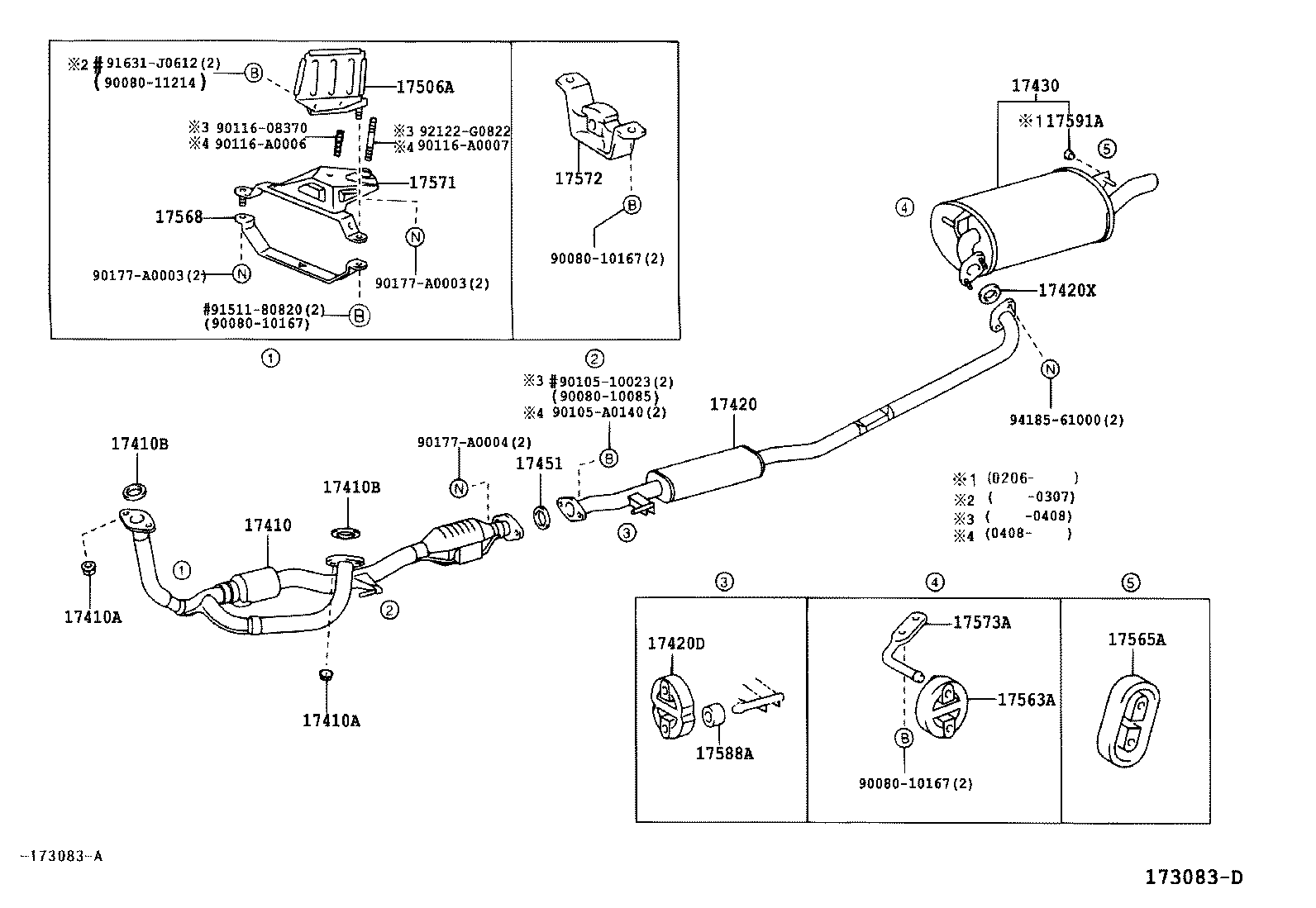

Figure 172191C 172191C 1999-08 → 2001-07 Figure 173083D 173083D 2001-07 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17522 Protector, Exhaust Pipe, Upper NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17568 Stay, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573A Bracket, Exhaust Pipe Support, NO.3
17588A Spacer, Exhaust Pipe Hanger
17591A Stopper, Exhaust Pipe Support
17594A Protector, Exhaust Pipe, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
