Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361220 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 3 illustrations

Illustrations

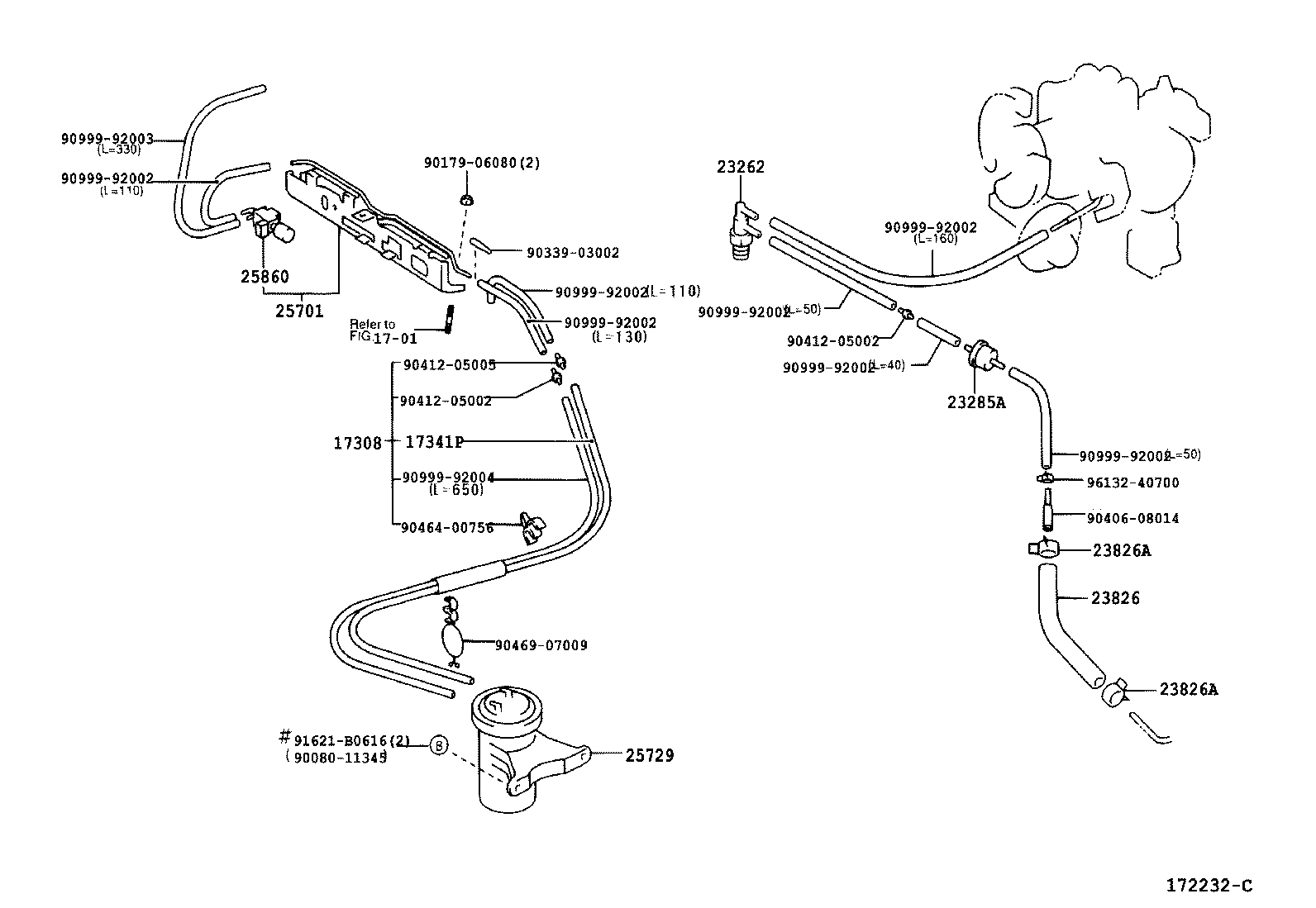

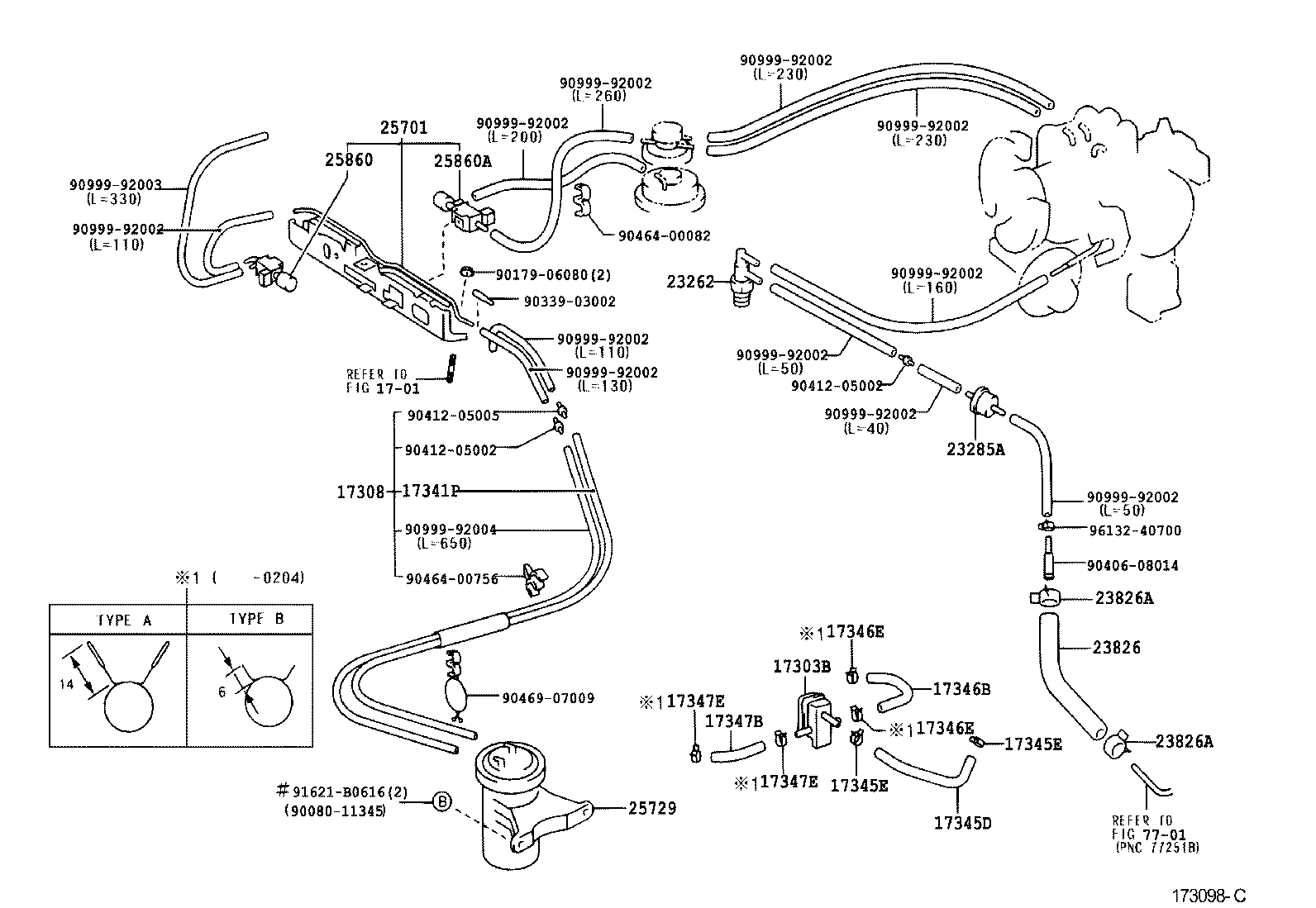

Figure 170021 170021 1999-08 → — Figure 172232C 172232C 1999-08 → 2001-10 Figure 173098C 173098C 2001-10 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341P Hose, Air
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347B Hose, Air, NO.7
17347E Clip(FOR AIR HOSE NO.7)
23262 Valve, Bimetal Vacuum Switching, NO.1
23285A Valve, Check, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
25701 Valve Set, Emission Control
25729 Tank, Vacuum Surge W/Bracket
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
