Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361220 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

18 part groups · 5 illustrations

Illustrations

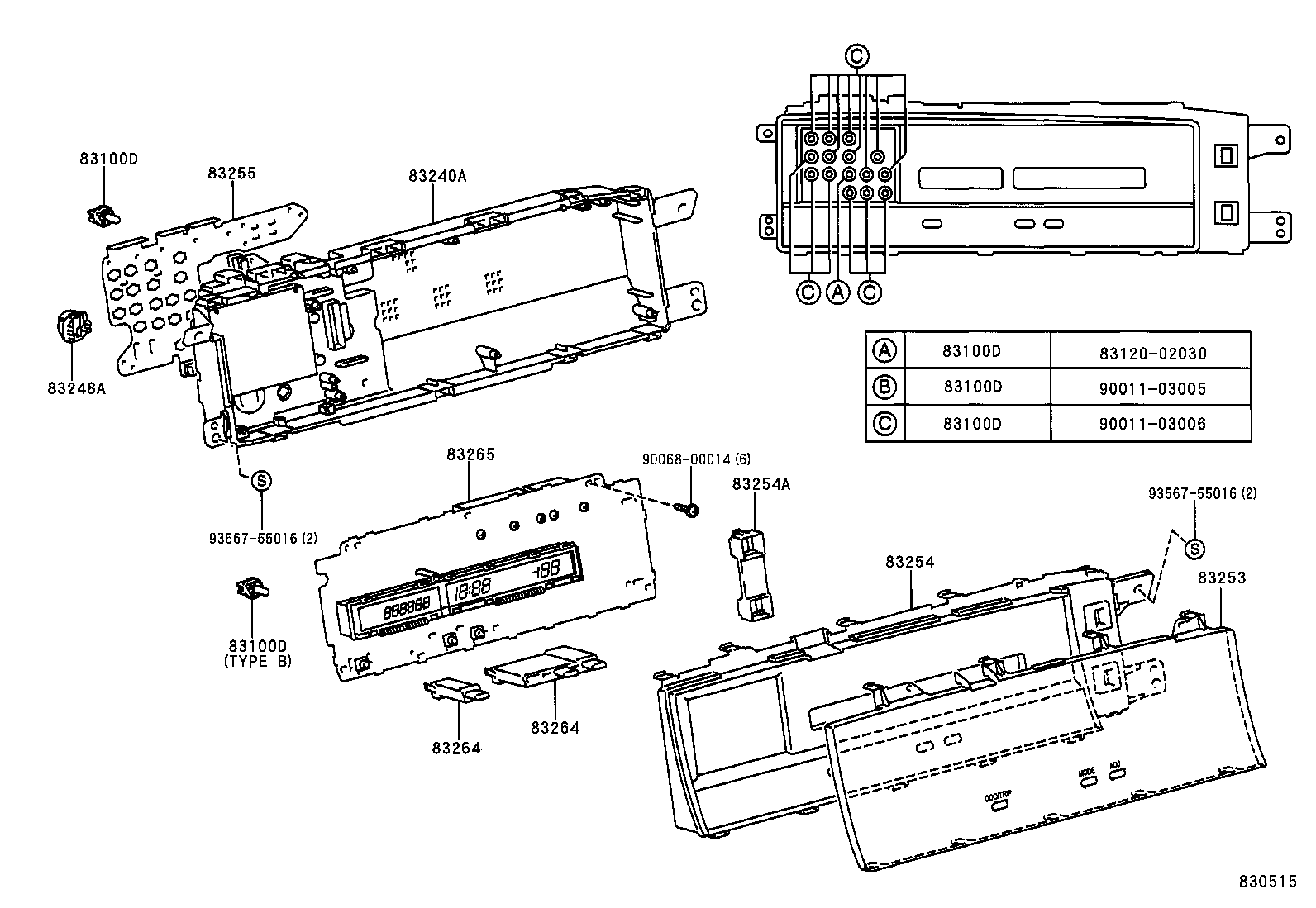

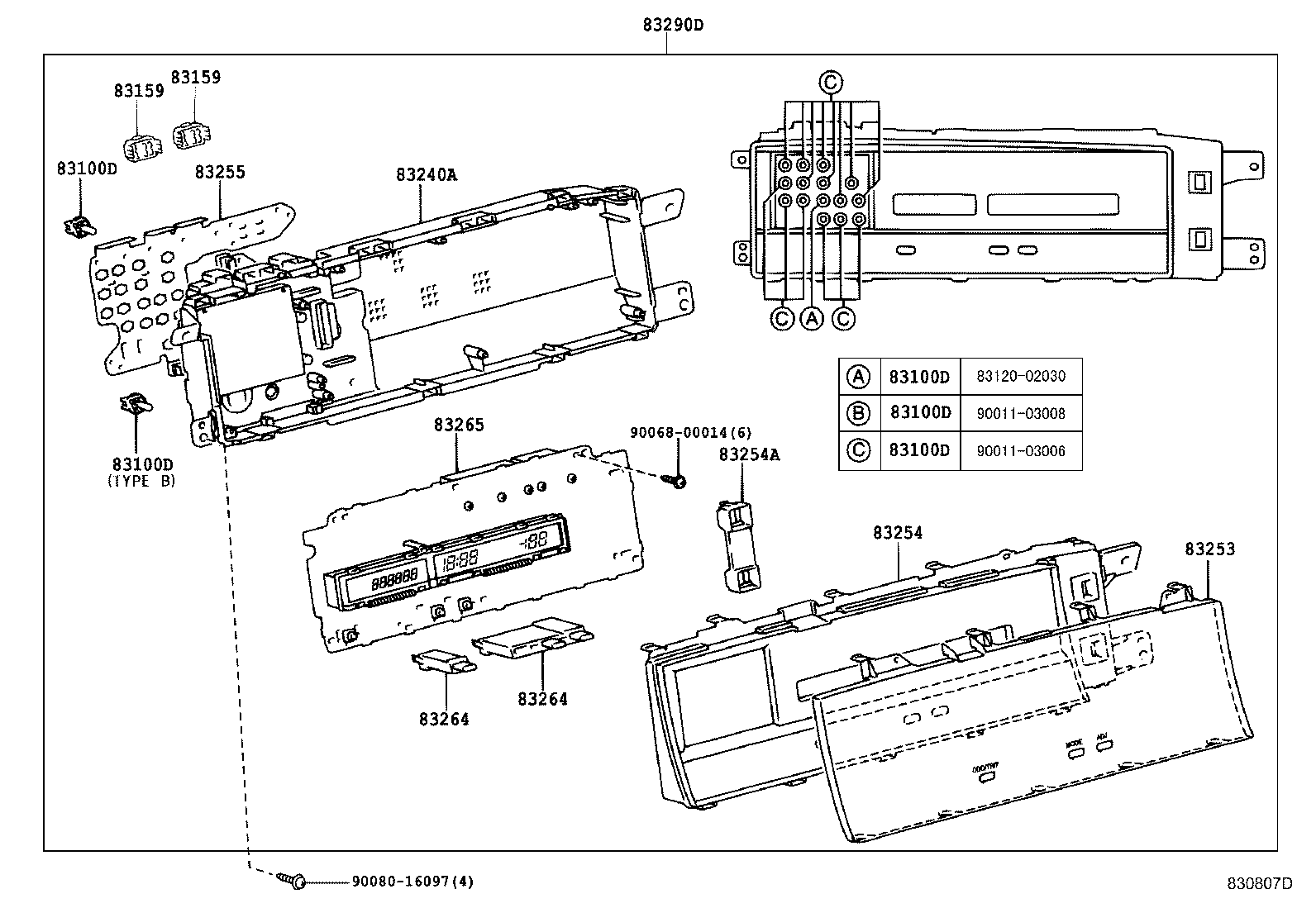

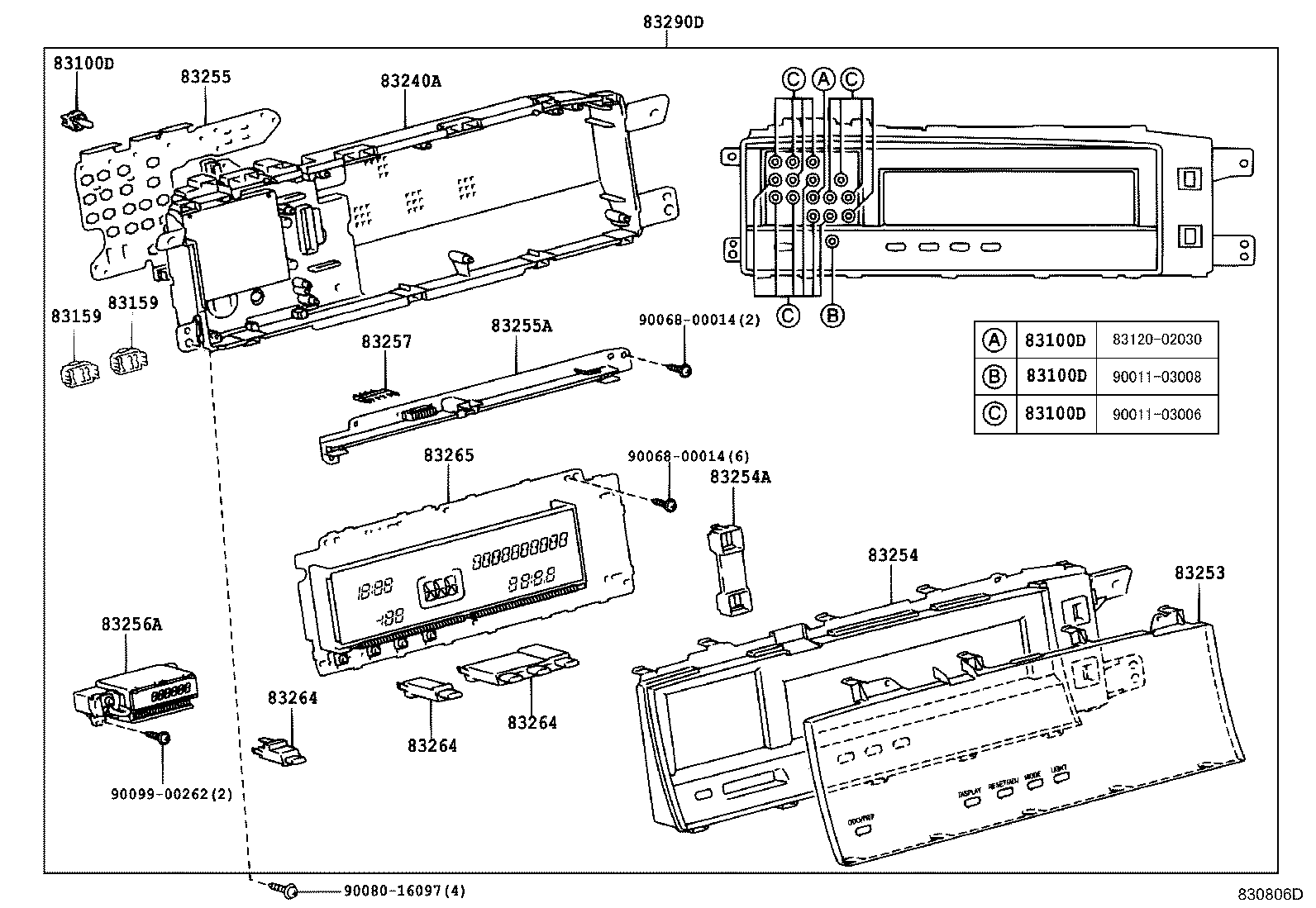

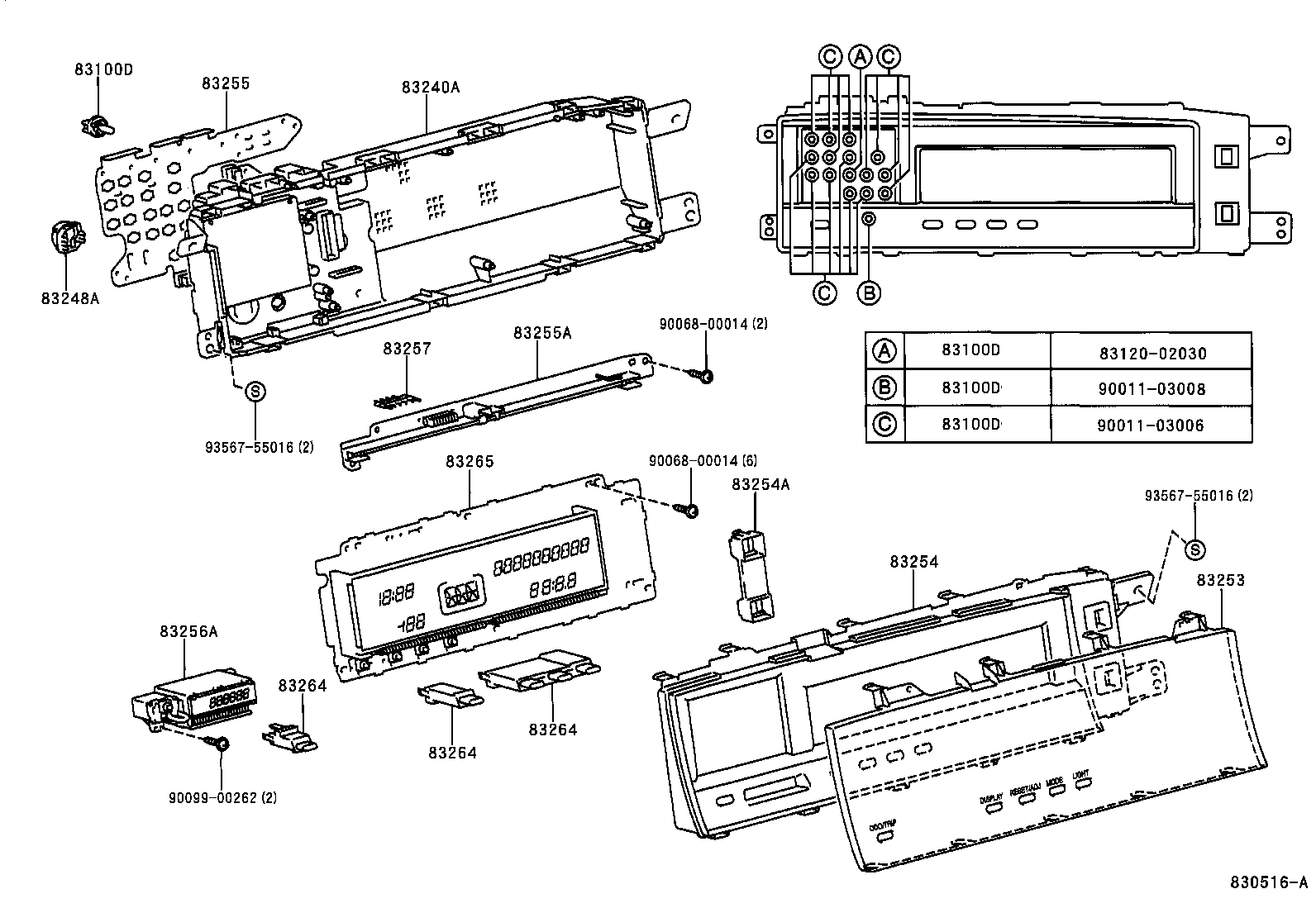

Figure 830514E 830514E 1999-08 → — Figure 830515 830515 1999-08 → 2002-06 Figure 830516A 830516A 1999-08 → 2002-06 Figure 830807D 830807D 2002-06 → — Figure 830806D 830806D 2002-06 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83100D Bulb, Combination Meter, NO.2
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83159 Switch, Meter, NO.1
83240A Case Assy, Center Display
83248A Alarmer, Center Display
83253 Glass, Center Display
83254 Plate, Center Display Window
83254A Plate, Center Display Decoration
83255 Plate Center Display Circuit
83255A Plate Center Display Circuit
83256A Computer, Accessory Meter, NO.2
83257 Connector, Center Display
83264 Knob, Center Display
83265 Computer, Center Display
83290D Meter Assy, Accessory
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
