Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361230 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

13 part groups · 2 illustrations

Illustrations

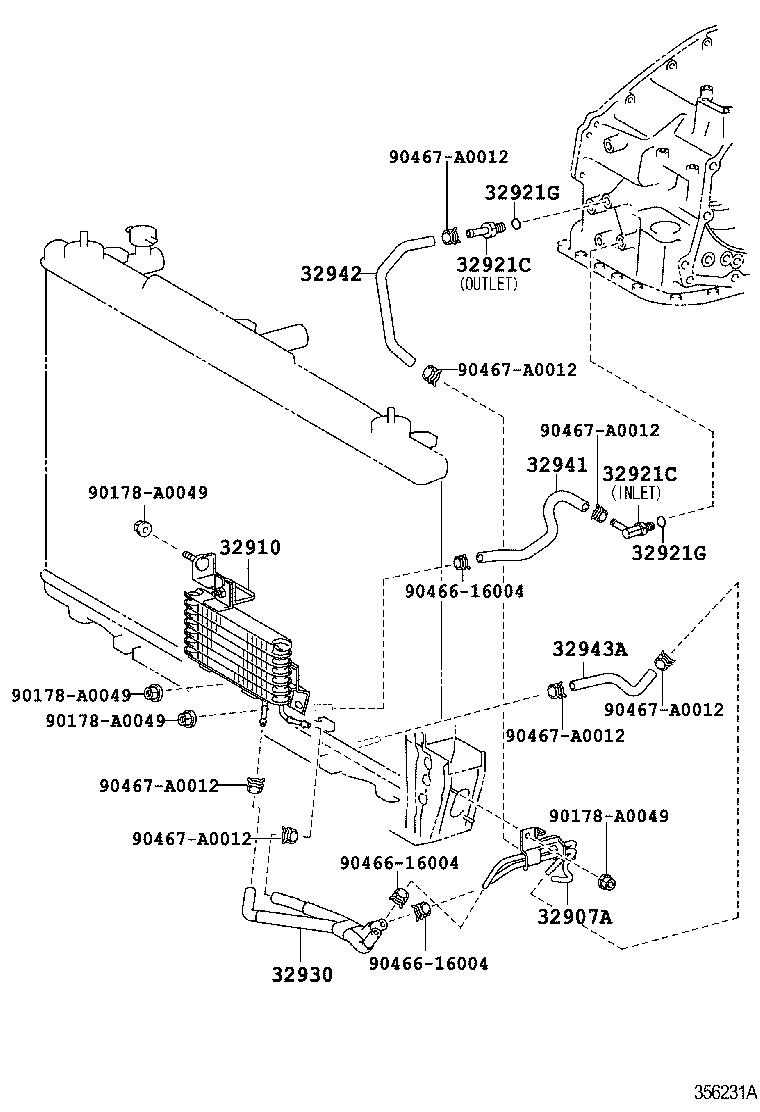

Figure 355012A 355012A 2005-01 → 2007-07 Figure 356231A 356231A 2007-07 → —

Part groups

PNCDescription
32907A Tube, Oil Cooler
32910 Cooler Assy, Oil
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32926 Cushion, Oil Cooler Tube(ATM)
32930 Accessory Assy, Oil Cooler
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32942 Hose, Oil Cooler Outlet, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
