Toyota Avalon
2005-01 → 2012-10 · chassis GSX30 · catalogue 361230 · General
Supported model
Data version 2013-01

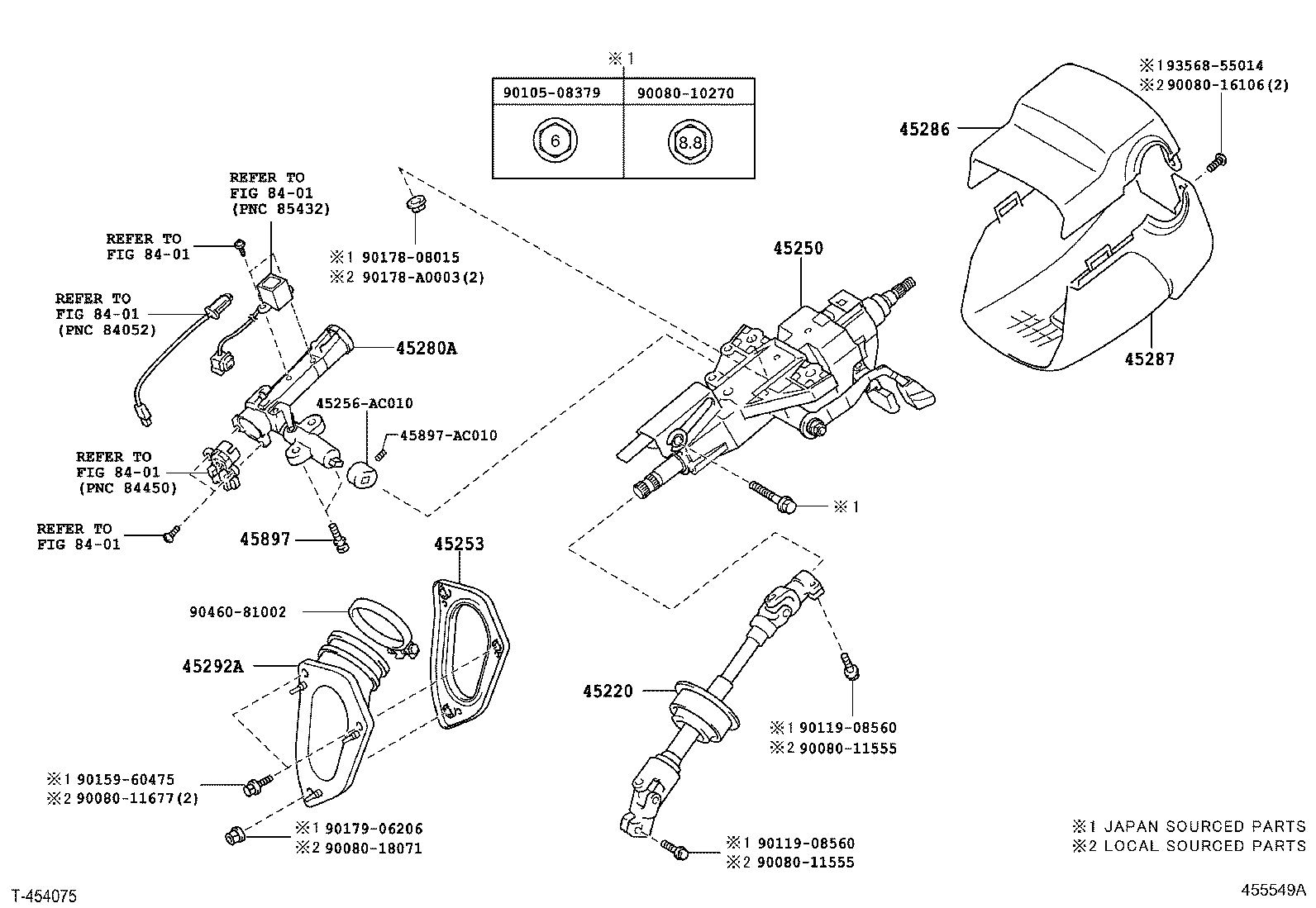

Steering Column & Shaft
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45220 | Shaft Assy, Steering Intermediate |
| 45250 | Column Assy, Steering |
| 45253 | Cover, Steering Column Hole |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45287 | Cover, Steering Column, Lwr |
| 45292A | Cover, Main Shaft Lower Dust |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
