Toyota Avalon
2005-01 → 2012-10 · chassis GSX30 · catalogue 361230 · General
Supported model
Data version 2013-01

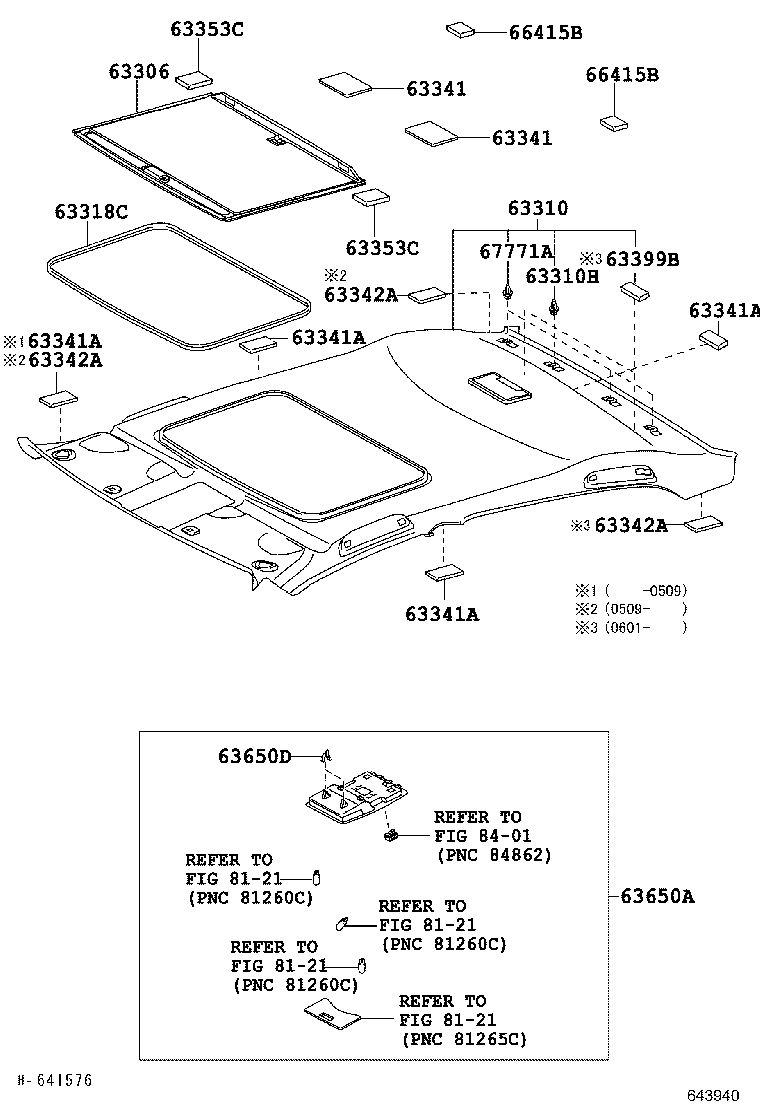

Roof Headlining & Silencer Pad
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341A | Silencer, Roof, NO.1 |
| 63342A | Silencer, Roof, NO.2 |
| 63351C | Pad, Roof Headlining |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63353C | Pad, Roof Headlining, Center |
| 63354C | Pad, Roof Headlining Front Side |
| 63399B | Pad, Roof Silencer, NO.20 |
| 63650A | Box Assy, Roof Console |
| 63650D | Clip(FOR ROOF CONSOLE BOX) |
| 66414A | Spacer, Side Rail, Rear RH |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66424 | Spacer, Side Rail, Rear LH |
| 67771A | Retainer, Roof Headlining |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
