Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361230 · General

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

5 part groups · 3 illustrations

Illustrations

Figure 831117E

831117E 2005-01 → 2010-03

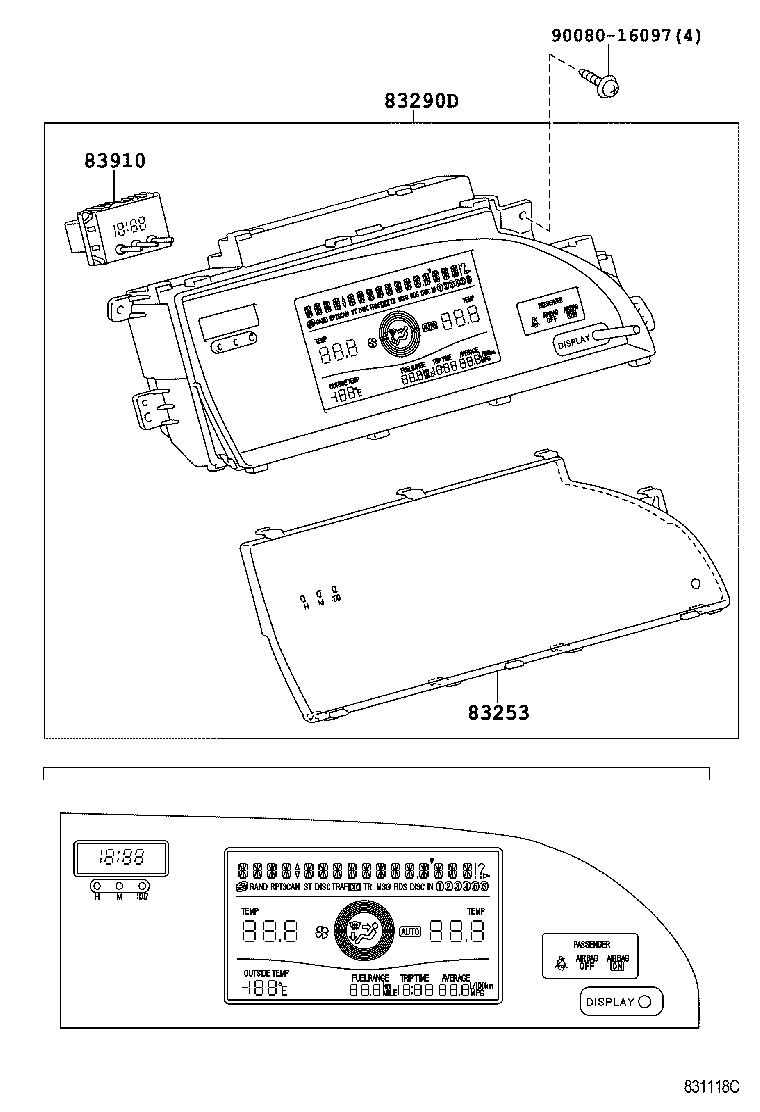

Figure 831118C

831118C 2005-01 → 2010-03

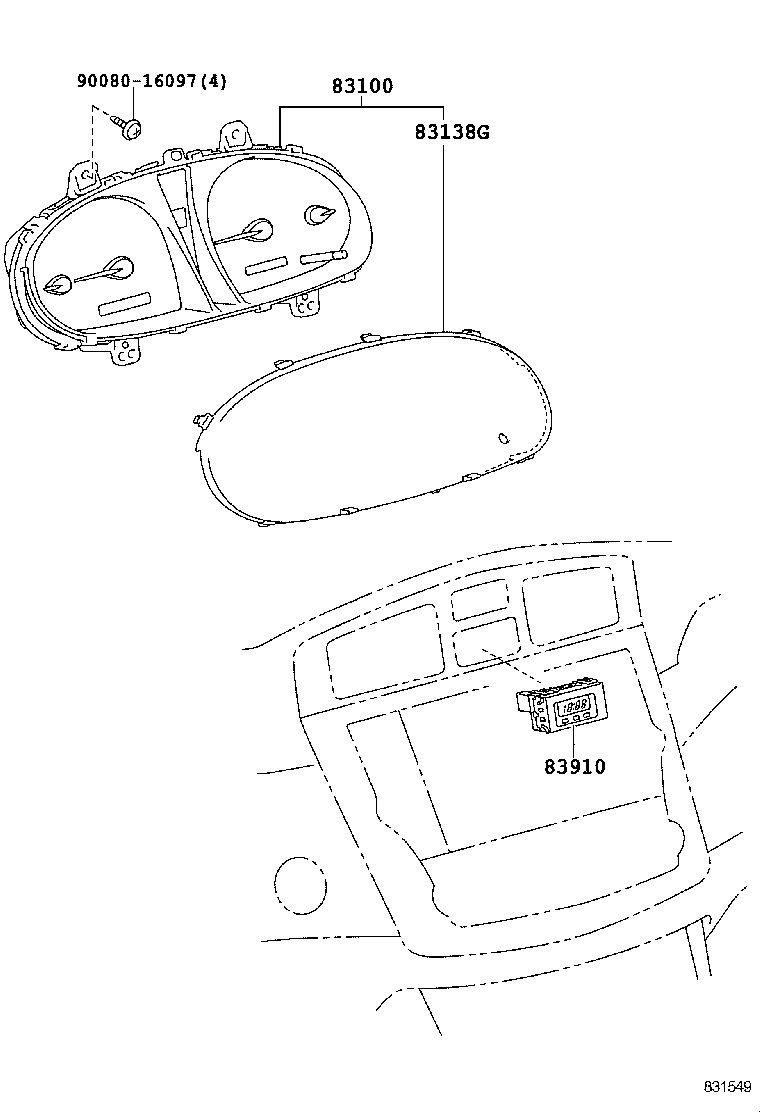

831549 2010-05 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138G	Glass, Combination Meter
83253	Glass, Center Display
83290D	Meter Assy, Accessory
83910	Clock Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
