Toyota Avalon

2012-10 → 2018-04 · chassis GSX40 · catalogue 361340 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 2 illustrations

Illustrations

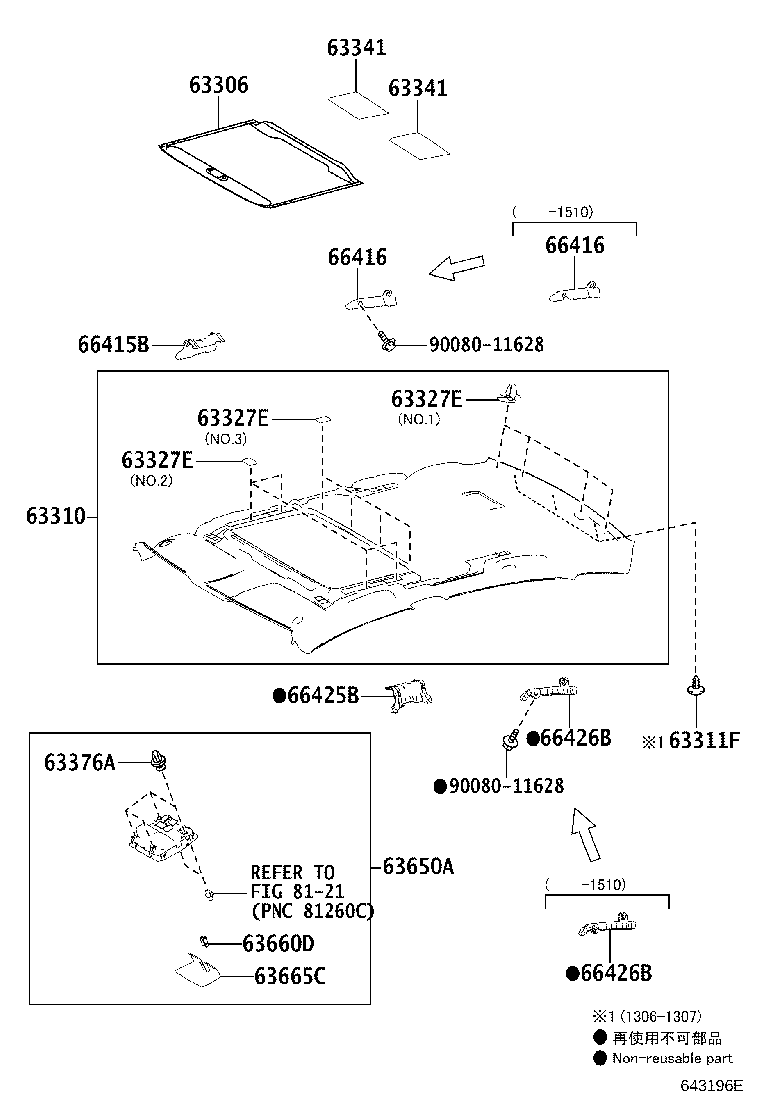

Figure 643195F 643195F 2012-10 → — Figure 643196E 643196E 2012-10 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63311F Clip, Roof Headlining, NO.1
63327E Fastener, Roof Headlining, NO.1
63341 Pad, Roof Silencer, NO.1
63351C Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63376A Clip, Headlining, NO.2
63650A Box Assy, Roof Console
63660D Lock Assy, Roof Console
63665C Mat, Roof Console Box
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
