Toyota Avalon

2012-10 → 2018-04 · chassis GSX40 · catalogue 361340 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 2 illustrations

Illustrations

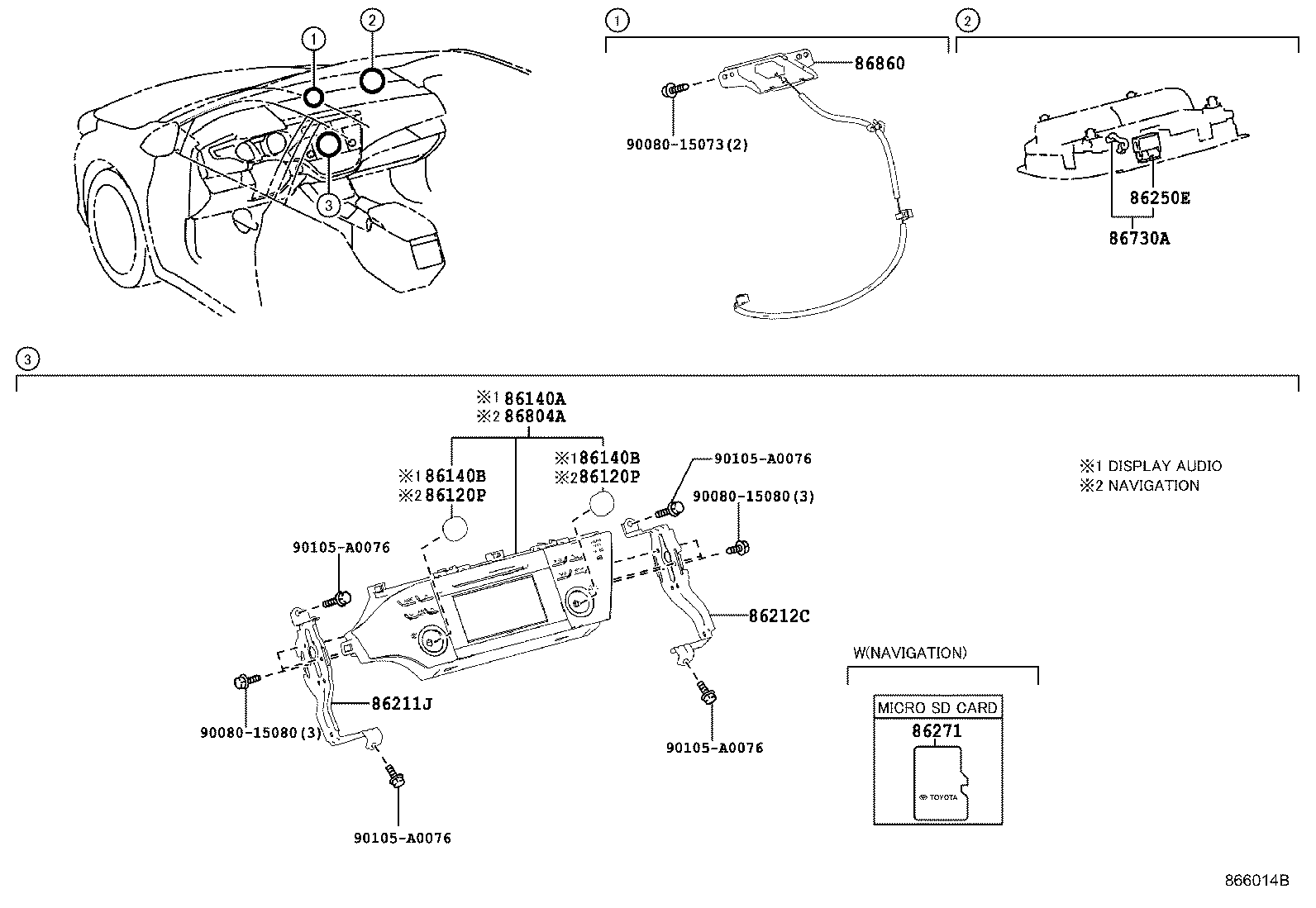

Figure 865302E 865302E 2012-10 → 2014-10 Figure 866014B 866014B 2014-10 → —

Part groups

PNCDescription
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
