Toyota Avalon

2018-06 → present · chassis GSX50 · catalogue 361350 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 3 illustrations

Illustrations

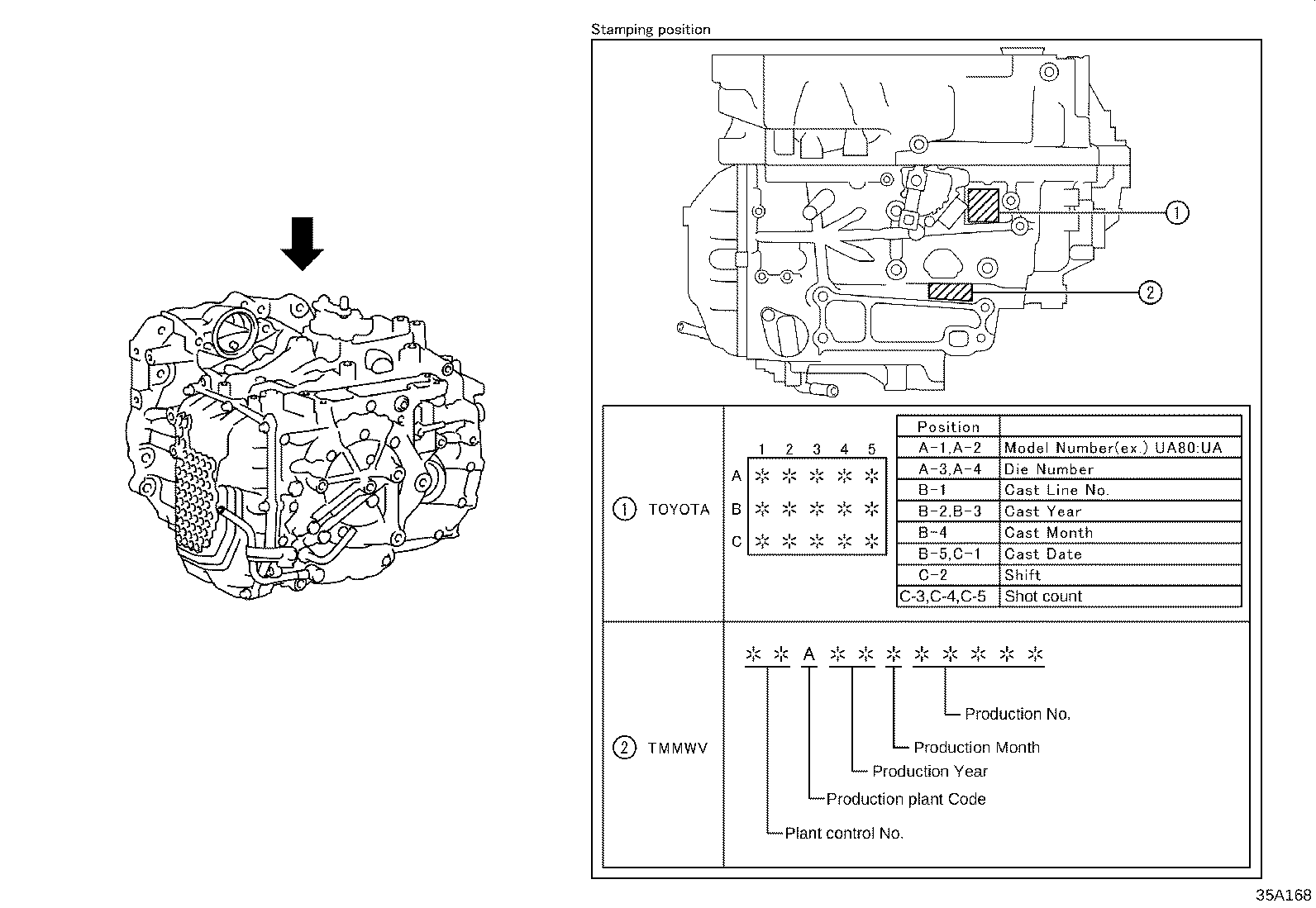

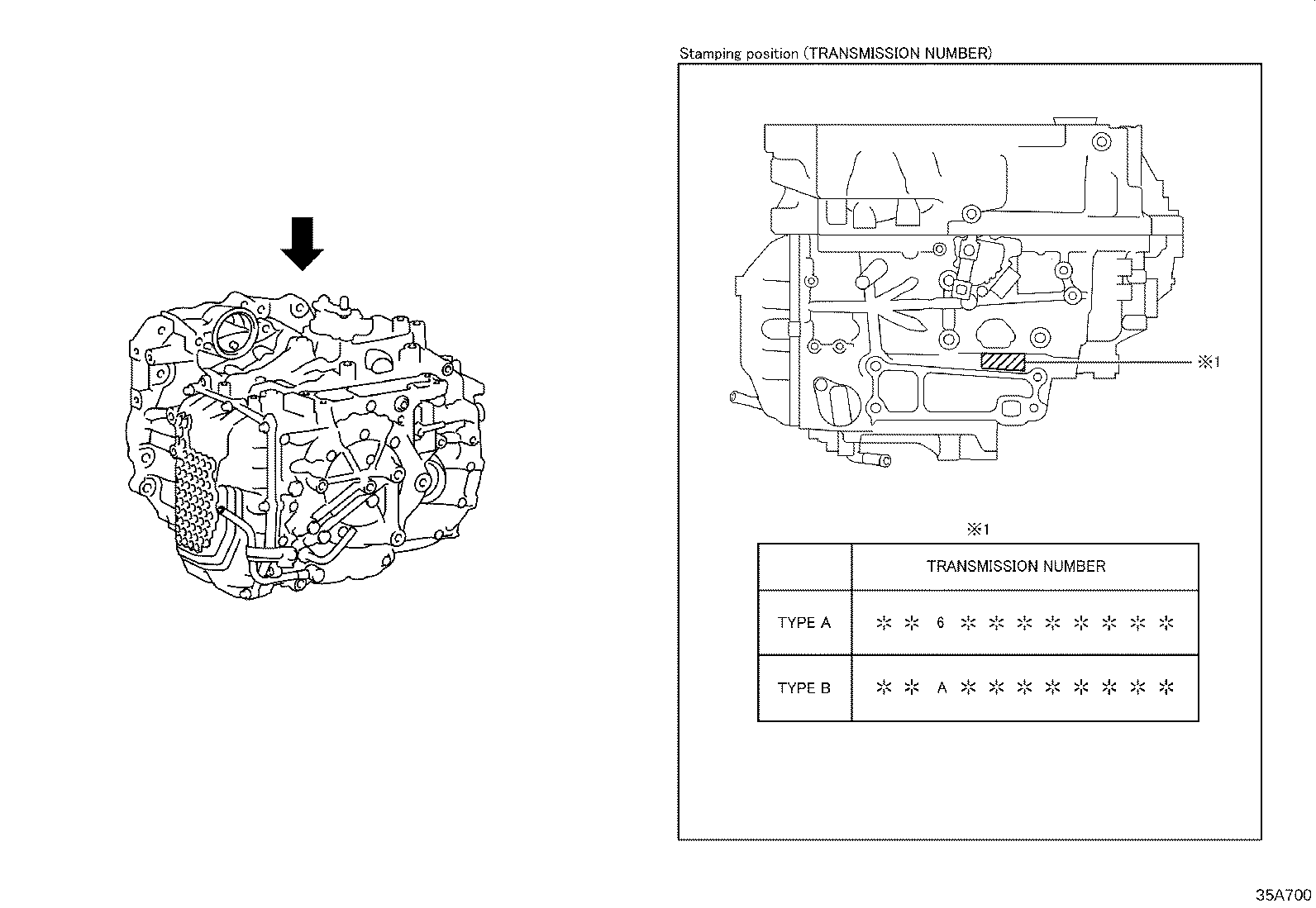

Figure 35A167B 35A167B 2018-06 → — Figure 35A168 35A168 2018-06 → 2020-08 Figure 35A700 35A700 2020-08 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
