Toyota Avalon
2018-06 → present · chassis GSX50 · catalogue 361350 · General
Supported model
Data version 2020-07

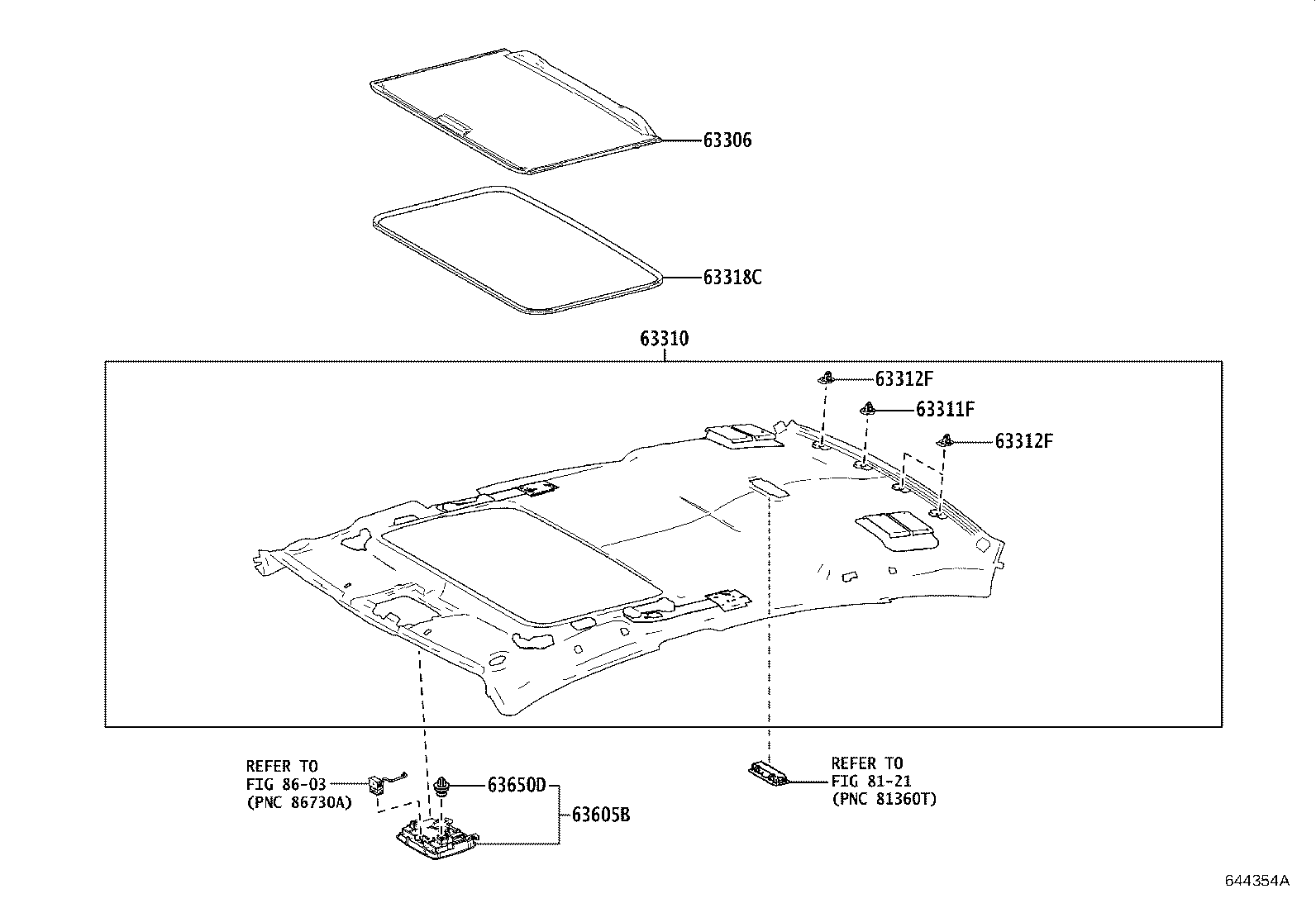

Roof Headlining & Silencer Pad
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55557E | Cushion, Roof Console Box |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63311F | Clip, Roof Headlining, NO.1 |
| 63312F | Clip, Roof Headlining, NO.2 |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63342A | Silencer, Roof, NO.2 |
| 63605B | Box Sub-assy, Roof Console |
| 63650D | Clip(FOR ROOF CONSOLE BOX) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
