Toyota Avalon
2018-06 → present · chassis GSX50 · catalogue 361350 · General
Supported model
Data version 2020-07

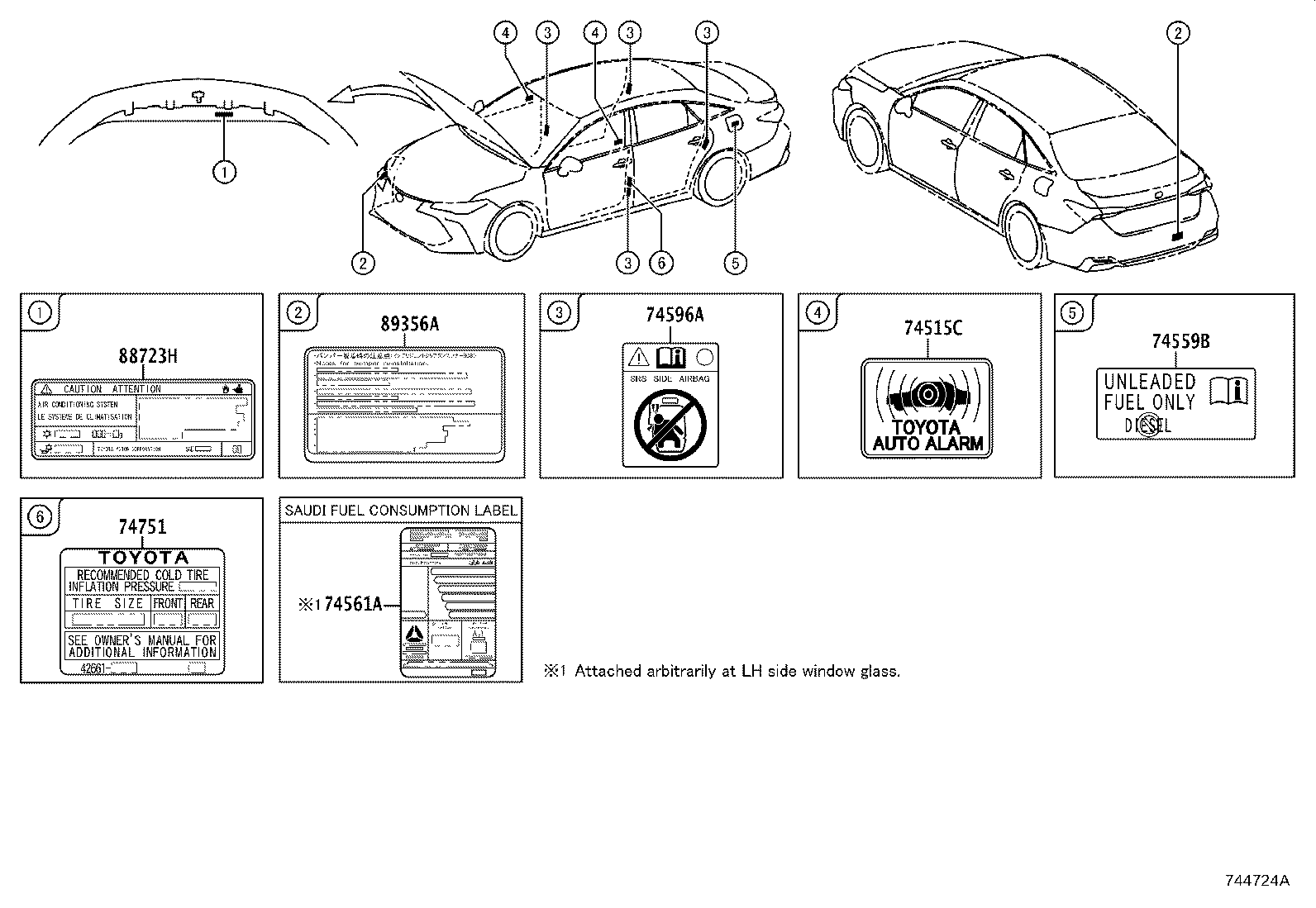

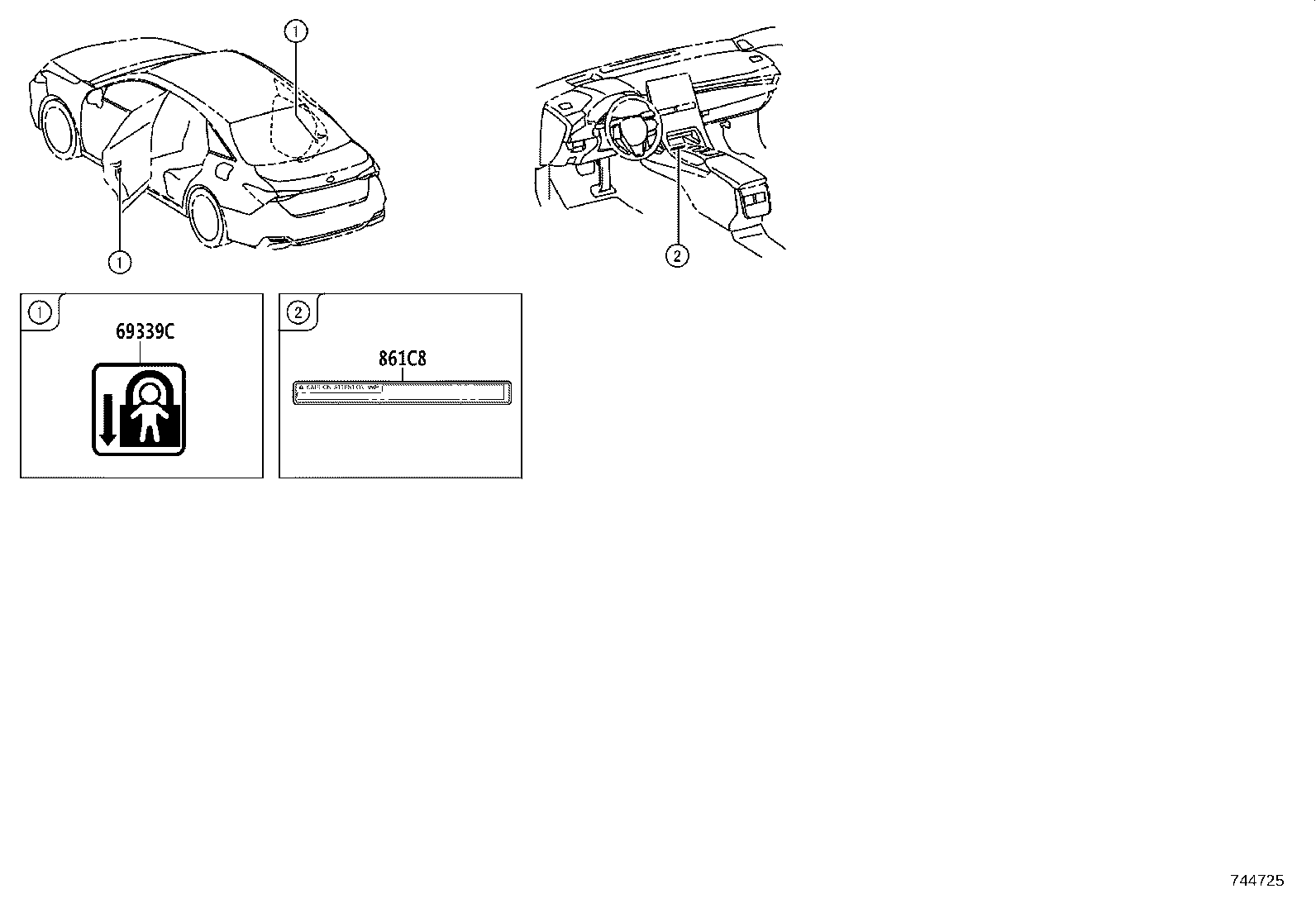

Caution Plate (EXTERIOR & INTERIOR)
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16793E | Label, Cooling Fan Caution |
| 69339C | Label, Child Protector Information |
| 74515C | Label, Theft Warning Information |
| 74559B | Label, Fuel Information |
| 74561A | Label, Fuel Consumption Information |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
