Toyota Avalon

2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

10 part groups · 2 illustrations

Illustrations

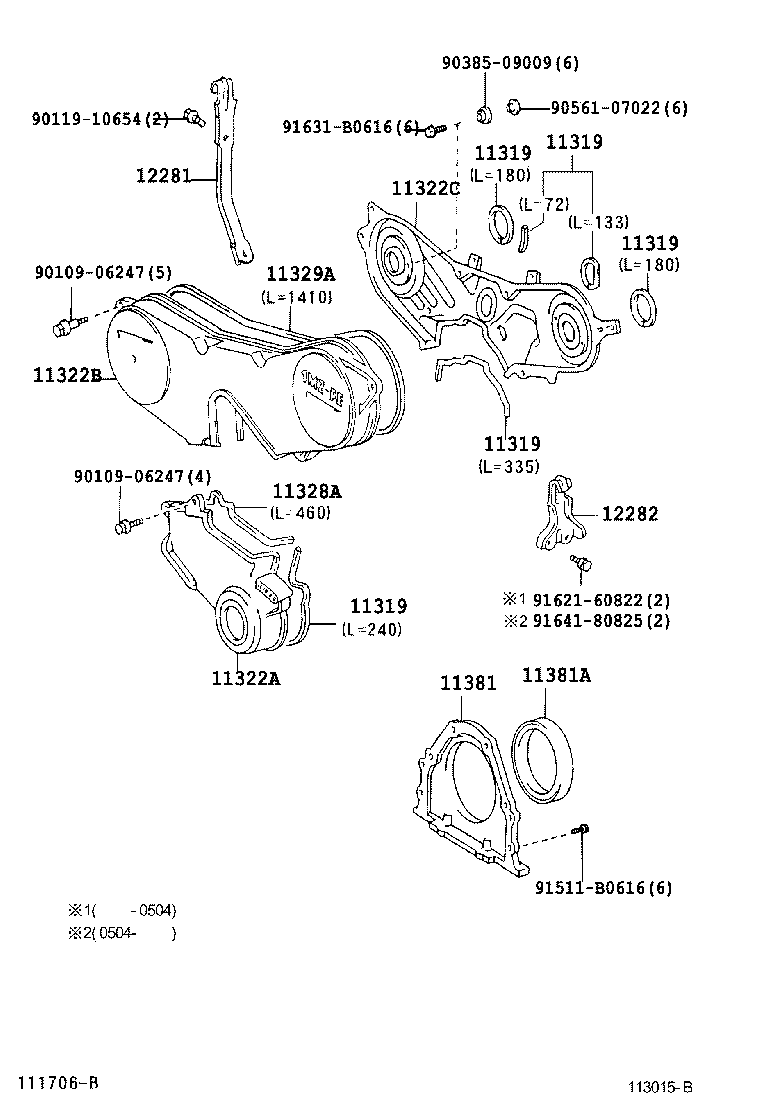

Figure 111706B 111706B 2000-04 → 2003-09 Figure 113015B 113015B 2003-09 → —

Part groups

PNCDescription
11319 Gasket, Timing Belt Cover, NO.3
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11328A Gasket, Timing Belt Cover, NO.1
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
