Toyota Avalon
2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General
Discontinued model
Data version 2006-04

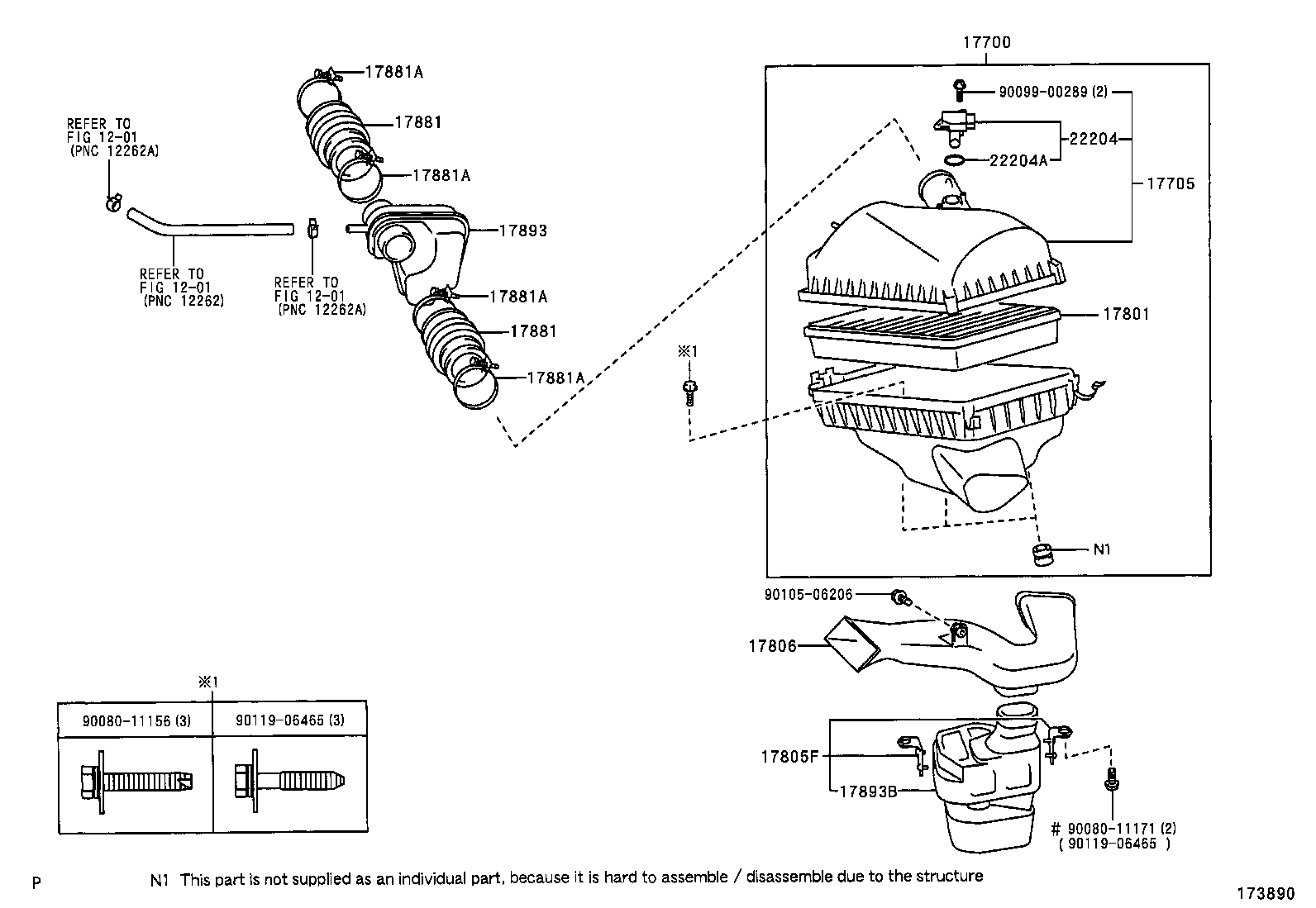

Air Cleaner
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805F | Resonator Sub-assy, Intake Air |
| 17806 | Pipe Sub-assy, Air Cleaner, NO.2 |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17893 | Resonator, Intake Air |
| 17893B | Resonator, Intake Air, NO.2 |
| 22020 | Meter Assy, Air Flow W/Air Cleaner |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 22204A | Ring, O(FOR INTAKE AIR FLOW METER) |
| 22250 | Meter Assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
