Toyota Avalon

2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 2 illustrations

Illustrations

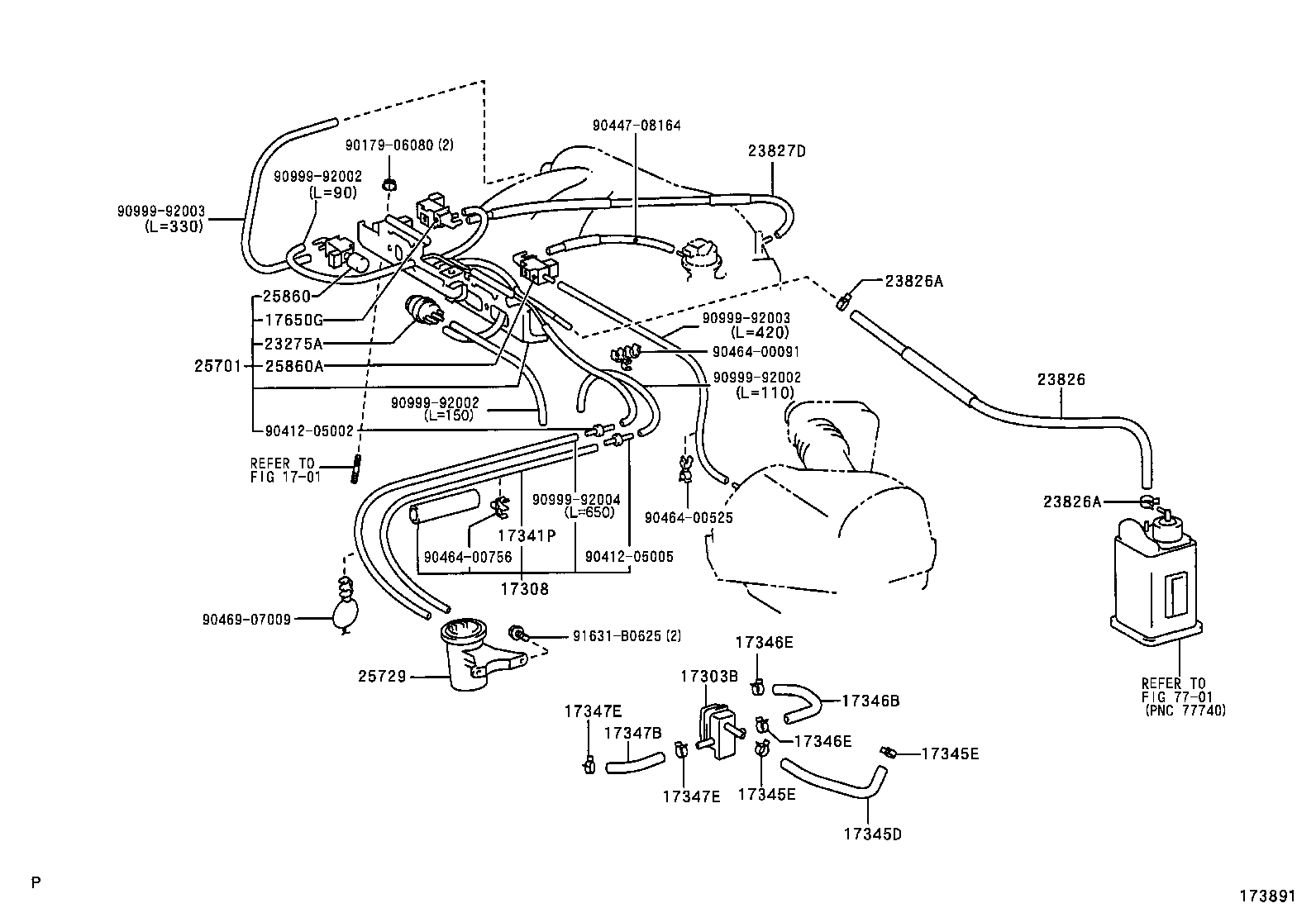

Figure 172491B 172491B 2000-04 → 2003-09 Figure 173891 173891 2003-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17341P Hose, Air
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347B Hose, Air, NO.7
17347E Clip(FOR AIR HOSE NO.7)
17650G Valve, Duty Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23275A Valve, Vacuum Control
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827D Hose, Fuel Vapor Feed, NO.2
25701 Valve Set, Emission Control
25729 Tank, Vacuum Surge W/Bracket
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
