Toyota Avalon

2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

17 part groups · 3 illustrations

Illustrations

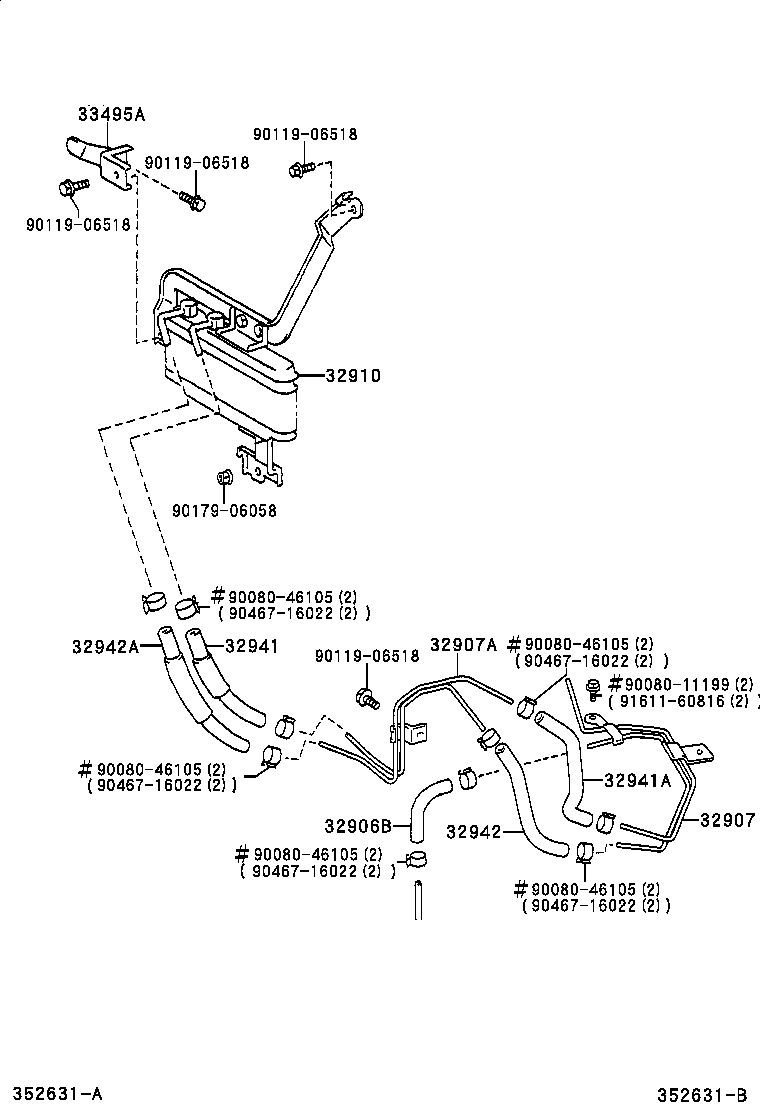

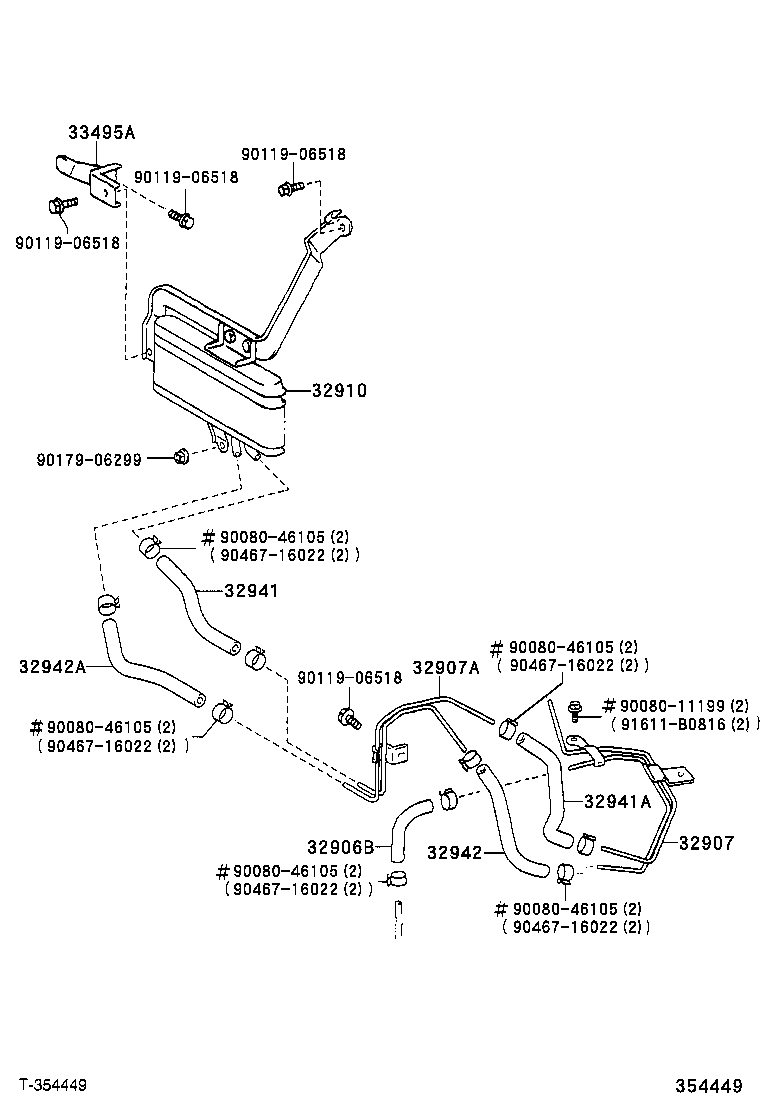

Figure 352630C 352630C 2000-04 → — Figure 352631B 352631B 2000-04 → 2003-09 Figure 354449 354449 2003-09 → —

Part groups

PNCDescription
32906B Hose, Oil Cooler Tube(FOR OUTLET)
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32907A Tube, Oil Cooler
32910 Cooler Assy, Oil
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
33495A Clamp, Automatic Transmission Oil Cooler Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
