Toyota Avalon

2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

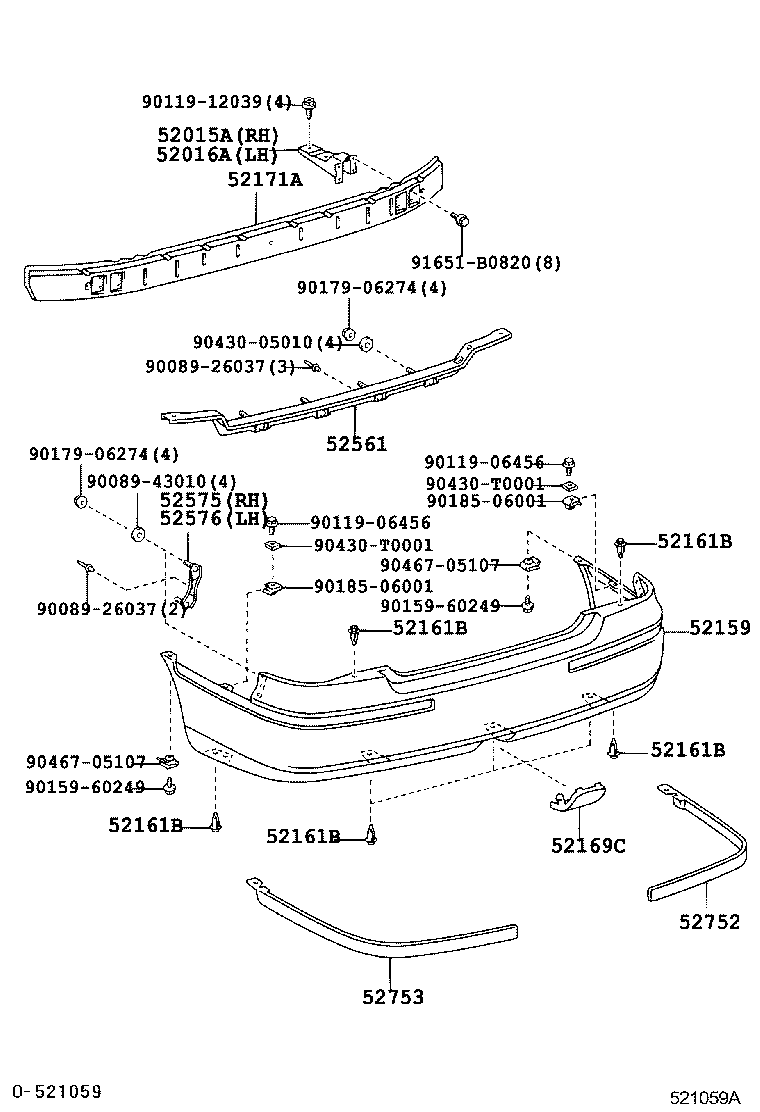

Figure 520618C 520618C 2000-04 → 2003-09 Figure 521059A 521059A 2003-09 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52169C Cover, Rear Bumper, Lower
52171A Reinforcement, Rear Bumper, NO.1
52561 Retainer, Rear Bumper, Upper Center
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52581 Protector, Rear Bumper, RH
52582 Protector, Rear Bumper, LH
52751 Moulding, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
