Toyota Avalon
2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General
Discontinued model
Data version 2006-04

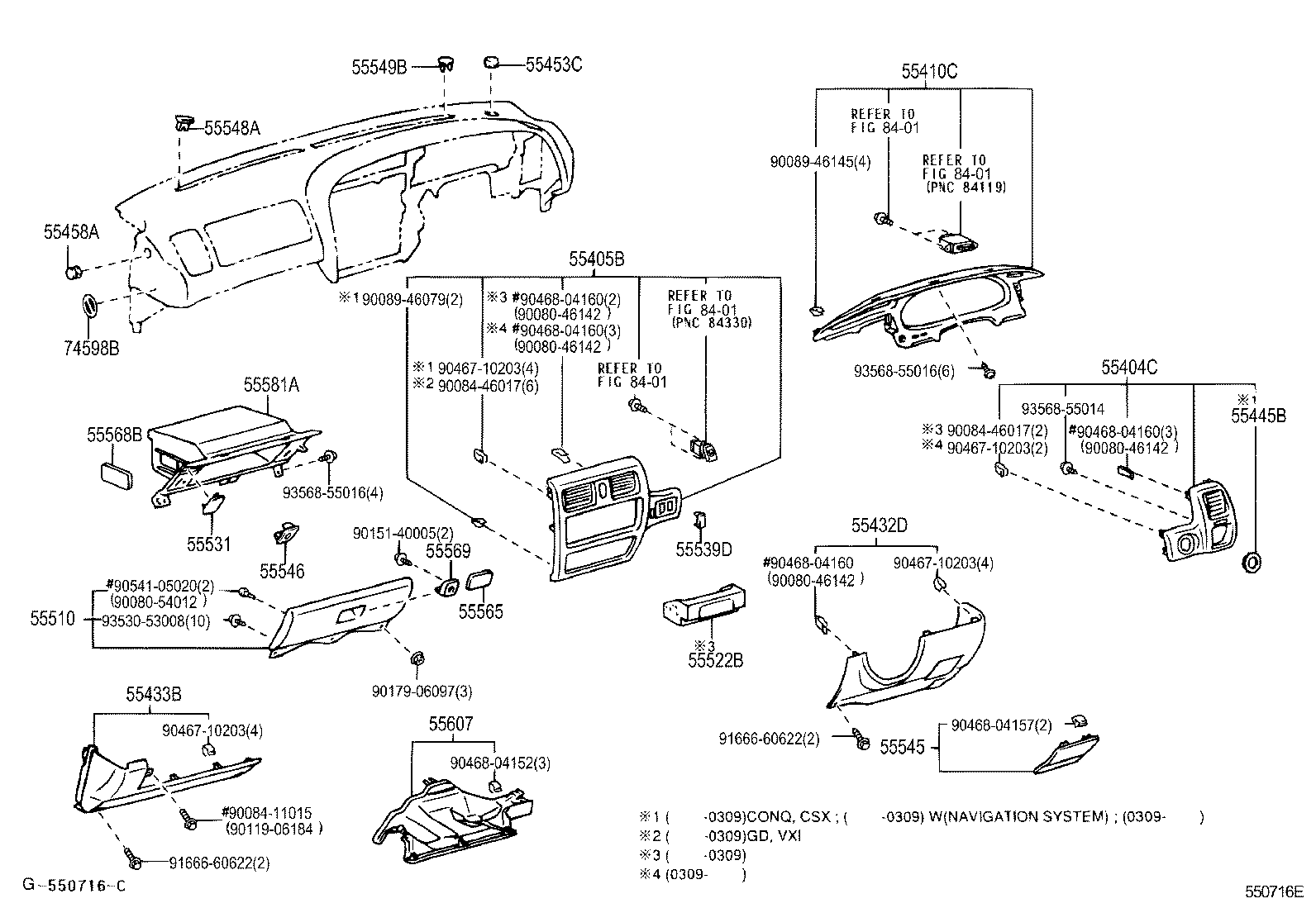

Instrument Panel & Glove Compartment
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307E | Brace Sub-assy, Instrument Panel, NO.2 |
| 55314A | Panel, Instrument, Lower Center |
| 55318B | Extension, Instrument Panel |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55445B | Plate, Instrument Panel Finish |
| 55453C | Cover, Instrument Panel Safety Pad, NO.2 |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55510 | Door Assy, Glove Compartment |
| 55522B | Cover, Radio Tuner Opening |
| 55531 | Panel, Glove Compartment |
| 55539D | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55546 | Cover, Luggage Compartment Opener Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55581A | Compartment, Glove |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
