Toyota Avalon

2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

35 part groups · 3 illustrations

Illustrations

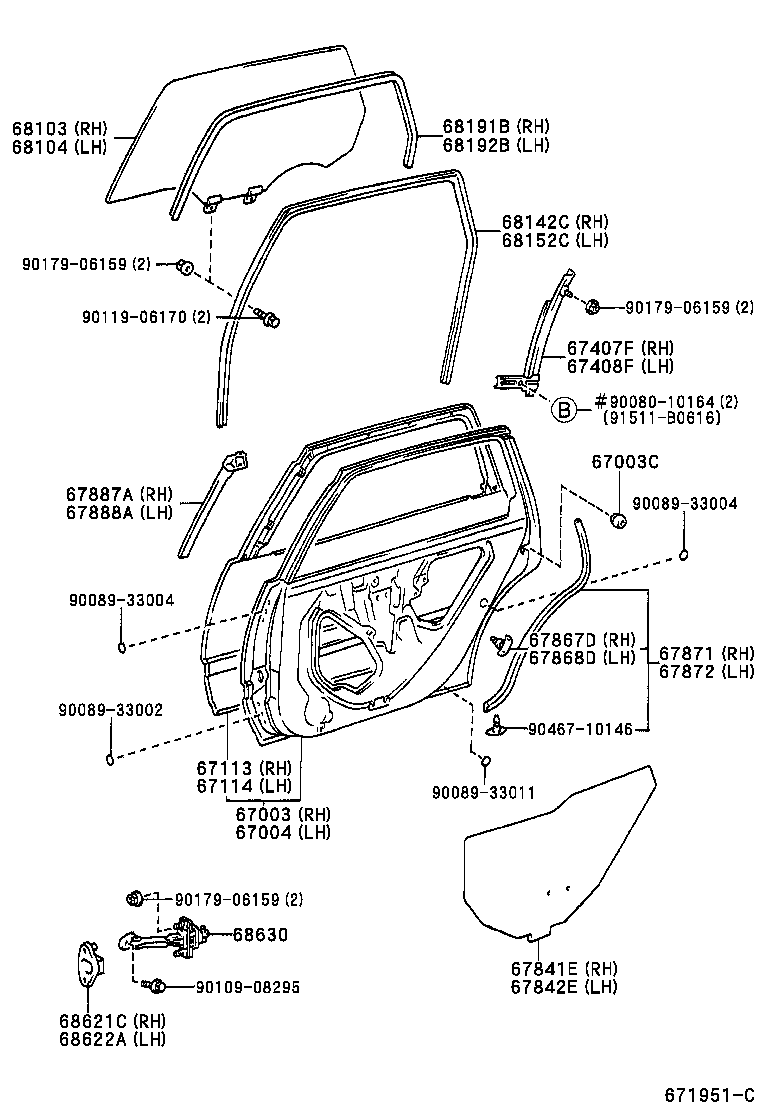

Figure 671956A 671956A 2000-04 → 2003-09 Figure 671951C 671951C 2000-04 → — Figure 673363 673363 2003-09 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67003C Cushion, Rear Door Panel
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67407F Frame Sub-assy, Rear Door Window, Rear Lower RH
67408F Frame Sub-assy, Rear Door Window, Rear Lower LH
67499A Retainer, Rear Door Lower Frame Bracket Garnish
67603 Board Sub-assy, Rear Door Trim, RH
67603E Clip(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67653D Grille Sub-assy, Rear Door Speaker, RH
67654D Grille Sub-assy, Rear Door Speaker, LH
67673A Garnish, Rear Door Frame, RH
67674A Garnish, Rear Door Frame, LH
67721 Cover, Rear Door Trim, RH
67722 Cover, Rear Door Trim, LH
67841E Cover, Rear Door Service Hole, RH
67842E Cover, Rear Door Service Hole, LH
67867D Retainer, Rear Door Weatherstrip, RH
67868D Retainer, Rear Door Weatherstrip, LH
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
67887A Weatherstrip, Rear Door, NO.2 RH
67888A Weatherstrip, Rear Door, NO.2 LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68142C Run, Rear Door Glass, RH
68152C Run, Rear Door Glass, LH
68190 Weatherstrip Assy, Rear Door Glass, Inner
68191B Run, Rear Door Glass, NO.2 RH
68192B Run, Rear Door Glass, NO.2 LH
68621C Cover, Rear Door Check, RH
68622A Cover, Rear Door Check, LH
68630 Check Assy, Rear Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
