Toyota Avalon

2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

15 part groups · 2 illustrations

Illustrations

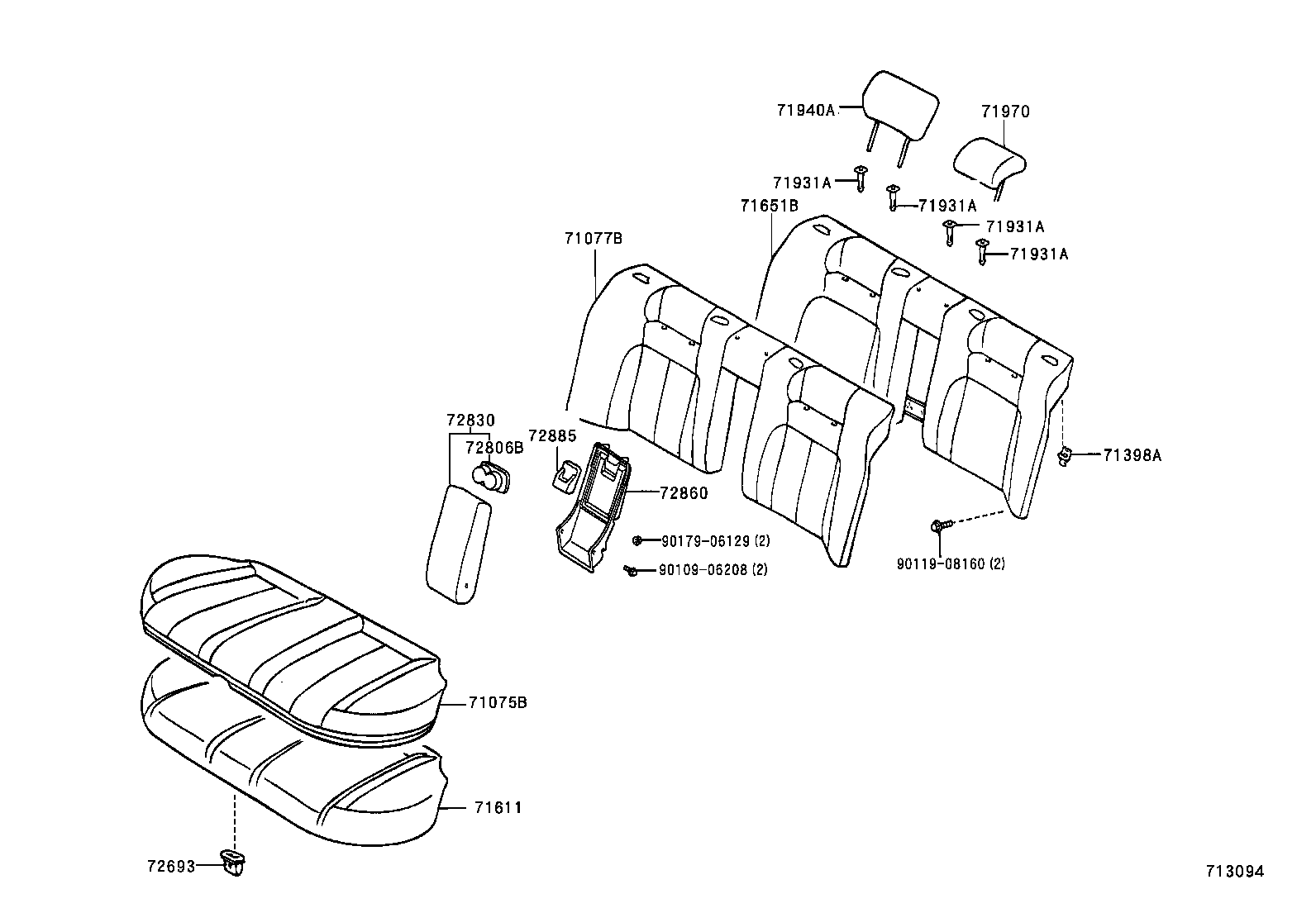

Figure 711666A 711666A 2000-04 → 2003-09 Figure 713094 713094 2003-09 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71970 Headrest Assy, Rear Seat
72693 Hook, Rear Seat Cushion Lock
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72860 Box Assy, Rear Seat Center Armrest
72885 Handle, Rear Seat Armrest
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
