Toyota Avalon

2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

42 part groups · 11 illustrations

Illustrations

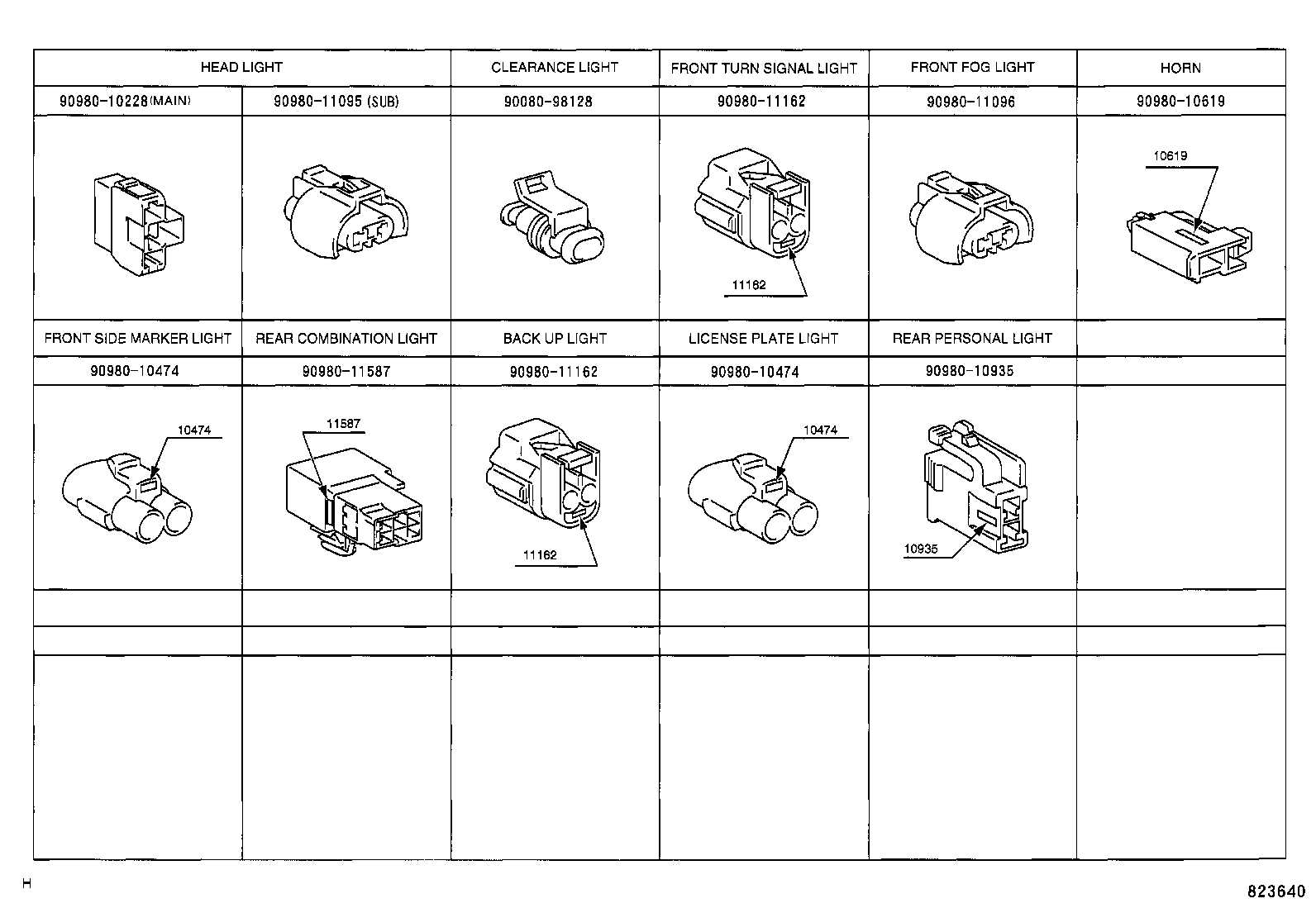

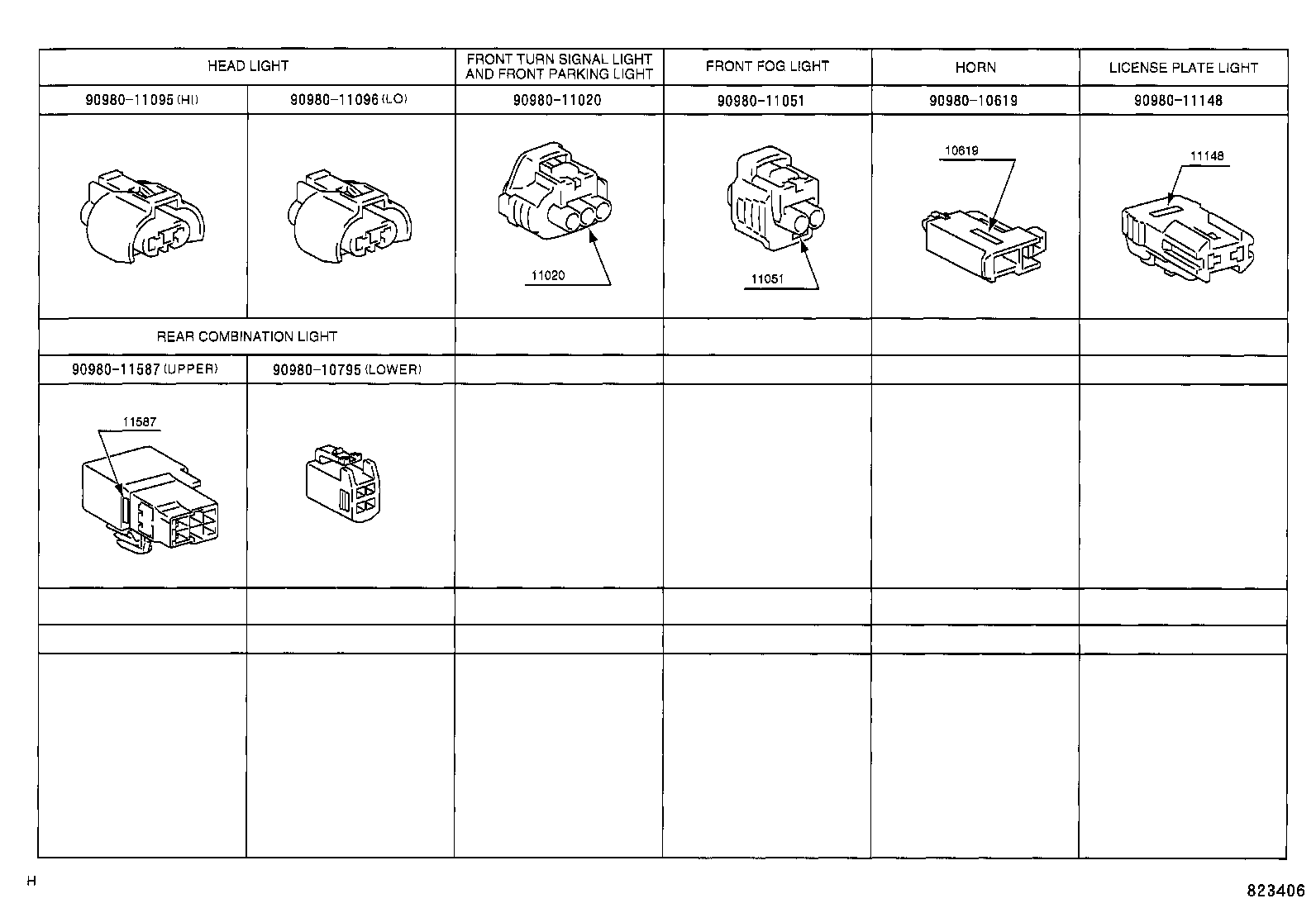

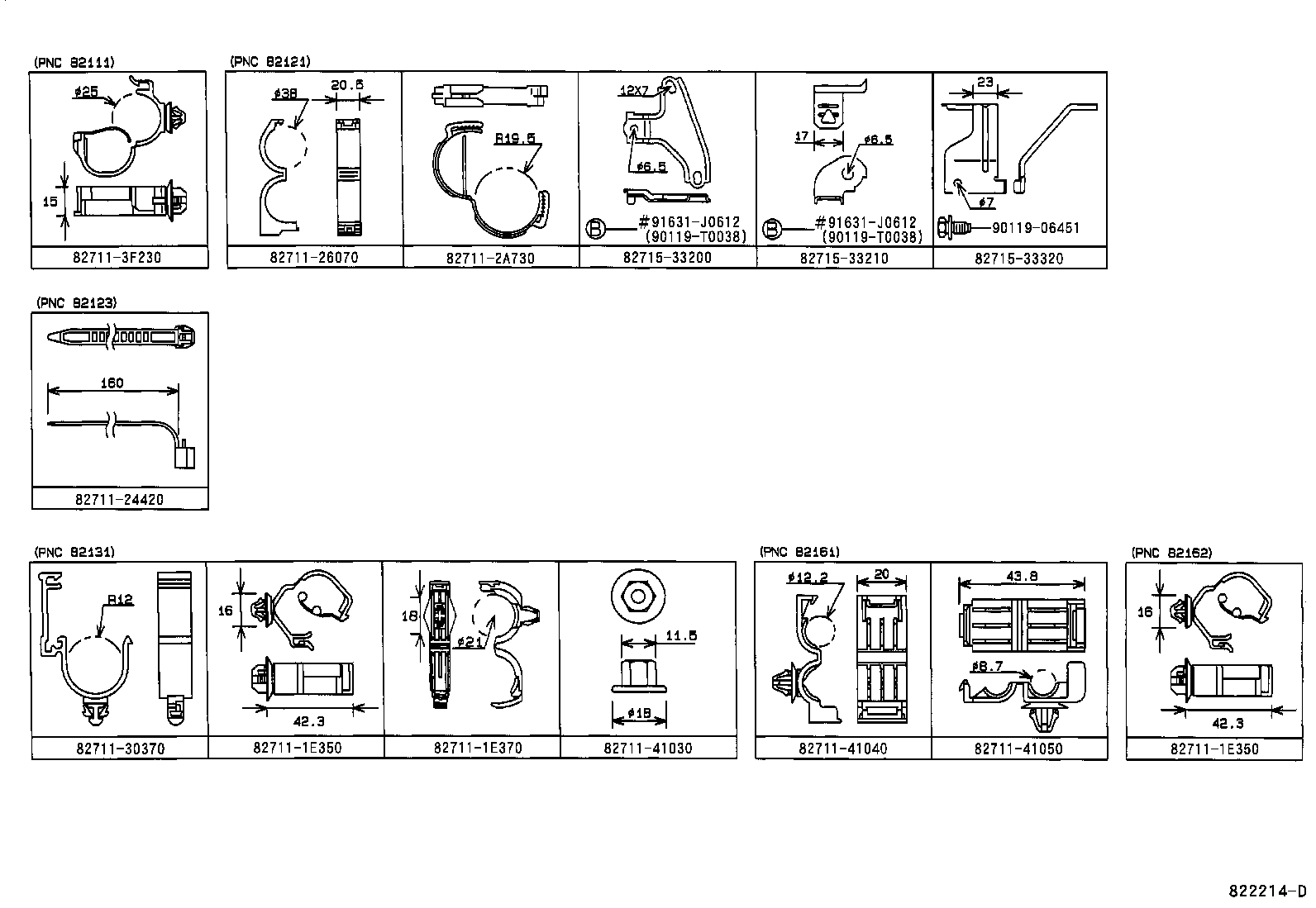

Figure 822215D 822215D 2000-04 → — Figure 822216F 822216F 2000-04 → — Figure 822217 822217 2000-04 → — Figure 822218D 822218D 2000-04 → — Figure 822219B 822219B 2000-04 → — Figure 822220 822220 2000-04 → — Figure 822221A 822221A 2000-04 → — Figure 822214D 822214D 2000-04 → — Figure 822222B 822222B 2000-04 → — Figure 823406 823406 2000-04 → 2003-09 Figure 823640 823640 2003-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main

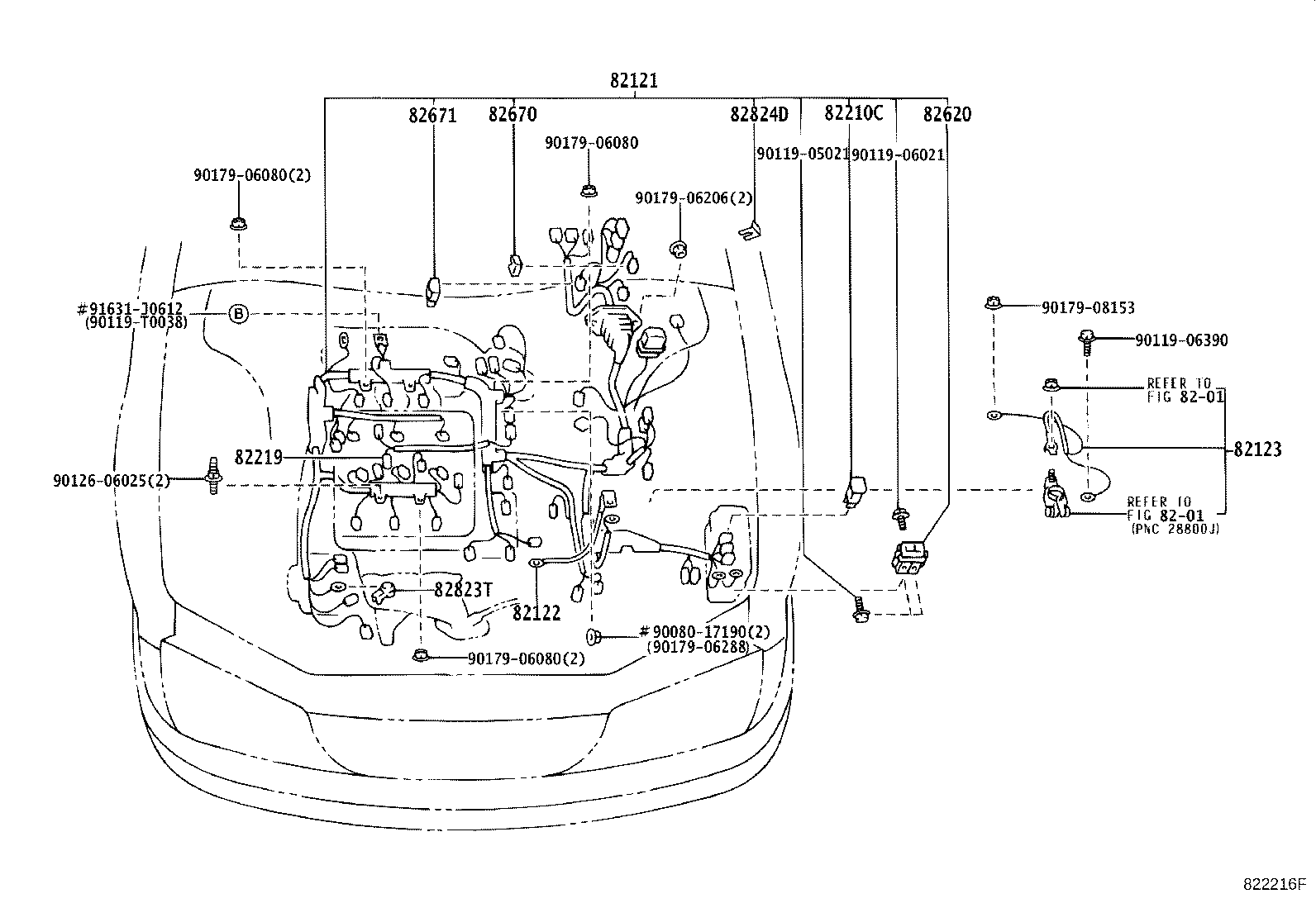

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl

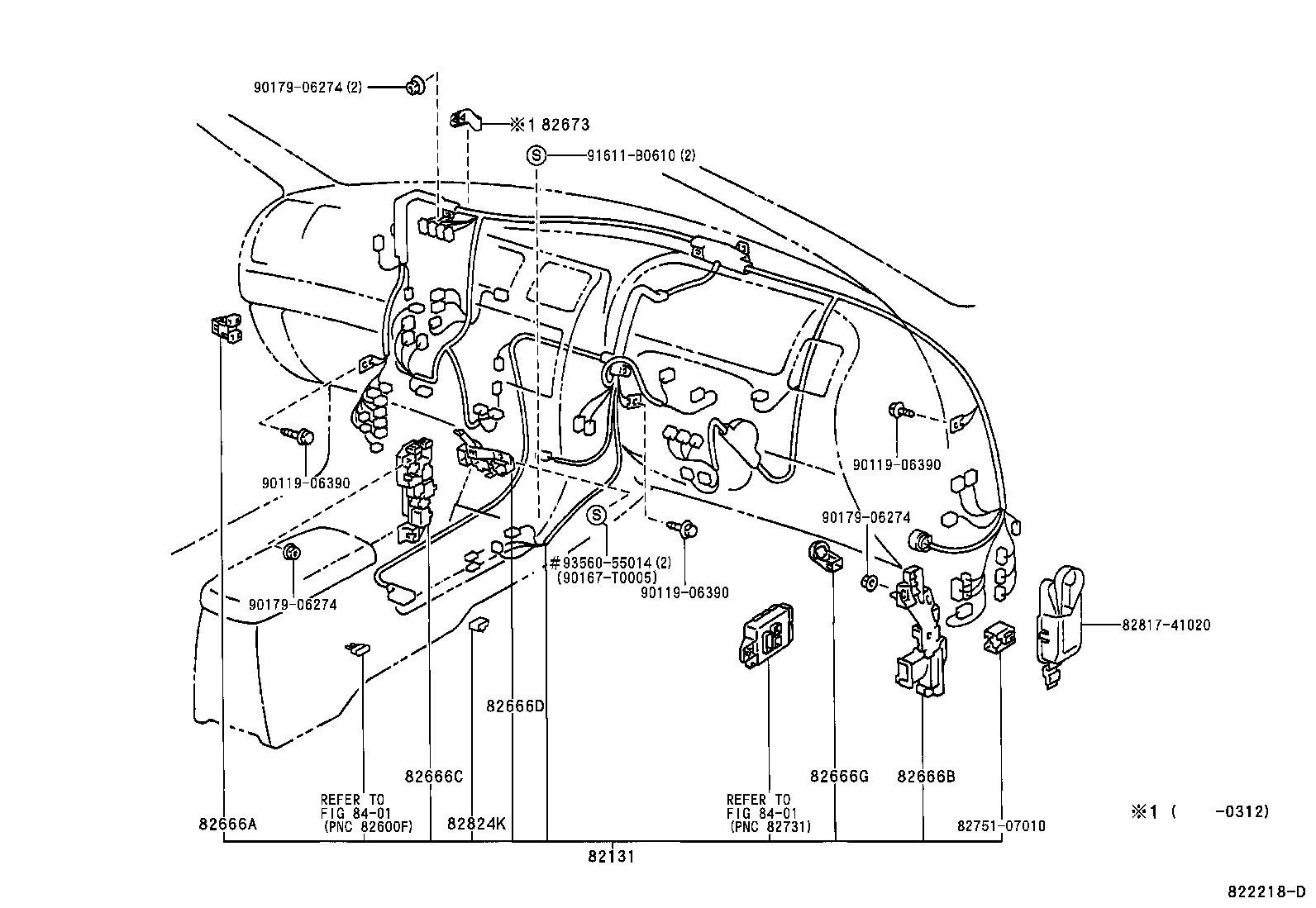

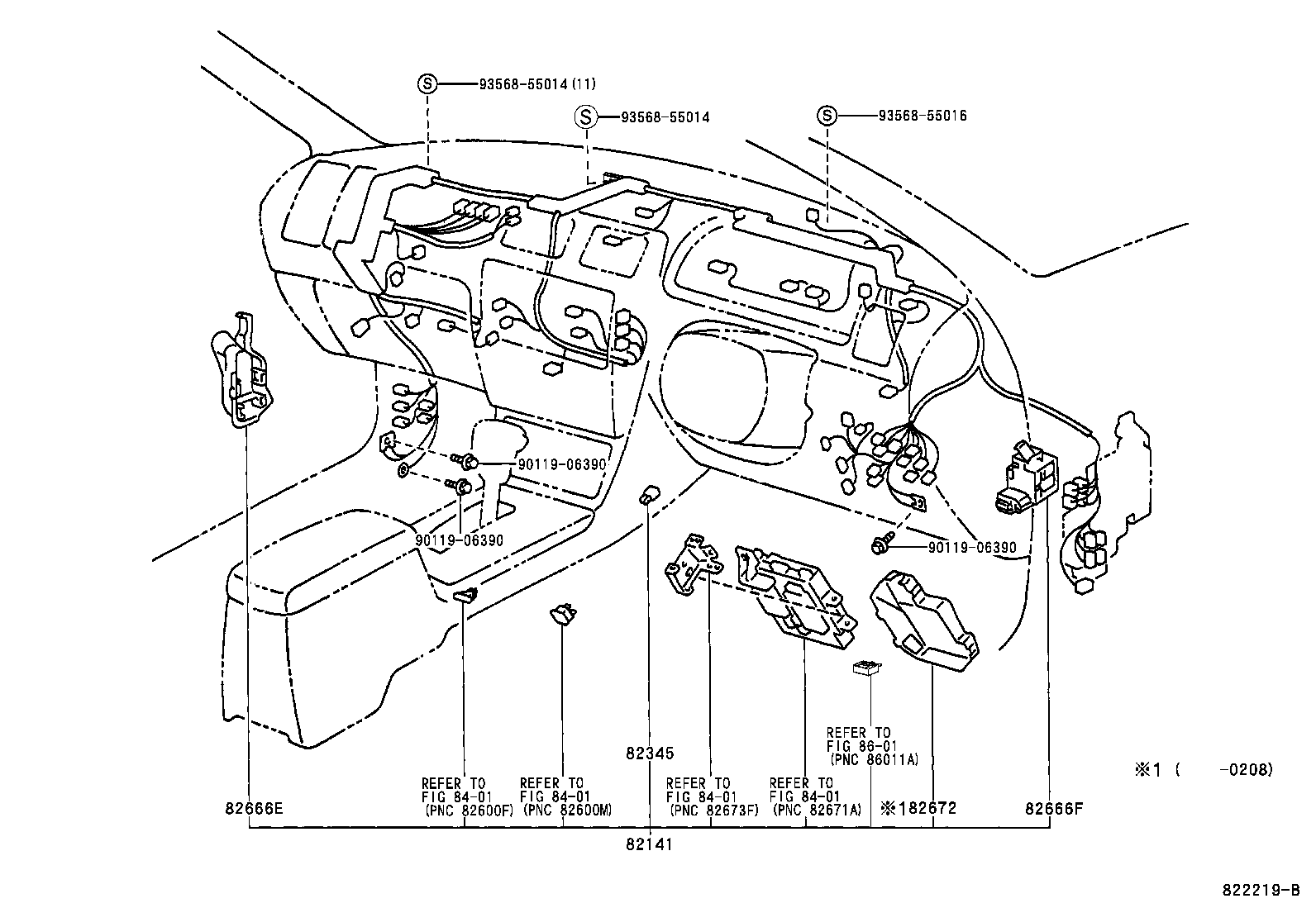

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

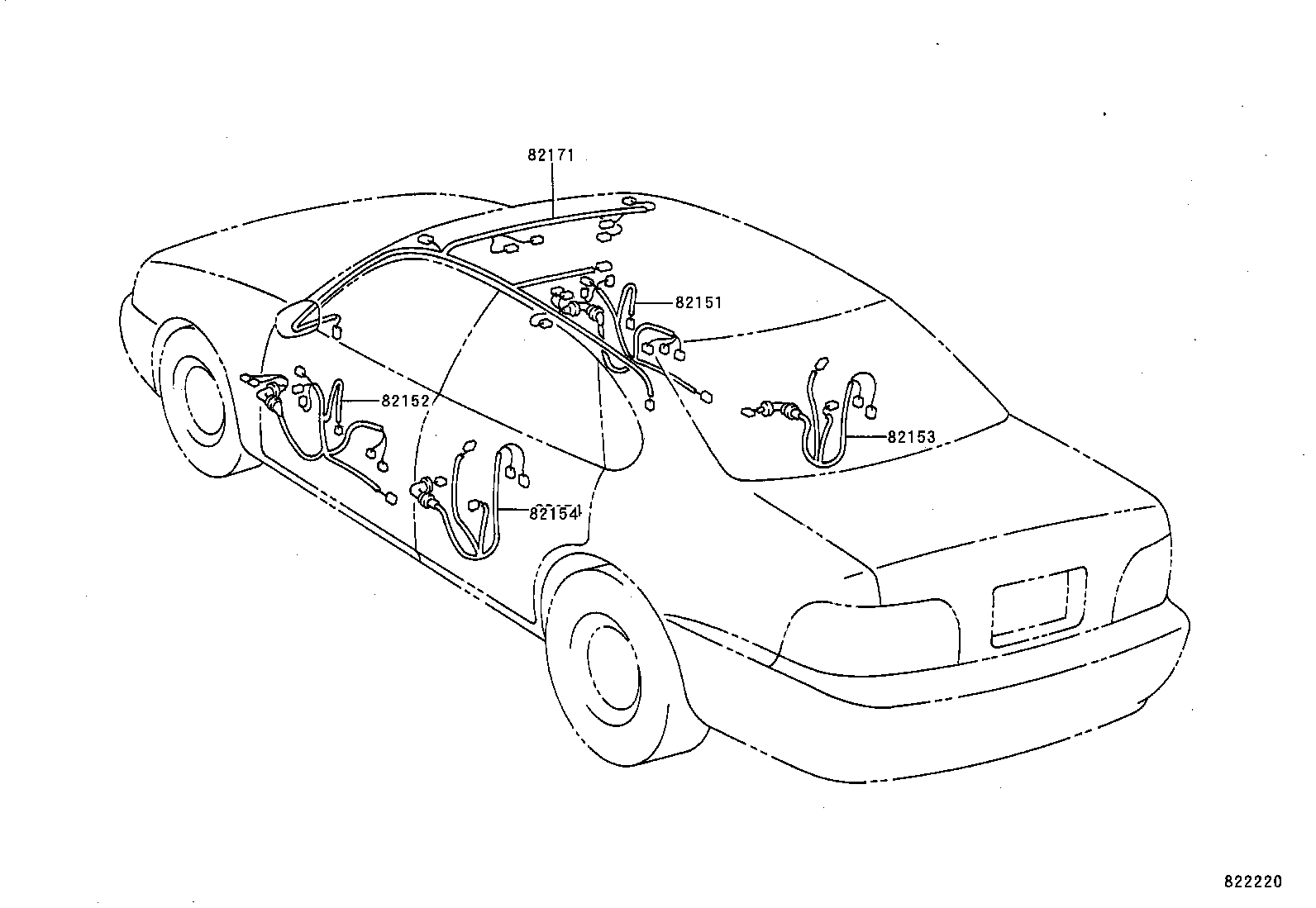

82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

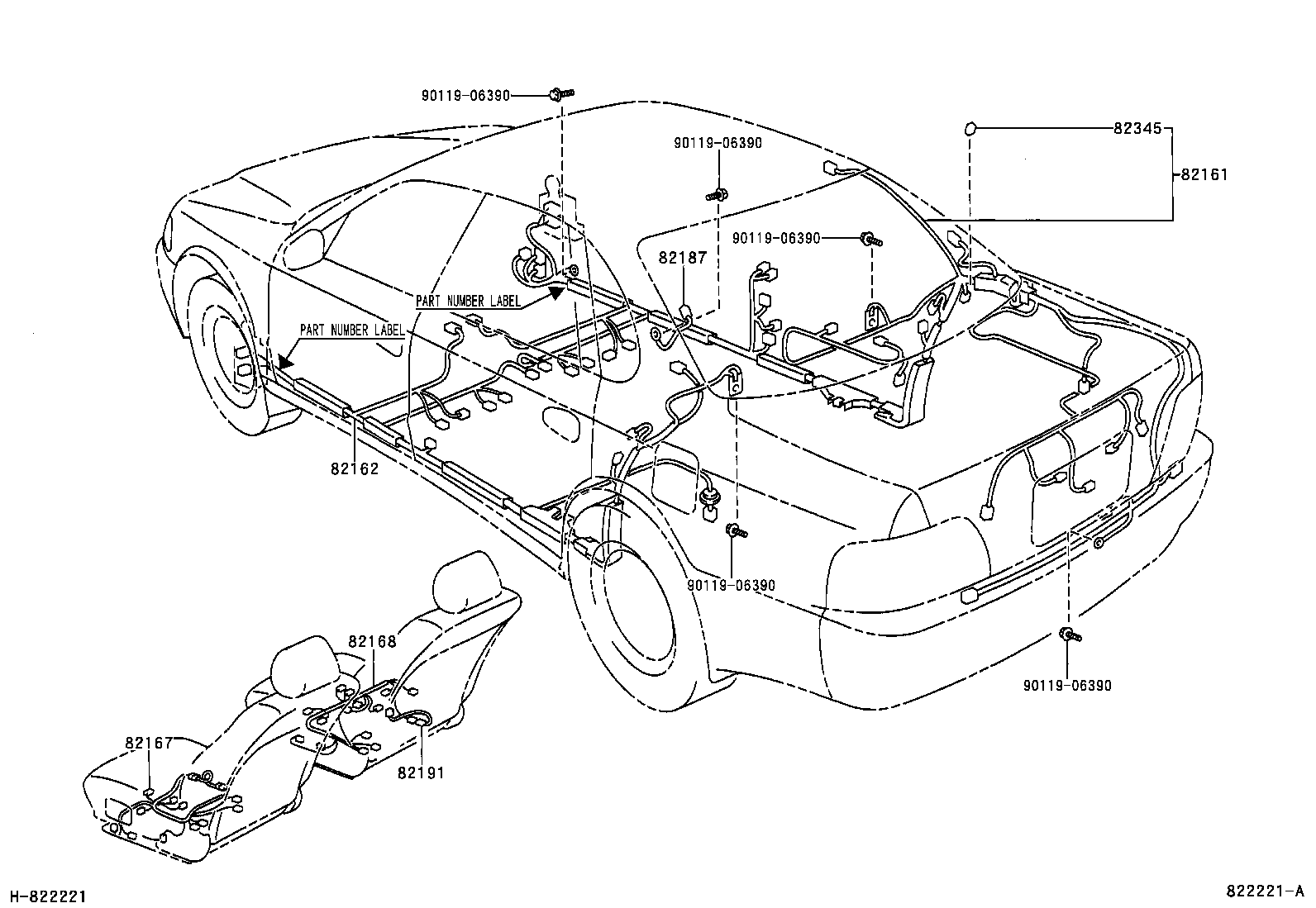

82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82210C Fusible Link
82219 Wire, Thermo Sensor
82345 Diode
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
82824K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
