Toyota Avalon
2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General
Discontinued model
Data version 2006-04
Anti-theft Device

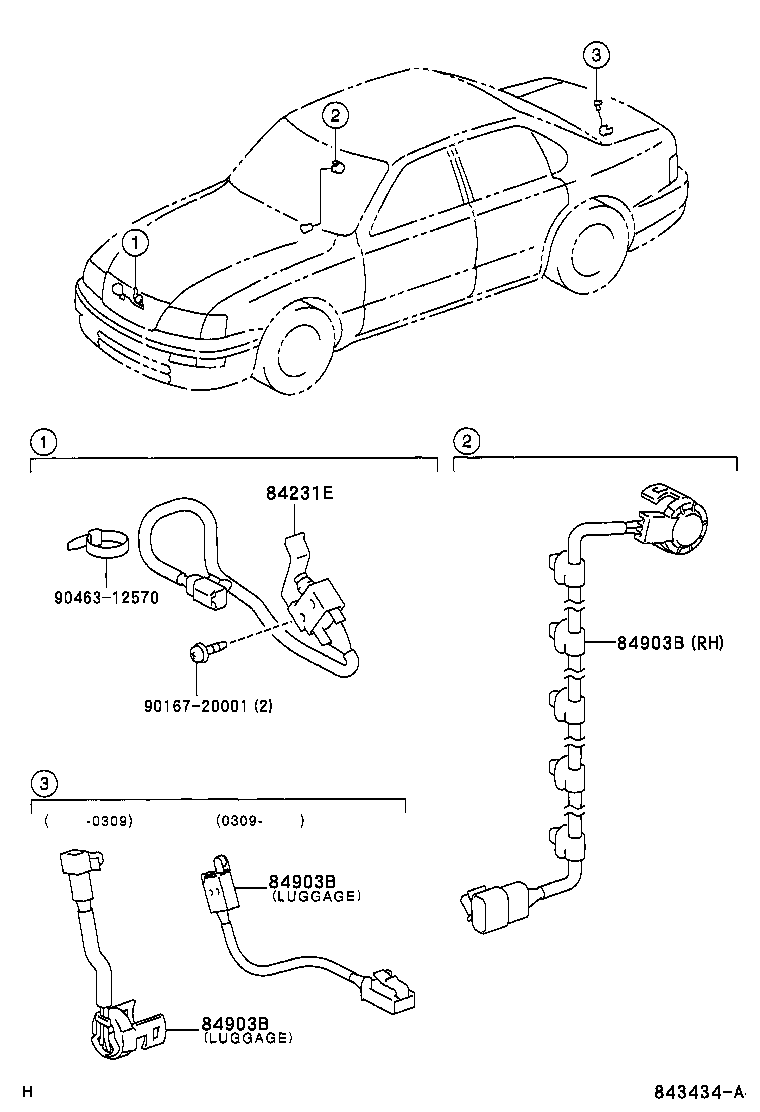

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84231E | Switch, Courtesy(FOR SECURITY) |
| 84903B | Switch Sub-assy, Door Unlock |
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89709 | Computer Set, Transponder Key |
| 89780 | Computer Assy, Transponder Key |
| 89782 | Coil, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
