Toyota Avalon
2000-04 → 2005-06 · chassis MCX10 · catalogue 362210 · General
Discontinued model
Data version 2006-04
Radio Receiver & Amplifier & Condenser
14 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

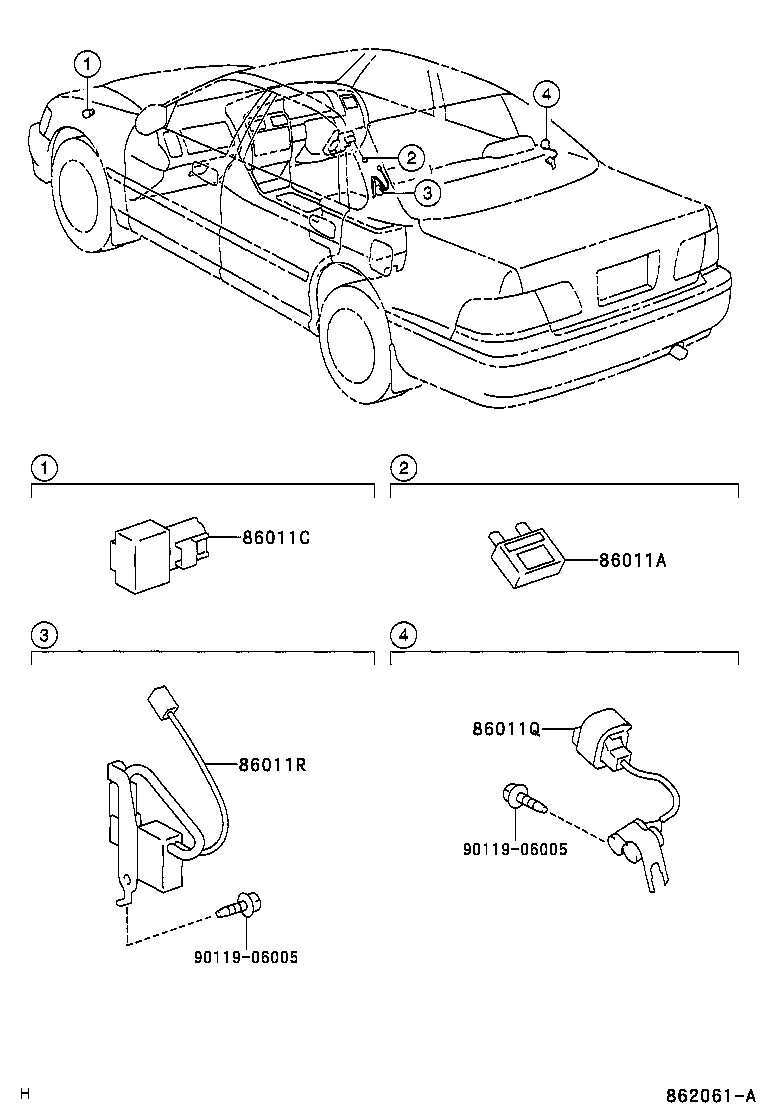

| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86011N | Filter, Noise |
| 86011Q | Condenser, Radio Setting |
| 86011R | Condenser, Radio Setting |

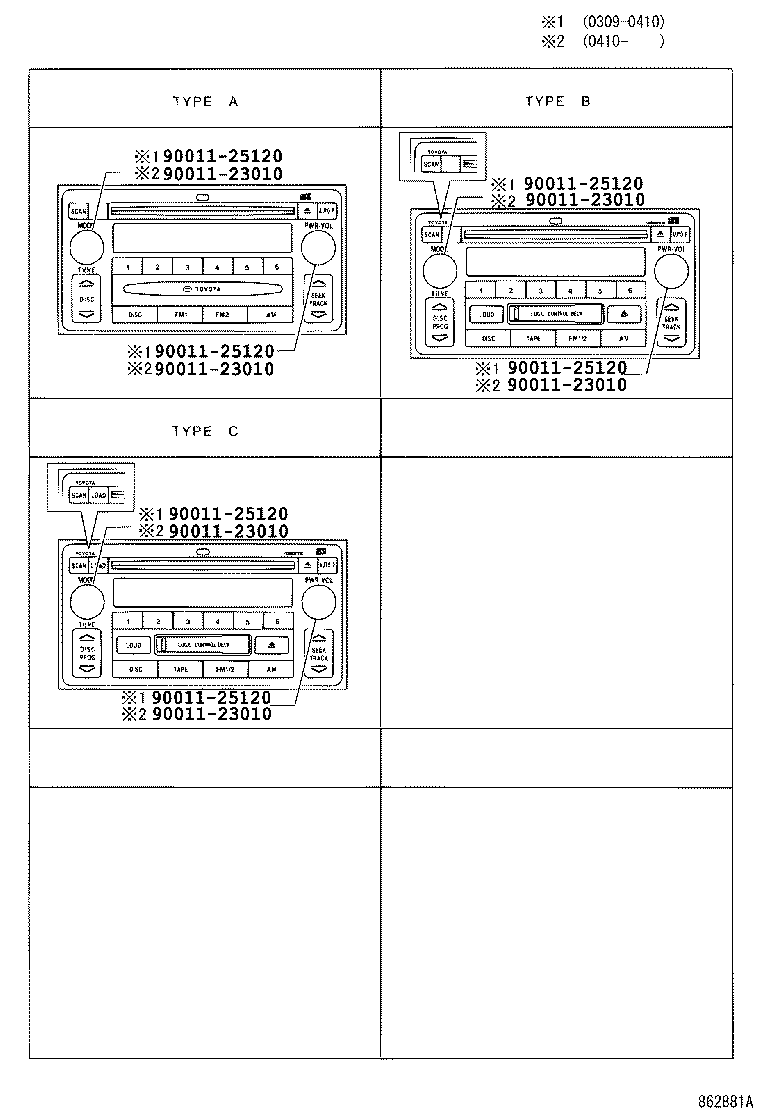

| 86100 | Radio Assy |

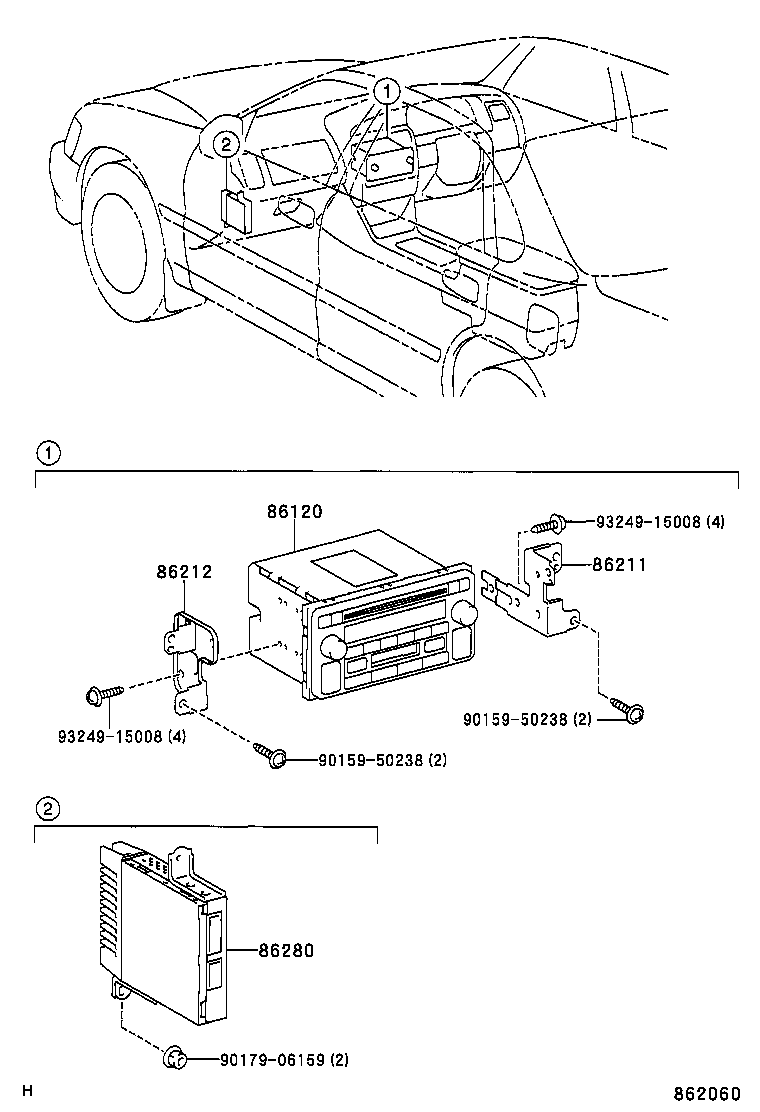

| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |

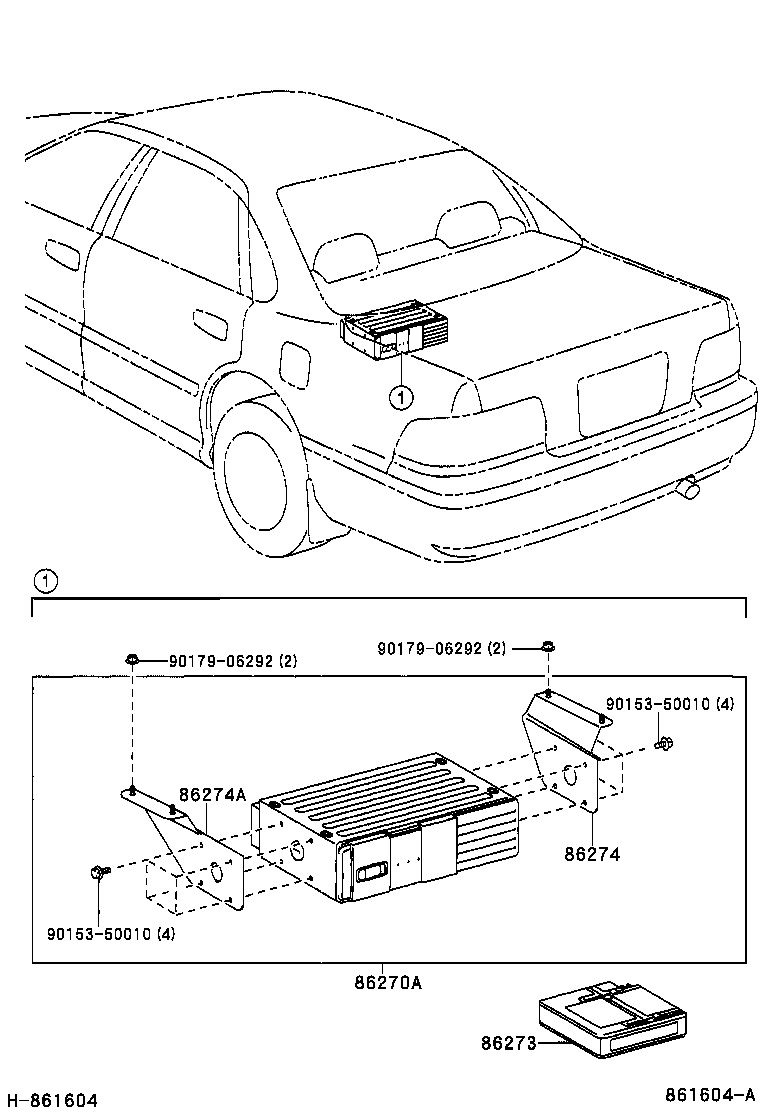

| 86270A | Disc Player Assy |
| 86273 | Magazine, Disc Player |
| 86274 | Bracket, Disc Player |
| 86274A | Bracket, Disc Player |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
