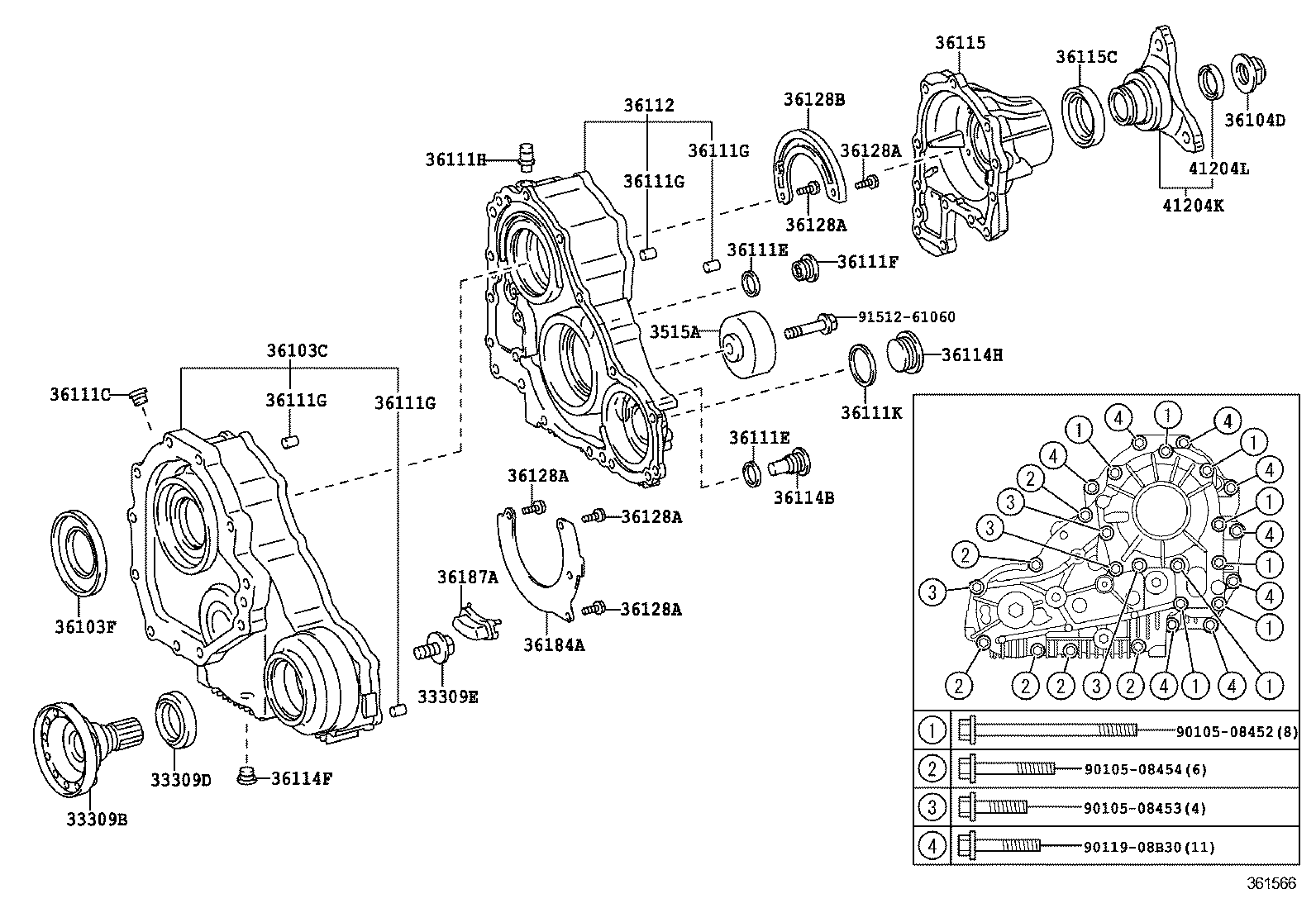

Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · General
Supported model
Data version 2012-10
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33309B — Flange Sub-assy, Output Shaft Companion | ||||
| 33324-50010 |
Flange Sub-assy, Output Shaft Companion
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 33324-50010 |
Flange Sub-assy, Output Shaft Companion
2009-09 → —
|
USF45,46 | — | |
| 33309D — Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90311-39001 |
Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90311-39001 |
Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2009-09 → —
|
USF45,46 | — | |
| 33309E — Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90105-12353 |
Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90105-12353 |
Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
2009-09 → —
|
USF45,46 | — | |
| 3515A — Damper, Transmission Mass | ||||
| 3515A-50010 |
Damper, Transmission Mass
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 3515A-50010 |
Damper, Transmission Mass
2009-09 → —
|
USF45,46 | — | |
| 36103C — Case, Transfer, Front | ||||
| 36103-50010 |
Case, Transfer, Front
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 36103-50010 |
Case, Transfer, Front
2009-09 → —
|
USF45,46 | — | |
| 36103F — Seal, Type T Oil (FOR TRANSFER FRONT CASE) | ||||
| 90311-48026 |
Seal, Type T Oil (FOR TRANSFER FRONT CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90311-48026 |
Seal, Type T Oil (FOR TRANSFER FRONT CASE)
2009-09 → —
|
USF45,46 | — | |
| 36104D — Nut (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22027 |
Nut (FOR TRANSFER OUTPUT SHAFT)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90179-22027 |
Nut (FOR TRANSFER OUTPUT SHAFT)
2009-09 → —
|
USF45,46 | — | |
| 36111C — Plug (FOR TRANSFER CASE) | ||||
| 90341-12014 |
Plug (FOR TRANSFER CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90341-12014 |
Plug (FOR TRANSFER CASE)
2009-09 → —
|
USF45,46 | — | |
| 36111E — Gasket (FOR TRANSFER CASE) | ||||
| 90430-18008 |
Gasket (FOR TRANSFER CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90430-18008 |
Gasket (FOR TRANSFER CASE)
2009-09 → —
|
USF45,46 | — | |
| 36111F — Plug (FOR TRANSFER CASE) | ||||
| 90341-18070 |
Plug (FOR TRANSFER CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90341-18070 |
Plug (FOR TRANSFER CASE)
2009-09 → —
|
USF45,46 | — | |
| 36111G — Pin, Straight (FOR TRANSFER CASE) | ||||
| 90250-10214 note |
Pin, Straight (FOR TRANSFER CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90250-10214 note |
Pin, Straight (FOR TRANSFER CASE)
2009-09 → —
|
USF45,46 | — | |
| 36111H — Plug, Breather (FOR TRANSFER CASE) | ||||
| 90930-03133 |
Plug, Breather (FOR TRANSFER CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90930-03133 |
Plug, Breather (FOR TRANSFER CASE)
2009-09 → —
|
USF45,46 | — | |
| 36111K — Gasket (FOR TRANSFER CASE) | ||||
| 90430-36003 |
Gasket (FOR TRANSFER CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90430-36003 |
Gasket (FOR TRANSFER CASE)
2009-09 → —
|
USF45,46 | — | |
| 36112 — Case, Transfer, Rear | ||||
| 36104-50010 |
Case, Transfer, Rear
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 36104-50010 |
Case, Transfer, Rear
2009-09 → —
|
USF45,46 | — | |
| 36114B — Plug, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18035 |
Plug, NO.1 (FOR TRANSFER CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90341-18035 |
Plug, NO.1 (FOR TRANSFER CASE)
2009-09 → —
|
USF45,46 | — | |
| 36114F — Plug (FOR TRANSFER DRAIN) | ||||
| 90341-12014 |
Plug (FOR TRANSFER DRAIN)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90341-12014 |
Plug (FOR TRANSFER DRAIN)
2009-09 → —
|
USF45,46 | — | |
| 36114H — Plug, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-36001 |
Plug, NO.2 (FOR TRANSFER CASE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90341-36001 |
Plug, NO.2 (FOR TRANSFER CASE)
2009-09 → —
|
USF45,46 | — | |
| 36115 — Housing, Transfer Extension | ||||
| 36116-50010 |
Housing, Transfer Extension
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 36116-50010 |
Housing, Transfer Extension
2009-09 → —
|
USF45,46 | — | |
| 36115C — Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-42042 |
Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90311-42042 |
Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2009-09 → —
|
USF45,46 | — | |
| 36128A — Bolt (FOR BREATHER OIL DEFLECTOR) | ||||
| 90119-06180 |
Bolt (FOR BREATHER OIL DEFLECTOR)
2008-09 → 2009-05
ended
|
USF45,46 | — | |
| 90119-06559 |
Bolt (FOR BREATHER OIL DEFLECTOR)
2009-05 → 2009-09
ended
|
USF45,46 | — | |
| 90119-06559 |
Bolt (FOR BREATHER OIL DEFLECTOR)
2009-09 → —
|
USF45,46 | — | |
| 36128B — Deflector, Breather Oil | ||||
| 36128-50010 |
Deflector, Breather Oil
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 36128-50010 |
Deflector, Breather Oil
2009-09 → —
|
USF45,46 | — | |
| 36184A — Separator, Transfer Oil | ||||
| 36184-50010 |
Separator, Transfer Oil
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 36184-50010 |
Separator, Transfer Oil
2009-09 → —
|
USF45,46 | — | |
| 36187A — Strainr, Transfer Oil, NO.1 | ||||
| 36187-50010 |
Strainr, Transfer Oil, NO.1
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 36187-50010 |
Strainr, Transfer Oil, NO.1
2009-09 → —
|
USF45,46 | — | |
| 41204K — Flange Sub-assy, Drive Pinion Companion | ||||
| 41204-50020 |
Flange Sub-assy, Drive Pinion Companion
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 41204-50020 |
Flange Sub-assy, Drive Pinion Companion
2009-09 → —
|
USF45,46 | — | |
| 41204L — Seal, Type V Oil (FOR DRIVE PINION COMPANION FLANGE) | ||||
| 90312-27001 |
Seal, Type V Oil (FOR DRIVE PINION COMPANION FLANGE)
2008-09 → 2009-09
ended
|
USF45,46 | — | |
| 90312-27001 |
Seal, Type V Oil (FOR DRIVE PINION COMPANION FLANGE)
2009-09 → —
|
USF45,46 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
