Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · General

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

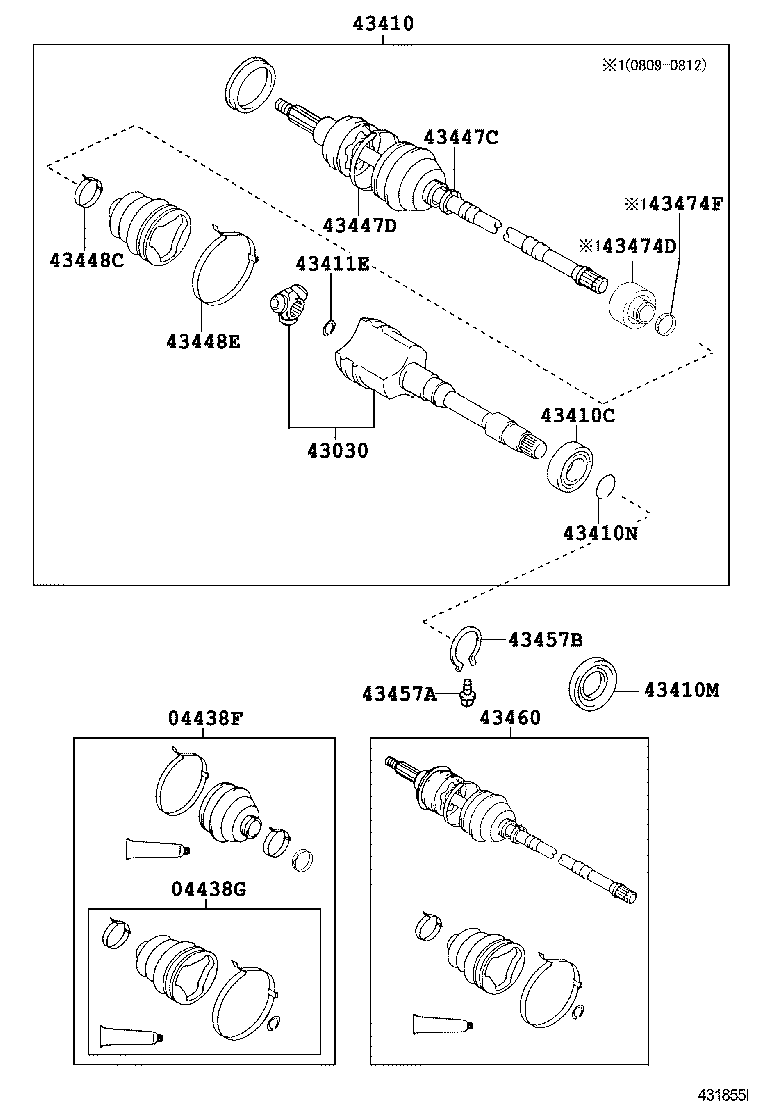

Exploded illustration 431855I 43410 — SHAFT ASSY, FRONT DRIVE, RH (4 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (2 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (2 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (2 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (2 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (2 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (3 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (4 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (2 parts) 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (2 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (2 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (1 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (1 parts)
431855I · 17 callouts Full size ↗
37 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-50020 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2008-09 → 2009-09 ended
USF45,46 —
04427-50020 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-09 → 2010-08 ended
USF45,46 —
04427-50040 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-08 → —
USF45,46 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-50030 Boot Kit, Front Drive Shaft Inboard Joint, RH
2008-09 → 2009-09 ended
USF45,46 —
04437-50030 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-09 → —
USF45,46 —
43030 — Joint Assy, Front Drive Inboard, RH
43030-50010 Joint Assy, Front Drive Inboard, RH
2008-09 → 2009-09 ended
USF45,46 —
43030-50010 Joint Assy, Front Drive Inboard, RH
2009-09 → 2012-09 ended
USF45,46 —
43410 — Shaft Assy, Front Drive, RH
43410-50011 Shaft Assy, Front Drive, RH
2008-09 → 2008-11 ended
USF45,46 —
43410-50012 Shaft Assy, Front Drive, RH
2008-12 → 2009-09 ended
USF45,46 —
43410-50012 Shaft Assy, Front Drive, RH
2009-09 → 2010-07 ended
USF45,46 —
43410-50013 Shaft Assy, Front Drive, RH
2010-08 → —
USF45,46 —
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90363-36010 Bearing (FOR FRONT DRIVE SHAFT)
2008-09 → 2009-09 ended
USF45,46 —
90363-36010 Bearing (FOR FRONT DRIVE SHAFT)
2009-09 → —
USF45,46 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-35060 Oil Seal, Front Drive Shaft, RH
2008-09 → 2009-09 ended
USF45,46 —
90311-35060 Oil Seal, Front Drive Shaft, RH
2009-09 → 2012-09 ended
USF45,46 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2008-09 → 2009-09 ended
USF45,46 —
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2009-09 → —
USF45,46 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-07020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2008-09 → 2009-09 ended
USF45,46 —
43425-07020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2009-09 → —
USF45,46 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-07080 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-09 → 2009-09 ended
USF45,46 —
42345-07080 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-09 → —
USF45,46 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-05270 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-09 → 2009-09 ended
USF45,46 —
42345-05270 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-09 → —
USF45,46 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-22020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-09 → 2009-09 ended
USF45,46 —
42345-22020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-09 → 2012-08 ended
USF45,46 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-09 → 2009-09 ended
USF45,46 —
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-09 → 2012-08 ended
USF45,46 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90901-19060 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2008-09 → 2009-09 ended
USF45,46 —
90901-19060 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2009-09 → —
USF45,46 —
43457B — Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
90520-65002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2008-09 → 2009-09 ended
USF45,46 —
90520-65002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2009-09 → —
USF45,46 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-59645 Shaft Assy, Front Drive Outboard Joint, RH
2008-09 → 2008-12 ended
USF45,46 —
43460-59646 Shaft Assy, Front Drive Outboard Joint, RH
2008-12 → 2009-09 ended
USF45,46 —
43460-59646 Shaft Assy, Front Drive Outboard Joint, RH
2009-09 → 2010-08 ended
USF45,46 —
43460-59647 Shaft Assy, Front Drive Outboard Joint, RH
2010-08 → 2012-09 ended
USF45,46 —
43474D — Damper, Front Drive Shaft, RH
43474-50010 Damper, Front Drive Shaft, RH
2008-09 → 2008-12 ended
USF45,46 —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-22020 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2008-09 → 2008-12 ended
USF45,46 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
