Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · General
Supported model
Data version 2012-10

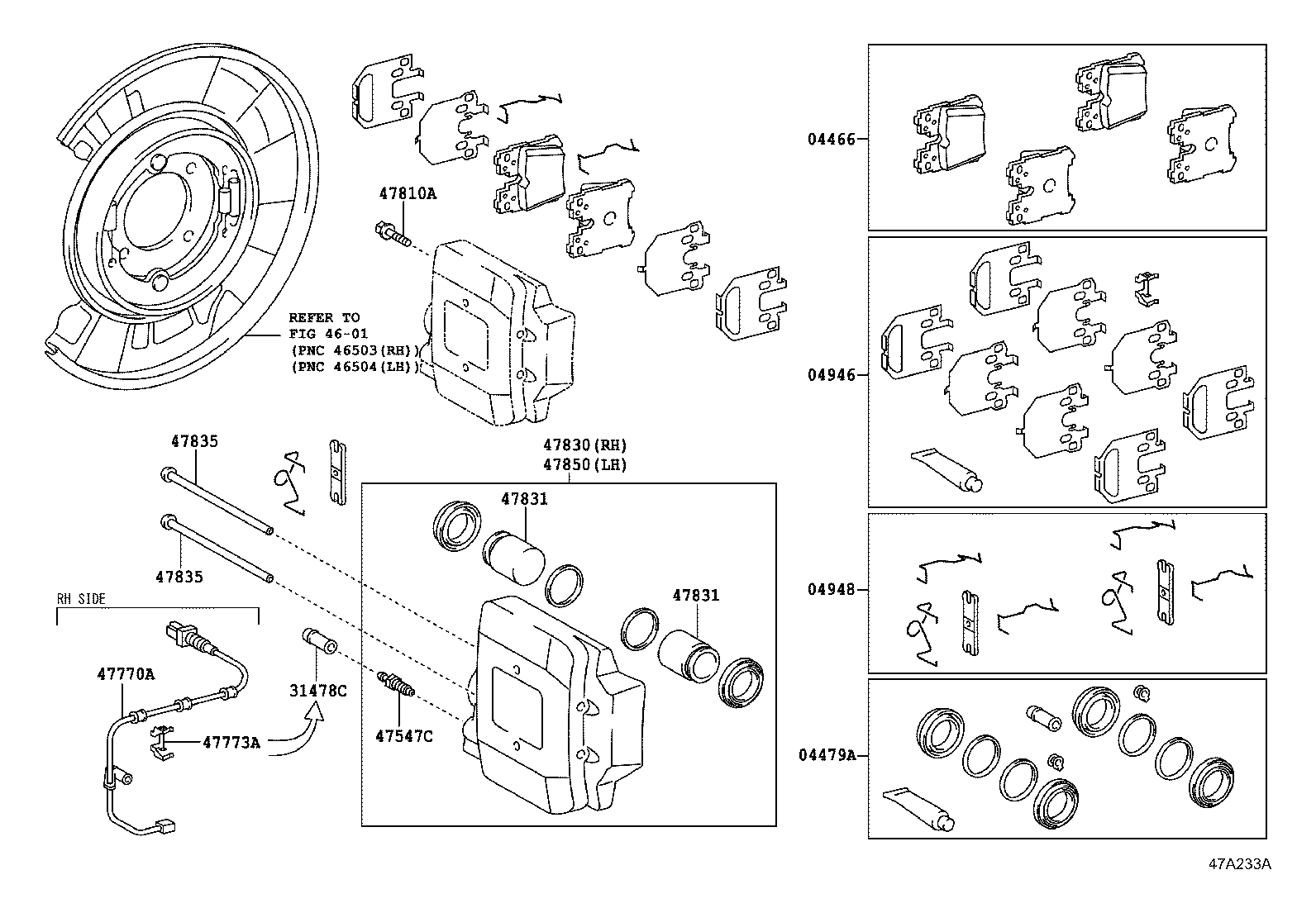

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-0W010 note |
Pad Kit, Disc Brake, Rear
2006-08 → 2007-04
ended
|
USF4# | — | |
| 04466-0W020 note |
Pad Kit, Disc Brake, Rear
2007-04 → 2008-09
ended
|
USF4# | — | |
| 04466-50130 note |
Pad Kit, Disc Brake, Rear
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 04466-50130 note |
Pad Kit, Disc Brake, Rear
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 04466-50130 note |
Pad Kit, Disc Brake, Rear
2006-08 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 04466-0W020 note |
Pad Kit, Disc Brake, Rear
2008-09 → 2009-09
ended
|
USF4# | — | |
| 04466-50130 note |
Pad Kit, Disc Brake, Rear
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 04466-50130 note |
Pad Kit, Disc Brake, Rear
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 04466-50130 note |
Pad Kit, Disc Brake, Rear
2008-09 → 2009-09
ended
|
USF40,41 LHD D4 | — | |
| 04466-0W020 note |
Pad Kit, Disc Brake, Rear
2009-09 → 2012-08
ended
|
USF4# | — | |
| 04466-50130 note |
Pad Kit, Disc Brake, Rear
2009-09 → 2012-09
ended
|
USF40,41 D4 EUR | — | |
| 04466-50170 note |
Pad Kit, Disc Brake, Rear
2012-08 → 2012-09
ended
|
USF4# | — | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-50180 |
Cylinder Kit, Disc Brake, Rear
2006-08 → 2008-09
ended
|
USF4# | — | |
| 04479-50180 |
Cylinder Kit, Disc Brake, Rear
2008-09 → 2009-09
ended
|
USF4# | — | |
| 04479-50180 |
Cylinder Kit, Disc Brake, Rear
2009-09 → —
|
USF4# | — | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-50050 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2006-08 → 2007-03
ended
|
USF4# | — | |
| 04946-50050 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 04946-50050 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 04946-50050 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2006-08 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 04946-50070 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2007-04 → 2008-09
ended
|
USF4# | — | |
| 04946-50050 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2008-09 → 2009-09
ended
|
USF40,41 LHD D4 | — | |
| 04946-50050 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 04946-50050 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 04946-50070 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2008-09 → 2009-09
ended
|
USF4# | — | |
| 04946-50090 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2009-09 → —
|
USF40,41 D4 EUR | — | |
| 04946-50100 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2009-09 → —
|
USF4# | — | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-50060 |
Fitting Kit, Disc Brake, Rear
2006-08 → 2008-09
ended
|
USF4# | — | |
| 04948-50060 |
Fitting Kit, Disc Brake, Rear
2008-09 → 2009-09
ended
|
USF4# | — | |
| 04948-50060 |
Fitting Kit, Disc Brake, Rear
2009-09 → —
|
USF4# | — | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 31478-14010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2006-08 → 2008-09
ended
|
USF4# | — | |
| 31478-14010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2008-09 → 2009-09
ended
|
USF4# | — | |
| 47547C — Plug, Bleeder(FOR REAR DISC BRAKE) | ||||
| 47547-50010 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2006-08 → 2008-09
ended
|
USF4# | — | |
| 47547-50010 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2008-09 → 2009-09
ended
|
USF4# | — | |
| 47547-50010 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2009-09 → —
|
USF4# | — | |
| 47770A — Wire Assy, Pad Wear Indicator, RH | ||||
| 47770-50080 note |
Wire Assy, Pad Wear Indicator, RH
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 47770-50080 note |
Wire Assy, Pad Wear Indicator, RH
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 47770-50080 note |
Wire Assy, Pad Wear Indicator, RH
2006-08 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 47770-50100 |
Wire Assy, Pad Wear Indicator, RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 47770-50080 note |
Wire Assy, Pad Wear Indicator, RH
2008-09 → 2009-09
ended
|
USF40,41 LHD D4 | — | |
| 47770-50080 note |
Wire Assy, Pad Wear Indicator, RH
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 47770-50080 note |
Wire Assy, Pad Wear Indicator, RH
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 47770-50100 |
Wire Assy, Pad Wear Indicator, RH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 47770-50080 note |
Wire Assy, Pad Wear Indicator, RH
2009-09 → —
|
USF40,41 D4 EUR | — | |
| 47770-50100 |
Wire Assy, Pad Wear Indicator, RH
2009-09 → —
|
USF4# | — | |
| 47773A — Retainer, Pad Wear Indicator | ||||
| 47773-50030 |
Retainer, Pad Wear Indicator
2006-08 → 2008-09
ended
|
USF4# | — | |
| 47773-50030 |
Retainer, Pad Wear Indicator
2008-09 → 2009-09
ended
|
USF4# | — | |
| 47773-50030 |
Retainer, Pad Wear Indicator
2009-09 → 2012-09
ended
|
USF4# | — | |
| 47810A — Bolt, Hexagon(FOR REAR CALIPER) | ||||
| 91552-L1245 |
Bolt, Hexagon(FOR REAR CALIPER)
2006-08 → 2008-09
ended
|
USF4# | — | |
| 91552-L1245 |
Bolt, Hexagon(FOR REAR CALIPER)
2008-09 → 2009-09
ended
|
USF4# | — | |
| 91552-L1245 |
Bolt, Hexagon(FOR REAR CALIPER)
2009-09 → 2012-09
ended
|
USF4# | — | |
| 47830 — Cylinder Assy, Disc Brake, Rear RH | ||||
| 47830-50140 note |
Cylinder Assy, Disc Brake, Rear RH
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 47830-50140 note |
Cylinder Assy, Disc Brake, Rear RH
2006-08 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 47830-50140 note |
Cylinder Assy, Disc Brake, Rear RH
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 47830-50150 |
Cylinder Assy, Disc Brake, Rear RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 47830-50140 note |
Cylinder Assy, Disc Brake, Rear RH
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 47830-50140 note |
Cylinder Assy, Disc Brake, Rear RH
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 47830-50140 note |
Cylinder Assy, Disc Brake, Rear RH
2008-09 → 2009-09
ended
|
USF40,41 LHD D4 | — | |
| 47830-50150 |
Cylinder Assy, Disc Brake, Rear RH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 47830-50140 note |
Cylinder Assy, Disc Brake, Rear RH
2009-09 → —
|
USF40,41 D4 EUR | — | |
| 47830-50150 |
Cylinder Assy, Disc Brake, Rear RH
2009-09 → —
|
USF4# | — | |
| 47830-50190 note |
Cylinder Assy, Disc Brake, Rear RH
2009-09 → —
|
USF40 D4 EUR | — | |
| 47831 — Piston, Rear Disc Brake | ||||
| 47831-50140 |
Piston, Rear Disc Brake
2006-08 → 2008-09
ended
|
USF4# | — | |
| 47831-50140 |
Piston, Rear Disc Brake
2008-09 → 2009-09
ended
|
USF4# | — | |
| 47831-50140 |
Piston, Rear Disc Brake
2009-09 → —
|
USF4# | — | |
| 47835 — Pin, Rear Disc Brake Pad Guide | ||||
| 47835-50140 |
Pin, Rear Disc Brake Pad Guide
2006-08 → 2008-09
ended
|
USF4# | — | |
| 47835-50140 |
Pin, Rear Disc Brake Pad Guide
2008-09 → 2009-09
ended
|
USF4# | — | |
| 47835-50140 |
Pin, Rear Disc Brake Pad Guide
2009-09 → —
|
USF4# | — | |
| 47850 — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47850-50140 note |
Cylinder Assy, Disc Brake, Rear LH
2006-08 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 47850-50140 note |
Cylinder Assy, Disc Brake, Rear LH
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 47850-50140 note |
Cylinder Assy, Disc Brake, Rear LH
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 47850-50150 |
Cylinder Assy, Disc Brake, Rear LH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 47850-50140 note |
Cylinder Assy, Disc Brake, Rear LH
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 47850-50140 note |
Cylinder Assy, Disc Brake, Rear LH
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 47850-50140 note |
Cylinder Assy, Disc Brake, Rear LH
2008-09 → 2009-09
ended
|
USF40,41 LHD D4 | — | |
| 47850-50150 |
Cylinder Assy, Disc Brake, Rear LH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 47850-50140 note |
Cylinder Assy, Disc Brake, Rear LH
2009-09 → —
|
USF40,41 D4 EUR | — | |
| 47850-50150 |
Cylinder Assy, Disc Brake, Rear LH
2009-09 → —
|
USF4# | — | |
| 47850-50190 note |
Cylinder Assy, Disc Brake, Rear LH
2009-09 → —
|
USF40 D4 EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
