Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · General
Supported model
Data version 2012-10

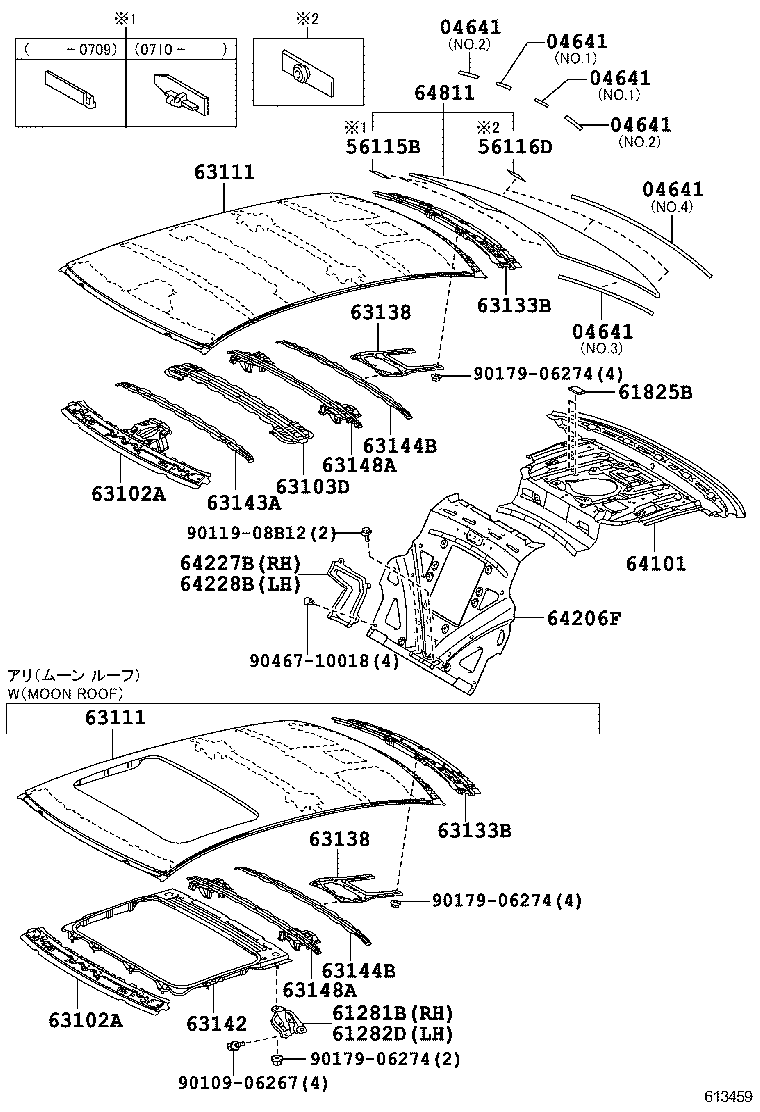

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04641 — Dam Kit, Back Window Glass | ||||
| 56118-50050 note |
Dam Kit, Back Window Glass
2006-08 → 2008-09
ended
|
USF4# | — | |
| 56118-50060 note |
Dam Kit, Back Window Glass
2006-08 → 2008-09
ended
|
USF4# | — | |
| 75573-50040 note |
Dam Kit, Back Window Glass
2006-08 → 2008-09
ended
|
USF4# | — | |
| 75573-50050 note |
Dam Kit, Back Window Glass
2006-08 → 2008-09
ended
|
USF4# | — | |
| 75573-50060 note |
Dam Kit, Back Window Glass
2006-08 → 2008-09
ended
|
USF4# | — | |
| 56118-50050 note |
Dam Kit, Back Window Glass
2008-09 → 2009-09
ended
|
USF4# | — | |
| 56118-50060 note |
Dam Kit, Back Window Glass
2008-09 → 2009-09
ended
|
USF4# | — | |
| 75573-50040 note |
Dam Kit, Back Window Glass
2008-09 → 2009-09
ended
|
USF4# | — | |
| 75573-50050 note |
Dam Kit, Back Window Glass
2008-09 → 2009-09
ended
|
USF4# | — | |
| 75573-50060 note |
Dam Kit, Back Window Glass
2008-09 → 2009-09
ended
|
USF4# | — | |
| 56118-50050 note |
Dam Kit, Back Window Glass
2009-09 → —
|
USF4# | — | |
| 56118-50060 note |
Dam Kit, Back Window Glass
2009-09 → —
|
USF4# | — | |
| 75573-50040 note |
Dam Kit, Back Window Glass
2009-09 → —
|
USF4# | — | |
| 75573-50050 note |
Dam Kit, Back Window Glass
2009-09 → —
|
USF4# | — | |
| 75573-50060 note |
Dam Kit, Back Window Glass
2009-09 → —
|
USF4# | — | |
| 56115B — Stopper, Back Window Glass, NO.1 | ||||
| 56115-30100 |
Stopper, Back Window Glass, NO.1
2006-08 → 2007-01
ended
|
USF4# | — | |
| 56115-30100 |
Stopper, Back Window Glass, NO.1
2007-02 → 2007-09
ended
|
USF4# | — | |
| 56115-50070 |
Stopper, Back Window Glass, NO.1
2007-10 → 2008-08
ended
|
USF4# | — | |
| 56115-50070 |
Stopper, Back Window Glass, NO.1
2008-09 → 2008-11
ended
|
USF4# | — | |
| 56115-50100 |
Stopper, Back Window Glass, NO.1
2008-12 → 2009-09
ended
|
USF4# | — | |
| 56115-50100 |
Stopper, Back Window Glass, NO.1
2009-09 → —
|
USF4# | — | |
| 56116D — Stopper, Back Window Glass, NO.2 | ||||
| 56116-50030 |
Stopper, Back Window Glass, NO.2
2006-08 → 2008-09
ended
|
USF4# | — | |
| 56116-50030 |
Stopper, Back Window Glass, NO.2
2008-11 → 2009-09
ended
|
USF4# | — | |
| 56116-50030 |
Stopper, Back Window Glass, NO.2
2008-09 → 2008-11
ended
|
USF4# | — | |
| 56116-50030 |
Stopper, Back Window Glass, NO.2
2009-09 → —
|
USF4# | — | |
| 61281B — Bracket, Sliding Roof Housing Side Mounting, NO.1 | ||||
| 61281-50060 |
Bracket, Sliding Roof Housing Side Mounting, NO.1
2006-08 → 2008-09
ended
|
USF41 RHD | — | |
| 61281-50060 note |
Bracket, Sliding Roof Housing Side Mounting, NO.1
2006-08 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 61281-50060 |
Bracket, Sliding Roof Housing Side Mounting, NO.1
2008-09 → 2009-09
ended
|
USF41 RHD | — | |
| 61281-50060 note |
Bracket, Sliding Roof Housing Side Mounting, NO.1
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 61281-50060 |
Bracket, Sliding Roof Housing Side Mounting, NO.1
2009-09 → —
|
USF41 RHD;USF40,41 HTWC;USF40,41 D4 +1 | — | |
| 61281-50060 note |
Bracket, Sliding Roof Housing Side Mounting, NO.1
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 61282D — Bracket, Sliding Roof Housung Side Mounting, NO.2 | ||||
| 61282-50020 note |
Bracket, Sliding Roof Housung Side Mounting, NO.2
2006-08 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 61282-50020 |
Bracket, Sliding Roof Housung Side Mounting, NO.2
2006-08 → 2008-09
ended
|
USF41 RHD | — | |
| 61282-50020 |
Bracket, Sliding Roof Housung Side Mounting, NO.2
2008-09 → 2009-09
ended
|
USF41 RHD | — | |
| 61282-50020 note |
Bracket, Sliding Roof Housung Side Mounting, NO.2
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 61282-50020 |
Bracket, Sliding Roof Housung Side Mounting, NO.2
2009-09 → —
|
USF41 RHD;USF40,41 HTWC;USF40,41 D4 +1 | — | |
| 61282-50020 note |
Bracket, Sliding Roof Housung Side Mounting, NO.2
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 61825B — Plate, Noise Control, NO.2 | ||||
| 61825-22050 |
Plate, Noise Control, NO.2
2006-08 → 2008-09
ended
|
USF4# | — | |
| 61825-22050 |
Plate, Noise Control, NO.2
2008-09 → 2009-09
ended
|
USF4# | — | |
| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-50902 |
Panel Sub-assy, Windshield Header
2006-08 → 2008-09
ended
|
USF41 RHD | — | |
| 63102-50902 note |
Panel Sub-assy, Windshield Header
2006-08 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 63102-50903 |
Panel Sub-assy, Windshield Header
2006-08 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 63102-50902 note |
Panel Sub-assy, Windshield Header
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 63102-50902 |
Panel Sub-assy, Windshield Header
2008-09 → 2009-09
ended
|
USF41 RHD | — | |
| 63102-50903 |
Panel Sub-assy, Windshield Header
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 63102-50902 |
Panel Sub-assy, Windshield Header
2009-09 → —
|
USF41 RHD;USF40,41 HTWC;USF40,41 D4 +1 | — | |
| 63102-50902 note |
Panel Sub-assy, Windshield Header
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 63102-50903 |
Panel Sub-assy, Windshield Header
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 63103D — Reinforcement Sub-assy, Roof Panel, NO.3 | ||||
| 63103-50020 |
Reinforcement Sub-assy, Roof Panel, NO.3
2006-08 → 2008-04
ended
|
USF40;USF41 LHD | — | |
| 63103-50021 |
Reinforcement Sub-assy, Roof Panel, NO.3
2008-05 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 63103-50021 |
Reinforcement Sub-assy, Roof Panel, NO.3
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 63103-50021 |
Reinforcement Sub-assy, Roof Panel, NO.3
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 63111 — Panel, Roof | ||||
| 63111-50070 |
Panel, Roof
2006-08 → 2008-09
ended
|
USF40 | — | |
| 63111-50080 note |
Panel, Roof
2006-08 → 2008-09
ended
|
USF40 | — | |
| 63111-50090 |
Panel, Roof
2006-08 → 2008-09
ended
|
USF41 LHD | — | |
| 63111-50100 |
Panel, Roof
2006-08 → 2008-09
ended
|
USF41 RHD | — | |
| 63111-50100 note |
Panel, Roof
2006-08 → 2008-09
ended
|
USF41 LHD | — | |
| 63111-50070 |
Panel, Roof
2008-09 → 2009-09
ended
|
USF40,45 | — | |
| 63111-50080 note |
Panel, Roof
2008-09 → 2009-09
ended
|
USF40,45 | — | |
| 63111-50090 |
Panel, Roof
2008-09 → 2009-09
ended
|
USF41,46 LHD | — | |
| 63111-50100 note |
Panel, Roof
2008-09 → 2009-09
ended
|
USF41,46 LHD | — | |
| 63111-50100 |
Panel, Roof
2008-09 → 2009-09
ended
|
USF41 RHD | — | |
| 63111-50070 |
Panel, Roof
2009-09 → —
|
USF40,45 D4 EUR | — | |
| 63111-50080 |
Panel, Roof
2009-09 → —
|
USF40 HTWC;USF40 D4 GCC | — | |
| 63111-50080 note |
Panel, Roof
2009-09 → —
|
USF40,45 D4 EUR | — | |
| 63111-50090 |
Panel, Roof
2009-09 → —
|
USF41,46 LHD D4 EUR | — | |
| 63111-50100 |
Panel, Roof
2009-09 → —
|
USF41 RHD;USF41 HTWC;USF41 D4 +1 | — | |
| 63111-50100 note |
Panel, Roof
2009-09 → —
|
USF41,46 LHD D4 EUR | — | |
| 63111-50130 note |
Panel, Roof
2009-09 → —
|
USF41 HTWC EUR | — | |
| 63133B — Frame, Back Window | ||||
| 63133-50040 |
Frame, Back Window
2006-08 → 2008-09
ended
|
USF4# | — | |
| 63133-50040 |
Frame, Back Window
2008-09 → 2009-09
ended
|
USF4# | — | |
| 63133-50070 |
Frame, Back Window
2009-09 → —
|
USF4# | — | |
| 63138 — Bracket, Dome Lamp, NO.2 | ||||
| 63138-50010 |
Bracket, Dome Lamp, NO.2
2006-08 → 2008-05
ended
|
USF4# | — | |
| 63138-50011 |
Bracket, Dome Lamp, NO.2
2008-05 → 2008-09
ended
|
USF4# | — | |
| 63138-50011 |
Bracket, Dome Lamp, NO.2
2008-09 → 2009-09
ended
|
USF4# | — | |
| 63138-50011 |
Bracket, Dome Lamp, NO.2
2009-09 → —
|
USF4# | — | |
| 63142 — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-50040 |
Reinforcement, Roof Panel, NO.2
2006-08 → 2008-09
ended
|
USF41 RHD | — | |
| 63142-50040 note |
Reinforcement, Roof Panel, NO.2
2006-08 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 63142-50040 |
Reinforcement, Roof Panel, NO.2
2008-09 → 2009-09
ended
|
USF41 RHD | — | |
| 63142-50040 note |
Reinforcement, Roof Panel, NO.2
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 63142-50040 note |
Reinforcement, Roof Panel, NO.2
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 63142-50040 |
Reinforcement, Roof Panel, NO.2
2009-09 → —
|
USF41 RHD;USF40,41 HTWC;USF40,41 D4 +1 | — | |
| 63143A — Reinforcement, Roof Panel | ||||
| 63143-50040 |
Reinforcement, Roof Panel
2006-08 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 63143-50040 |
Reinforcement, Roof Panel
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 63143-50040 |
Reinforcement, Roof Panel
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 63144B — Reinforcement, Roof Panel, NO.4 | ||||
| 63144-50030 |
Reinforcement, Roof Panel, NO.4
2006-08 → 2008-09
ended
|
USF4# | — | |
| 63144-50030 |
Reinforcement, Roof Panel, NO.4
2008-09 → 2009-09
ended
|
USF4# | — | |
| 63144-50030 |
Reinforcement, Roof Panel, NO.4
2009-09 → —
|
USF4# | — | |
| 63148A — Reinforcement, Roof Panel, NO.7 | ||||
| 63104-50020 |
Reinforcement, Roof Panel, NO.7
2006-08 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 63148-50040 |
Reinforcement, Roof Panel, NO.7
2006-08 → 2008-09
ended
|
USF41 RHD | — | |
| 63148-50040 note |
Reinforcement, Roof Panel, NO.7
2006-08 → 2008-09
ended
|
USF40;USF41 LHD | — | |
| 63104-50030 |
Reinforcement, Roof Panel, NO.7
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 63148-50040 |
Reinforcement, Roof Panel, NO.7
2008-09 → 2009-09
ended
|
USF41 RHD | — | |
| 63148-50040 note |
Reinforcement, Roof Panel, NO.7
2008-09 → 2009-09
ended
|
USF41 LHD;USF40,45,46 | — | |
| 63104-50030 |
Reinforcement, Roof Panel, NO.7
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 63148-50040 |
Reinforcement, Roof Panel, NO.7
2009-09 → —
|
USF41 RHD;USF40,41 HTWC;USF40,41 D4 +1 | — | |
| 63148-50040 note |
Reinforcement, Roof Panel, NO.7
2009-09 → —
|
USF41 LHD D4 EUR;USF40,45,46 +2 | — | |
| 64101 — Panel Sub-assy, Upper Back | ||||
| 64101-50190 |
Panel Sub-assy, Upper Back
2006-08 → 2008-09
ended
|
USF40 EUR;USF41 LHD EUR | — | |
| 64101-50200 |
Panel Sub-assy, Upper Back
2006-08 → 2008-09
ended
|
USF4# GCC;USF41 RHD | — | |
| 64101-50200 note |
Panel Sub-assy, Upper Back
2006-08 → 2008-09
ended
|
USF40 EUR;USF41 LHD EUR | — | |
| 64101-50190 |
Panel Sub-assy, Upper Back
2008-09 → 2009-09
ended
|
USF41 LHD EUR;USF40,45,46 EUR | — | |
| 64101-50200 note |
Panel Sub-assy, Upper Back
2008-09 → 2009-09
ended
|
USF41 LHD EUR;USF40,45,46 EUR | — | |
| 64101-50200 |
Panel Sub-assy, Upper Back
2008-09 → 2009-09
ended
|
USF41 RHD;USF40,41 GCC | — | |
| 64101-50230 |
Panel Sub-assy, Upper Back
2009-09 → —
|
USF40,45 D4 EUR | — | |
| 64101-50240 |
Panel Sub-assy, Upper Back
2009-09 → —
|
USF41,46;USF40 HTWC;USF40 D4 GCC | — | |
| 64101-50240 note |
Panel Sub-assy, Upper Back
2009-09 → —
|
USF40,45 D4 EUR | — | |
| 64206F — Panel Sub-assy, Room Partition | ||||
| 64206-50040 |
Panel Sub-assy, Room Partition
2006-08 → 2008-09
ended
|
USF4# | — | |
| 64206-50040 |
Panel Sub-assy, Room Partition
2008-09 → 2009-09
ended
|
USF4# | — | |
| 64206-50060 |
Panel Sub-assy, Room Partition
2009-09 → 2011-10
ended
|
USF4# | — | |
| 64206-50061 |
Panel Sub-assy, Room Partition
2011-11 → —
|
USF4# | — | |
| 64227B — Extension, Center Floor TO Blace, NO.1 | ||||
| 64227-50040 |
Extension, Center Floor TO Blace, NO.1
2006-08 → 2008-09
ended
|
USF4# | — | |
| 64227-50040 |
Extension, Center Floor TO Blace, NO.1
2008-09 → 2009-09
ended
|
USF4# | — | |
| 64227-50040 |
Extension, Center Floor TO Blace, NO.1
2009-09 → —
|
USF4# | — | |
| 64228B — Extension, Center Floor TO Brace, NO.2 | ||||
| 64228-50040 |
Extension, Center Floor TO Brace, NO.2
2006-08 → 2008-09
ended
|
USF4# | — | |
| 64228-50040 |
Extension, Center Floor TO Brace, NO.2
2008-09 → 2009-09
ended
|
USF4# | — | |
| 64228-50040 |
Extension, Center Floor TO Brace, NO.2
2009-09 → —
|
USF4# | — | |
| 64811 — Glass, Back Window | ||||
| 64810-50902 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF4# HTWC EUR | — | |
| 64810-50902 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF4# LHD D4 | — | |
| 64810-50902 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF4# RHD | — | |
| 64810-50902 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF4# HTWC EUR | — | |
| 64810-50902 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF40 RHD | — | |
| 64810-50902 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF41 HTWC EUR | — | |
| 64810-50902 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF41 RHD | — | |
| 64810-50902 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF40 RHD | — | |
| 64810-50903 note |
Glass, Back Window
2006-08 → 2007-01
ended
|
USF4# | — | |
| 64810-50911 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF4# HTWC EUR | — | |
| 64810-50911 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF4# HTWC EUR | — | |
| 64810-50911 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF4# LHD D4 | — | |
| 64810-50911 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF4# RHD | — | |
| 64810-50911 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF40 RHD | — | |
| 64810-50911 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF40 RHD | — | |
| 64810-50911 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF41 HTWC EUR | — | |
| 64810-50911 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF41 RHD | — | |
| 64810-50912 note |
Glass, Back Window
2007-02 → 2007-10
ended
|
USF4# | — | |
| 64810-50915 note |
Glass, Back Window
2007-10 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 64810-50915 note |
Glass, Back Window
2007-10 → 2008-09
ended
|
USF4# HTWC EUR | — | |
| 64810-50915 note |
Glass, Back Window
2007-10 → 2008-09
ended
|
USF4# RHD | — | |
| 64810-50915 note |
Glass, Back Window
2007-10 → 2008-09
ended
|
USF4# HTWC EUR | — | |
| 64810-50915 note |
Glass, Back Window
2007-10 → 2008-09
ended
|
USF40 RHD | — | |
| 64810-50915 note |
Glass, Back Window
2007-10 → 2008-09
ended
|
USF41 HTWC EUR | — | |
| 64810-50915 note |
Glass, Back Window
2007-10 → 2008-09
ended
|
USF41 RHD | — | |
| 64810-50915 note |
Glass, Back Window
2007-10 → 2008-09
ended
|
USF40 RHD | — | |
| 64810-50916 note |
Glass, Back Window
2007-10 → 2008-06
ended
|
USF4# | — | |
| 64810-50917 note |
Glass, Back Window
2008-06 → 2008-09
ended
|
USF4# | — | |
| 64810-50915 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF40,41 LHD D4 | — | |
| 64810-50915 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF40,41 HTWC EUR | — | |
| 64810-50915 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 64810-50915 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF40,41 HTWC EUR | — | |
| 64810-50915 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF40,45 RHD | — | |
| 64810-50915 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF40,45 RHD | — | |
| 64810-50915 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF41 HTWC EUR | — | |
| 64810-50915 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 64810-50917 note |
Glass, Back Window
2008-09 → 2009-09
ended
|
USF4# | — | |
| 64810-50924 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF41 HTWC EUR | — | |
| 64810-50924 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF41 HTWC EUR | — | |
| 64810-50924 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF40,45 RHD | — | |
| 64810-50924 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF40,45 RHD | — | |
| 64810-50924 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF41 HTWC EUR | — | |
| 64810-50924 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF40,41 RHD | — | |
| 64810-50924 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF40,41 LHD D4 EUR | — | |
| 64810-50924 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF41 HTWC EUR | — | |
| 64810-50924 note |
Glass, Back Window
2011-08 → 2012-09
ended
|
USF40 LHD EUR | — | |
| 64810-50925 note |
Glass, Back Window
2009-09 → 2012-09
ended
|
USF4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
