Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · General
Supported model
Data version 2012-10

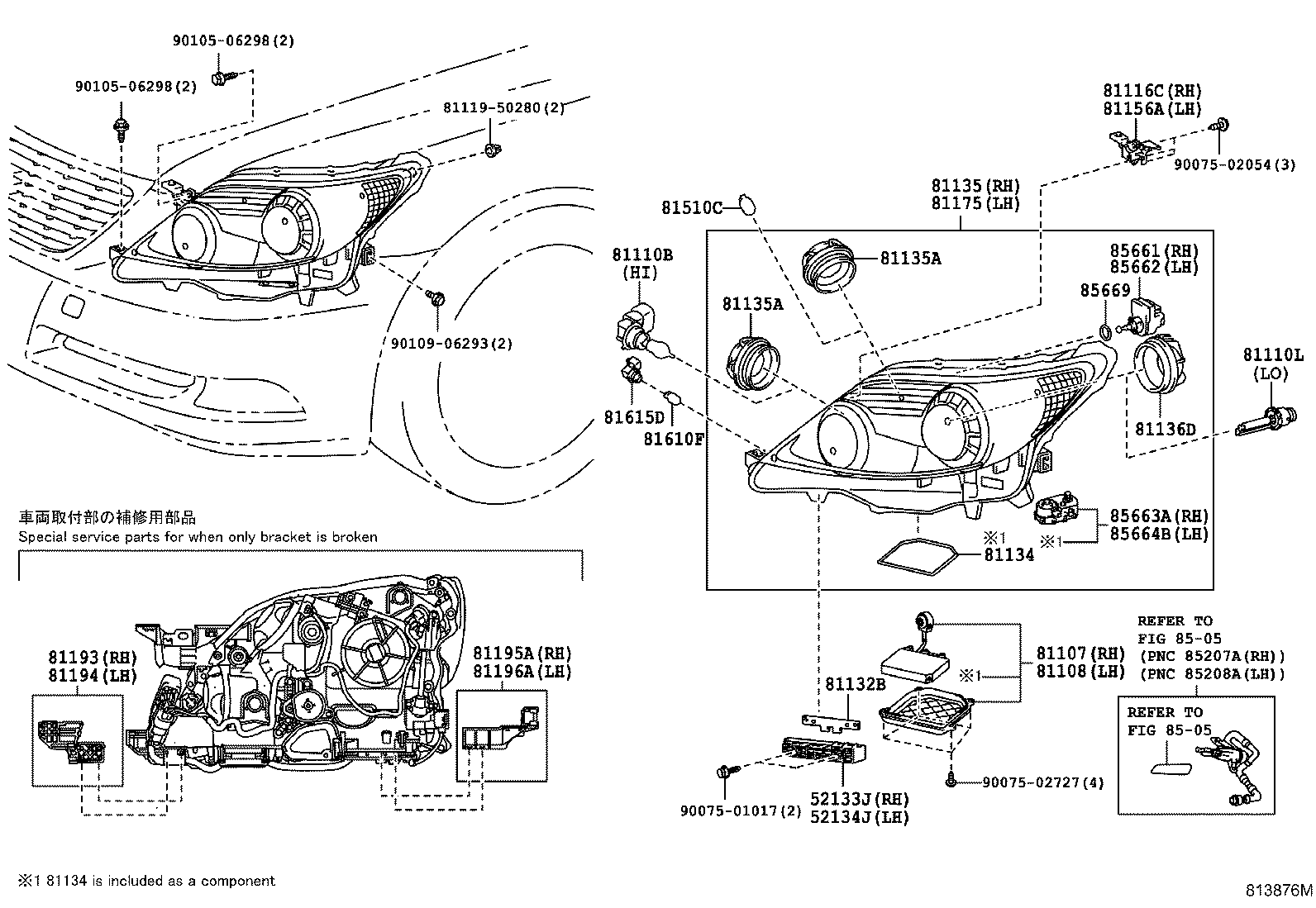

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52133J — Reinforcement, Front Bumper Bar, RH | ||||
| 52133-50050 |
Reinforcement, Front Bumper Bar, RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 52133-50050 |
Reinforcement, Front Bumper Bar, RH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 52133-50060 |
Reinforcement, Front Bumper Bar, RH
2009-09 → —
|
USF4# | — | |
| 52134J — Reinforcement, Front Bumper Bar, LH | ||||
| 52134-50050 |
Reinforcement, Front Bumper Bar, LH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 52134-50050 |
Reinforcement, Front Bumper Bar, LH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 52134-50060 |
Reinforcement, Front Bumper Bar, LH
2009-09 → —
|
USF4# | — | |
| 81107 — Computer Sub-assy, Headlamp Light Control, RH | ||||
| 81107-22A10 |
Computer Sub-assy, Headlamp Light Control, RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81107-22A10 |
Computer Sub-assy, Headlamp Light Control, RH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81107-22A10 |
Computer Sub-assy, Headlamp Light Control, RH
2009-09 → 2010-06
ended
|
USF4# | — | |
| 81107-33761 |
Computer Sub-assy, Headlamp Light Control, RH
2010-06 → —
|
USF4# | — | |
| 81108 — Computer Sub-assy, Headlamp Light Control, LH | ||||
| 81107-22A10 |
Computer Sub-assy, Headlamp Light Control, LH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81107-22A10 |
Computer Sub-assy, Headlamp Light Control, LH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81107-22A10 |
Computer Sub-assy, Headlamp Light Control, LH
2009-09 → 2010-06
ended
|
USF4# | — | |
| 81107-33761 |
Computer Sub-assy, Headlamp Light Control, LH
2010-06 → —
|
USF4# | — | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 note |
Bulb(FOR HEADLAMP, NO.1)
2006-08 → 2008-09
ended
|
USF40 D4 | — | |
| 90981-13066 note |
Bulb(FOR HEADLAMP, NO.1)
2006-08 → 2008-09
ended
|
USF4# | — | |
| 90080-81041 note |
Bulb(FOR HEADLAMP, NO.1)
2008-09 → 2009-02
ended
|
USF40,45 D4 | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2009-02 → 2009-09
ended
|
USF40,45 D4 | — | |
| 90981-13066 note |
Bulb(FOR HEADLAMP, NO.1)
2008-09 → 2009-09
ended
|
USF4# | — | |
| 90981-13084 note |
Bulb(FOR HEADLAMP, NO.1)
2009-09 → 2012-09
ended
|
USF4# | — | |
| 81110L — Bulb, Discharge Headlamp | ||||
| 90981-20013 note |
Bulb, Discharge Headlamp
2006-08 → 2008-01
ended
|
USF4# | — | |
| 90981-20021 note |
Bulb, Discharge Headlamp
2008-02 → 2008-09
ended
|
USF4# | — | |
| 90981-20021 note |
Bulb, Discharge Headlamp
2008-09 → 2009-02
ended
|
USF4# | — | |
| 90981-20024 note |
Bulb, Discharge Headlamp
2009-02 → 2009-09
ended
|
USF4# | — | |
| 90981-20024 note |
Bulb, Discharge Headlamp
2009-09 → 2012-09
ended
|
USF4# | — | |
| 81116C — Bracket, Headlamp, RH | ||||
| 81116-50340 |
Bracket, Headlamp, RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81116-50340 |
Bracket, Headlamp, RH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81116-50530 |
Bracket, Headlamp, RH
2009-09 → —
|
USF4# | — | |
| 81132B — Gasket, Headlamp Lens | ||||
| 81132-50340 |
Gasket, Headlamp Lens
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81132-50340 |
Gasket, Headlamp Lens
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81132-50530 |
Gasket, Headlamp Lens
2009-09 → —
|
USF4# | — | |
| 81134 — Gasket, Headlamp | ||||
| 90075-68007 |
Gasket, Headlamp
2006-08 → 2008-09
ended
|
USF4# | — | |
| 90075-68007 |
Gasket, Headlamp
2008-09 → 2009-09
ended
|
USF4# | — | |
| 90075-68007 |
Gasket, Headlamp
2009-09 → —
|
USF4# | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81145-50300 |
Unit Assy, Headlamp, RH
2006-08 → 2008-09
ended
|
USF4# LHD | — | |
| 81145-50350 |
Unit Assy, Headlamp, RH
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 81145-50360 note |
Unit Assy, Headlamp, RH
2006-08 → 2008-09
ended
|
USF40 RHD | — | |
| 81145-50370 note |
Unit Assy, Headlamp, RH
2006-08 → 2008-09
ended
|
USF40 LHD D4 | — | |
| 81145-50480 note |
Unit Assy, Headlamp, RH
2008-02 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 81145-50300 |
Unit Assy, Headlamp, RH
2008-09 → 2009-03
ended
|
USF4# LHD | — | |
| 81145-50301 |
Unit Assy, Headlamp, RH
2009-03 → 2009-09
ended
|
USF4# LHD | — | |
| 81145-50350 |
Unit Assy, Headlamp, RH
2008-09 → 2009-03
ended
|
USF40,41,45 RHD | — | |
| 81145-50351 |
Unit Assy, Headlamp, RH
2009-03 → 2009-09
ended
|
USF40,41,45 RHD | — | |
| 81145-50360 note |
Unit Assy, Headlamp, RH
2008-09 → 2009-03
ended
|
USF40,45 RHD | — | |
| 81145-50361 note |
Unit Assy, Headlamp, RH
2009-03 → 2009-09
ended
|
USF40,45 RHD | — | |
| 81145-50370 note |
Unit Assy, Headlamp, RH
2008-09 → 2009-03
ended
|
USF40,45 LHD D4 | — | |
| 81145-50371 note |
Unit Assy, Headlamp, RH
2009-03 → 2009-09
ended
|
USF40,45 LHD D4 | — | |
| 81145-50480 note |
Unit Assy, Headlamp, RH
2008-09 → 2009-03
ended
|
USF4# LHD D4 | — | |
| 81145-50481 note |
Unit Assy, Headlamp, RH
2009-03 → 2009-09
ended
|
USF4# LHD D4 | — | |
| 81145-50530 note |
Unit Assy, Headlamp, RH
2009-09 → 2011-08
ended
|
USF40,45 RHD | — | |
| 81145-50531 note |
Unit Assy, Headlamp, RH
2011-08 → —
|
USF40,45 RHD | — | |
| 81145-50540 |
Unit Assy, Headlamp, RH
2009-09 → 2011-08
ended
|
USF40,41,45 RHD | — | |
| 81145-50541 |
Unit Assy, Headlamp, RH
2011-08 → —
|
USF40,41,45 RHD | — | |
| 81145-50550 |
Unit Assy, Headlamp, RH
2009-09 → 2011-08
ended
|
USF4# LHD | — | |
| 81145-50551 |
Unit Assy, Headlamp, RH
2011-08 → —
|
USF4# LHD | — | |
| 81145-50560 note |
Unit Assy, Headlamp, RH
2009-09 → 2011-08
ended
|
USF40,45 LHD D4 EUR | — | |
| 81145-50561 note |
Unit Assy, Headlamp, RH
2011-08 → —
|
USF40,45 LHD EUR | — | |
| 81135A — Cap, Locking | ||||
| 90075-66004 |
Cap, Locking
2006-08 → 2008-09
ended
|
USF4# | — | |
| 90075-66004 |
Cap, Locking
2008-09 → 2009-09
ended
|
USF4# | — | |
| 90075-66004 |
Cap, Locking
2009-09 → —
|
USF4# | — | |
| 81136D — Cover, Headlamp | ||||
| 81136-50340 |
Cover, Headlamp
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81136-50340 |
Cover, Headlamp
2008-09 → 2009-03
ended
|
USF4# | — | |
| 81136-50340 |
Cover, Headlamp
2009-03 → 2009-09
ended
|
USF4# | — | |
| 81136-50340 |
Cover, Headlamp
2009-09 → —
|
USF4# | — | |
| 81156A — Bracket, Headlamp, LH | ||||
| 81156-50340 |
Bracket, Headlamp, LH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81156-50340 |
Bracket, Headlamp, LH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81156-50530 |
Bracket, Headlamp, LH
2009-09 → —
|
USF4# | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81185-50300 |
Unit Assy, Headlamp, LH
2006-08 → 2008-09
ended
|
USF4# LHD | — | |
| 81185-50350 |
Unit Assy, Headlamp, LH
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 81185-50360 note |
Unit Assy, Headlamp, LH
2006-08 → 2008-09
ended
|
USF40 RHD | — | |
| 81185-50370 note |
Unit Assy, Headlamp, LH
2006-08 → 2008-09
ended
|
USF40 LHD D4 | — | |
| 81185-50480 note |
Unit Assy, Headlamp, LH
2008-02 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 81185-50300 |
Unit Assy, Headlamp, LH
2008-09 → 2009-03
ended
|
USF4# LHD | — | |
| 81185-50301 |
Unit Assy, Headlamp, LH
2009-03 → 2009-09
ended
|
USF4# LHD | — | |
| 81185-50350 |
Unit Assy, Headlamp, LH
2008-09 → 2009-03
ended
|
USF40,41,45 RHD | — | |
| 81185-50351 |
Unit Assy, Headlamp, LH
2009-03 → 2009-09
ended
|
USF40,41,45 RHD | — | |
| 81185-50360 note |
Unit Assy, Headlamp, LH
2008-09 → 2009-03
ended
|
USF40,45 RHD | — | |
| 81185-50361 note |
Unit Assy, Headlamp, LH
2009-03 → 2009-09
ended
|
USF40,45 RHD | — | |
| 81185-50370 note |
Unit Assy, Headlamp, LH
2008-09 → 2009-03
ended
|
USF40,45 LHD D4 | — | |
| 81185-50371 note |
Unit Assy, Headlamp, LH
2009-03 → 2009-09
ended
|
USF40,45 LHD D4 | — | |
| 81185-50480 note |
Unit Assy, Headlamp, LH
2008-09 → 2009-03
ended
|
USF4# LHD D4 | — | |
| 81185-50481 note |
Unit Assy, Headlamp, LH
2009-03 → 2009-09
ended
|
USF4# LHD D4 | — | |
| 81185-50530 note |
Unit Assy, Headlamp, LH
2009-09 → 2011-08
ended
|
USF40,45 RHD | — | |
| 81185-50531 note |
Unit Assy, Headlamp, LH
2011-08 → —
|
USF40,45 RHD | — | |
| 81185-50540 |
Unit Assy, Headlamp, LH
2009-09 → 2011-08
ended
|
USF40,41,45 RHD | — | |
| 81185-50541 |
Unit Assy, Headlamp, LH
2011-08 → —
|
USF40,41,45 RHD | — | |
| 81185-50550 |
Unit Assy, Headlamp, LH
2009-09 → 2011-08
ended
|
USF4# LHD | — | |
| 81185-50551 |
Unit Assy, Headlamp, LH
2011-08 → —
|
USF4# LHD | — | |
| 81185-50560 note |
Unit Assy, Headlamp, LH
2009-09 → 2011-08
ended
|
USF40,45 LHD D4 EUR | — | |
| 81185-50561 note |
Unit Assy, Headlamp, LH
2011-08 → —
|
USF40,45 LHD EUR | — | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-50020 |
Retainer, Headlamp Protector, Upper RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81193-50020 |
Retainer, Headlamp Protector, Upper RH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81193-50020 |
Retainer, Headlamp Protector, Upper RH
2009-09 → —
|
USF4# | — | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-50020 |
Retainer, Headlamp Protector, Upper LH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81194-50020 |
Retainer, Headlamp Protector, Upper LH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81194-50020 |
Retainer, Headlamp Protector, Upper LH
2009-09 → —
|
USF4# | — | |
| 81195A — Retainer, Headlamp Protector, Lower RH | ||||
| 81195-50020 |
Retainer, Headlamp Protector, Lower RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81195-50020 |
Retainer, Headlamp Protector, Lower RH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81195-50020 |
Retainer, Headlamp Protector, Lower RH
2009-09 → —
|
USF4# | — | |
| 81196A — Retainer, Headlamp Protector, Lower LH | ||||
| 81196-50020 |
Retainer, Headlamp Protector, Lower LH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81196-50020 |
Retainer, Headlamp Protector, Lower LH
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81196-50020 |
Retainer, Headlamp Protector, Lower LH
2009-09 → —
|
USF4# | — | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2006-08 → 2008-09
ended
|
USF4# | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2008-09 → 2009-09
ended
|
USF4# | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2009-09 → 2012-09
ended
|
USF4# | — | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2006-08 → 2008-09
ended
|
USF4# | — | |
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2008-09 → 2009-09
ended
|
USF4# | — | |
| 81615D — Socket, Clearance Lamp | ||||
| 90075-60081 |
Socket, Clearance Lamp
2006-08 → 2008-09
ended
|
USF4# | — | |
| 90075-60081 |
Socket, Clearance Lamp
2008-09 → 2009-09
ended
|
USF4# | — | |
| 85661 — Motor, Headlamp Leveling, RH | ||||
| 85661-28010 |
Motor, Headlamp Leveling, RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 85661-28010 |
Motor, Headlamp Leveling, RH
2008-09 → 2009-03
ended
|
USF4# | — | |
| 85661-28011 |
Motor, Headlamp Leveling, RH
2009-03 → 2009-09
ended
|
USF4# | — | |
| 85661-28011 |
Motor, Headlamp Leveling, RH
2009-09 → —
|
USF4# | — | |
| 85662 — Motor, Headlamp Leveling, LH | ||||
| 85691-28010 |
Motor, Headlamp Leveling, LH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 85691-28010 |
Motor, Headlamp Leveling, LH
2008-09 → 2009-03
ended
|
USF4# | — | |
| 85691-28011 |
Motor, Headlamp Leveling, LH
2009-03 → 2009-09
ended
|
USF4# | — | |
| 85691-28011 |
Motor, Headlamp Leveling, LH
2009-09 → —
|
USF4# | — | |
| 85663A — Motor, Headlamp Swivel, RH | ||||
| 81129-33680 |
Motor, Headlamp Swivel, RH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81129-33680 |
Motor, Headlamp Swivel, RH
2008-09 → 2009-03
ended
|
USF4# | — | |
| 81129-50381 |
Motor, Headlamp Swivel, RH
2009-03 → 2009-09
ended
|
USF4# | — | |
| 81129-50381 |
Motor, Headlamp Swivel, RH
2009-09 → —
|
USF4# | — | |
| 85664B — Motor, Headlamp Swivel, LH | ||||
| 81169-33680 |
Motor, Headlamp Swivel, LH
2006-08 → 2008-09
ended
|
USF4# | — | |
| 81169-33680 |
Motor, Headlamp Swivel, LH
2008-09 → 2009-03
ended
|
USF4# | — | |
| 81169-50381 |
Motor, Headlamp Swivel, LH
2009-03 → 2009-09
ended
|
USF4# | — | |
| 81169-50381 |
Motor, Headlamp Swivel, LH
2009-09 → —
|
USF4# | — | |
| 85669 — Packing, Headlamp Leveling Motor Base | ||||
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2006-08 → 2008-09
ended
|
USF4# | — | |
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2008-09 → 2009-09
ended
|
USF4# | — | |
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2009-09 → —
|
USF4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
