Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · General
Supported model
Data version 2012-10

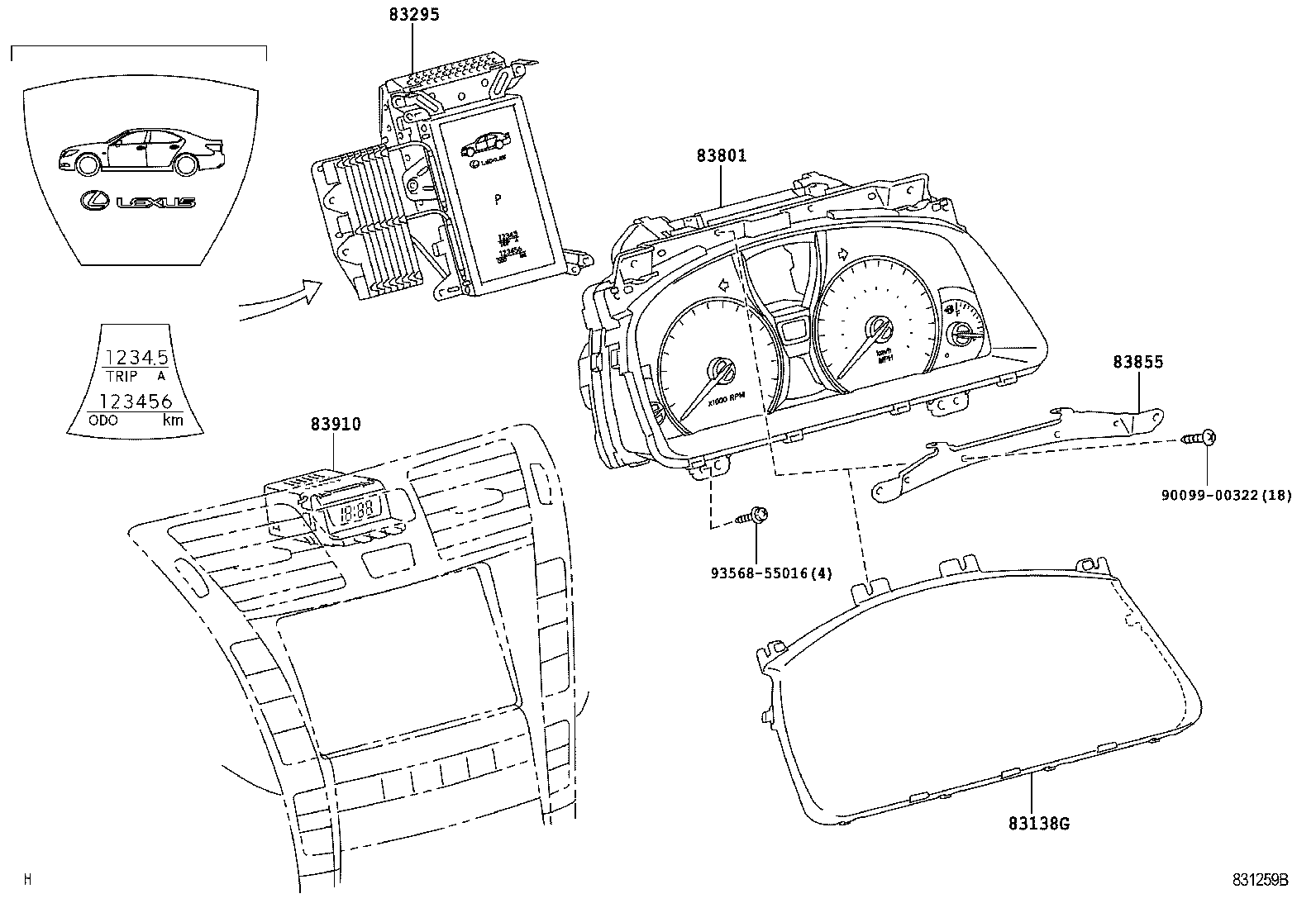

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83138G — Glass, Combination Meter | ||||
| 83852-50350 |
Glass, Combination Meter
2006-08 → 2008-09
ended
|
USF4# | — | |
| 83852-50350 |
Glass, Combination Meter
2008-09 → 2009-09
ended
|
USF4# | — | |
| 83852-50350 |
Glass, Combination Meter
2009-09 → —
|
USF4# | — | |
| 83295 — Panel, Meter Display | ||||
| 83295-50360 |
Panel, Meter Display
2006-08 → 2007-10
ended
|
USF4# | — | |
| 83295-50360 |
Panel, Meter Display
2007-11 → 2008-09
ended
|
USF4# | — | |
| 83889-50500 |
Panel, Meter Display
2008-09 → 2009-09
ended
|
USF4# | — | |
| 83889-50650 |
Panel, Meter Display
2009-09 → —
|
USF4# | — | |
| 83801 — Computer Sub-assy, Meter NO.1 | ||||
| 83801-50370 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF4# LHD D4 | — | |
| 83801-50370 |
Computer Sub-assy, Meter NO.1
2006-12 → 2008-09
ended
|
USF4# GCC | — | |
| 83801-50370 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF40 LHD D4 | — | |
| 83801-50370 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF4# HTWC EUR | — | |
| 83801-50370 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF4# HTWC EUR | — | |
| 83801-50370 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF41 HTWC EUR | — | |
| 83801-50370 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF41 HTWC EUR | — | |
| 83801-50370 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF40 HTWC EUR | — | |
| 83801-50380 |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF4# LHD EUR | — | |
| 83801-50390 |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF41 RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF40 RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF4# RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF40 RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF40 RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF40 RHD | — | |
| 83801-50400 note |
Computer Sub-assy, Meter NO.1
2006-08 → 2008-09
ended
|
USF40 RHD | — | |
| 83801-50510 |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41 GCC | — | |
| 83801-50510 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40 HTWC EUR | — | |
| 83801-50510 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF41 HTWC EUR | — | |
| 83801-50510 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF41 HTWC EUR | — | |
| 83801-50510 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41 HTWC EUR | — | |
| 83801-50510 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41 LHD D4 | — | |
| 83801-50510 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41 HTWC EUR | — | |
| 83801-50510 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40 LHD D4 | — | |
| 83801-50520 |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF4# LHD EUR | — | |
| 83801-50530 |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41,45 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,45 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,45 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,45 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,45 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 83801-50540 note |
Computer Sub-assy, Meter NO.1
2008-09 → 2009-09
ended
|
USF40,41 RHD | — | |
| 83801-50670 note |
Computer Sub-assy, Meter NO.1
2009-09 → 2010-09
ended
|
USF40 LHD D4 | — | |
| 83801-50670 note |
Computer Sub-assy, Meter NO.1
2009-09 → 2010-09
ended
|
USF40,41 LHD D4 | — | |
| 83801-50670 note |
Computer Sub-assy, Meter NO.1
2009-09 → 2010-09
ended
|
USF40 LHD D4 | — | |
| 83801-50670 |
Computer Sub-assy, Meter NO.1
2009-09 → 2010-09
ended
|
USF40,41 HTWC | — | |
| 83801-50671 |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF40 GCC;USF41 HTWC;USF41 D4 +1 | — | |
| 83801-50671 note |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF40 LHD EUR | — | |
| 83801-50671 note |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF40 LHD EUR | — | |
| 83801-50671 note |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF41 LHD D4 EUR | — | |
| 83801-50671 note |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF40,41 LHD D4 EUR | — | |
| 83801-50671 note |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF40 LHD EUR | — | |
| 83801-50671 note |
Computer Sub-assy, Meter NO.1
2011-08 → —
|
USF40 LHD EUR | — | |
| 83801-50680 |
Computer Sub-assy, Meter NO.1
2009-09 → 2010-09
ended
|
USF4# LHD D4 | — | |
| 83801-50681 |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF4# LHD D4 EUR | — | |
| 83801-50690 note |
Computer Sub-assy, Meter NO.1
2009-09 → 2010-09
ended
|
USF40,45 RHD | — | |
| 83801-50691 note |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF40,45 RHD | — | |
| 83801-50700 |
Computer Sub-assy, Meter NO.1
2009-09 → 2010-09
ended
|
USF40,41,45 RHD | — | |
| 83801-50701 |
Computer Sub-assy, Meter NO.1
2010-09 → —
|
USF40,41,45 RHD | — | |
| 83855 — Bracket, Combination Meter, NO.1 | ||||
| 83855-50350 |
Bracket, Combination Meter, NO.1
2006-08 → 2008-09
ended
|
USF4# | — | |
| 83855-50350 |
Bracket, Combination Meter, NO.1
2008-09 → 2009-09
ended
|
USF4# | — | |
| 83855-50350 |
Bracket, Combination Meter, NO.1
2009-09 → —
|
USF4# | — | |
| 83910 — Clock Assy | ||||
| 83910-50050 |
Clock Assy
2006-08 → 2008-09
ended
|
USF4# | — | |
| 83910-50050 |
Clock Assy
2008-09 → 2009-09
ended
|
USF4# | — | |
| 83910-50070 |
Clock Assy
2009-09 → —
|
USF4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
