Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · General

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

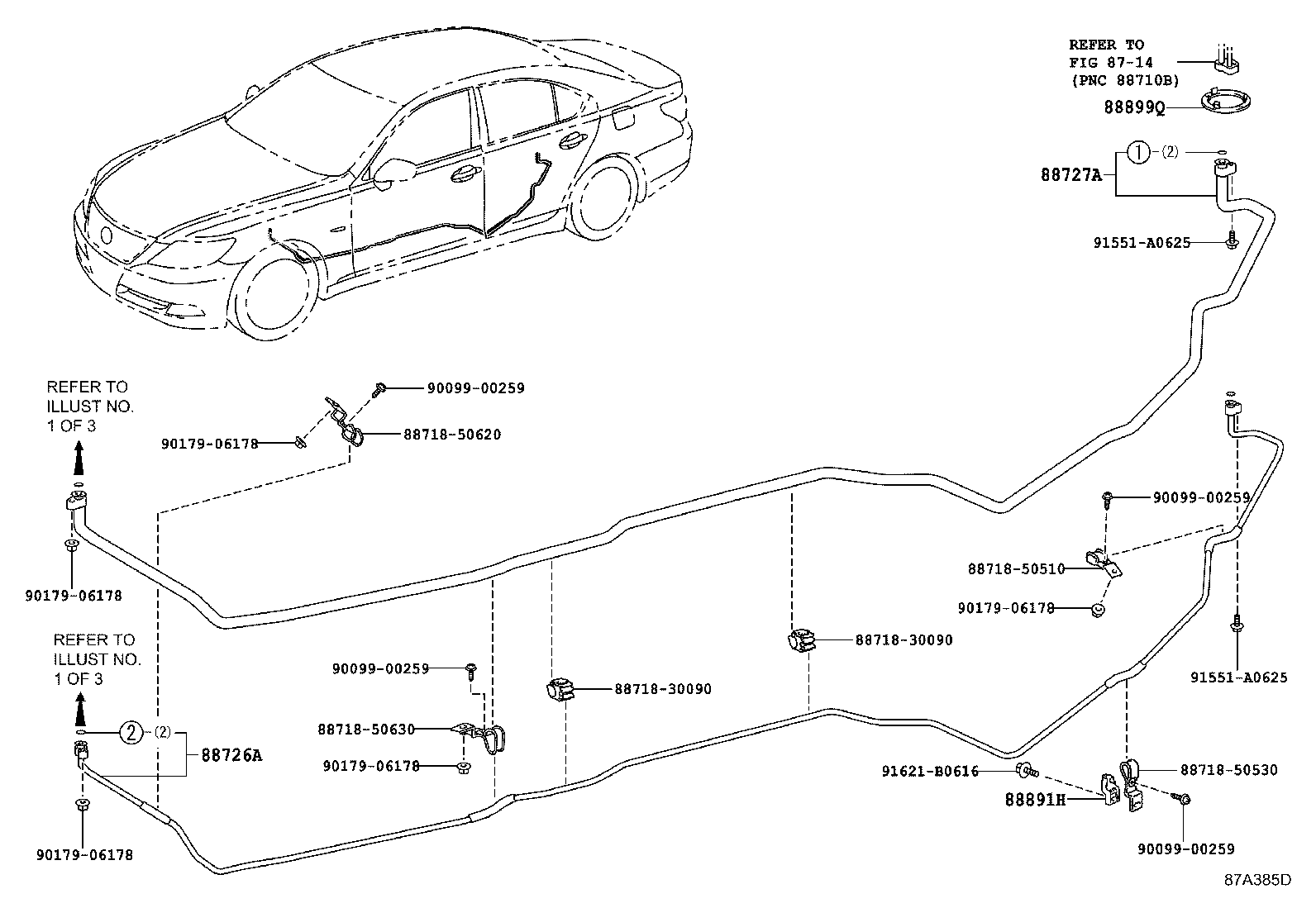

Exploded illustration 87A385D 8714 — not listed in this catalogue 88899Q — PLATE, COVER (6 parts) 88727A — PIPE, COOLER REFRIGERANT SUCTION, A (15 parts) 88891H — COVER, COOLER, NO.1 (6 parts) 88726A — PIPE, COOLER REFRIGERANT LIQUID, A (15 parts) 8871850510 — not listed in this catalogue 8871850530 — not listed in this catalogue 91621B0616 — not listed in this catalogue 8871830090 — not listed in this catalogue 8871850630 — not listed in this catalogue 8871850620 — not listed in this catalogue 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 9009900259 — not listed in this catalogue 9009900259 — not listed in this catalogue 9009900259 — not listed in this catalogue 91551A0625 — not listed in this catalogue 91551A0625 — not listed in this catalogue 9009900259 — not listed in this catalogue 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 8871830090 — not listed in this catalogue
87A385D · 4 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
88726A — Pipe, Cooler Refrigerant Liquid, A
88716-50570 note Pipe, Cooler Refrigerant Liquid, A
2006-08 → 2008-09 ended
USF40 EUR —
88716-50570 Pipe, Cooler Refrigerant Liquid, A
2006-12 → 2008-09 ended
USF40 GCC —
88716-50580 Pipe, Cooler Refrigerant Liquid, A
2006-08 → 2008-09 ended
USF41 GCC;USF41 RHD —
88716-50580 note Pipe, Cooler Refrigerant Liquid, A
2006-08 → 2008-09 ended
USF41 LHD EUR —
88716-50570 Pipe, Cooler Refrigerant Liquid, A
2008-09 → 2009-09 ended
USF40 GCC —
88716-50570 note Pipe, Cooler Refrigerant Liquid, A
2008-09 → 2009-09 ended
USF40 EUR —
88716-50580 Pipe, Cooler Refrigerant Liquid, A
2008-09 → 2009-09 ended
USF41 GCC;USF41 RHD —
88716-50580 note Pipe, Cooler Refrigerant Liquid, A
2008-09 → 2009-09 ended
USF41 LHD EUR —
88716-50620 note Pipe, Cooler Refrigerant Liquid, A
2008-09 → 2009-09 ended
USF45 —
88716-50630 note Pipe, Cooler Refrigerant Liquid, A
2008-09 → 2009-09 ended
USF46 —
88716-50570 Pipe, Cooler Refrigerant Liquid, A
2009-09 → —
USF40 HTWC;USF40 D4 GCC —
88716-50570 note Pipe, Cooler Refrigerant Liquid, A
2009-09 → —
USF40 D4 EUR —
88716-50580 Pipe, Cooler Refrigerant Liquid, A
2009-09 → —
USF41 —
88716-50620 note Pipe, Cooler Refrigerant Liquid, A
2009-09 → —
USF45 —
88716-50630 Pipe, Cooler Refrigerant Liquid, A
2009-09 → —
USF46 —
88727A — Pipe, Cooler Refrigerant Suction, A
88717-50400 note Pipe, Cooler Refrigerant Suction, A
2006-08 → 2008-09 ended
USF40 EUR —
88717-50400 Pipe, Cooler Refrigerant Suction, A
2006-12 → 2008-09 ended
USF40 GCC —
88717-50410 Pipe, Cooler Refrigerant Suction, A
2006-08 → 2008-09 ended
USF41 GCC;USF41 RHD —
88717-50410 note Pipe, Cooler Refrigerant Suction, A
2006-08 → 2008-09 ended
USF41 LHD EUR —
88717-50400 Pipe, Cooler Refrigerant Suction, A
2008-09 → 2009-09 ended
USF40 GCC —
88717-50400 note Pipe, Cooler Refrigerant Suction, A
2008-09 → 2009-09 ended
USF40 EUR —
88717-50410 Pipe, Cooler Refrigerant Suction, A
2008-09 → 2009-09 ended
USF41 GCC;USF41 RHD —
88717-50410 note Pipe, Cooler Refrigerant Suction, A
2008-09 → 2009-09 ended
USF41 LHD EUR —
88717-50430 note Pipe, Cooler Refrigerant Suction, A
2008-09 → 2009-09 ended
USF45 —
88717-50440 note Pipe, Cooler Refrigerant Suction, A
2008-09 → 2009-09 ended
USF46 —
88717-50400 Pipe, Cooler Refrigerant Suction, A
2009-09 → —
USF40 HTWC;USF40 D4 GCC —
88717-50400 note Pipe, Cooler Refrigerant Suction, A
2009-09 → —
USF40 D4 EUR —
88717-50410 Pipe, Cooler Refrigerant Suction, A
2009-09 → —
USF41 —
88717-50430 note Pipe, Cooler Refrigerant Suction, A
2009-09 → —
USF45 —
88717-50440 Pipe, Cooler Refrigerant Suction, A
2009-09 → —
USF46 —
88891H — Cover, Cooler, NO.1
88891-50090 Cover, Cooler, NO.1
2006-08 → 2008-09 ended
USF4# GCC;USF41 RHD —
88891-50090 note Cover, Cooler, NO.1
2006-08 → 2008-09 ended
USF40 EUR;USF41 LHD EUR —
88891-50090 Cover, Cooler, NO.1
2008-09 → 2009-09 ended
USF41 RHD;USF40,41 GCC —
88891-50090 note Cover, Cooler, NO.1
2008-09 → 2009-09 ended
USF41 LHD EUR;USF40,45,46 EUR —
88891-50090 Cover, Cooler, NO.1
2009-09 → —
USF41,46;USF40 HTWC;USF40 D4 GCC —
88891-50090 note Cover, Cooler, NO.1
2009-09 → —
USF40,45 D4 EUR —
88899Q — Plate, Cover
88899-3A060 Plate, Cover
2006-08 → 2008-09 ended
USF4# GCC;USF41 RHD —
88899-3A060 note Plate, Cover
2006-08 → 2008-09 ended
USF40 EUR;USF41 LHD EUR —
88899-3A060 Plate, Cover
2008-09 → 2009-09 ended
USF41 RHD;USF40,41 GCC —
88899-3A060 note Plate, Cover
2008-09 → 2009-09 ended
USF41 LHD EUR;USF40,45,46 EUR —
88899-3A060 Plate, Cover
2009-09 → —
USF41,46;USF40 HTWC;USF40 D4 GCC —
88899-3A060 note Plate, Cover
2009-09 → —
USF40,45 D4 EUR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
