Toyota Lexus LS500/500H/350

2017-10 → present · chassis GSF50,GVF50,VXFA50 · catalogue 431360 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 2 illustrations

Illustrations

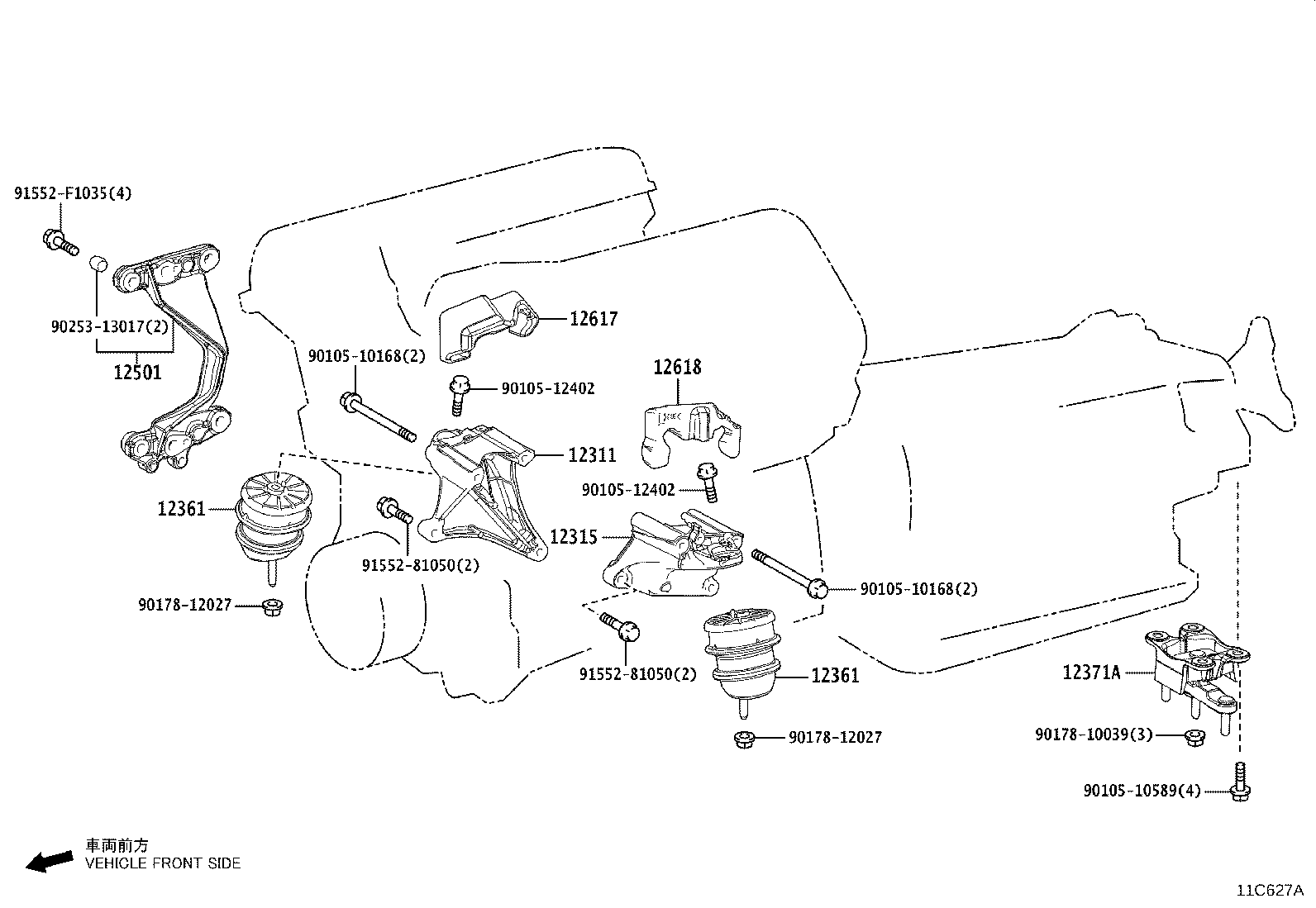

Figure 11C635A 11C635A 2017-10 → — Figure 11C627A 11C627A 2017-12 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371A Insulator, Engine Mounting, Rear
12501 Bracket Sub-assy, Alternator
12617 Cover, Engine, NO.7
12618 Cover, Engine, NO.8
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
