Toyota Lexus LS500/500H/350

2017-10 → present · chassis GSF50,GVF50,VXFA50 · catalogue 431360 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

9 part groups · 2 illustrations

Illustrations

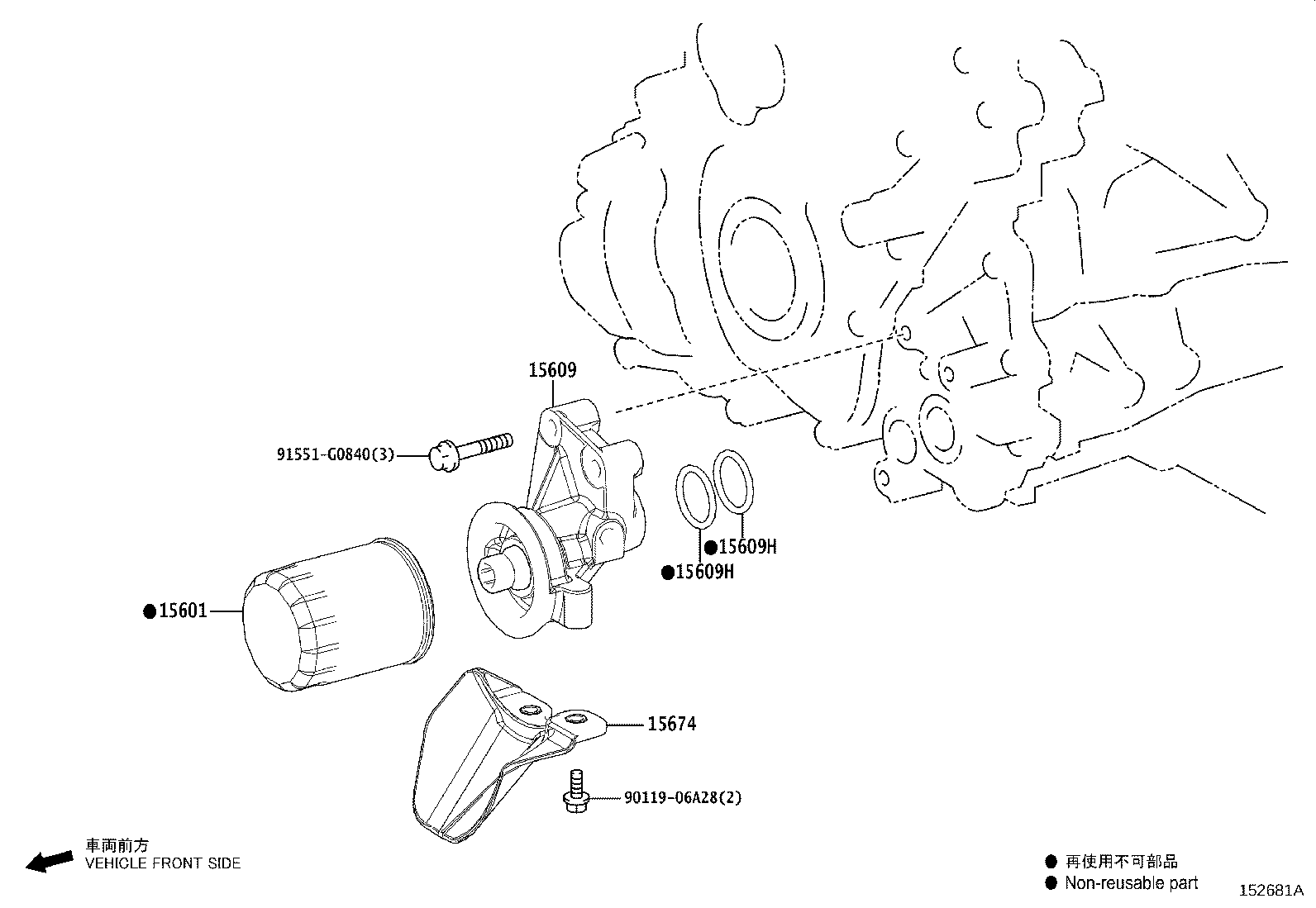

Figure 152708B 152708B 2017-10 → — Figure 152681A 152681A 2017-12 → —

Part groups

PNCDescription
04152 Element Kit, Oil Filter
15601 Filter Sub-assy, Oil
15609 Bracket Sub-assy, Oil Filter
15609H Ring, O(FOR OIL FILTER BRACKET)
15620C Gasket(FOR OIL FILTER CAP)
15650 Cap Assy, Oil Filter W/Elememt
15674 Receiver, Oil Filter
15679 Clip, Oil Filter Bracket
15692 Gasket, Oil Filter Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
