Toyota Lexus LS500/500H/350

2017-10 → present · chassis GSF50,GVF50,VXFA50 · catalogue 431360 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

2 part groups · 2 illustrations

Illustrations

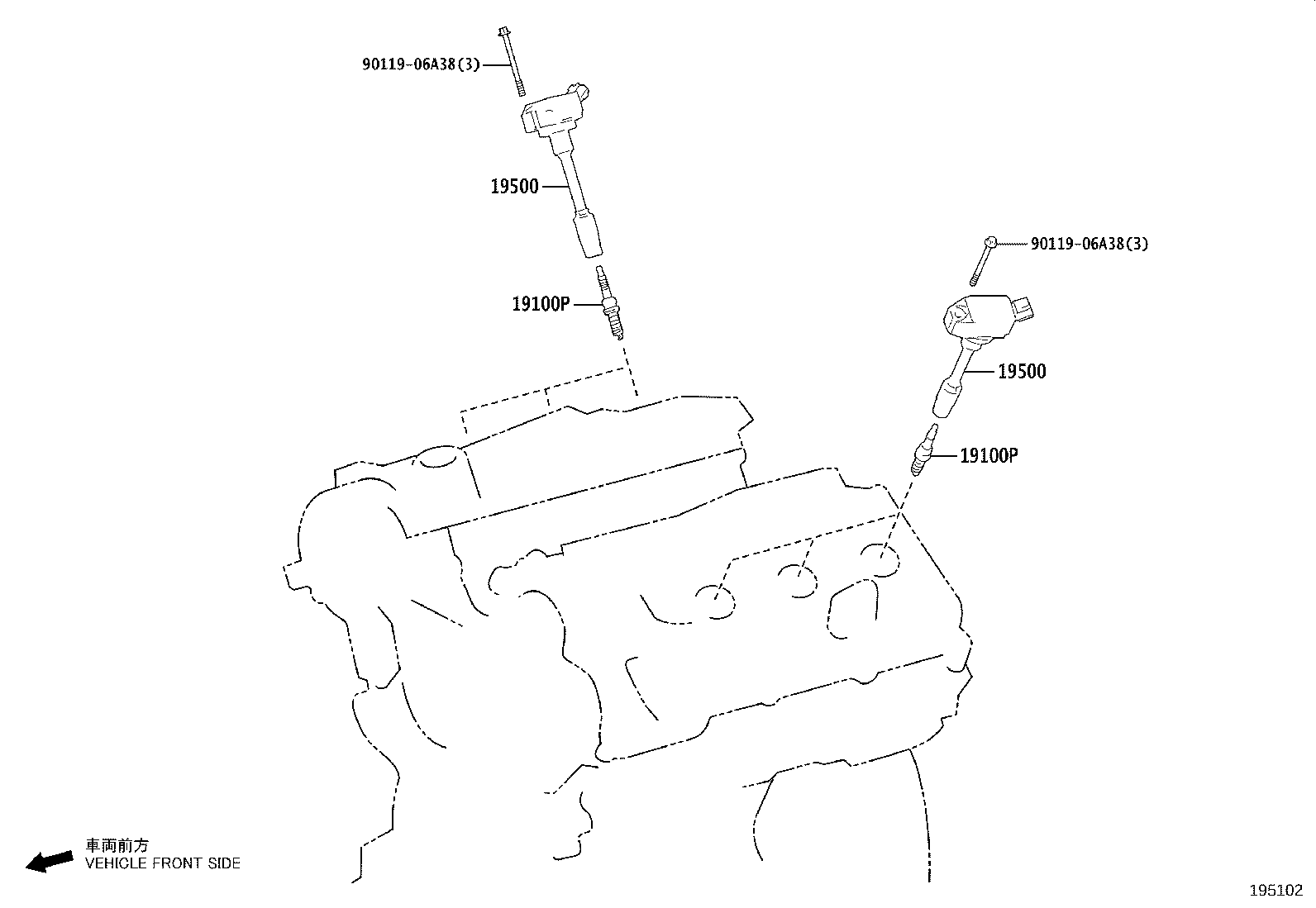

Figure 195098 195098 2017-10 → — Figure 195102 195102 2017-12 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
