Toyota Lexus LS500/500H/350

2017-10 → present · chassis GSF50,GVF50,VXFA50 · catalogue 431360 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

146 part groups · 42 illustrations

Illustrations

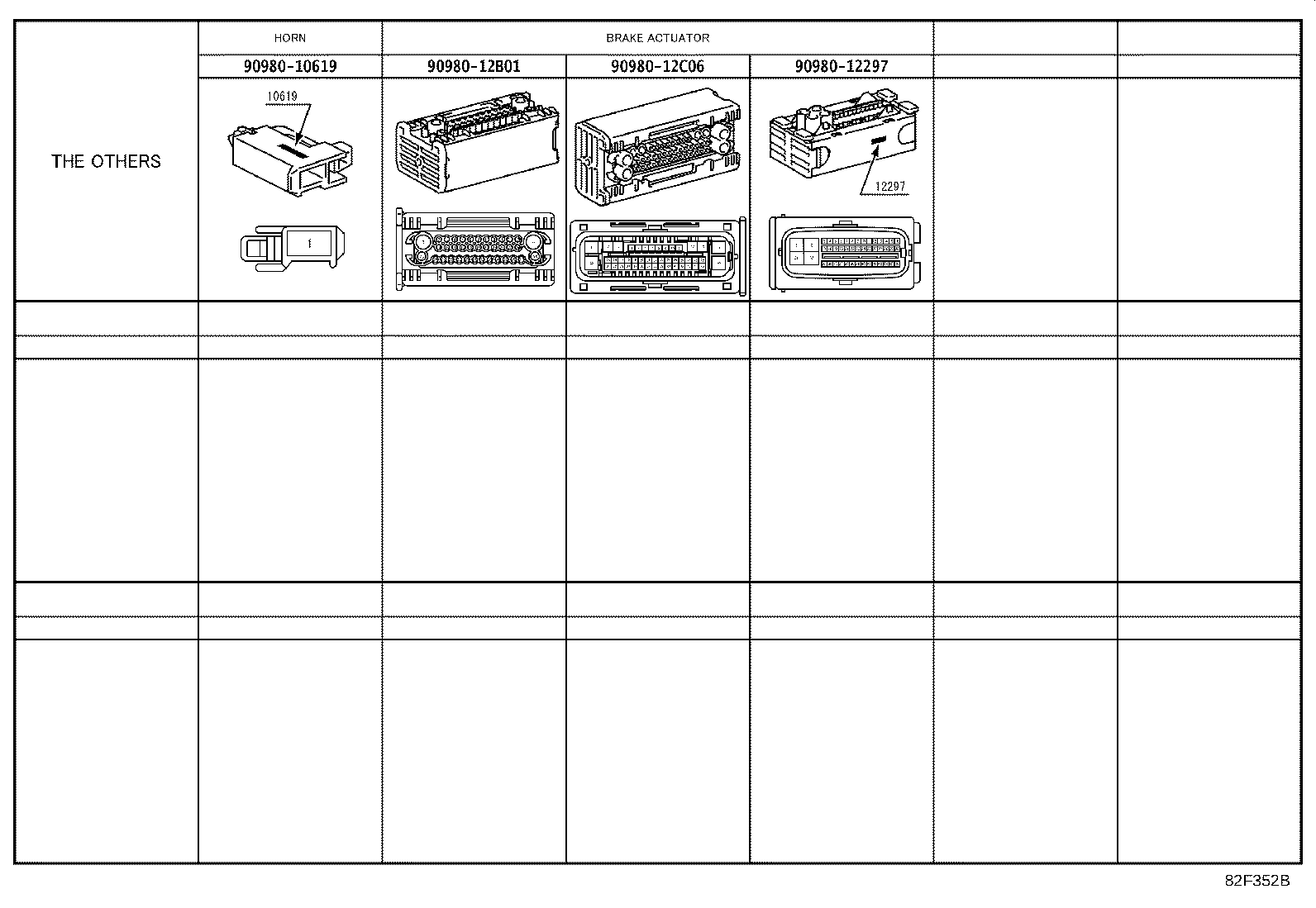

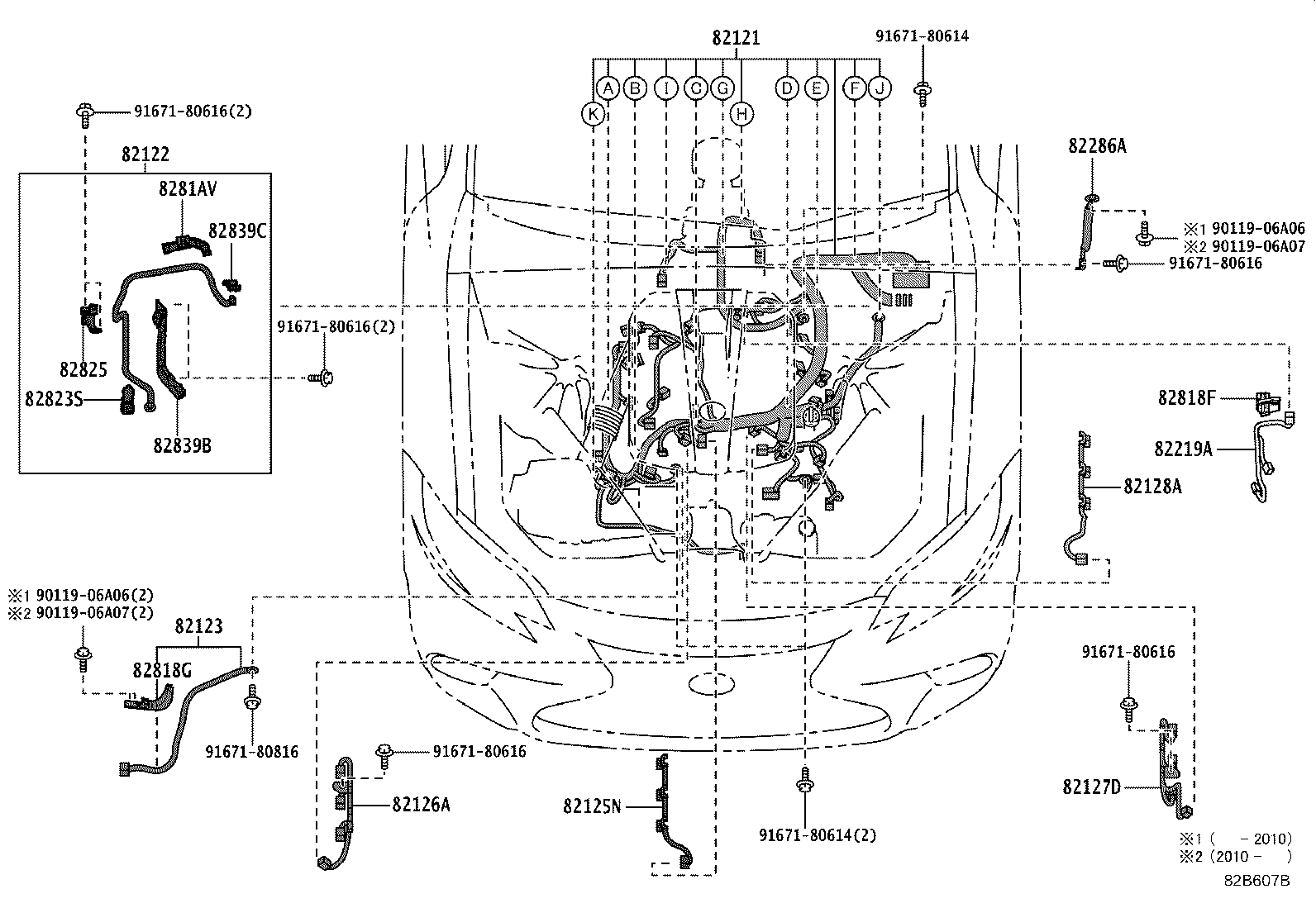

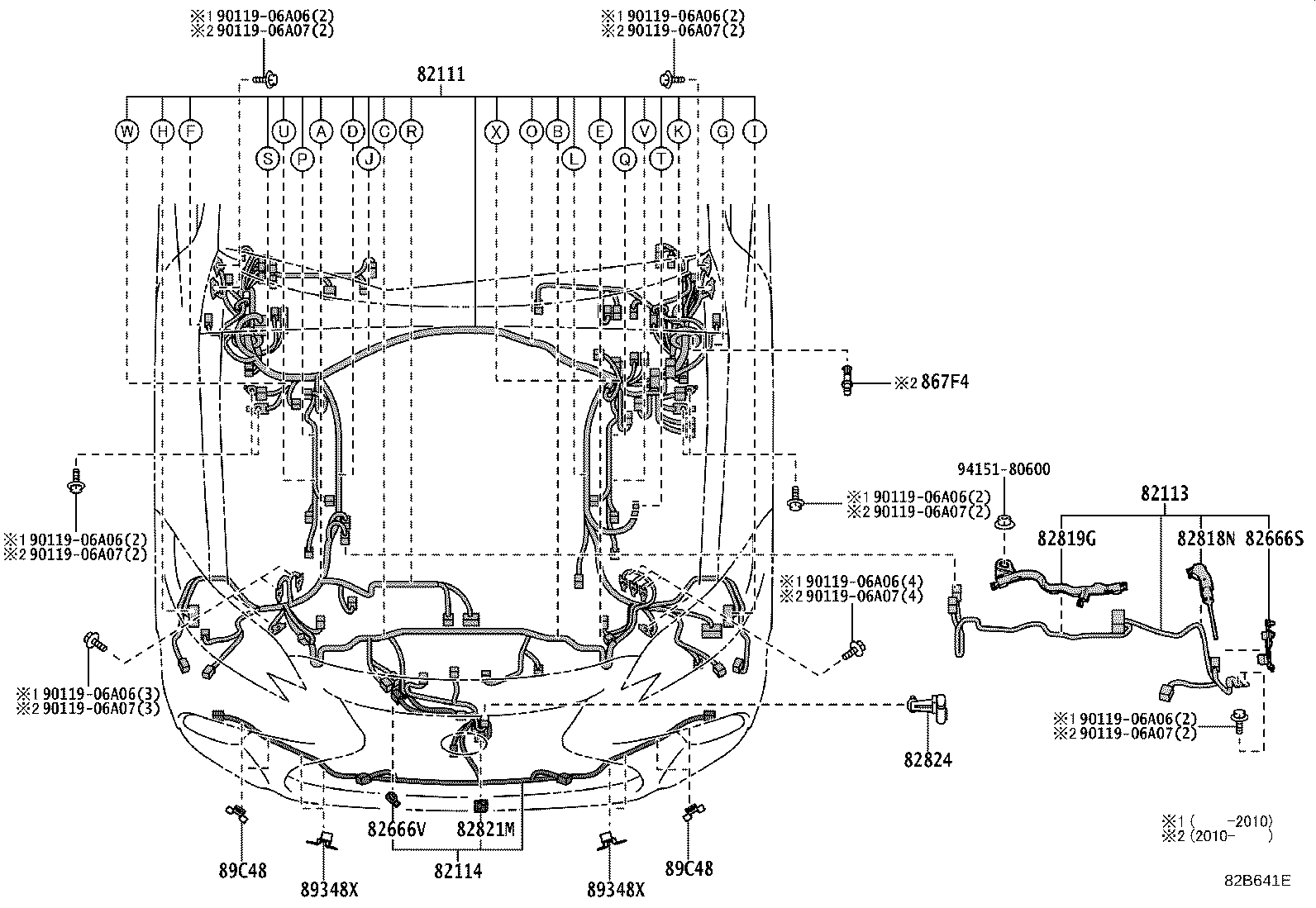

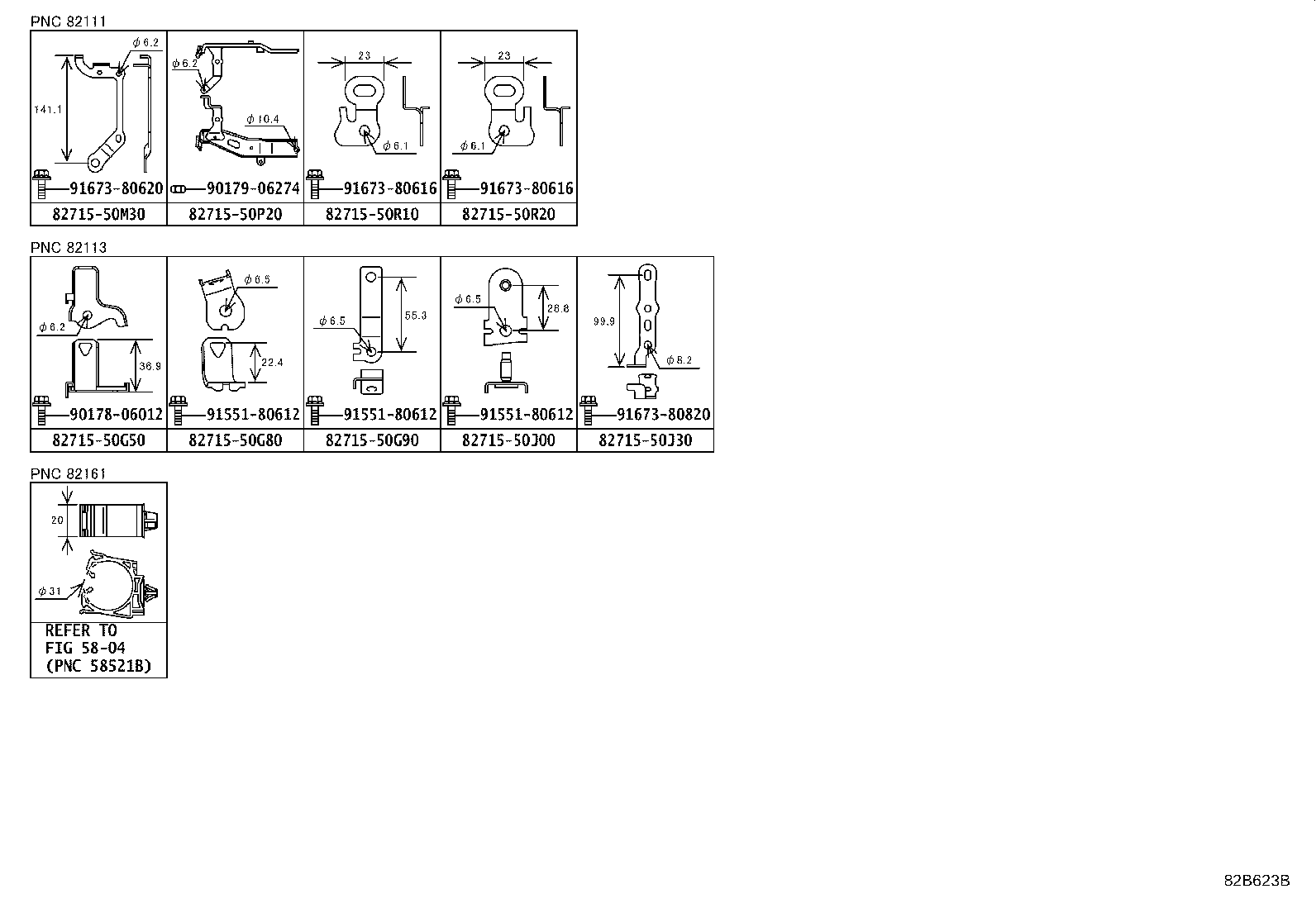

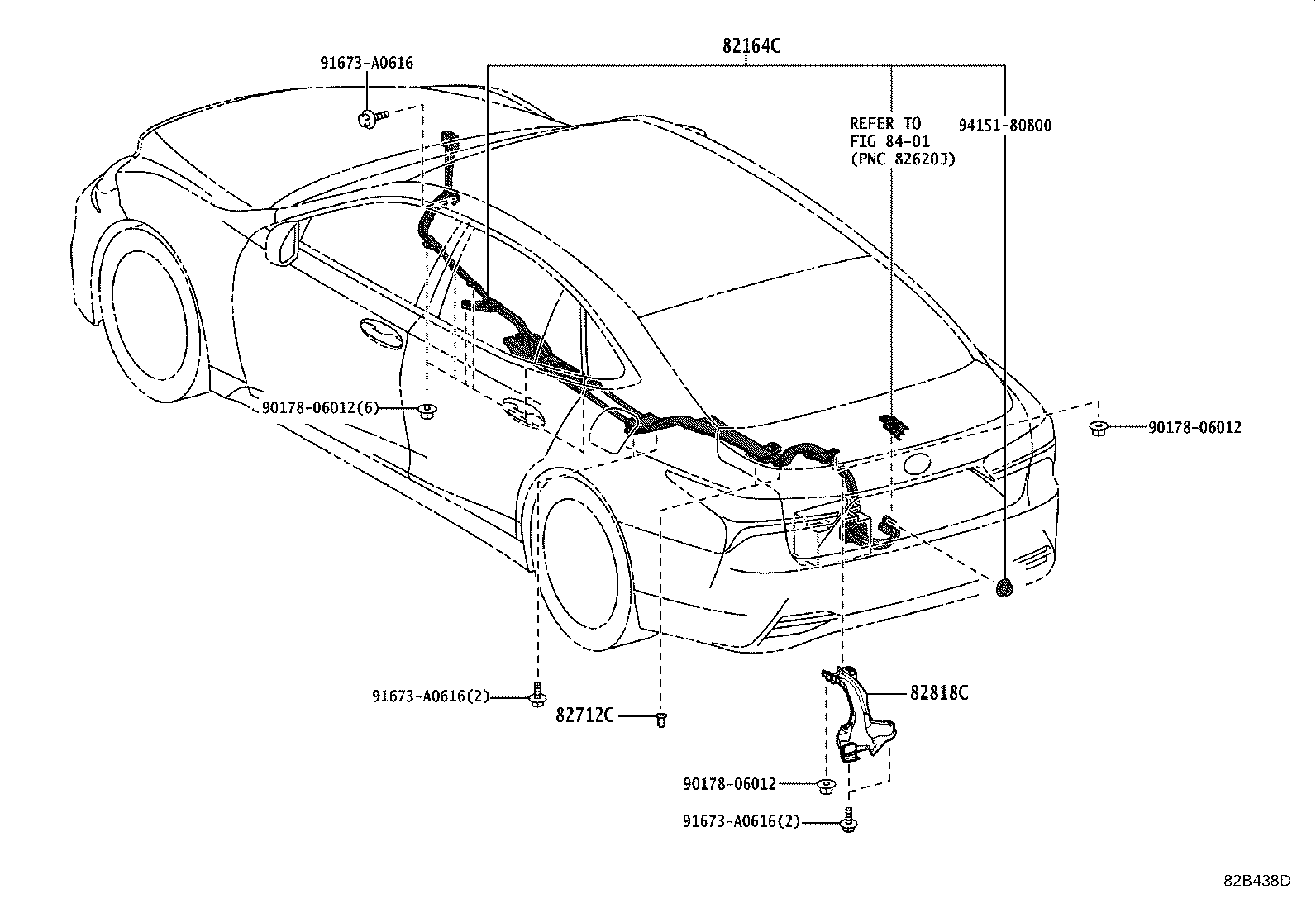

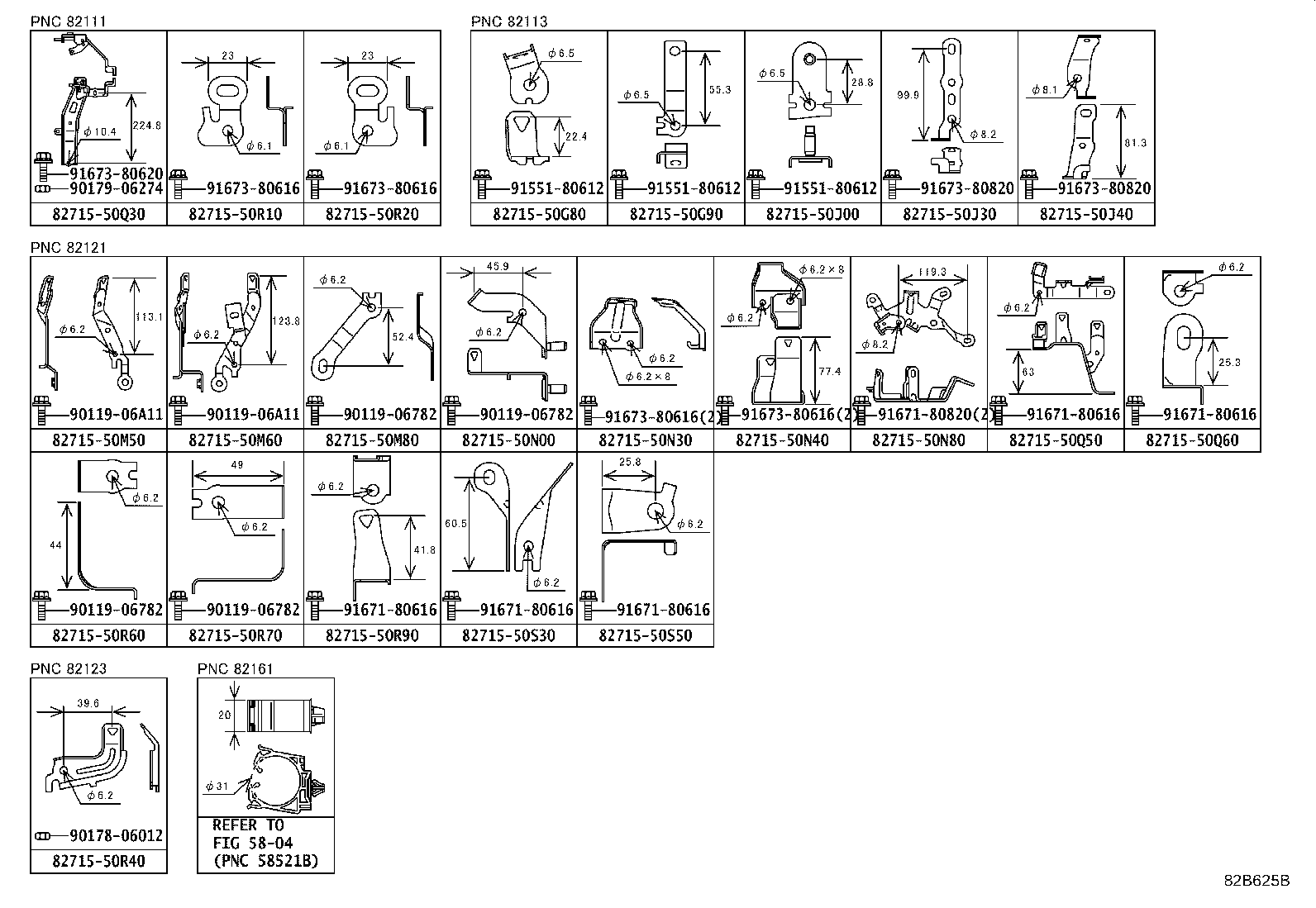

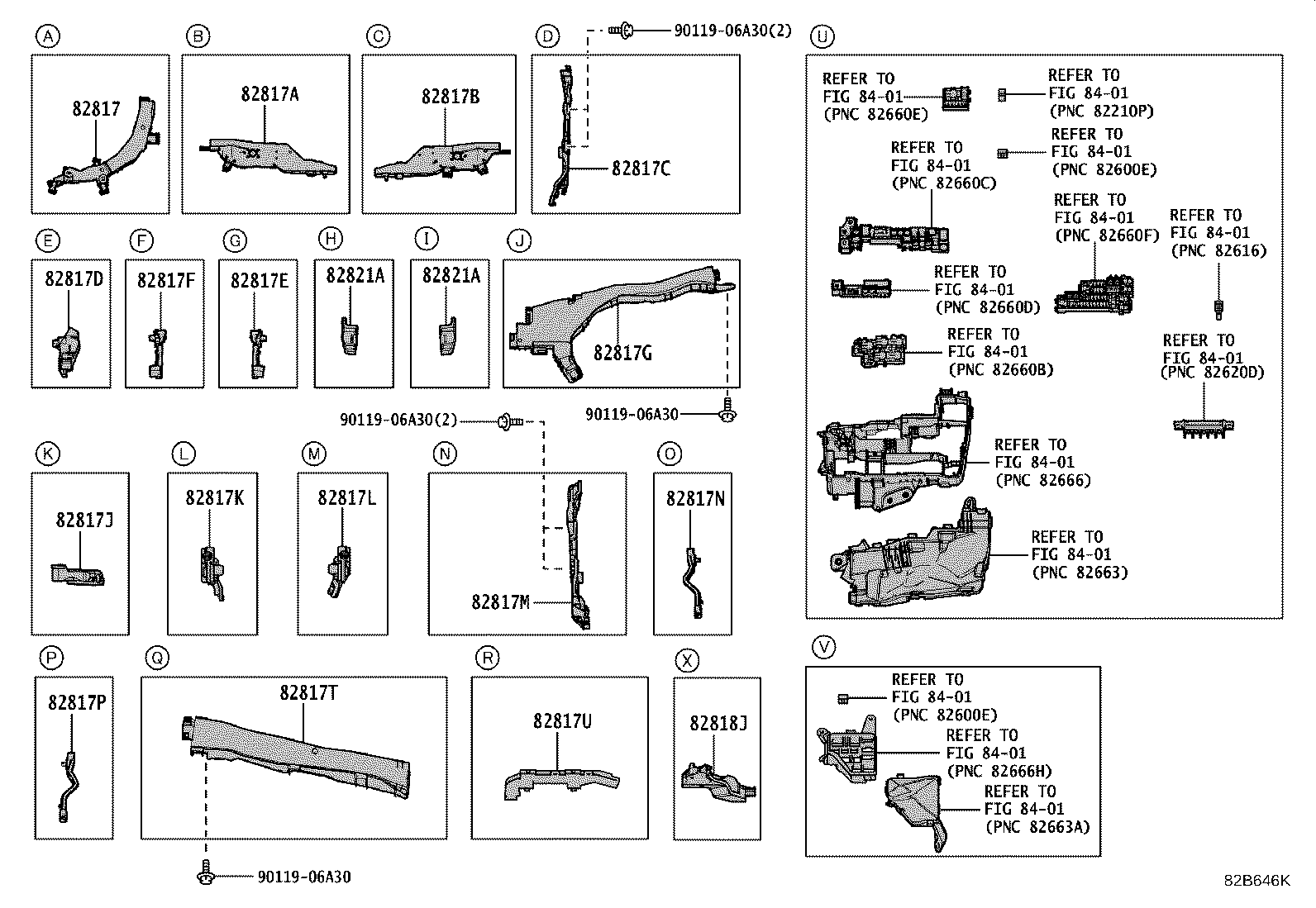

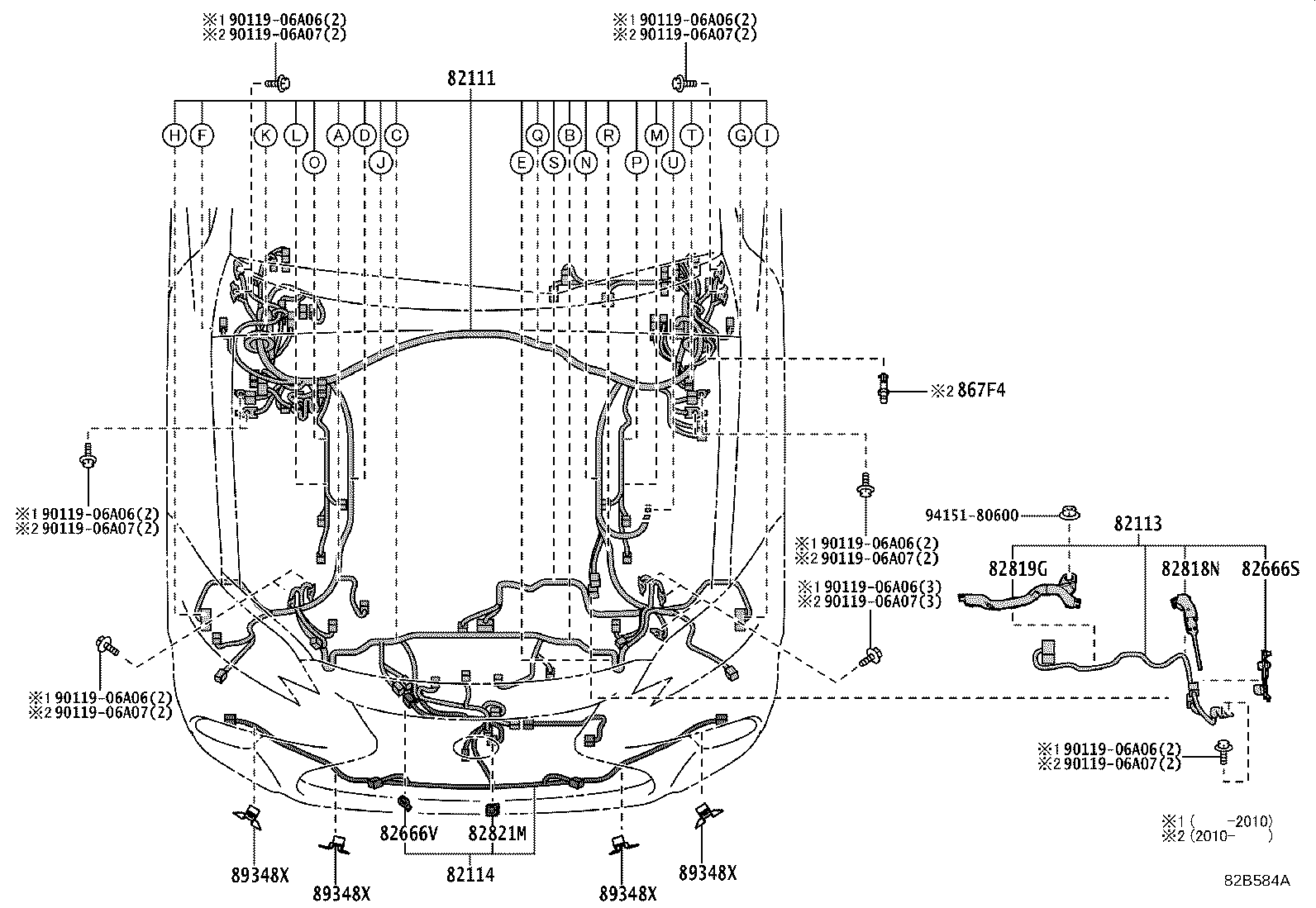

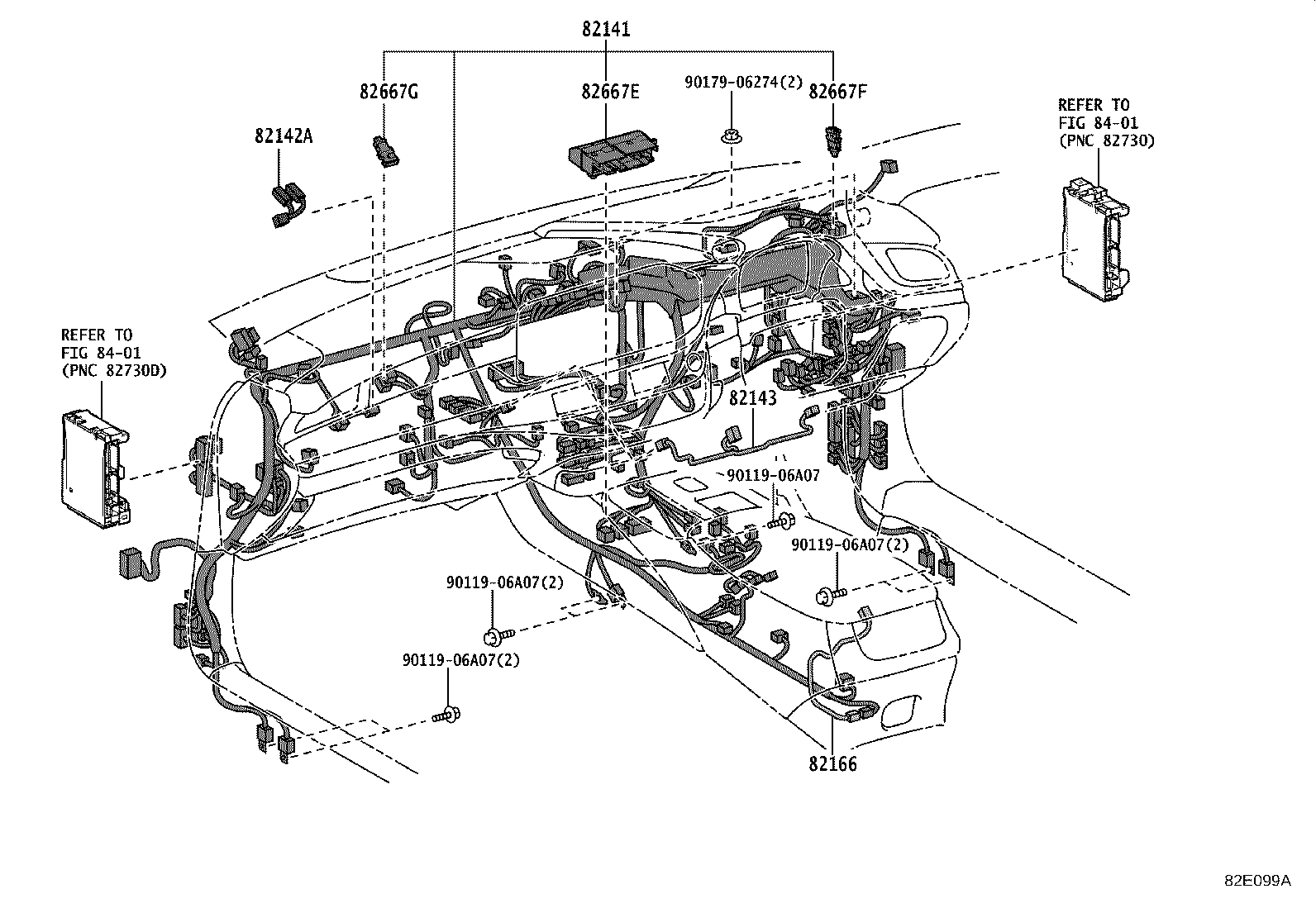

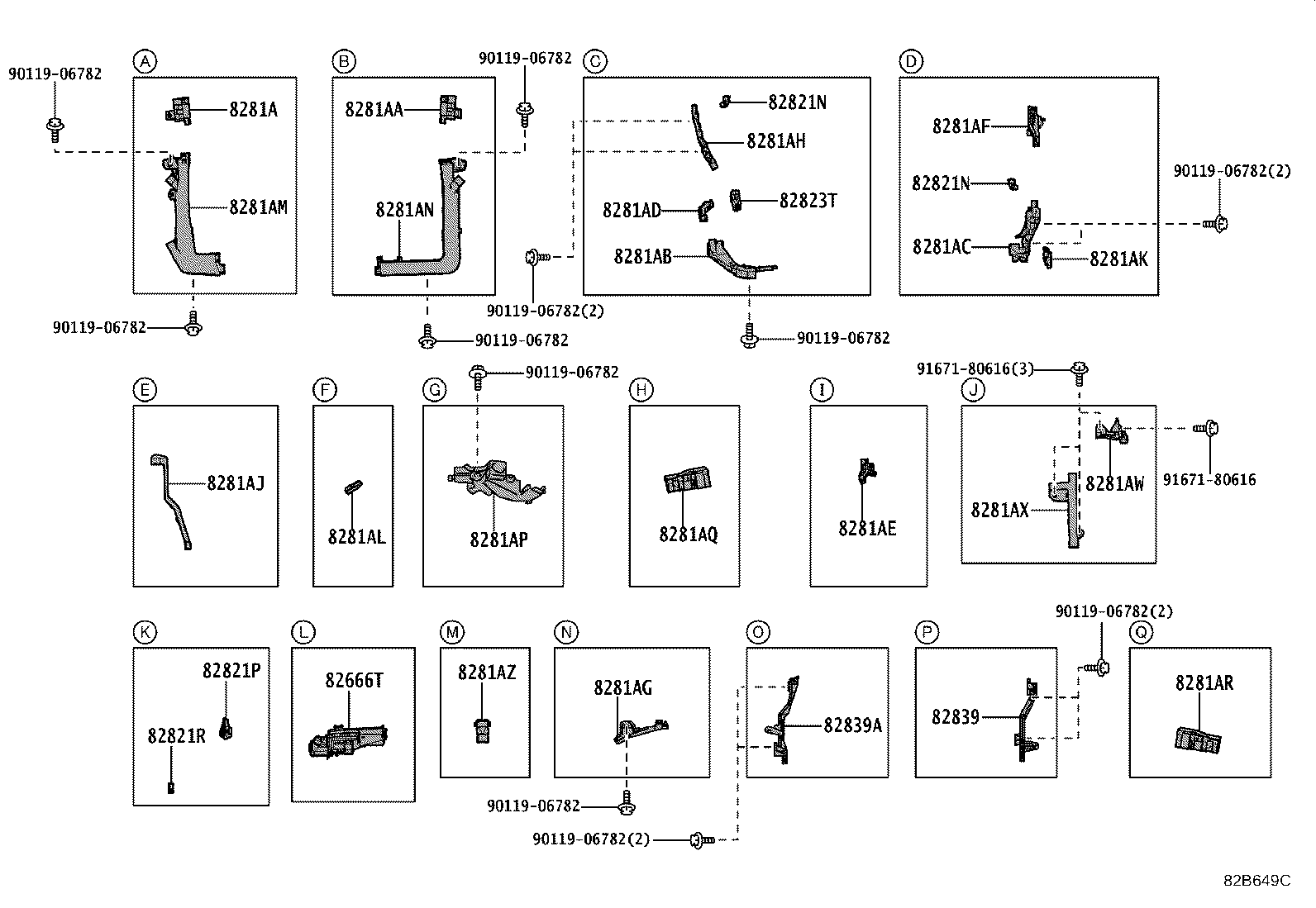

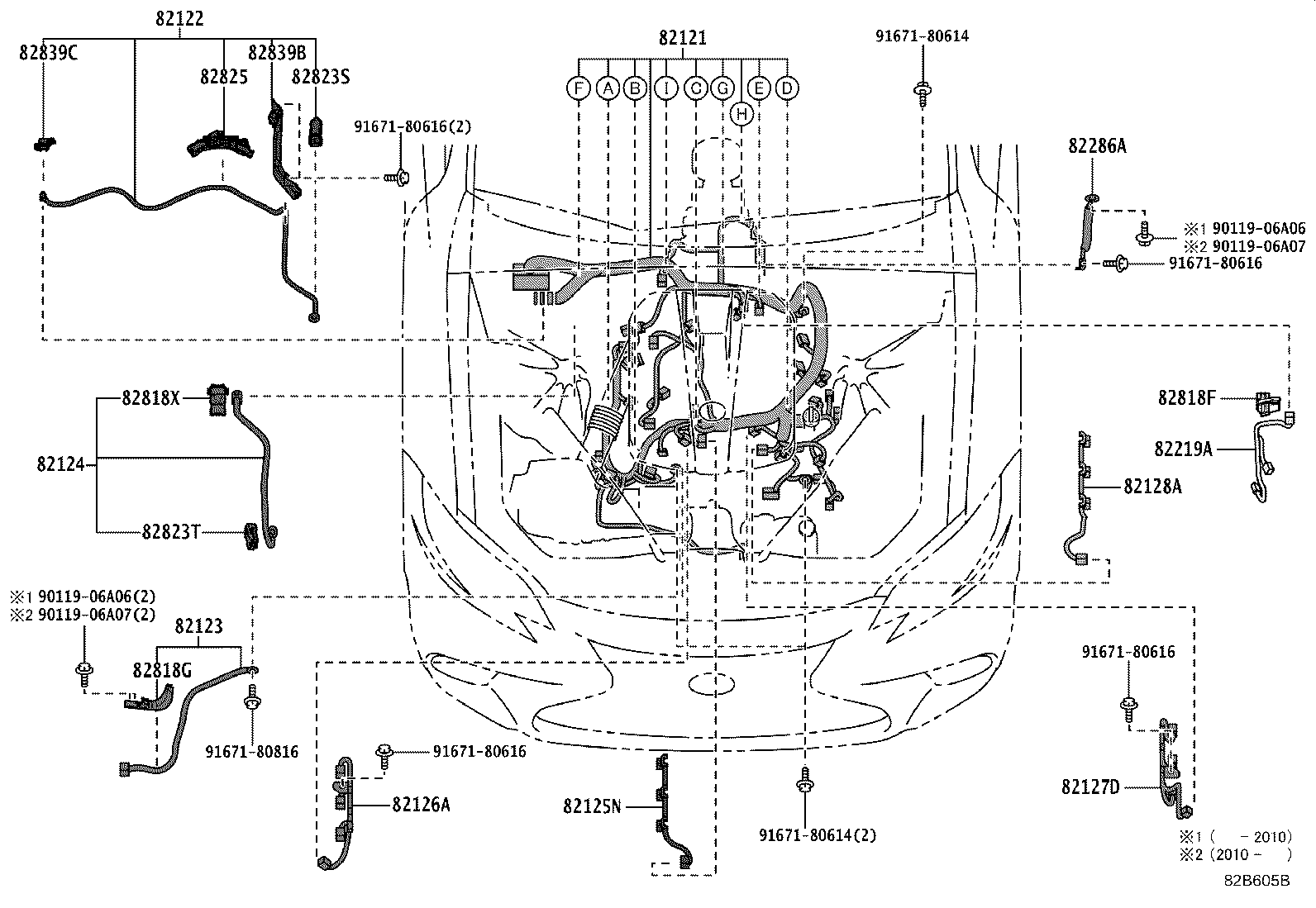

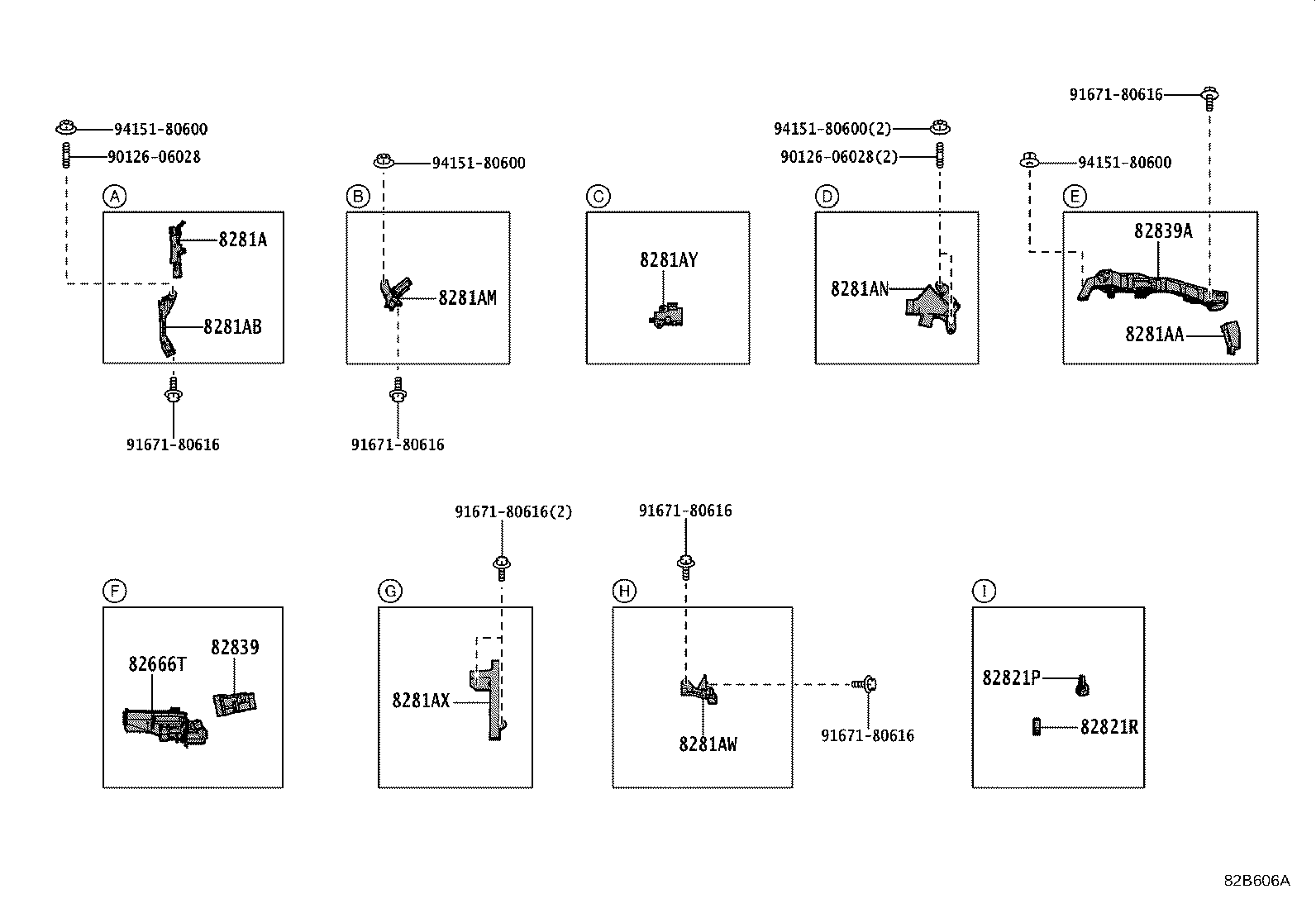

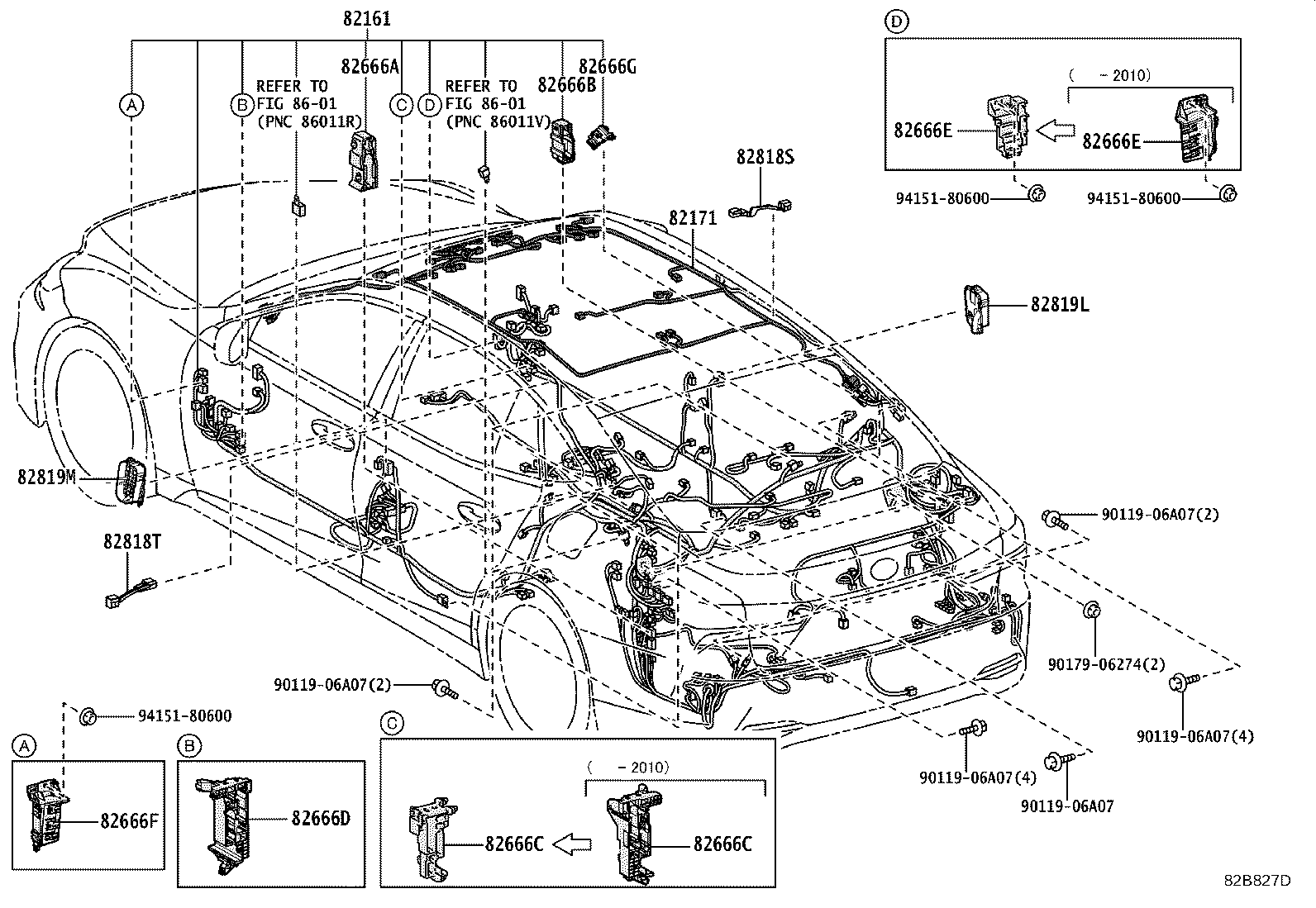

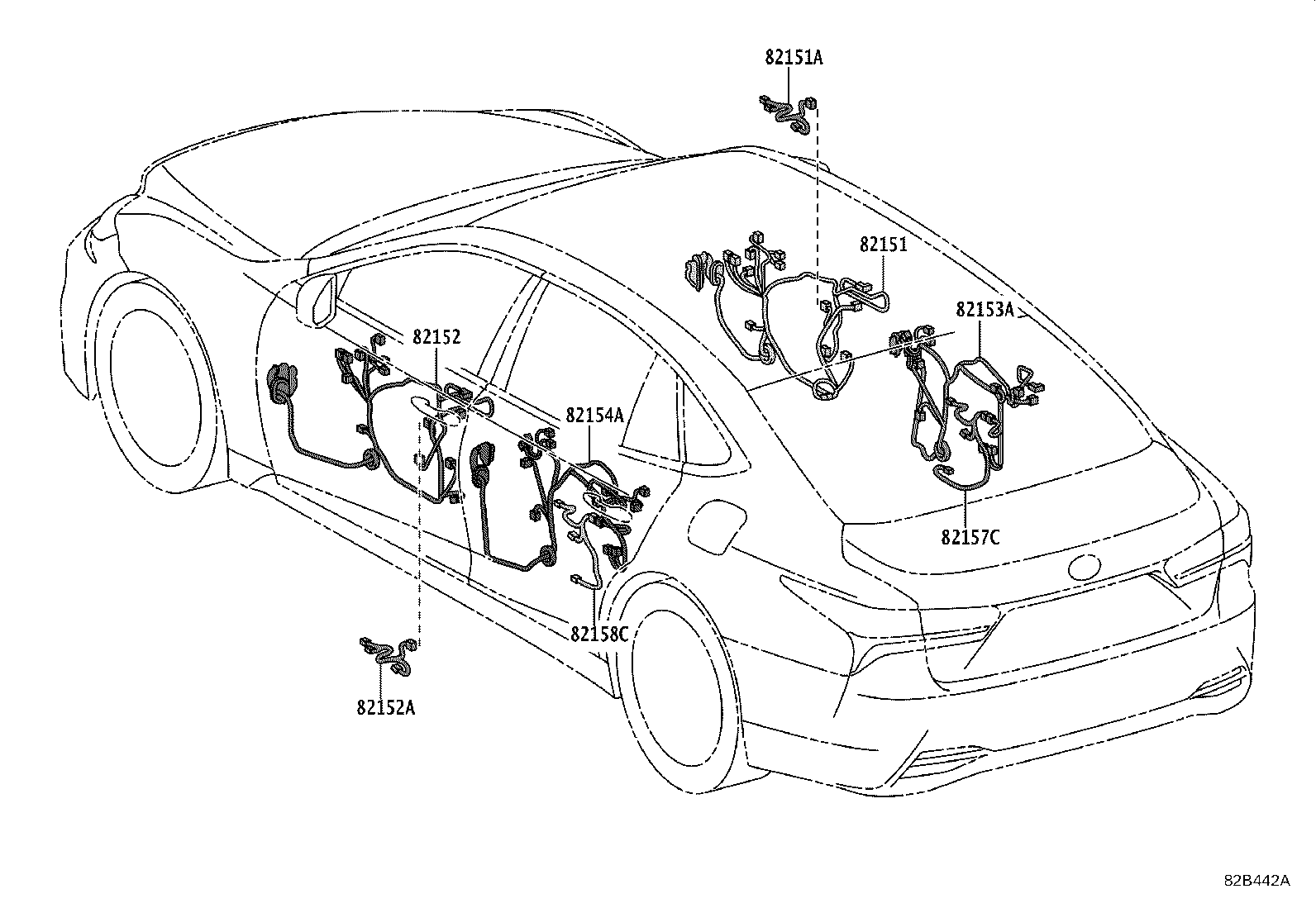

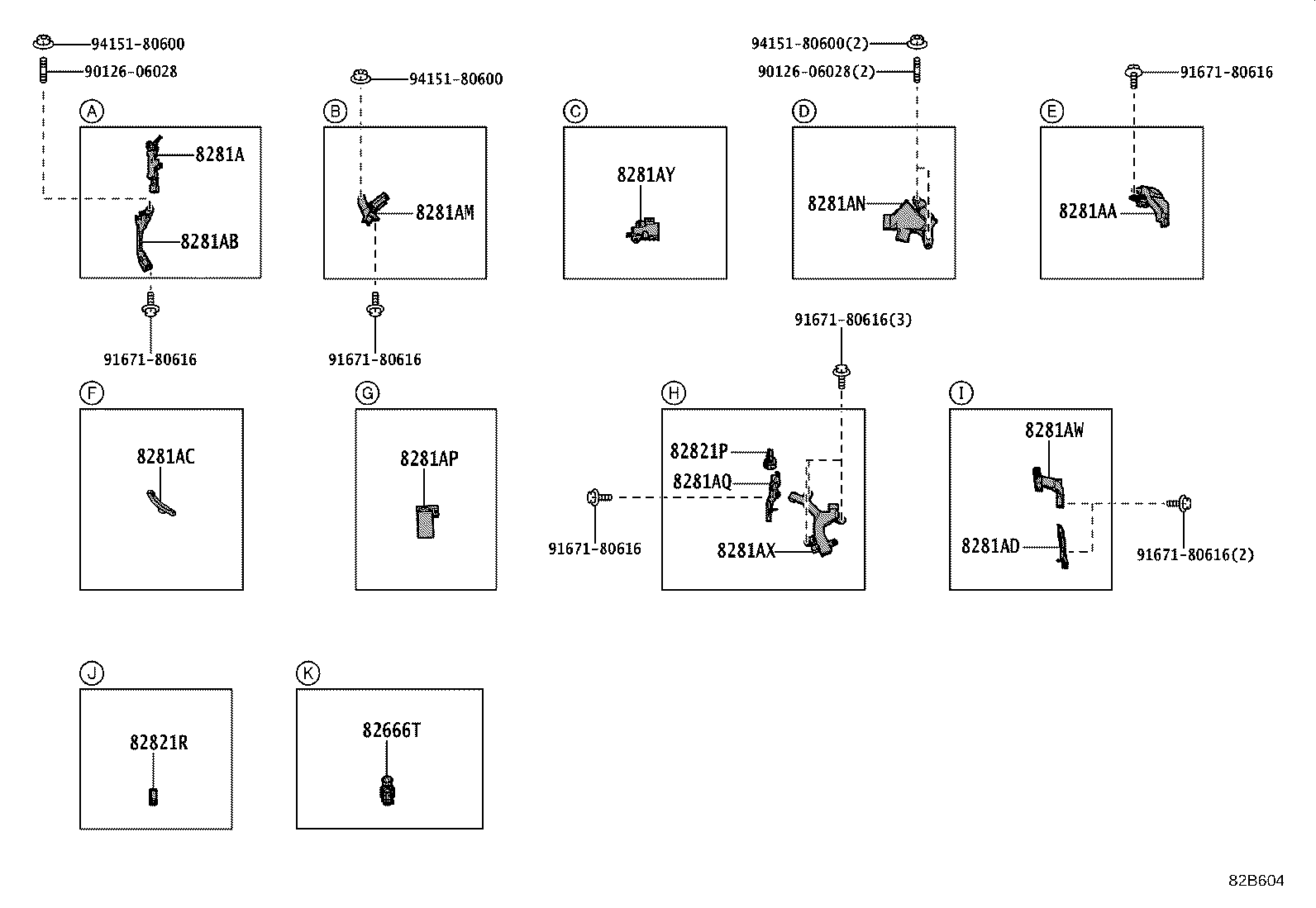

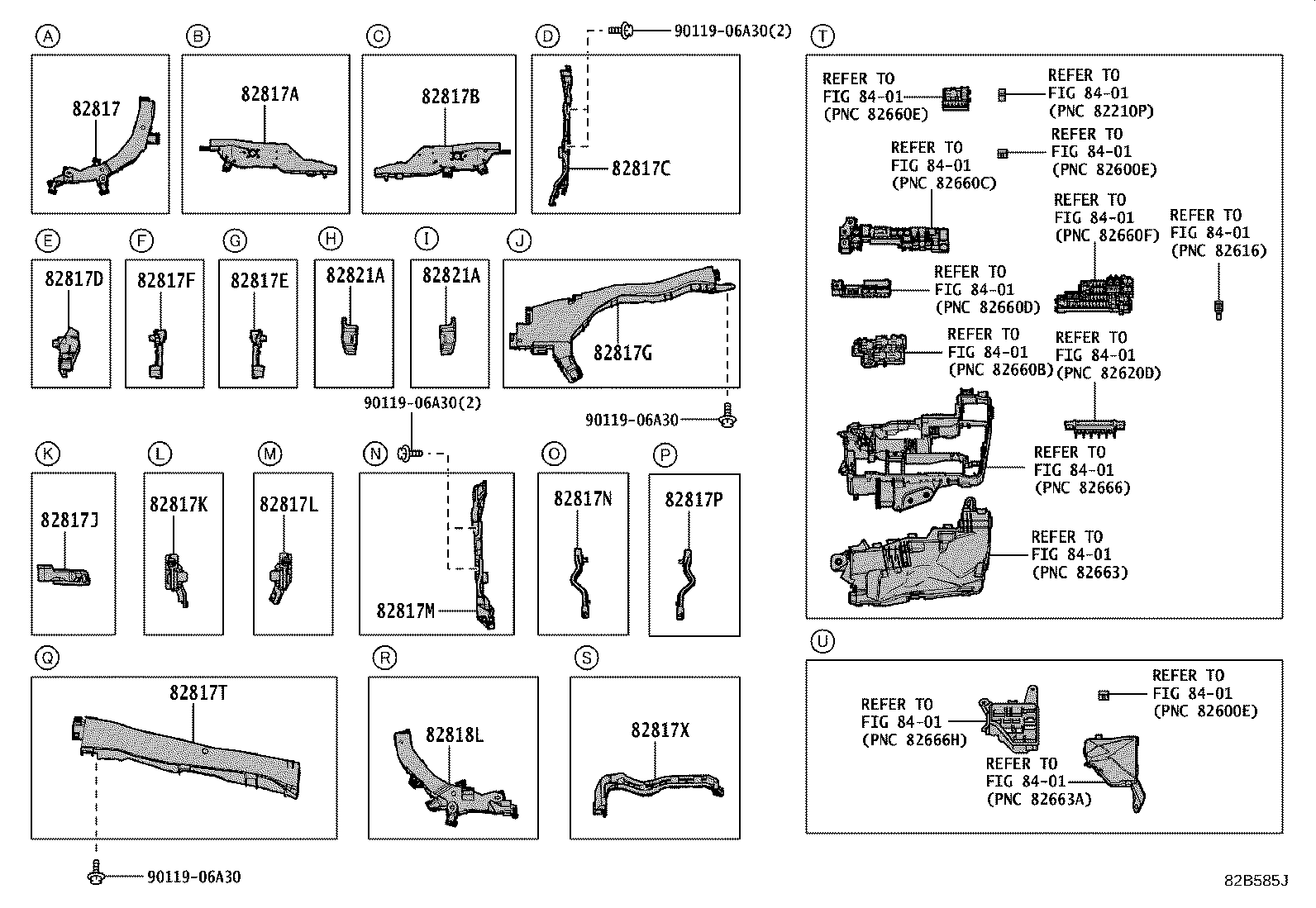

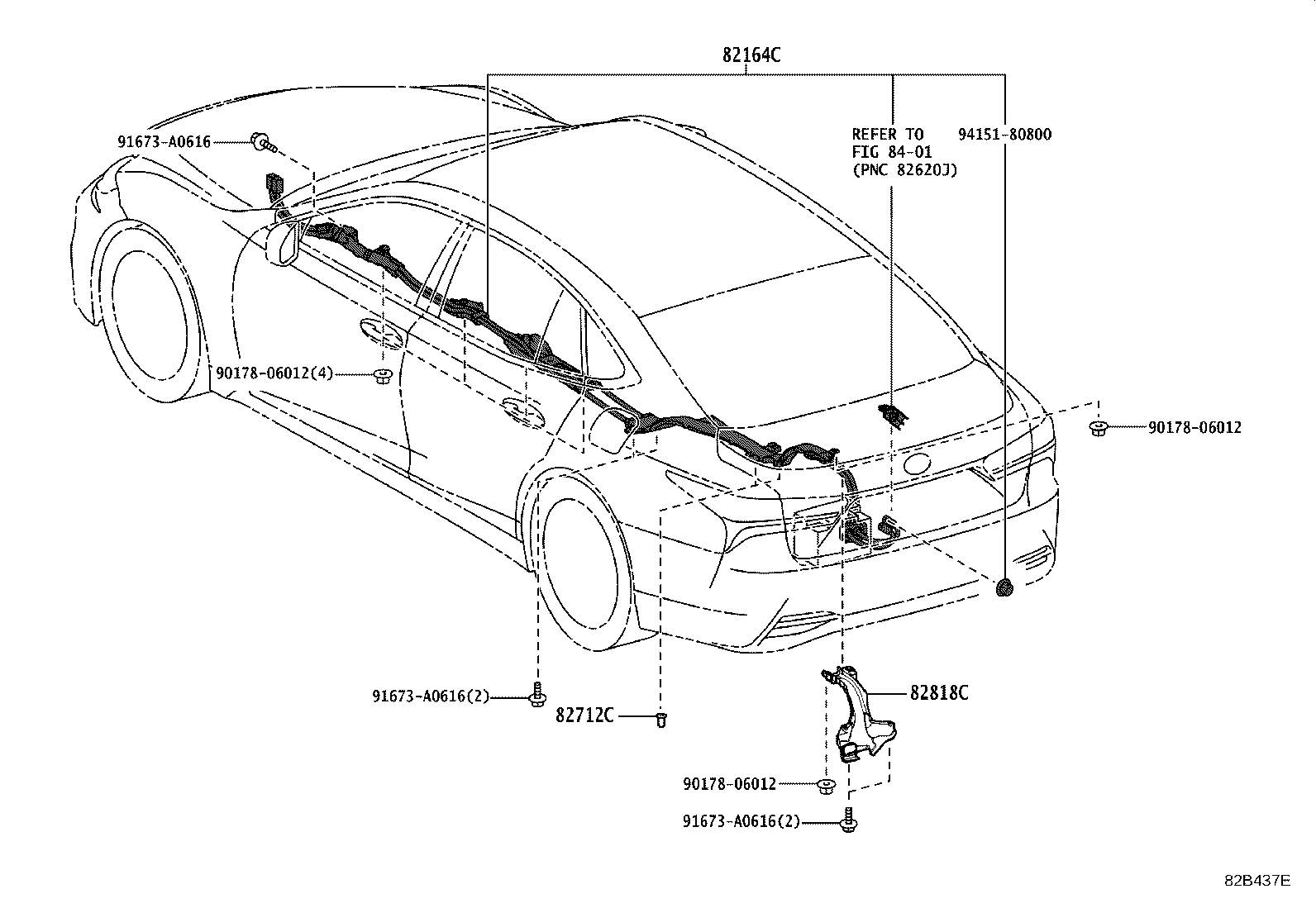

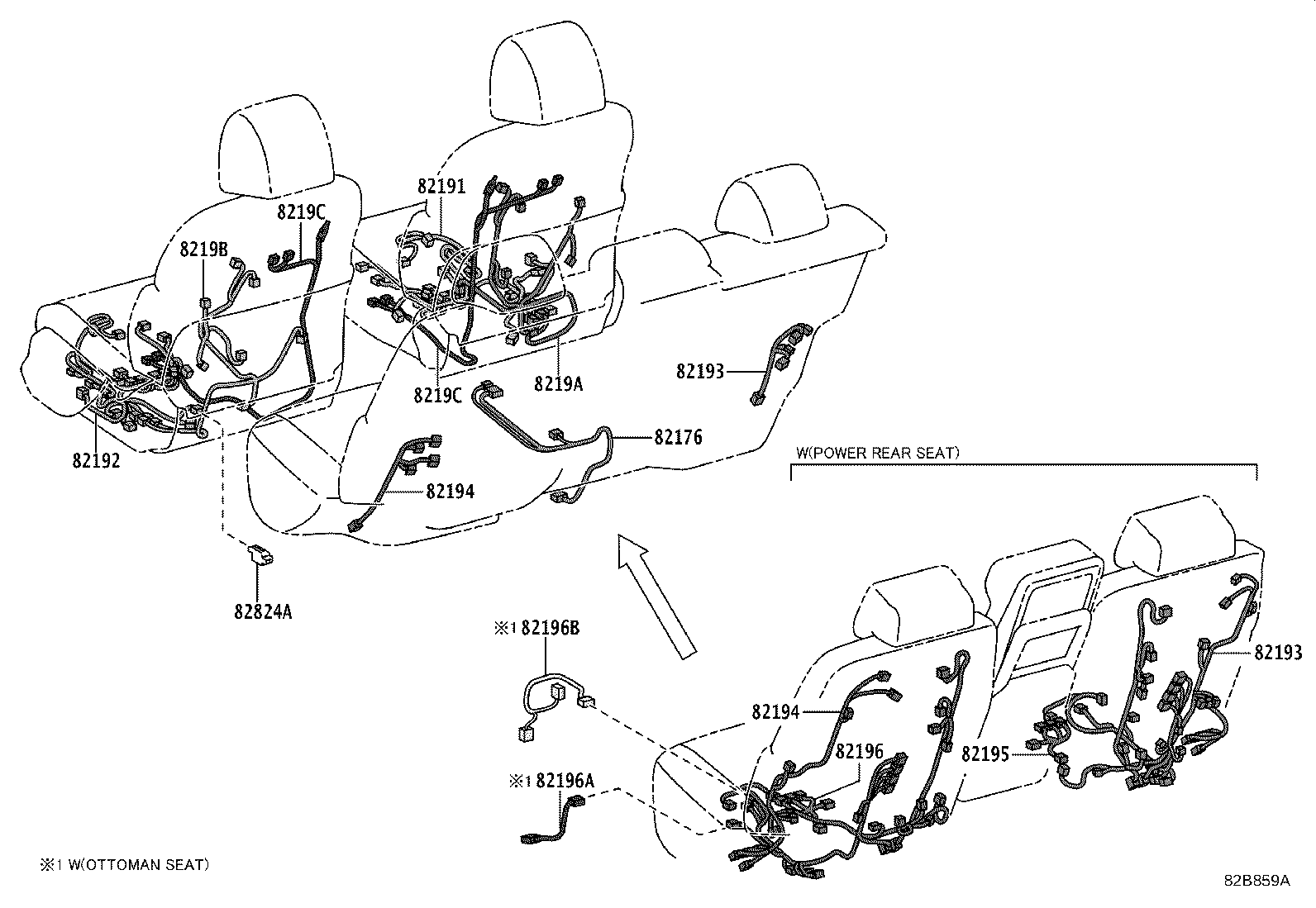

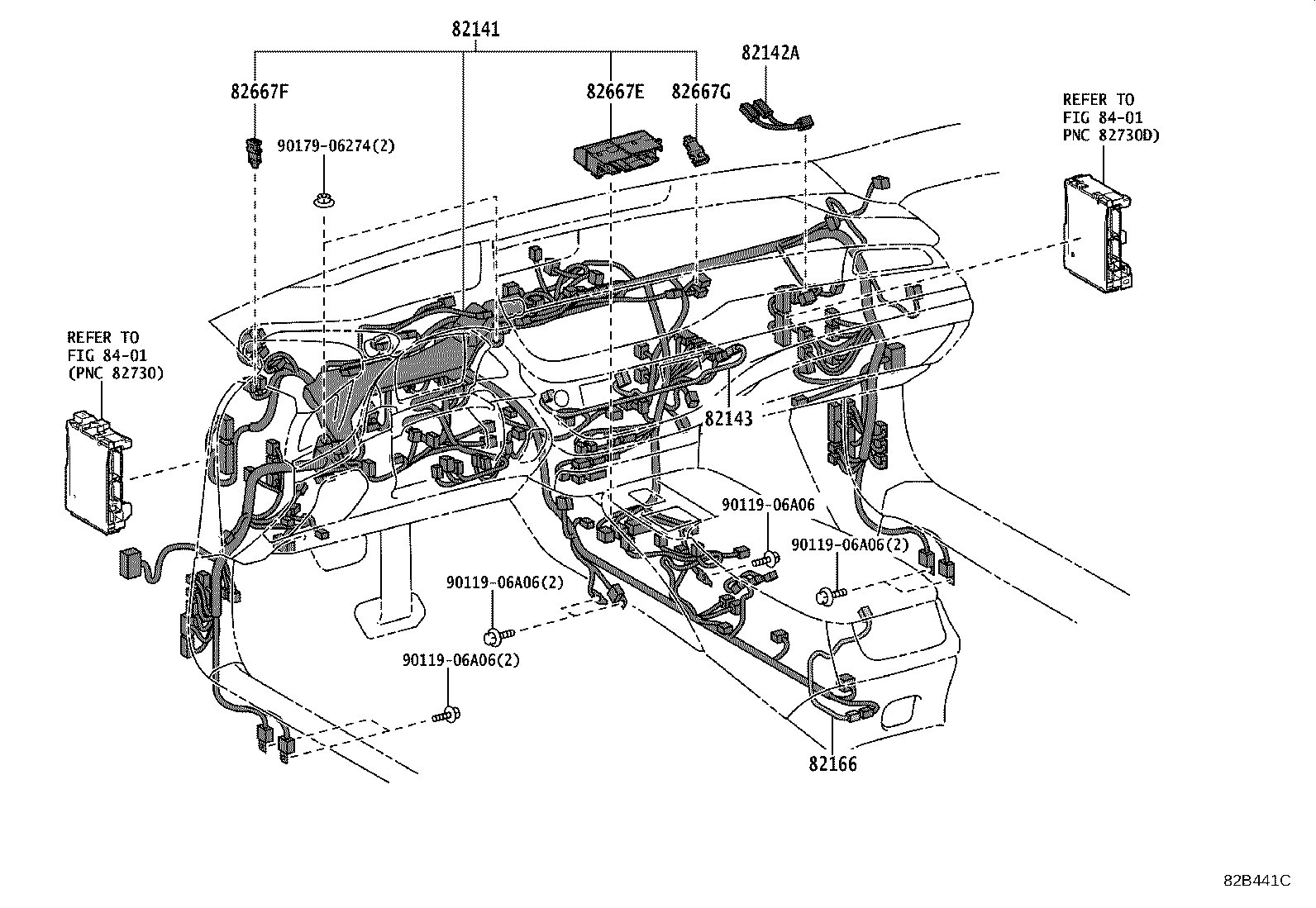

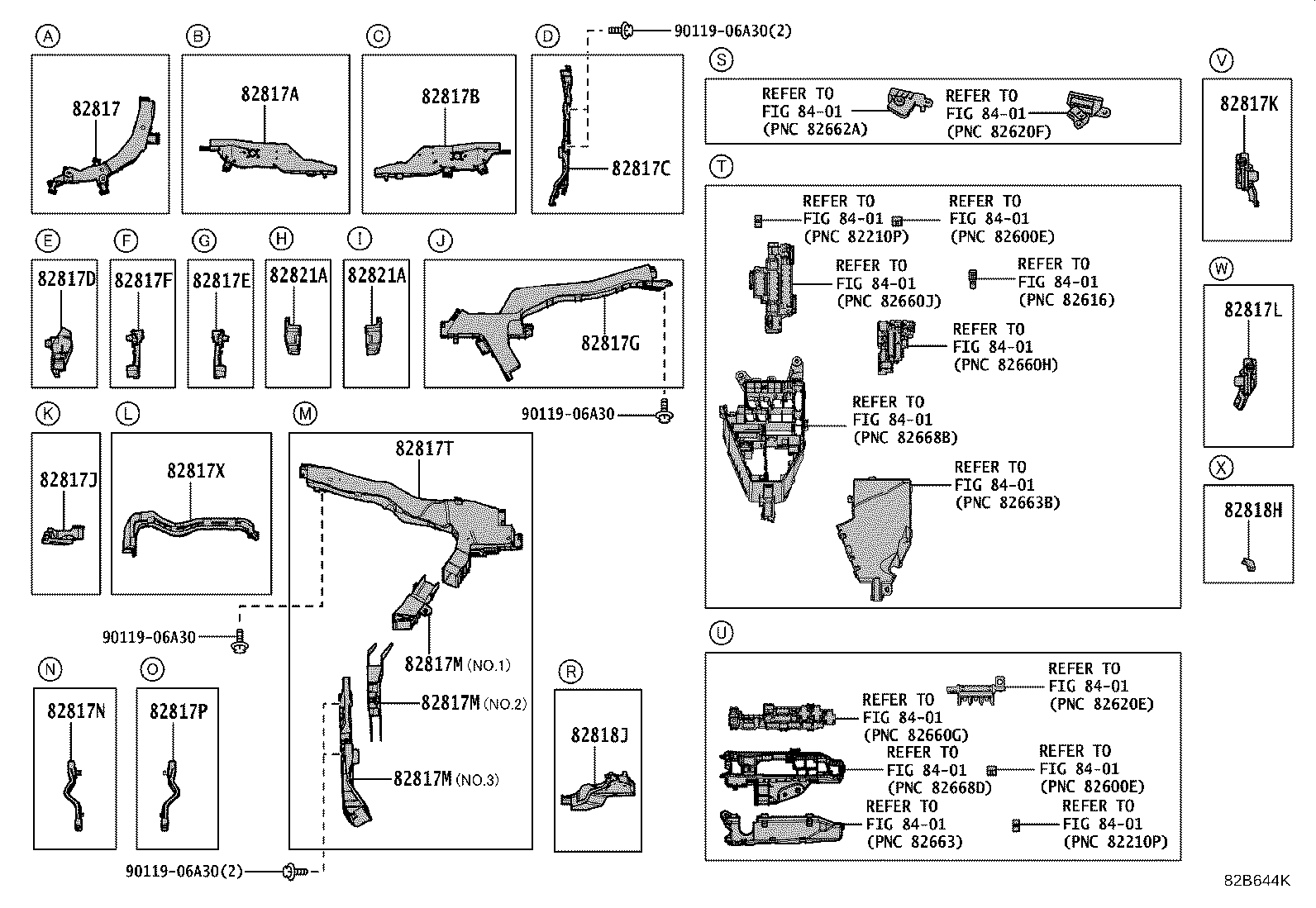

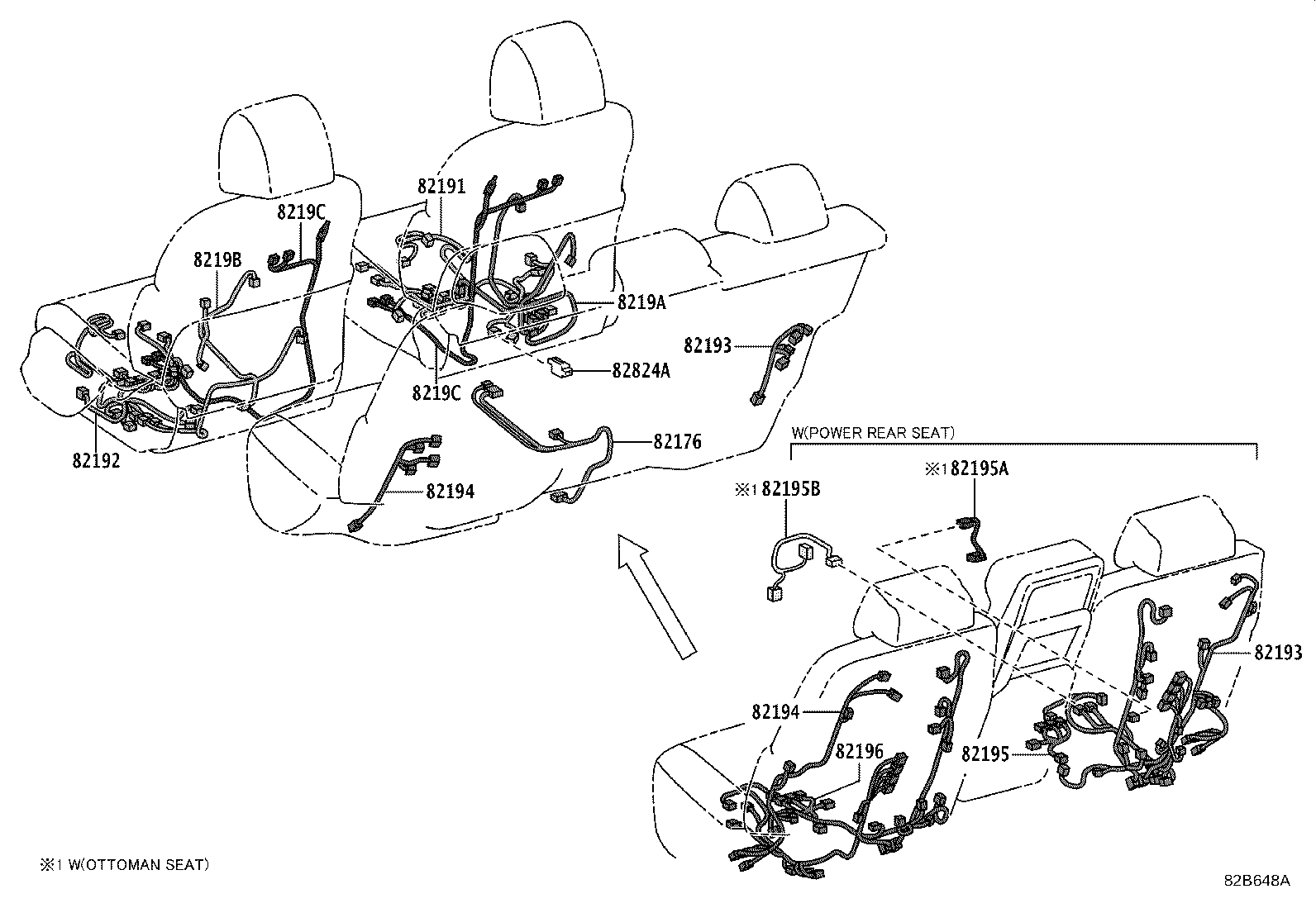

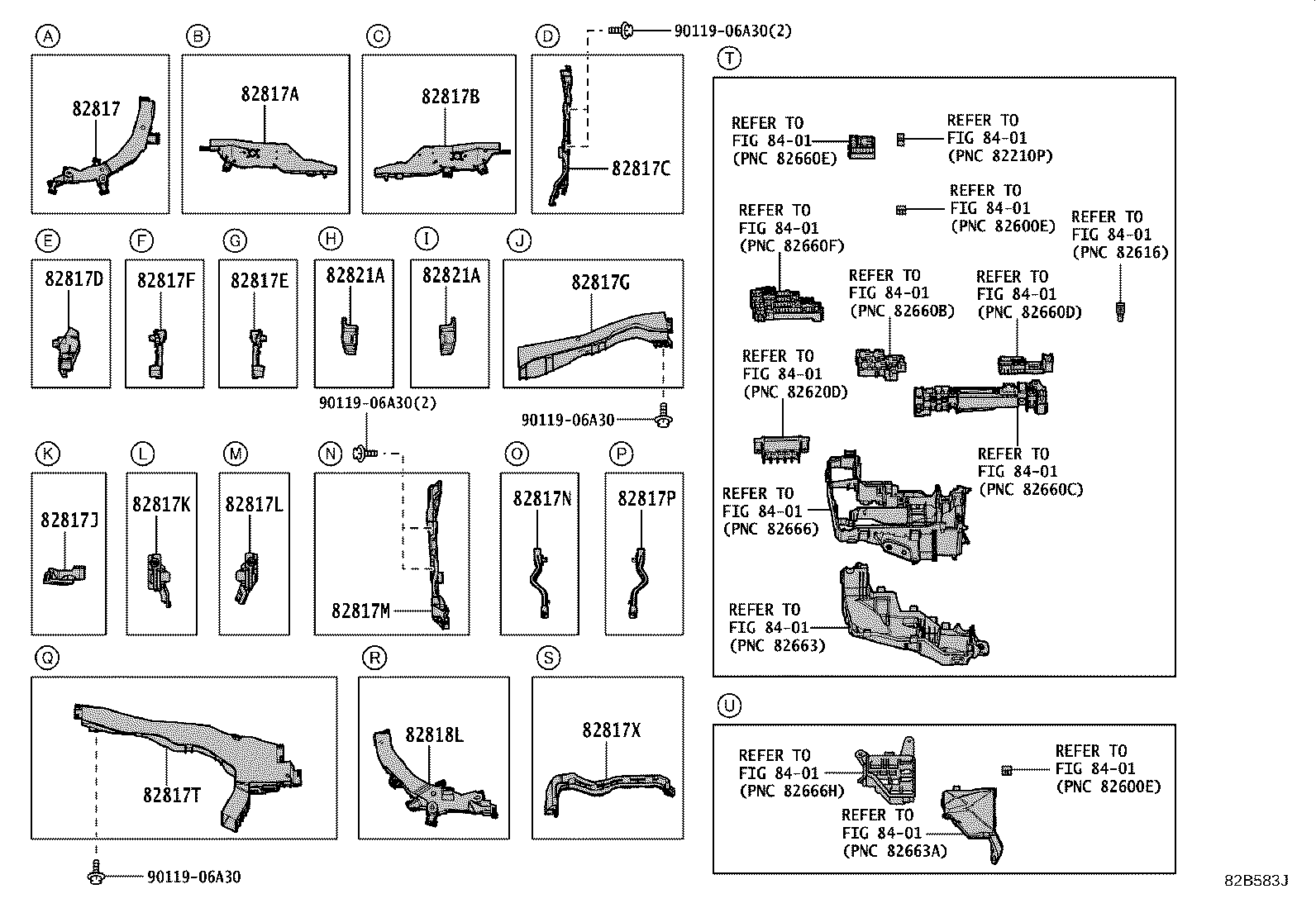

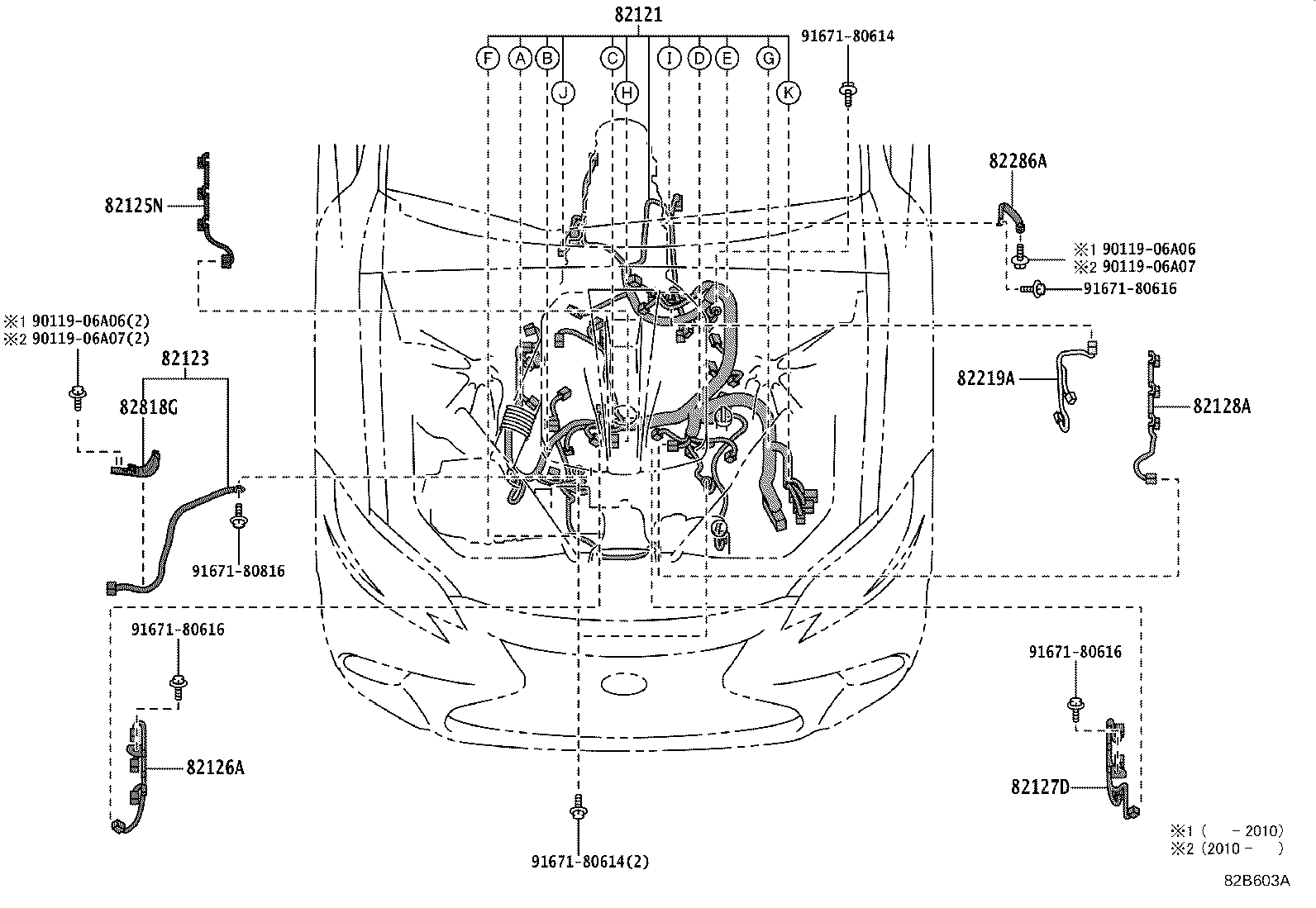

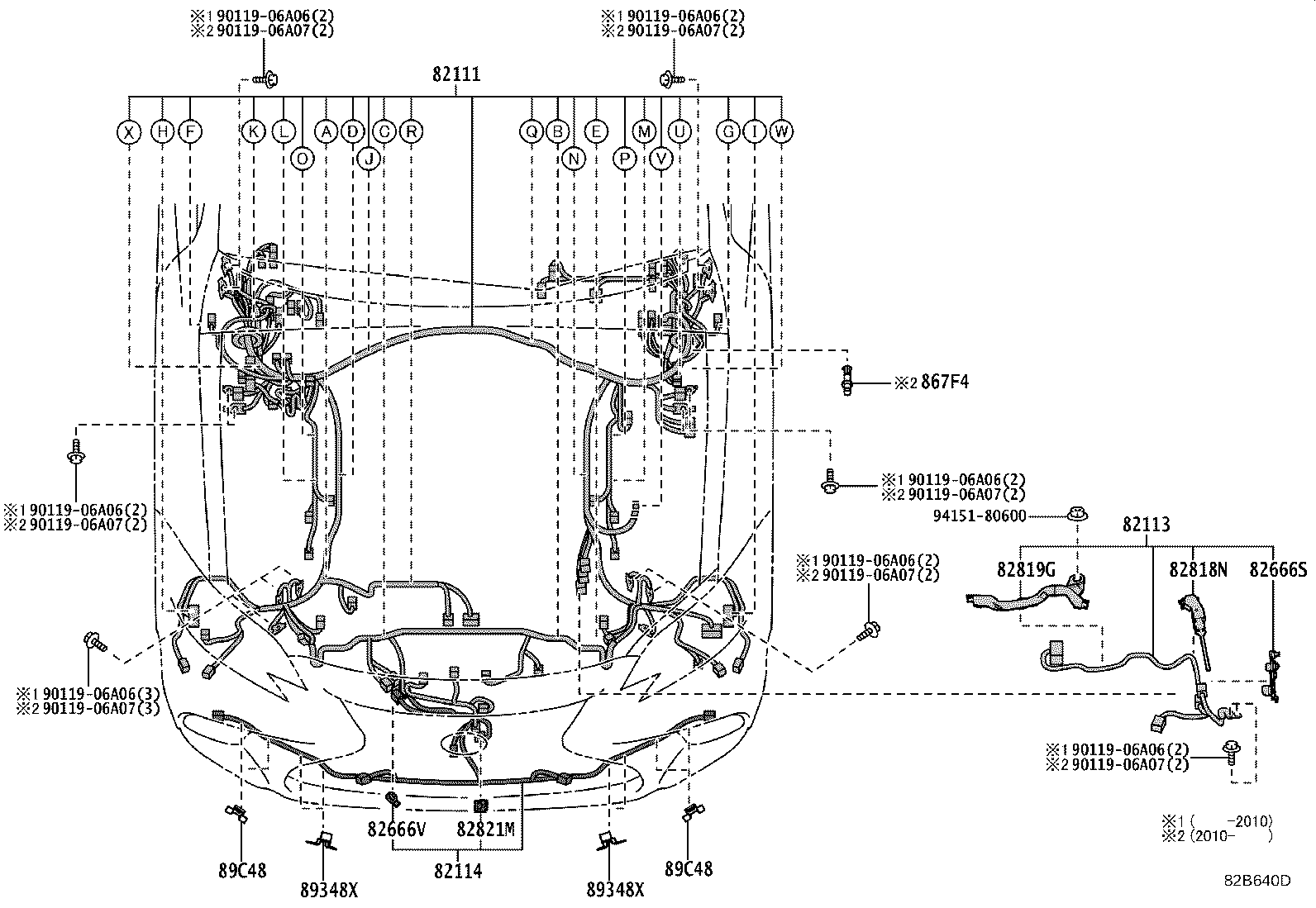

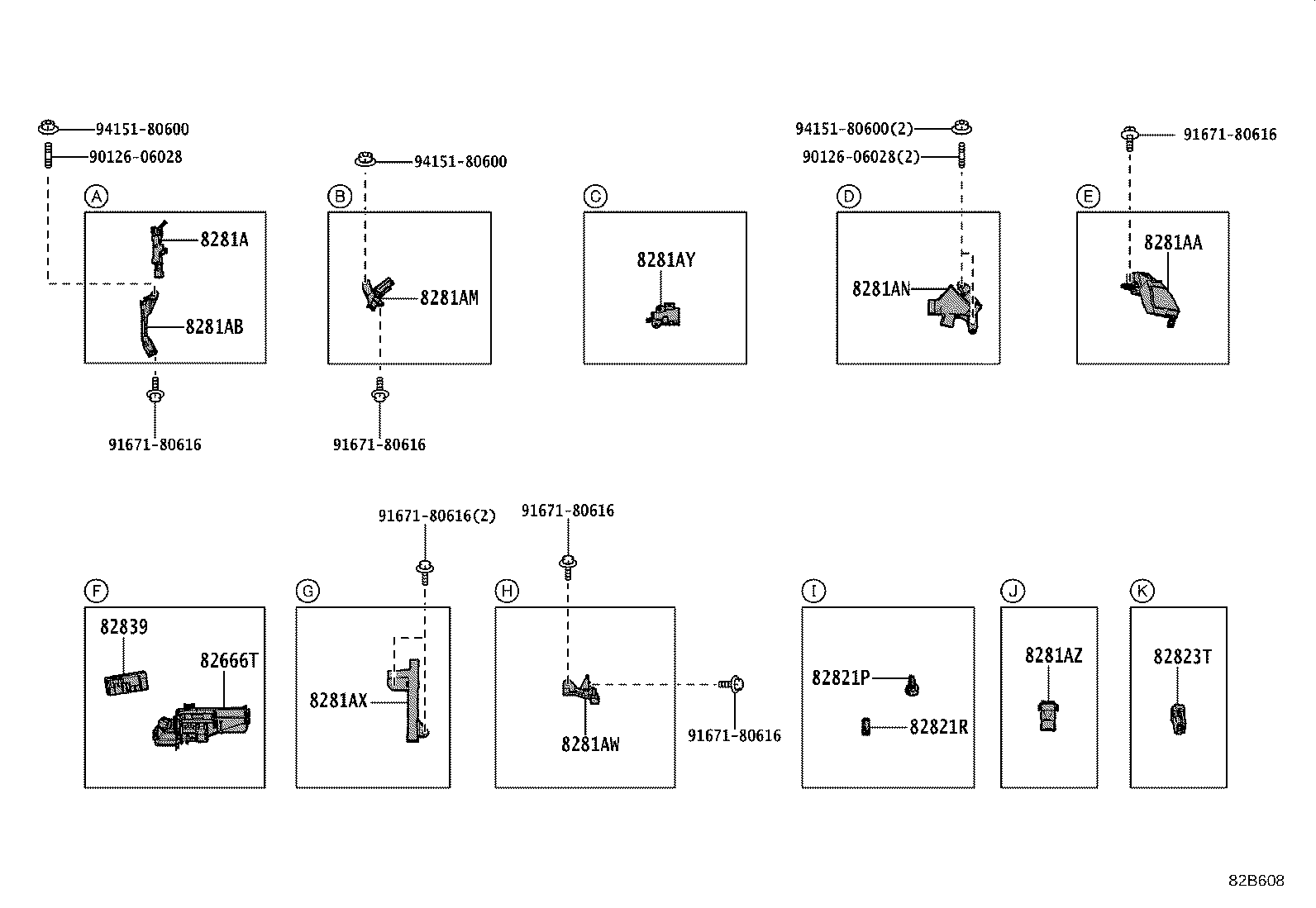

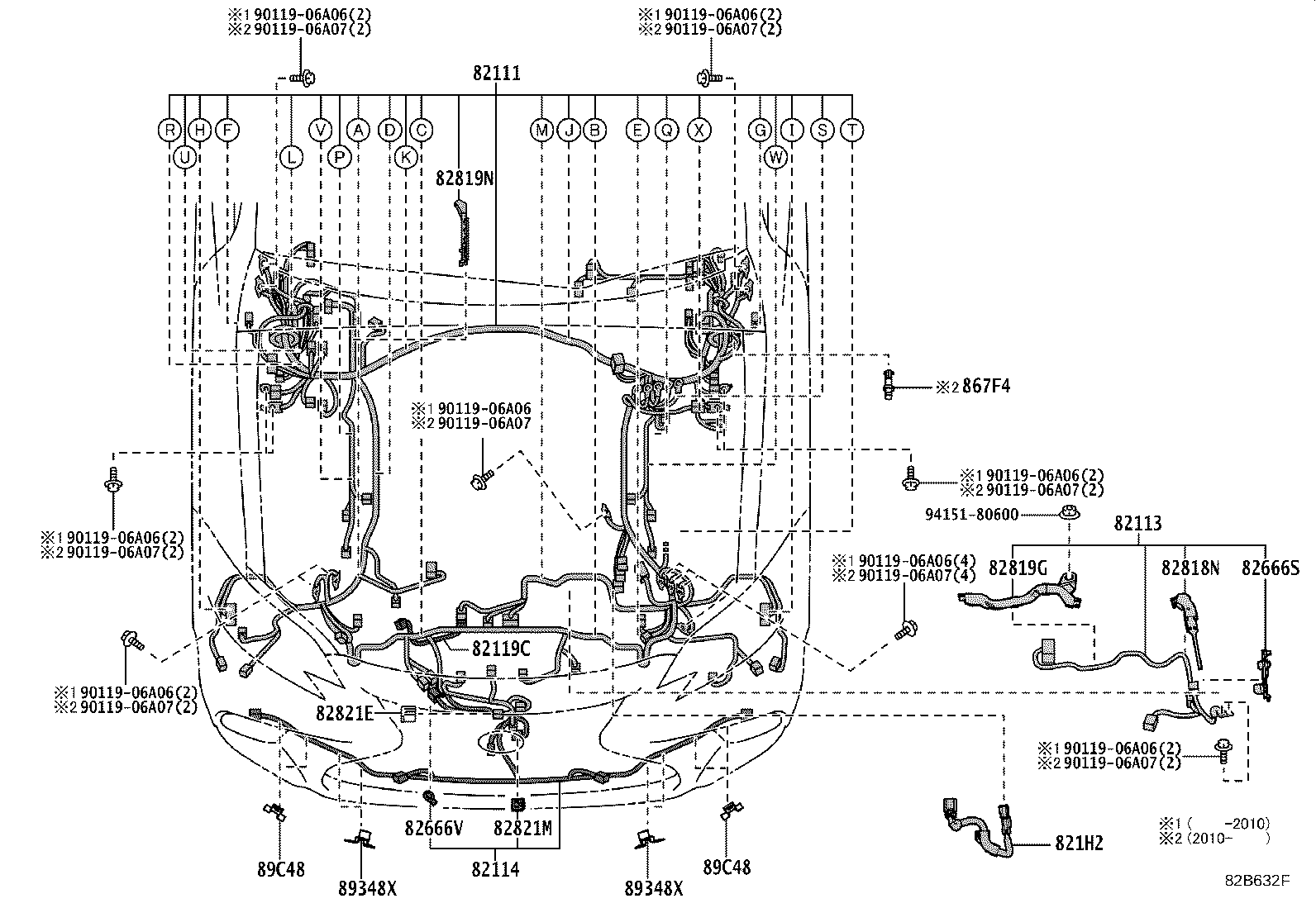

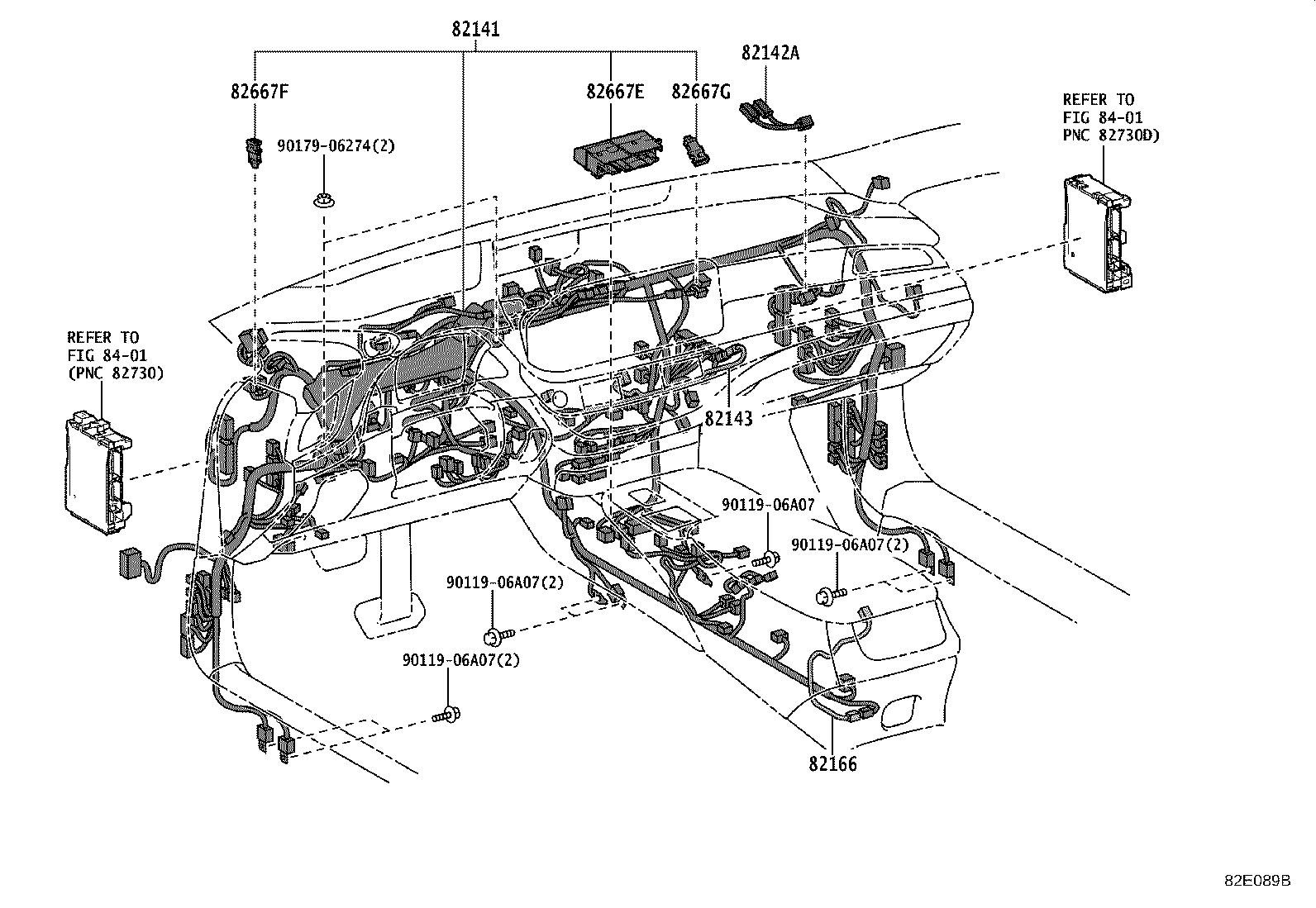

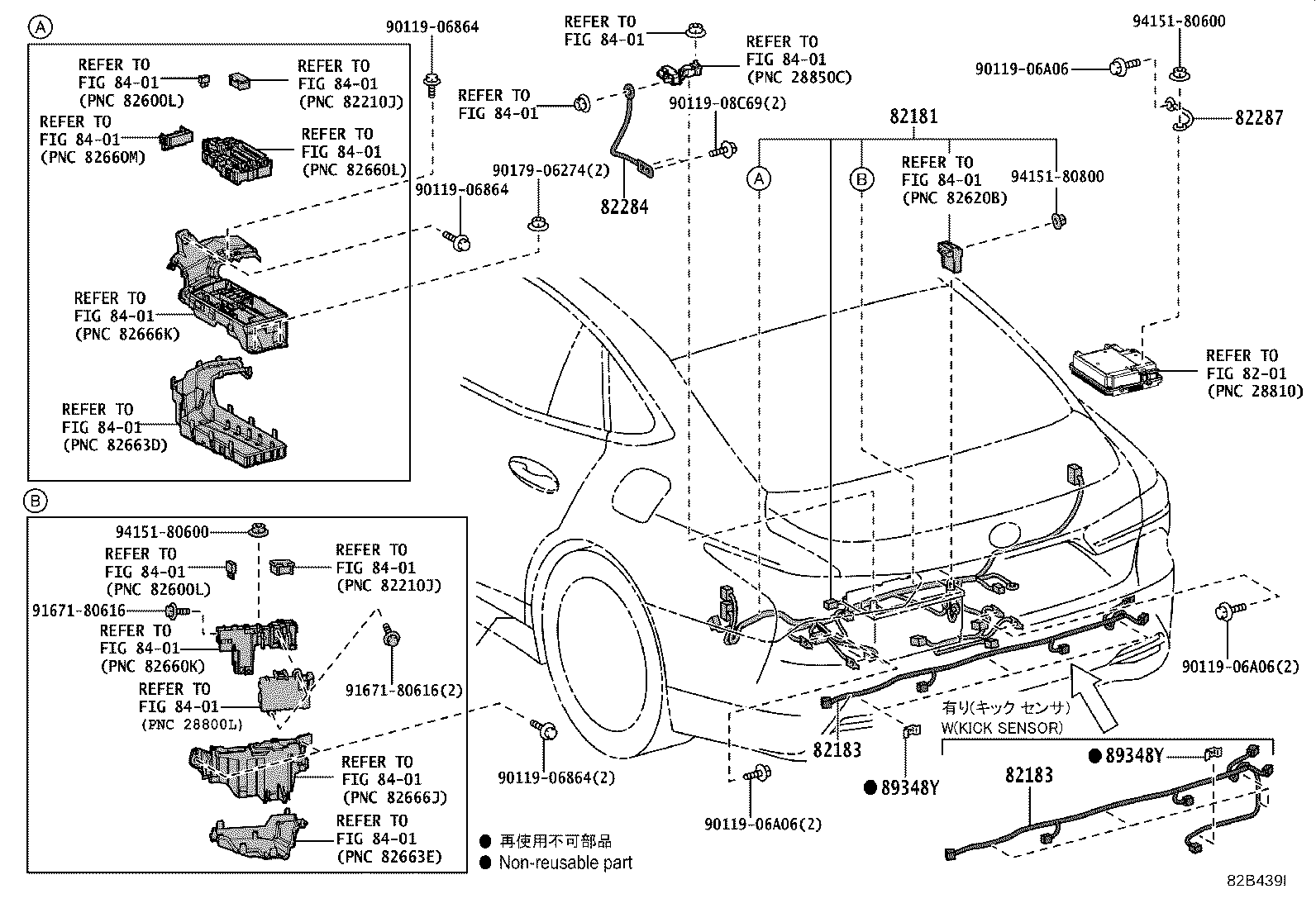

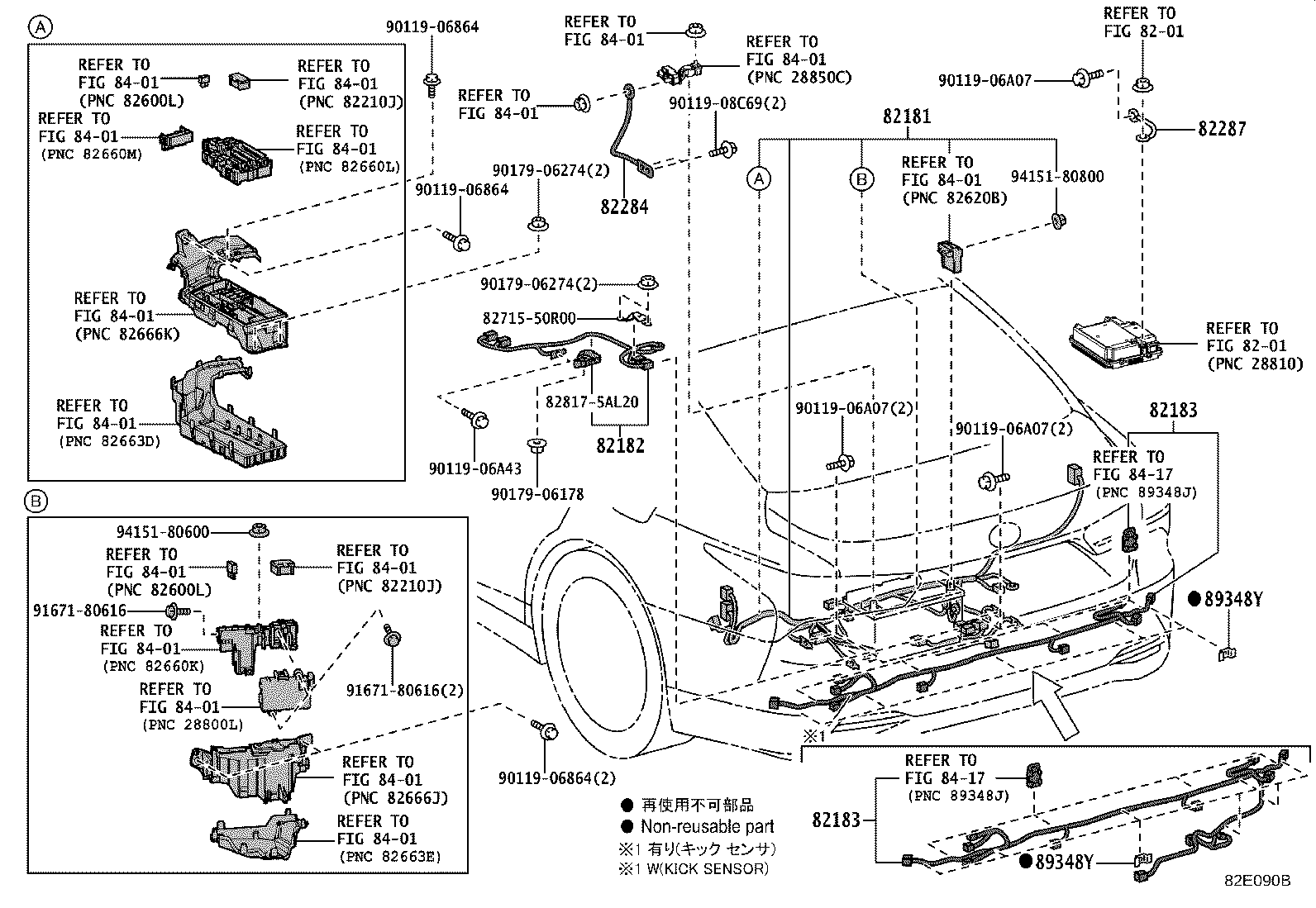

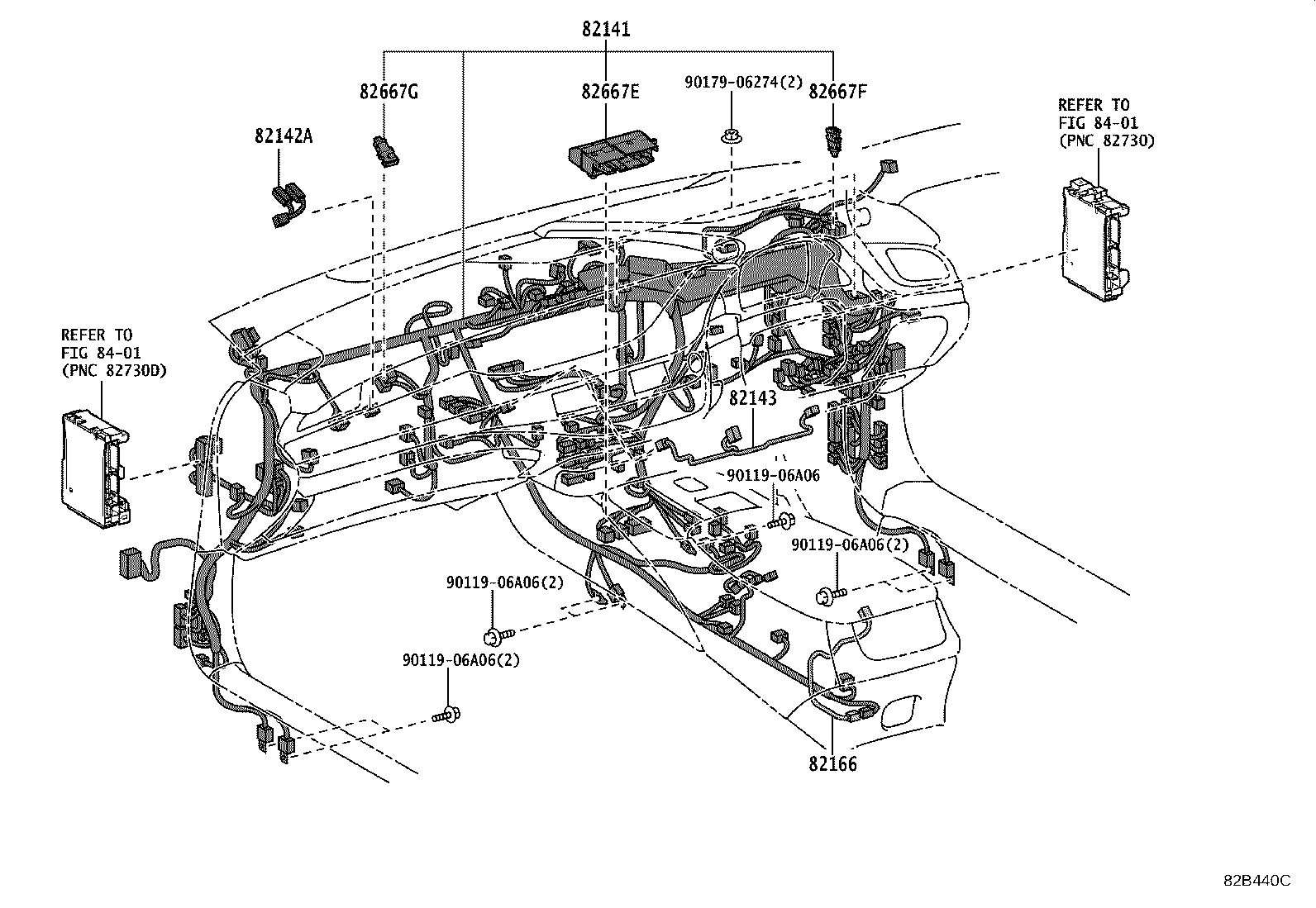

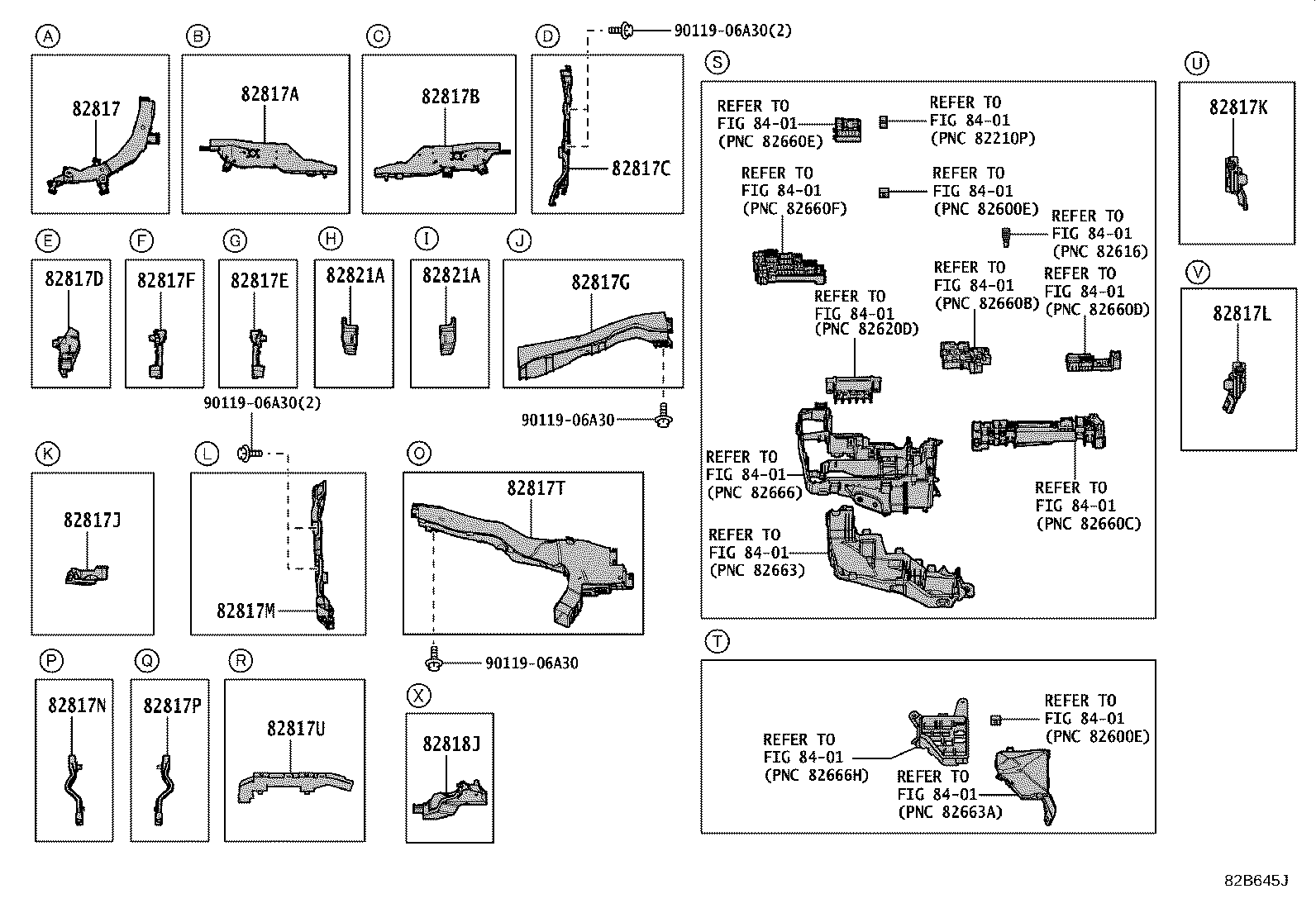

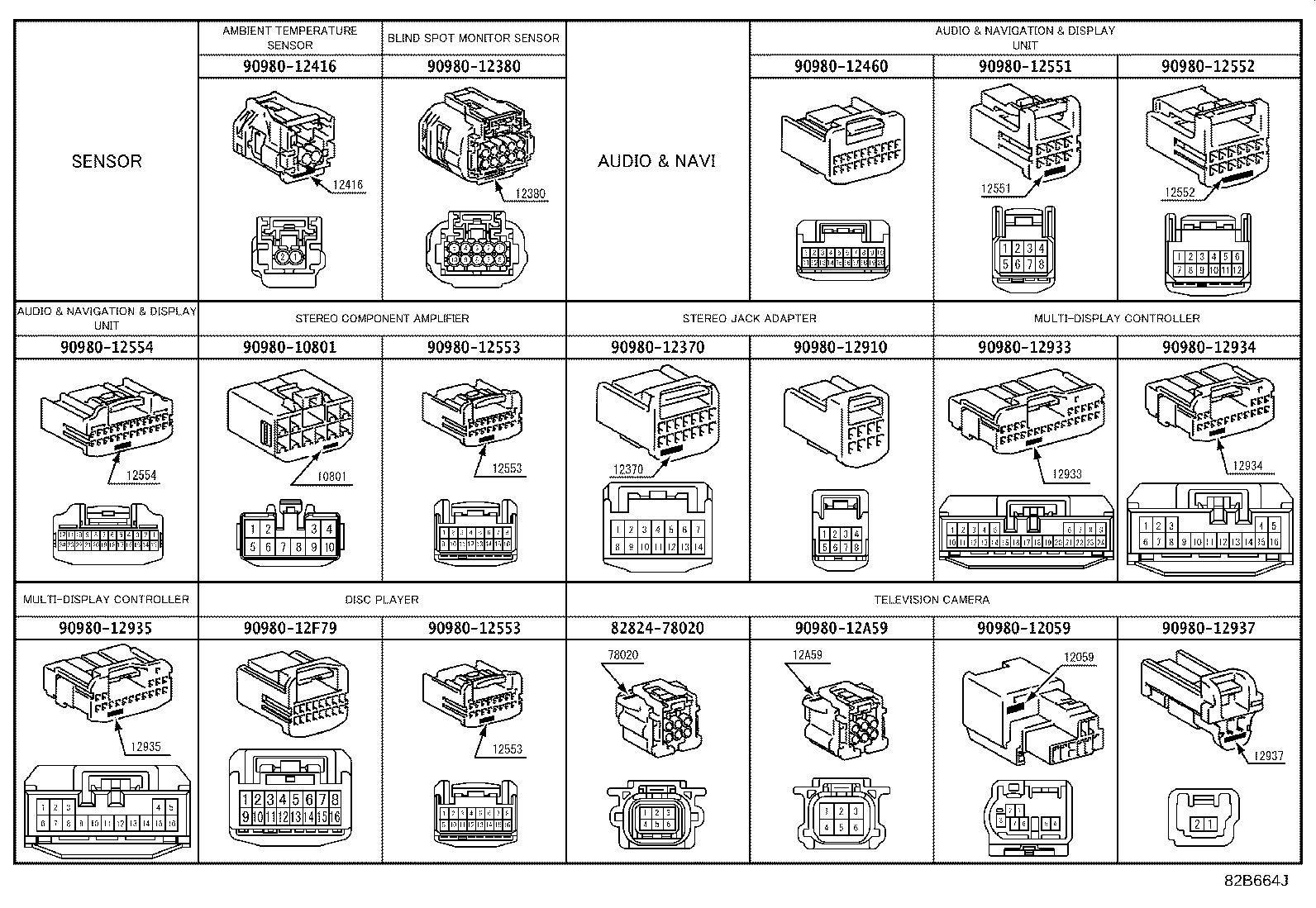

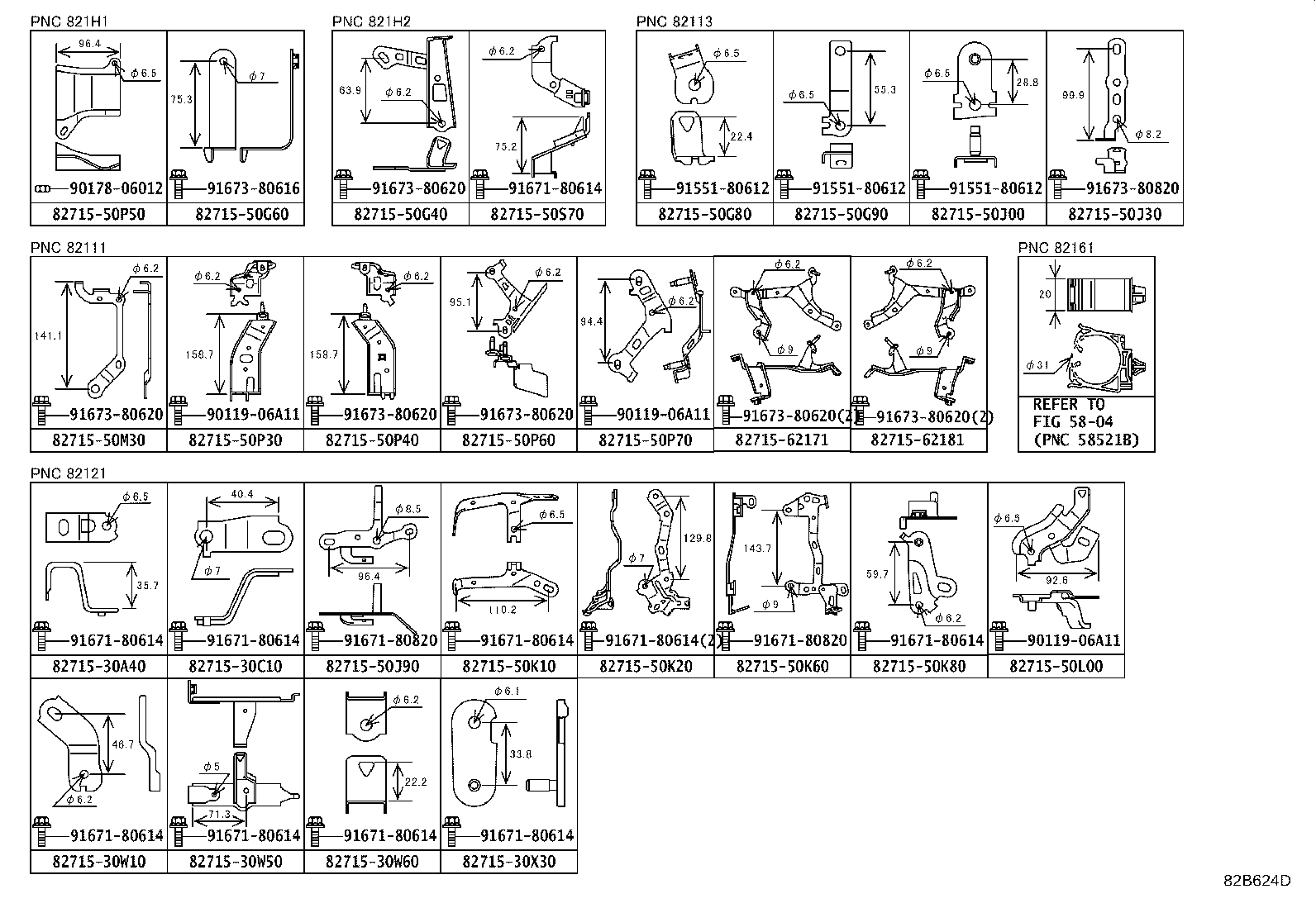

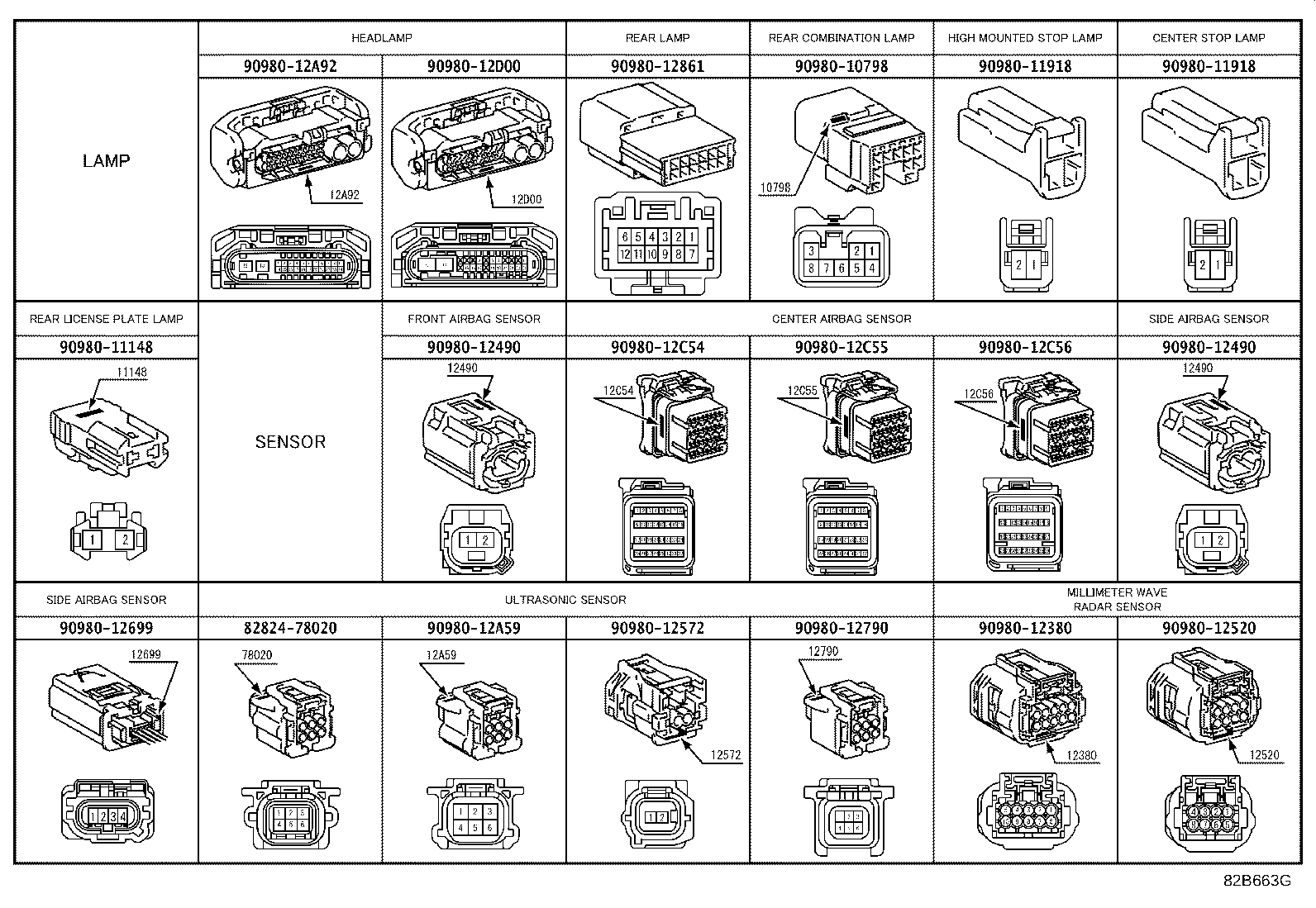

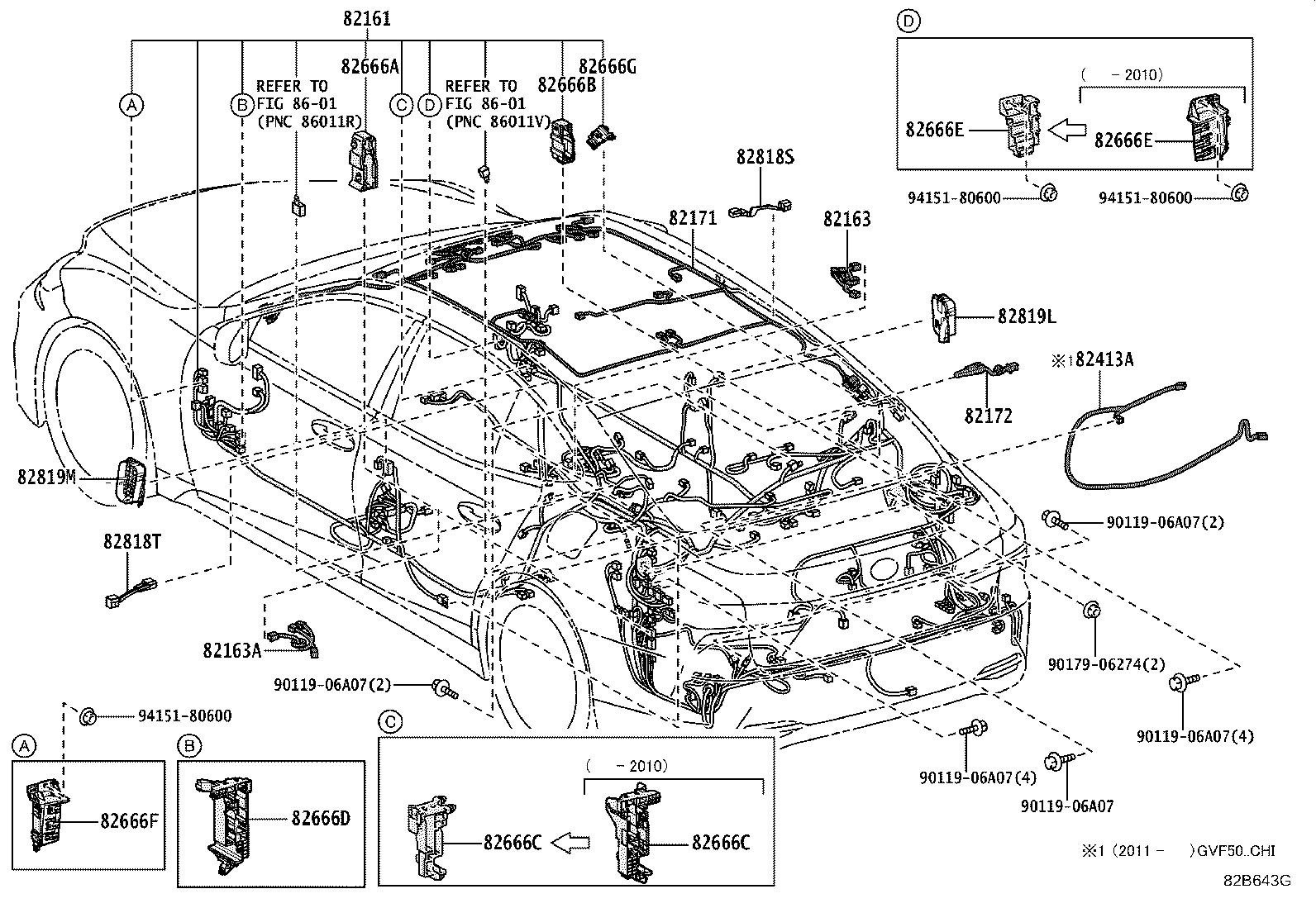

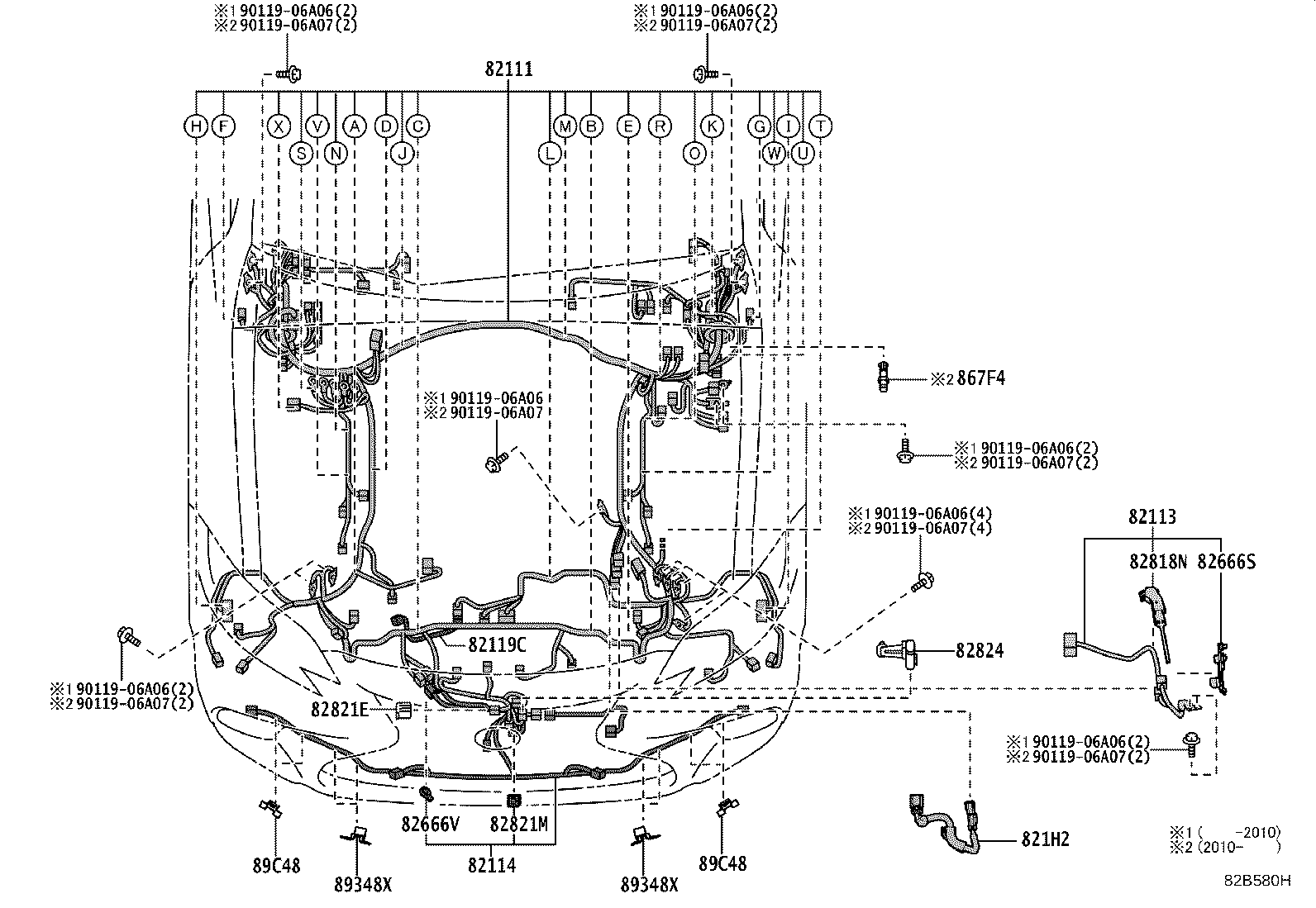

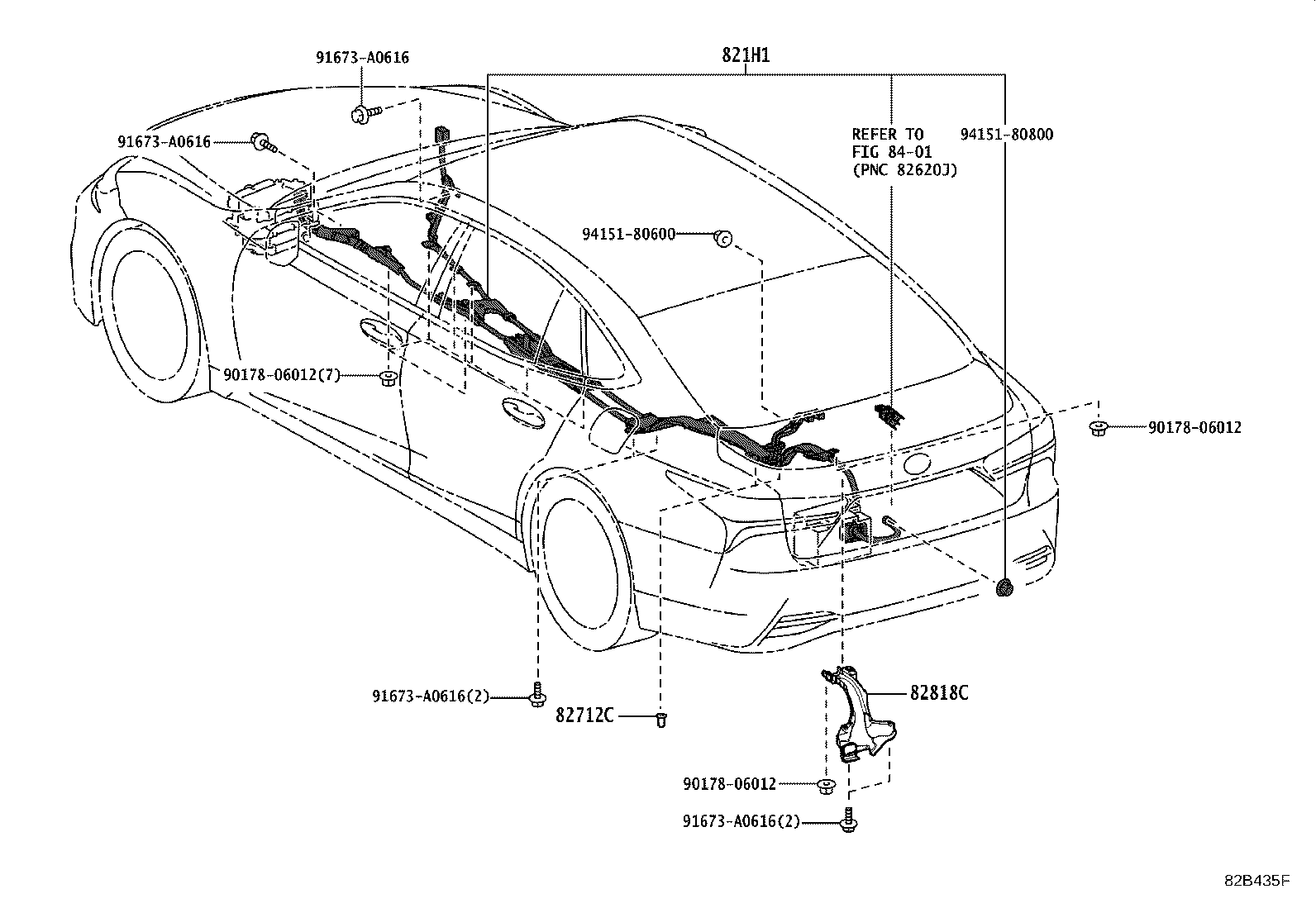

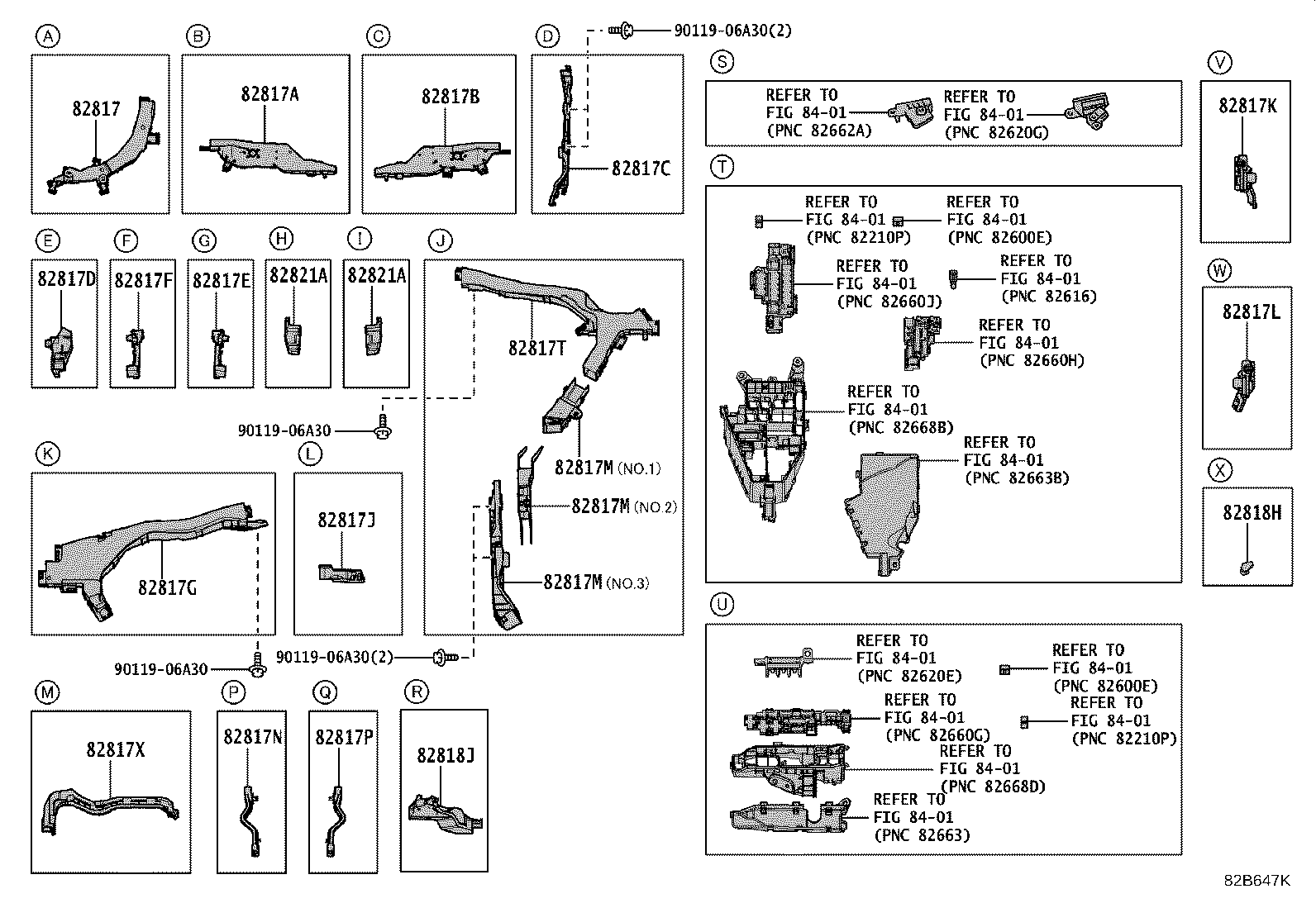

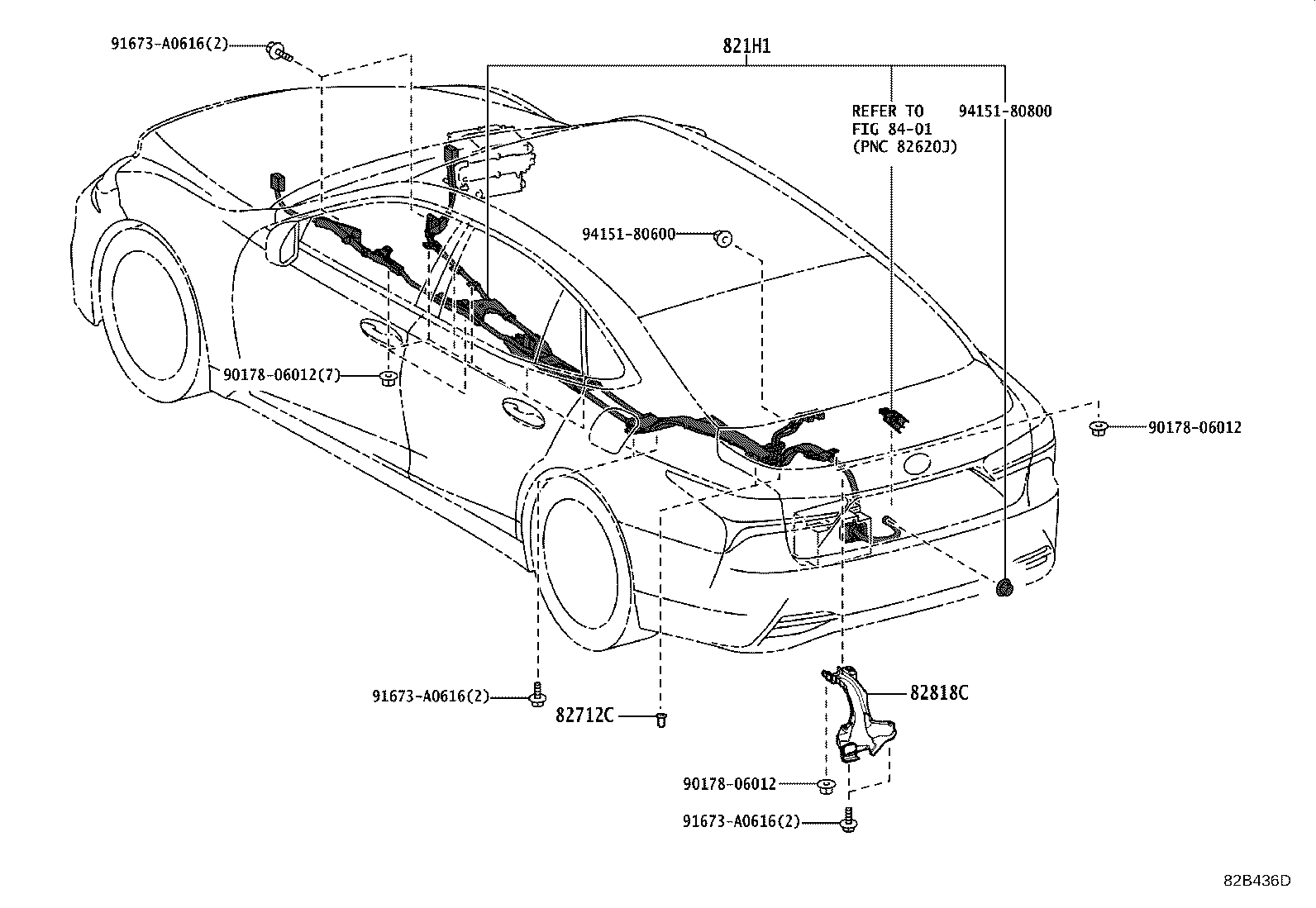

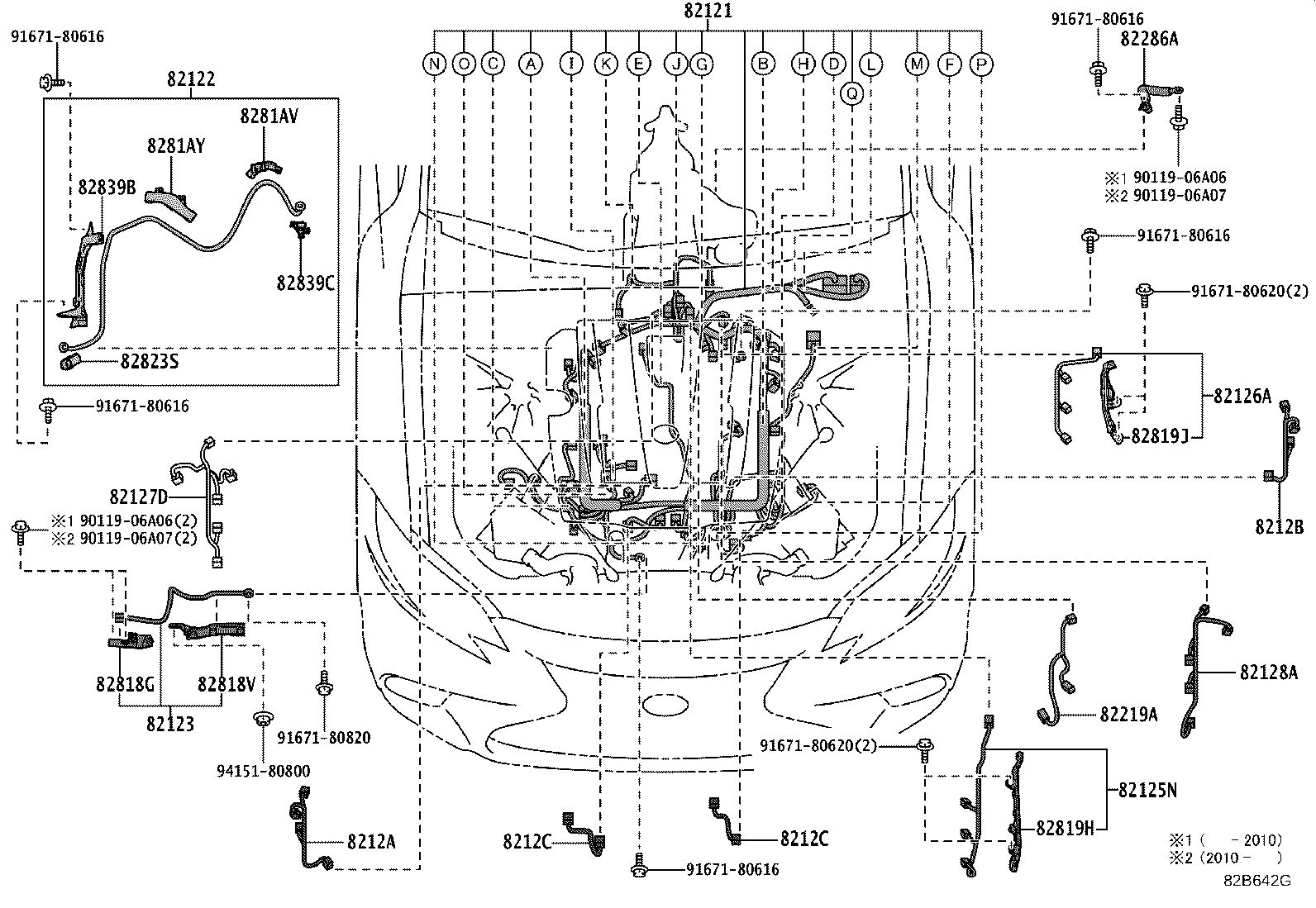

Figure 82C895A 82C895A 2017-10 → — Figure 82B583J 82B583J 2017-10 → — Figure 82B584A 82B584A 2017-10 → — Figure 82B585J 82B585J 2017-10 → — Figure 82B580H 82B580H 2017-10 → — Figure 82B644K 82B644K 2017-10 → — Figure 82B632F 82B632F 2017-10 → — Figure 82B647K 82B647K 2017-10 → — Figure 82B641E 82B641E 2017-12 → — Figure 82B645J 82B645J 2017-12 → — Figure 82B640D 82B640D 2017-12 → — Figure 82B646K 82B646K 2017-12 → — Figure 82B605B 82B605B 2017-10 → — Figure 82B606A 82B606A 2017-10 → — Figure 82B607B 82B607B 2017-10 → — Figure 82B608 82B608 2017-10 → — Figure 82B603A 82B603A 2017-10 → — Figure 82B604 82B604 2017-10 → — Figure 82B642G 82B642G 2017-12 → — Figure 82B649C 82B649C 2017-12 → — Figure 82B441C 82B441C 2017-10 → 2020-10 Figure 82E089B 82E089B 2020-10 → — Figure 82B440C 82B440C 2017-10 → 2020-10 Figure 82E099A 82E099A 2020-10 → — Figure 82B442A 82B442A 2017-10 → — Figure 82B439I 82B439I 2017-10 → 2020-10 Figure 82E090B 82E090B 2020-10 → — Figure 82B827D 82B827D 2017-10 → — Figure 82B643G 82B643G 2017-10 → — Figure 82B436D 82B436D 2017-10 → — Figure 82B435F 82B435F 2017-10 → — Figure 82B438D 82B438D 2017-10 → — Figure 82B437E 82B437E 2017-10 → — Figure 82B648A 82B648A 2017-10 → — Figure 82B859A 82B859A 2017-10 → — Figure 82B623B 82B623B 2017-10 → — Figure 82B869A 82B869A 2017-10 → — Figure 82B624D 82B624D 2017-10 → — Figure 82B625B 82B625B 2017-12 → — Figure 82B663G 82B663G 2017-10 → — Figure 82B664J 82B664J 2017-10 → — Figure 82F352B 82F352B 2017-10 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5

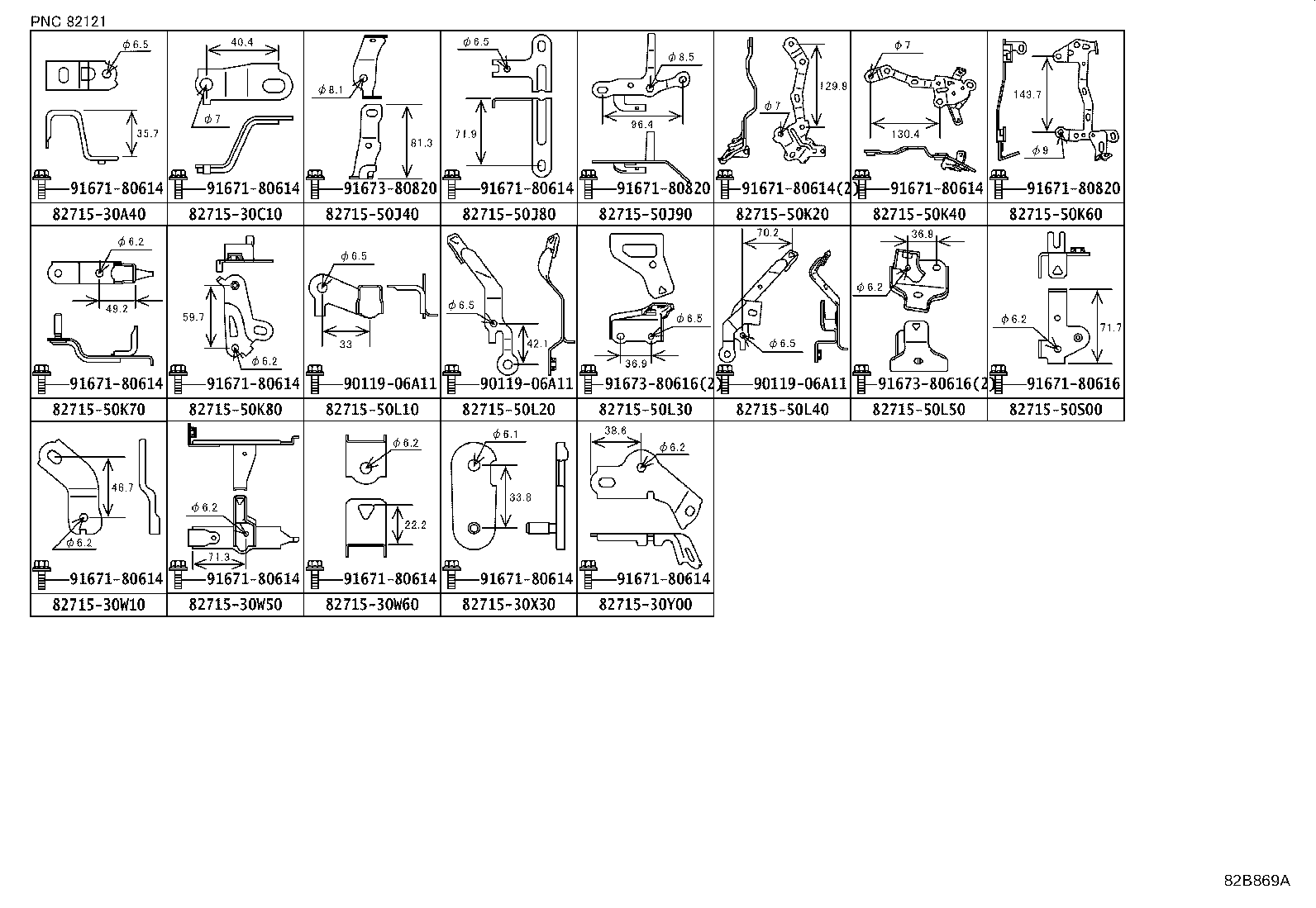

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
8212A Wire, Engine, NO.9
8212B Wire, Engine, NO.10
8212C Wire, Engine, NO.11
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82157C Wire, Rear Door, RH NO.2
82158C Wire, Rear Door, LH NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82164C Wire, Floor, NO.4
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82195A Wire, Rear Seat, RH NO.3
82195B Wire, Rear Seat, RH NO.4
82196 Wire, Rear Seat, LH NO.2
82196A Wire, Rear Seat, LH NO.3
82196B Wire, Rear Seat, LH NO.4
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
8219C Wire, Seat Audio
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219A Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82287 Wire, Earth, NO.3
82413A Wire, Fuel Tank
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82667E Holder, Connector, NO.20
82667F Holder, Connector, NO.21
82667G Holder, Connector, NO.22
82712C Support, Wiring Harness, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818C Protector, Wiring Harness, NO.4
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818L Protector, Wiring Harness, NO.12
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818V Protector, Wiring Harness, NO.18
82818X Protector, Wiring Harness, NO.20
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819L Protector, Wiring Harness, NO.27
82819M Protector, Wiring Harness, NO.28
82819N Protector, Wiring Harness, NO.29
8281A Protector, Wiring Harness, NO.1
8281AA Protector, Wiring Harness, NO.2
8281AB Protector, Wiring Harness, NO.3
8281AC Protector, Wiring Harness, NO.4
8281AD Protector, Wiring Harness, NO.5
8281AE Protector, Wiring Harness, NO.6
8281AF Protector, Wiring Harness, NO.7
8281AG Protector, Wiring Harness, NO.8
8281AH Protector, Wiring Harness, NO.9
8281AJ Protector, Wiring Harness, NO.10
8281AK Protector, Wiring Harness, NO.11
8281AL Protector, Wiring Harness, NO.12
8281AM Protector, Wiring Harness, NO.13
8281AN Protector, Wiring Harness, NO.14
8281AP Protector, Wiring Harness, NO.15
8281AQ Protector, Wiring Harness, NO.16
8281AR Protector, Wiring Harness, NO.17
8281AV Protector, Wiring Harness, NO.21
8281AW Protector, Wiring Harness, NO.22
8281AX Protector, Wiring Harness, NO.23
8281AY Protector, Wiring Harness, NO.24
8281AZ Protector, Wiring Harness, NO.25
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82825 Protector, Wiring Harness
82839 Protector, Wiring Harness, NO.1
82839A Protector, Wiring Harness, NO.2
82839B Protector, Wiring Harness, NO.3
82839C Protector, Wiring Harness, NO.4
867F4 Joint, Washer Hose
89348X Clip, Ultrasonic Sensor, Front
89348Y Clip, Ultrasonic Sensor, Rear
89C48 Clip, Ultrasonic Sensor, Front NO.2
