Toyota Lexus LS500/500H/350

2017-10 → present · chassis GSF50,GVF50,VXFA50 · catalogue 431360 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 3 illustrations

Illustrations

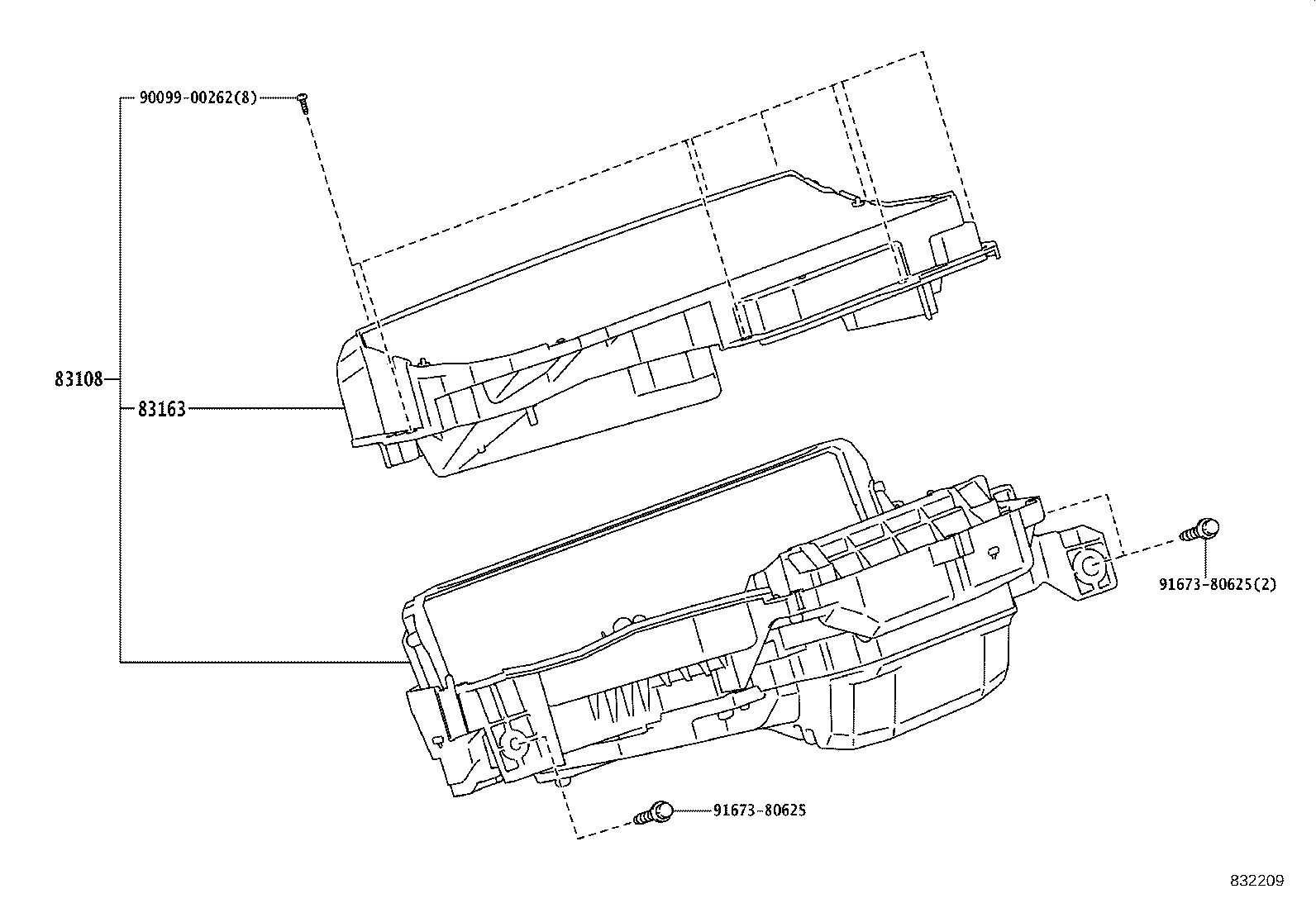

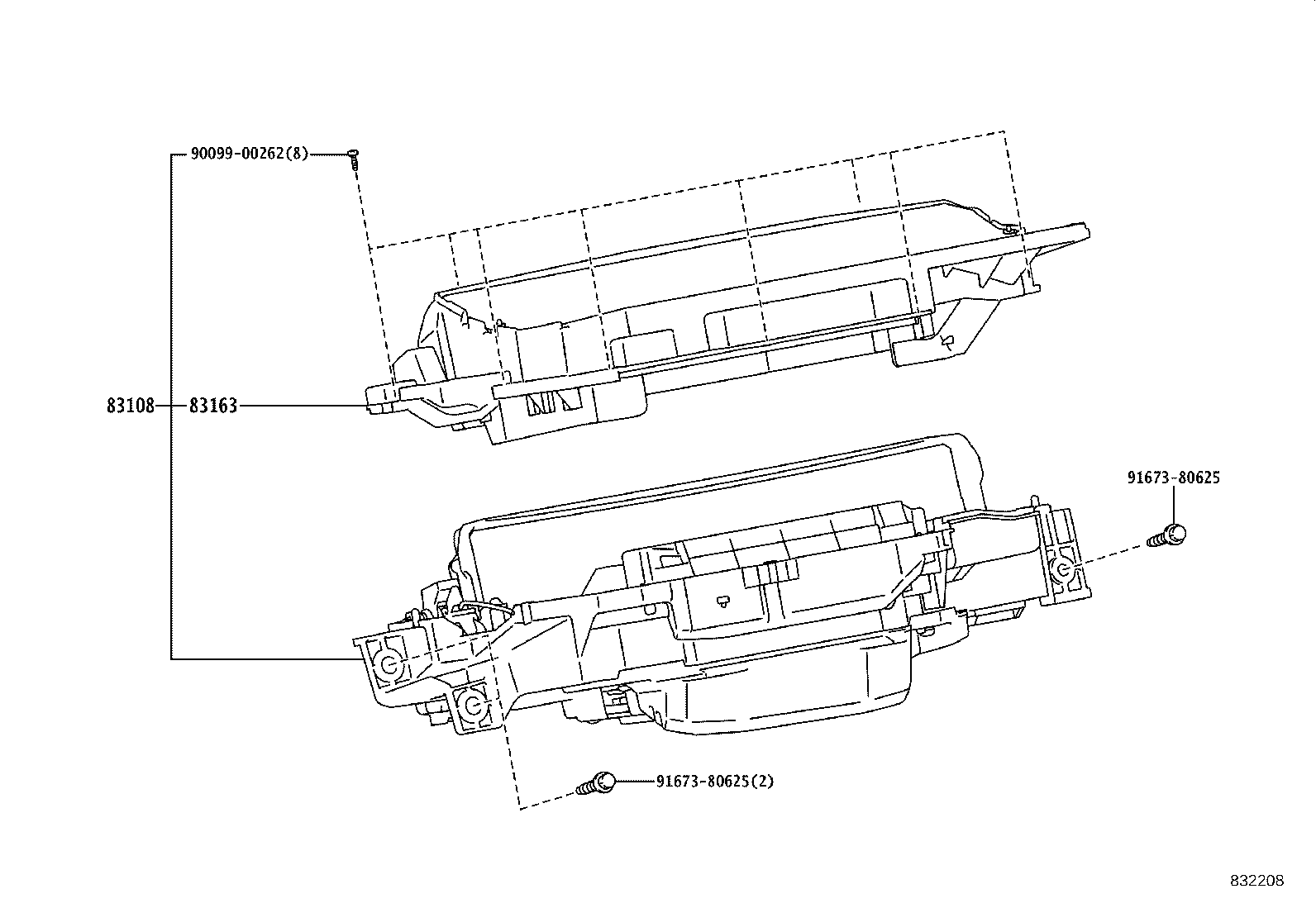

Figure 832210C 832210C 2017-10 → — Figure 832209 832209 2017-10 → — Figure 832208 832208 2017-10 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83108 Mirror Sub-assy, Meter
83138G Glass, Combination Meter
83163 Plate, Combination Meter Mirror, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
