Toyota Lexus LS500/500H/350

2017-10 → present · chassis GSF50,GVF50,VXFA50 · catalogue 431360 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

15 part groups · 4 illustrations

Illustrations

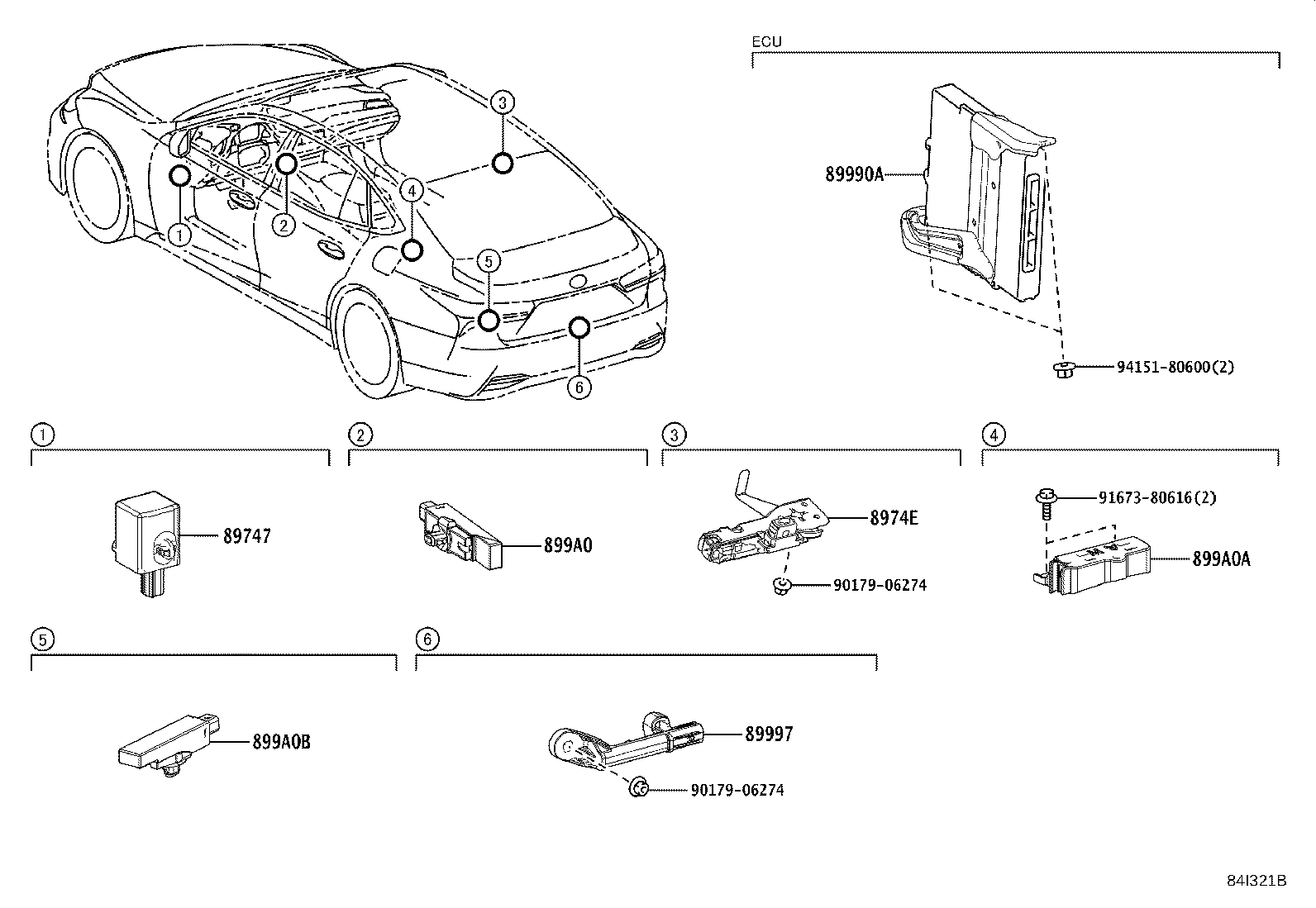

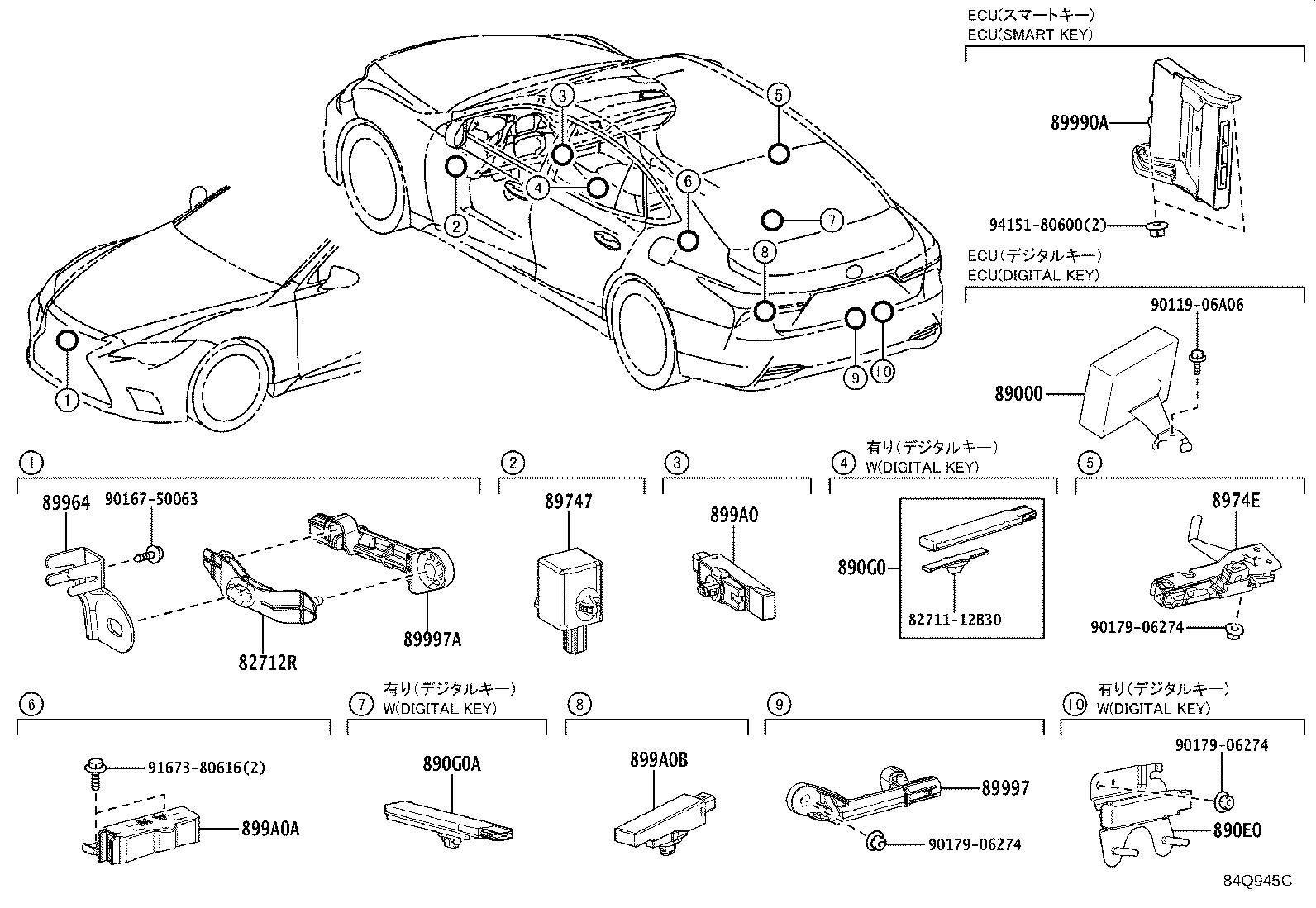

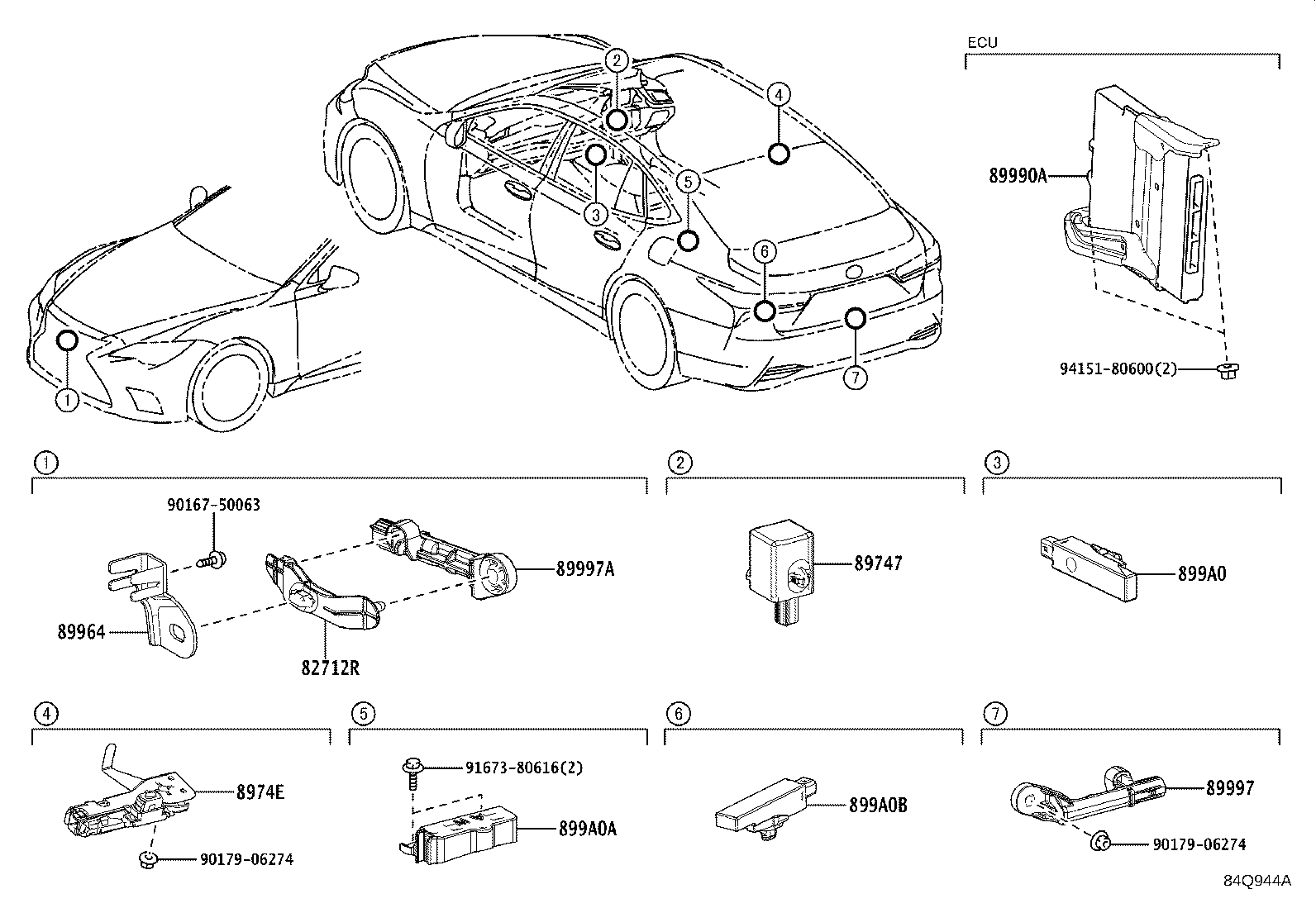

Figure 84I320C 84I320C 2017-10 → 2023-10 Figure 84Q944A 84Q944A 2023-10 → — Figure 84I321B 84I321B 2017-10 → 2023-10 Figure 84Q945C 84Q945C 2023-10 → —

Part groups

PNCDescription
82712R Support, Electrical Key Antenna
89000 Computer Assy, Digital Key
890E0 Receiver Assy, Ble Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
890G0A Receiver Assy, Ble Door Digital Key, NO.2
89740A Receiver Assy, Smart Door Control
89747 Buzzer, Wireless Door Lock
8974E Antenna, Roof Header Electrical Key
89964 Bracket, Electrical Key Antenna
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
89997A Antenna, Electrical Key, NO.2
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
