Toyota Lexus LS500/500H/350

2017-10 → present · chassis GSF50,GVF50,VXFA50 · catalogue 431360 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

19 part groups · 2 illustrations

Illustrations

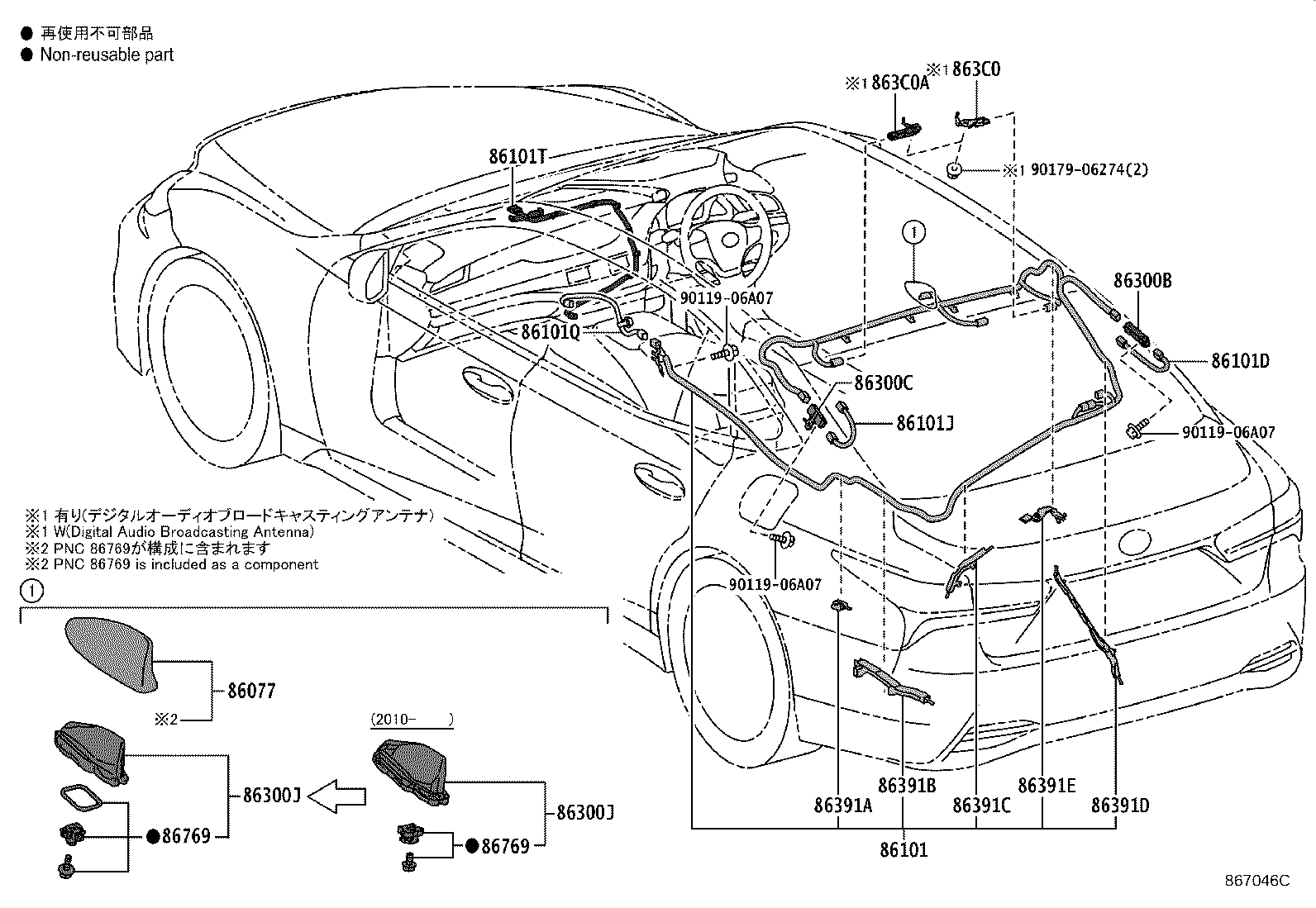

Figure 867047F 867047F 2017-10 → — Figure 867046C 867046C 2017-10 → —

Part groups

PNCDescription
86050J Antenna Assy, Television, NO.2 RH
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86101T Cord Sub-assy, Antenna
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86300J Antenna Assy, Roof
86391A Protector, Antenna Cord
86391B Protector, Antenna Cord
86391C Protector, Antenna Cord
86391D Protector, Antenna Cord
86391E Protector, Antenna Cord
863C0 Antenna Assy, Digital Audio Broadcasting
863C0A Antenna Assy, Digital Audio Broadcasting
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
