Toyota Lexus LS500/500H/350

2017-10 → present · chassis GSF50,GVF50,VXFA50 · catalogue 431360 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

4 part groups · 2 illustrations

Illustrations

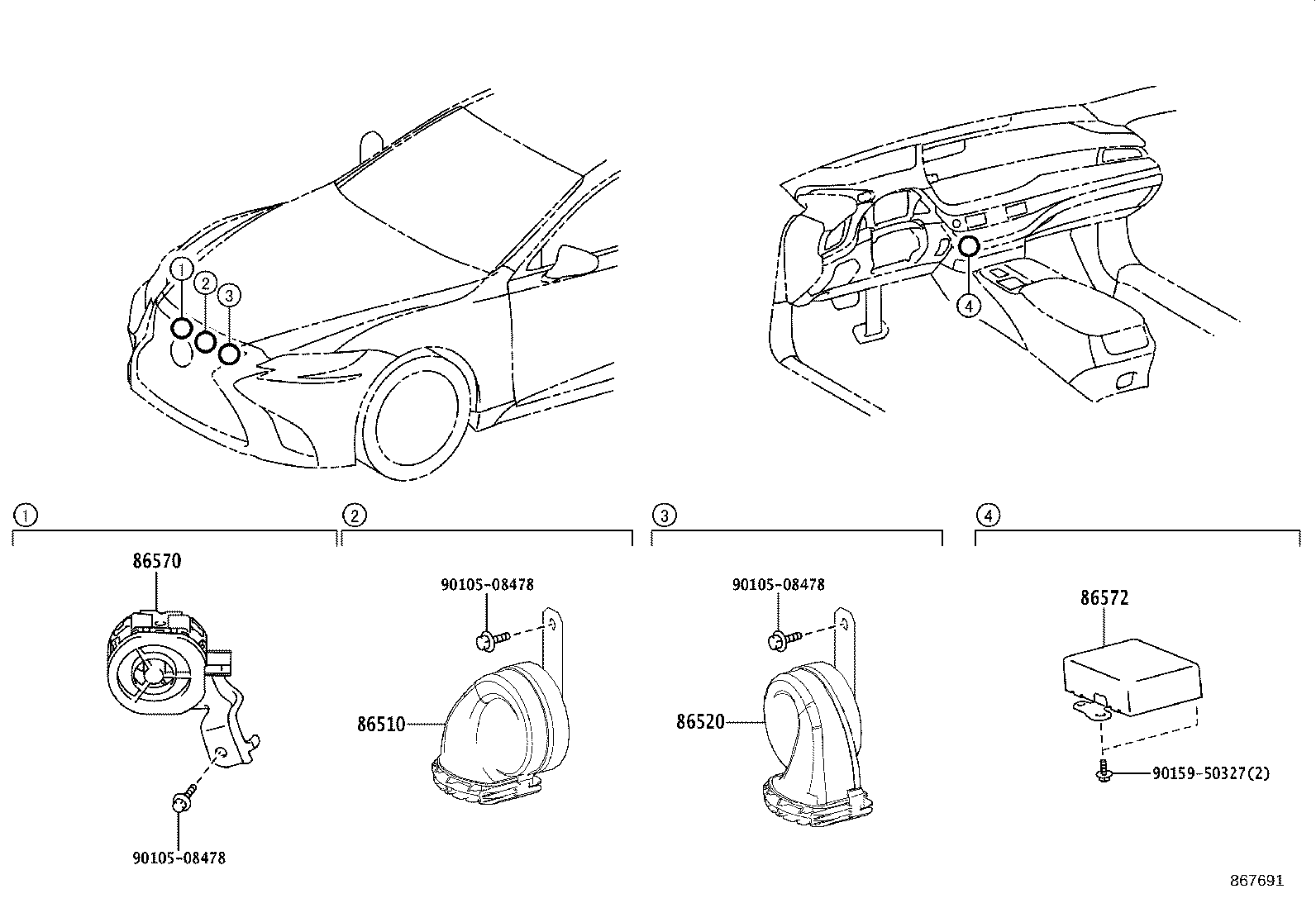

Figure 866953 866953 2017-10 → 2019-09 Figure 867691 867691 2019-09 → —

Part groups

PNCDescription
86510 Horn Assy, High Pitched
86520 Horn Assy, Low Pitched
86570 Speaker Assy, Vehicle Approaching
86572 Controller, Vehicle Approaching Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
