Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433220 · General
Supported model
Data version 2023-05

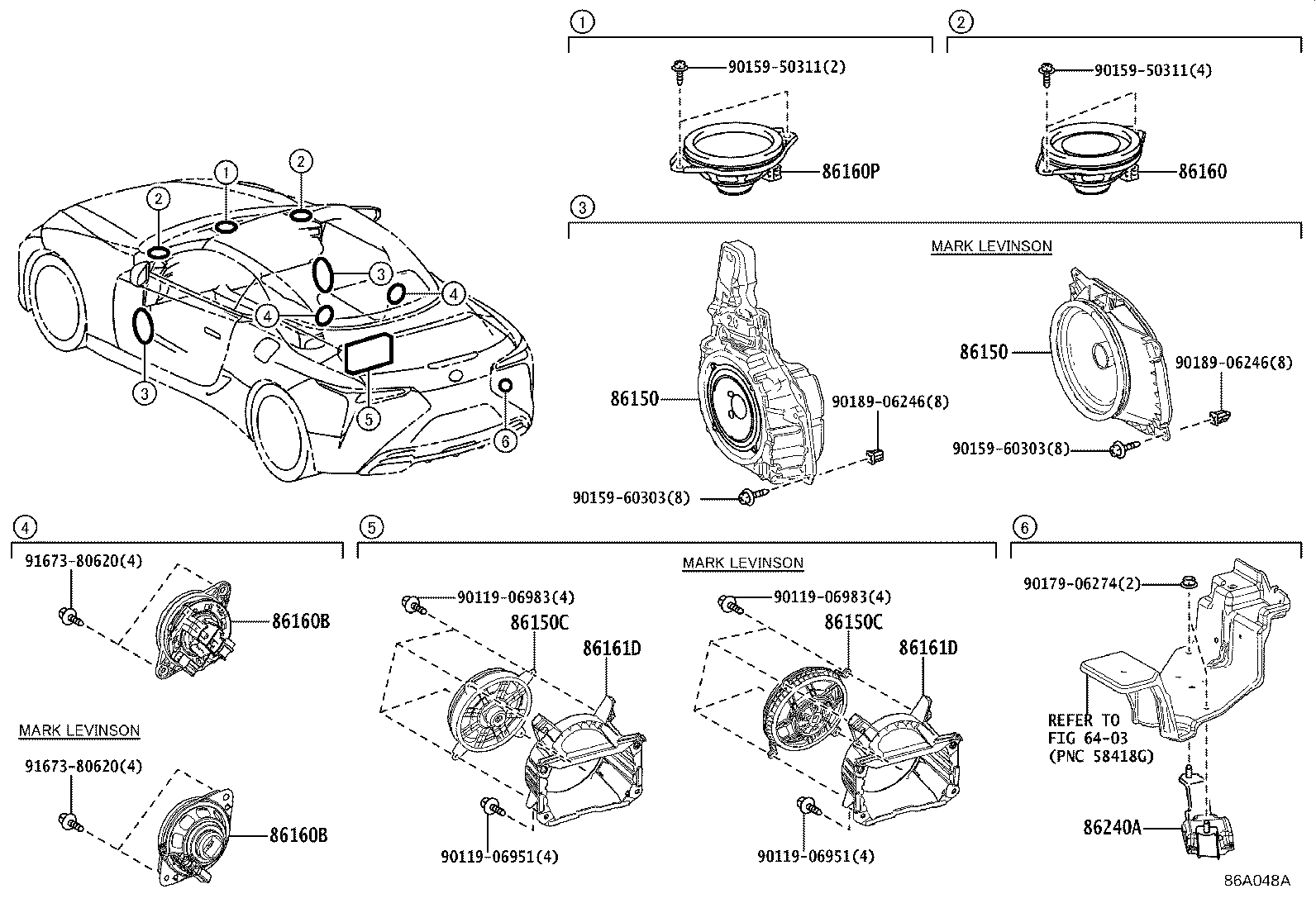

Speaker
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86150C | Speaker Assy, W/Box, NO.3 |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160P | Speaker Assy, Front NO.2 |
| 86161D | Bracket, Speaker Mounting, NO.1 |
| 86168 | Cover, Speaker Mounting |
| 86240A | Equalizer Assy,Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
