Toyota Lexus LC500/500H(CP)

2017-03 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

19 part groups · 3 illustrations

Illustrations

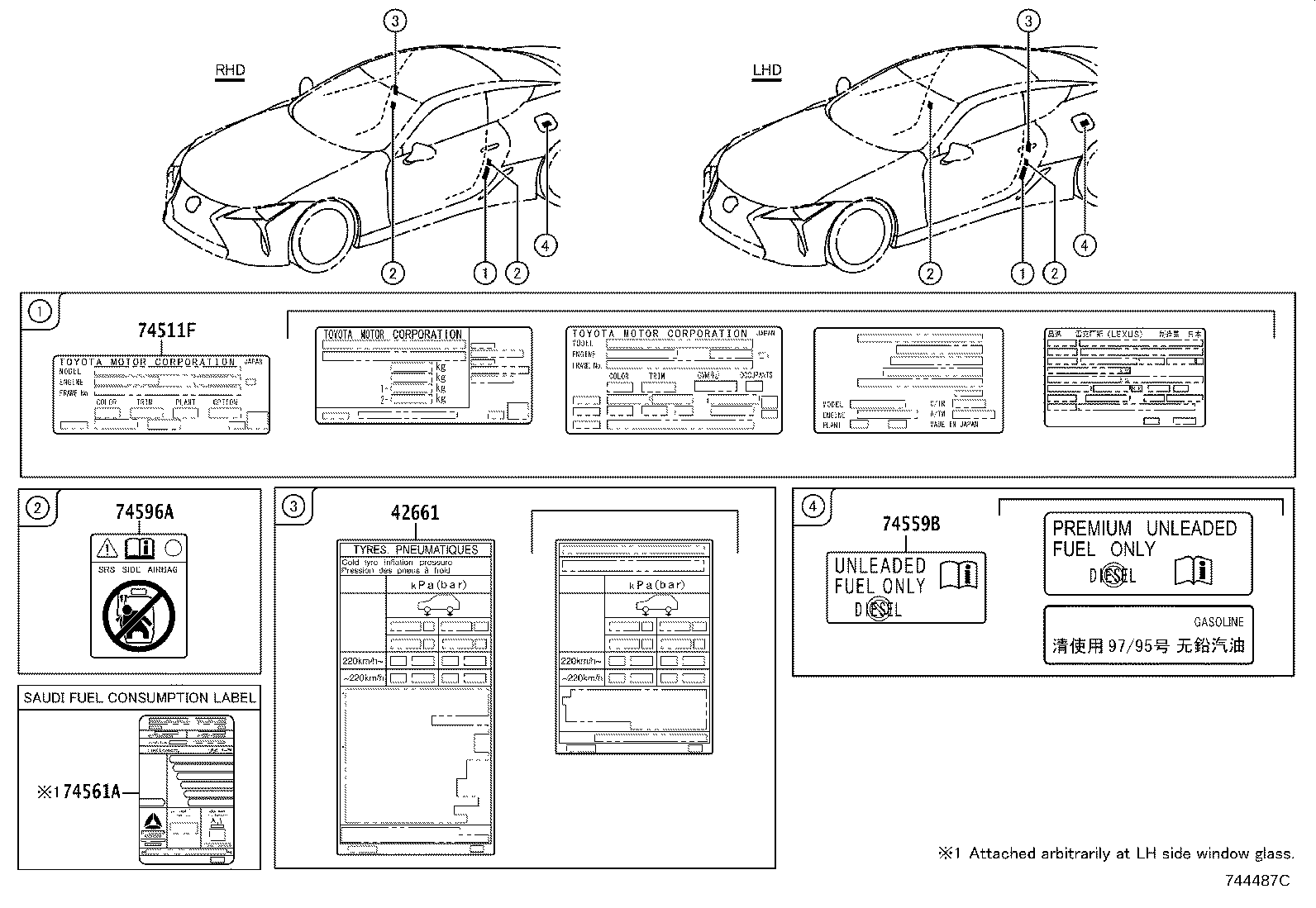

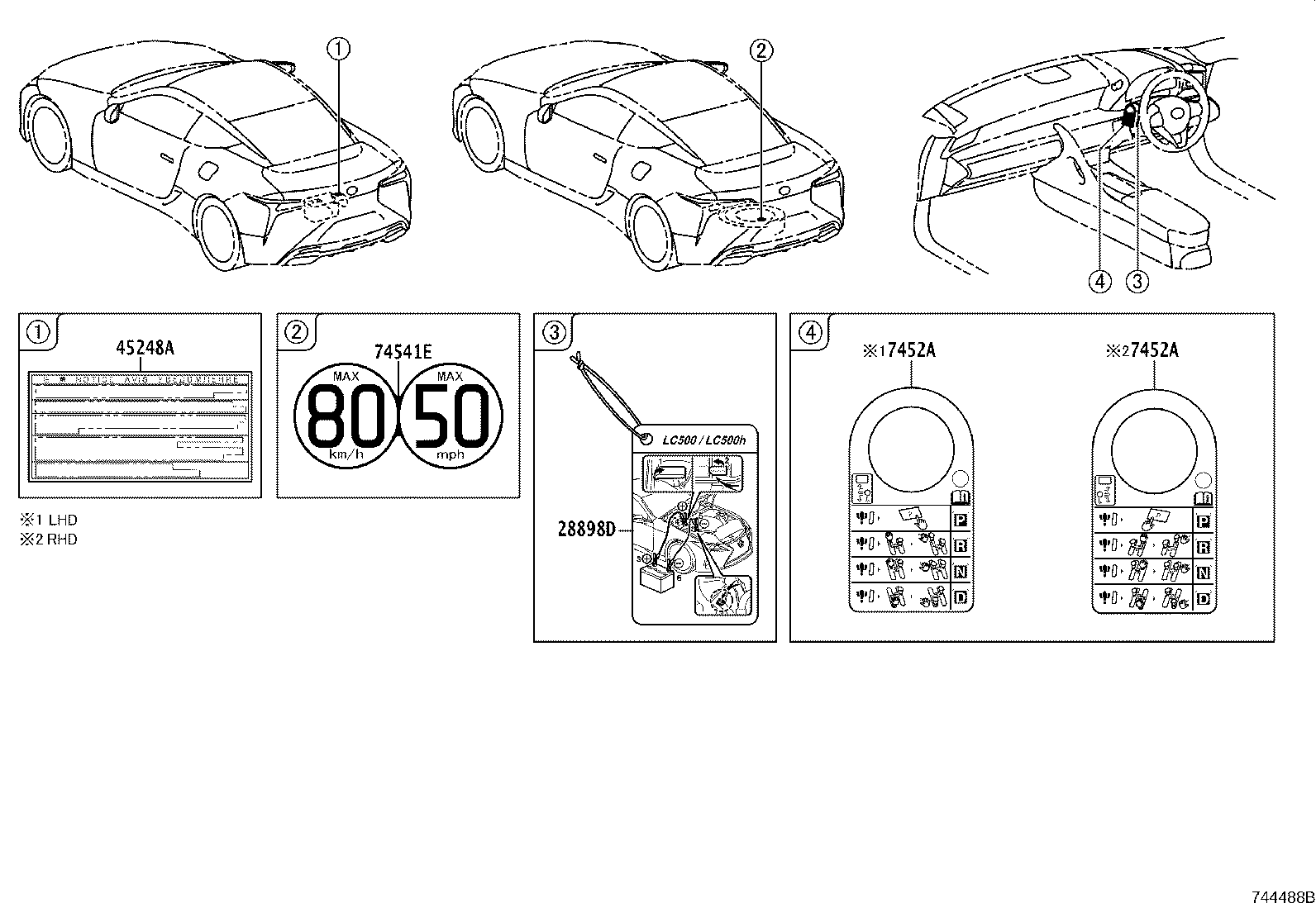

Figure 744486F 744486F 2017-03 → — Figure 744487C 744487C 2017-03 → — Figure 744488B 744488B 2017-03 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11293D Label, Engine Caution
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
28812A Label, Sub-battery Information
28898D Label, Battery Information
42661 Label, Tire Pressure Information
45248A Label, Steering Actuator Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515C Label, Theft Warning Information
7452A Label, Shift Control Information
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74596A Label, Side Airbag Caution
81192A Seal, Headlamp
88723J Label, Cooler Service Caution, NO.2
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
